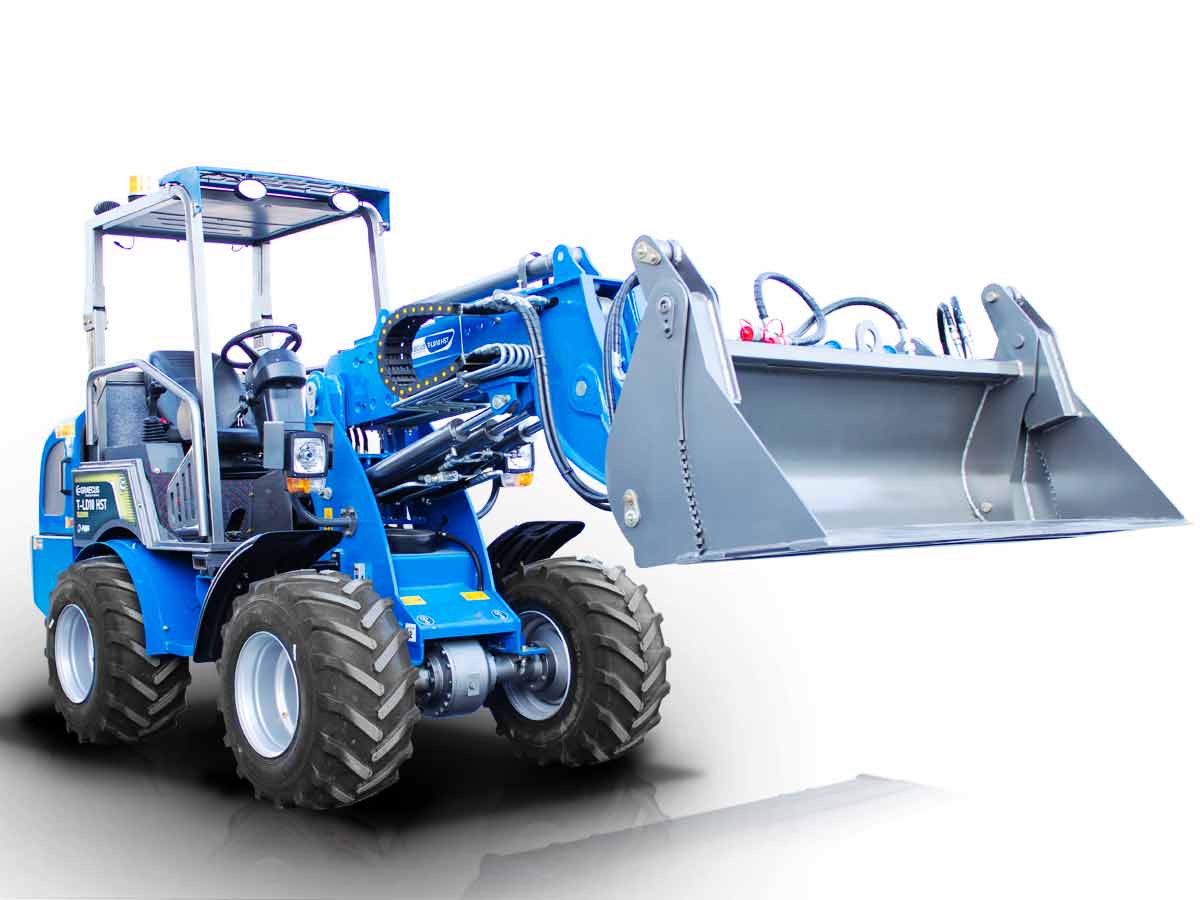

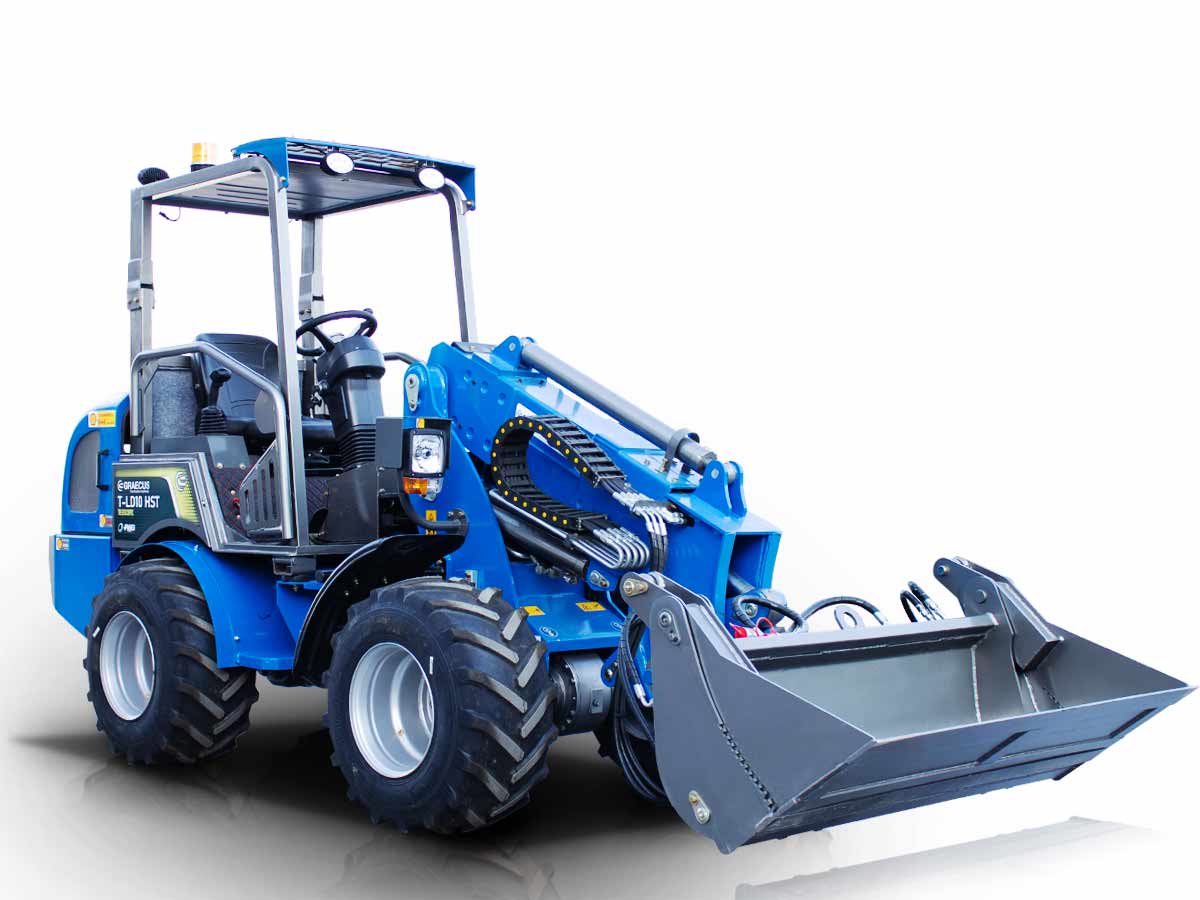

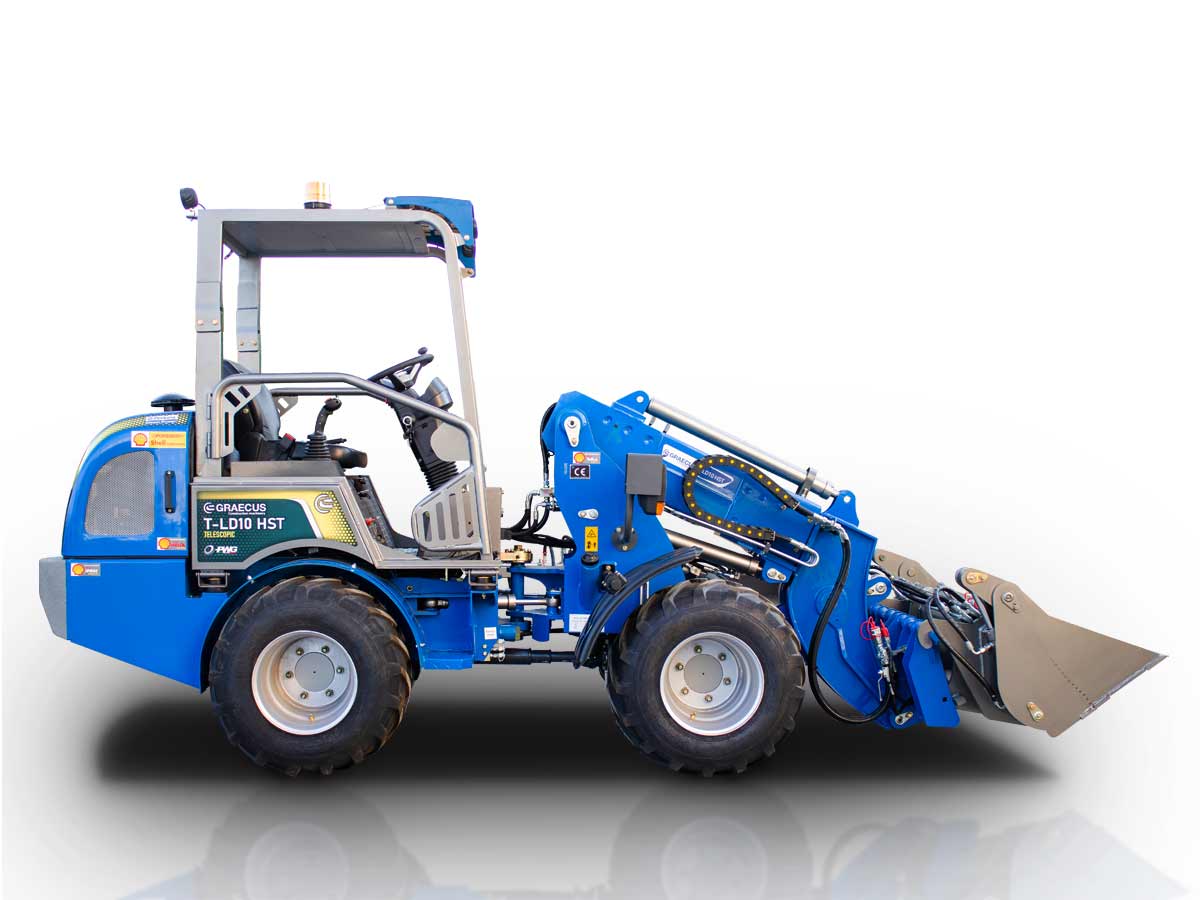

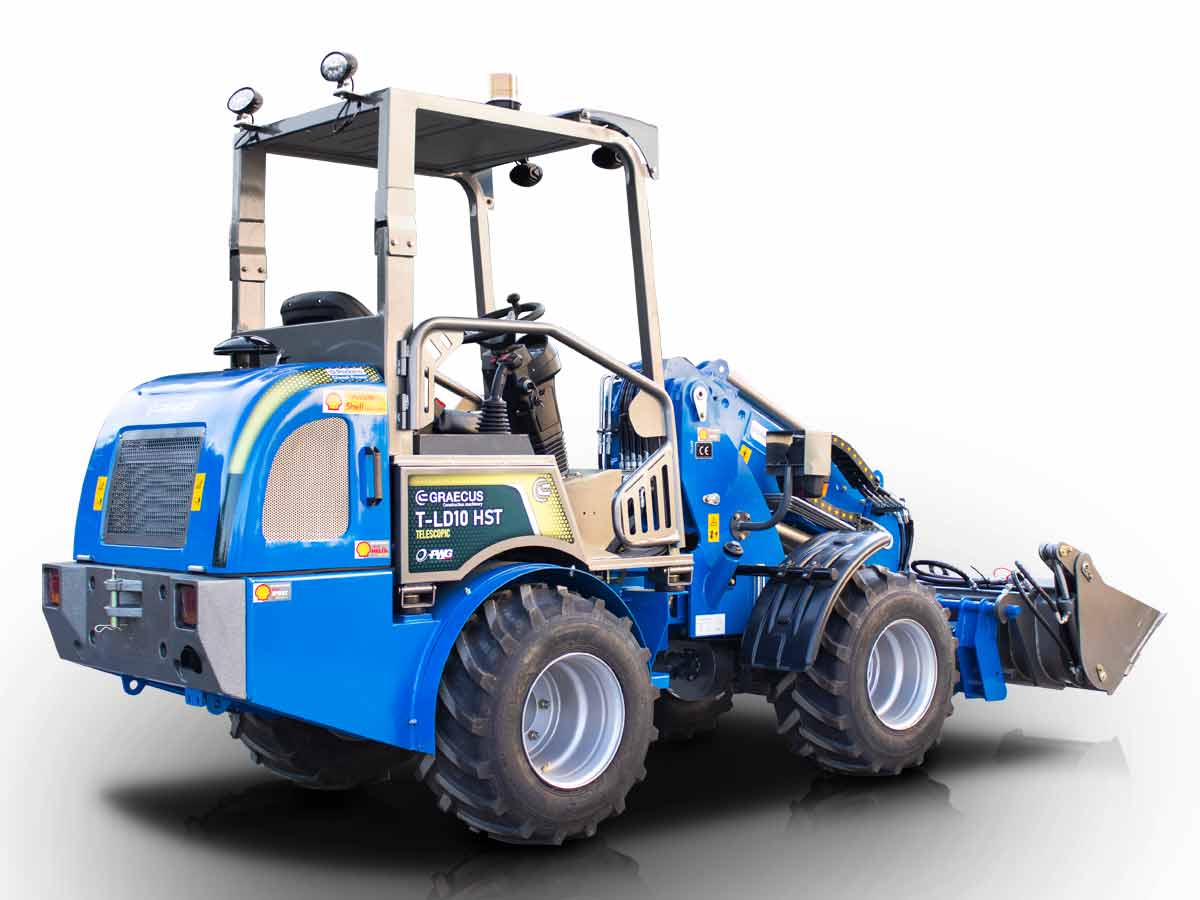

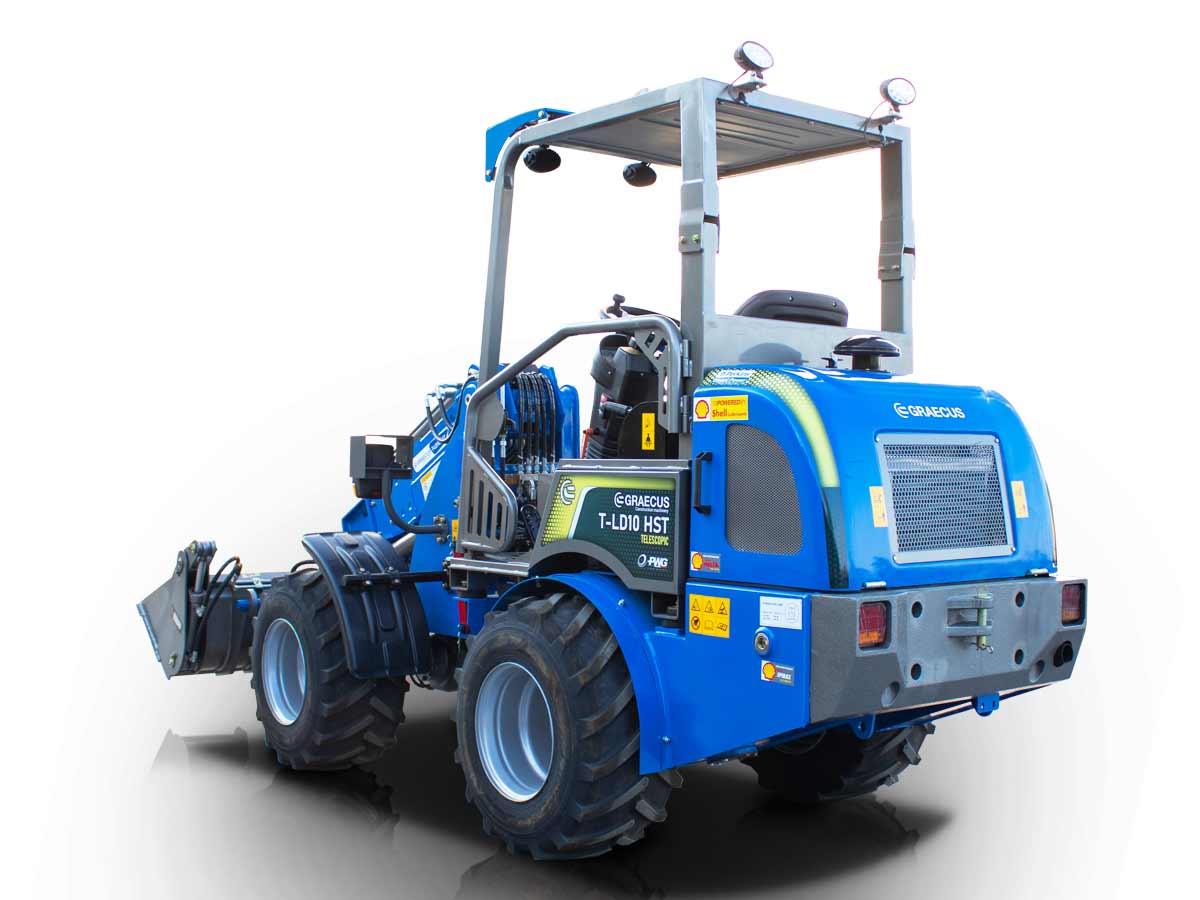

Telescopic Hydrostatic Wheeled Loader T-LD10

Telescopic Hydrostatic Wheeled Loader 4×4 4WD | STAGE-V

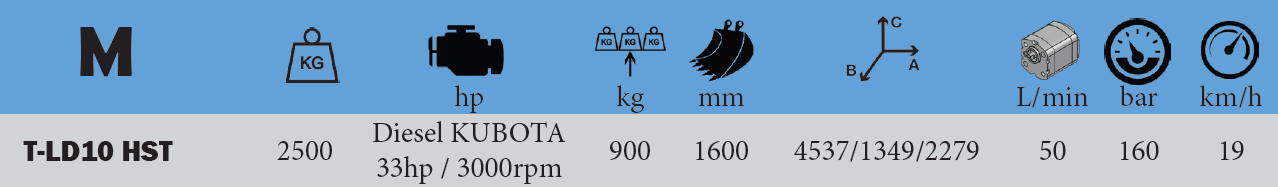

  • Maximum load capacity: 1500 kg, maximum lifting capacity: 900 kg.
  • Maximum lift height (at the pin): 3446 mm.

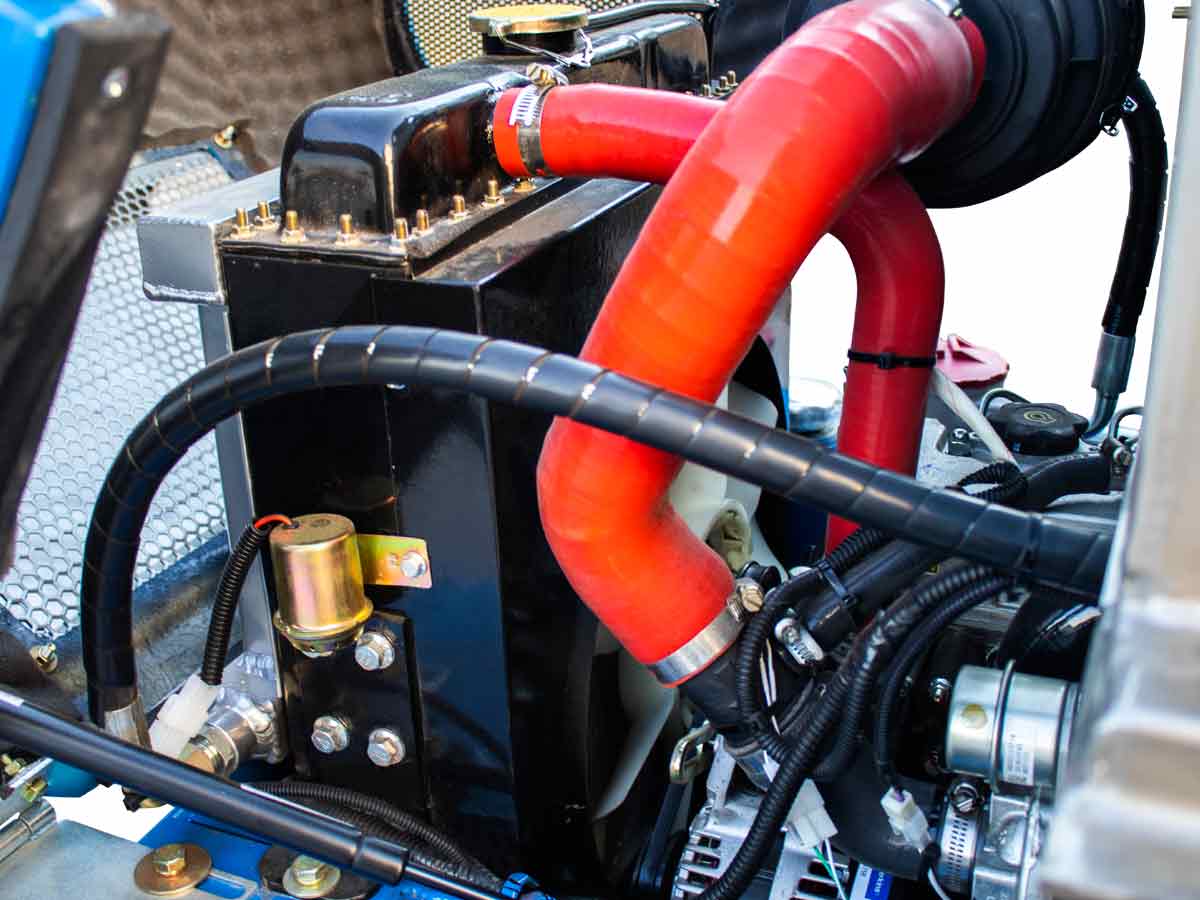

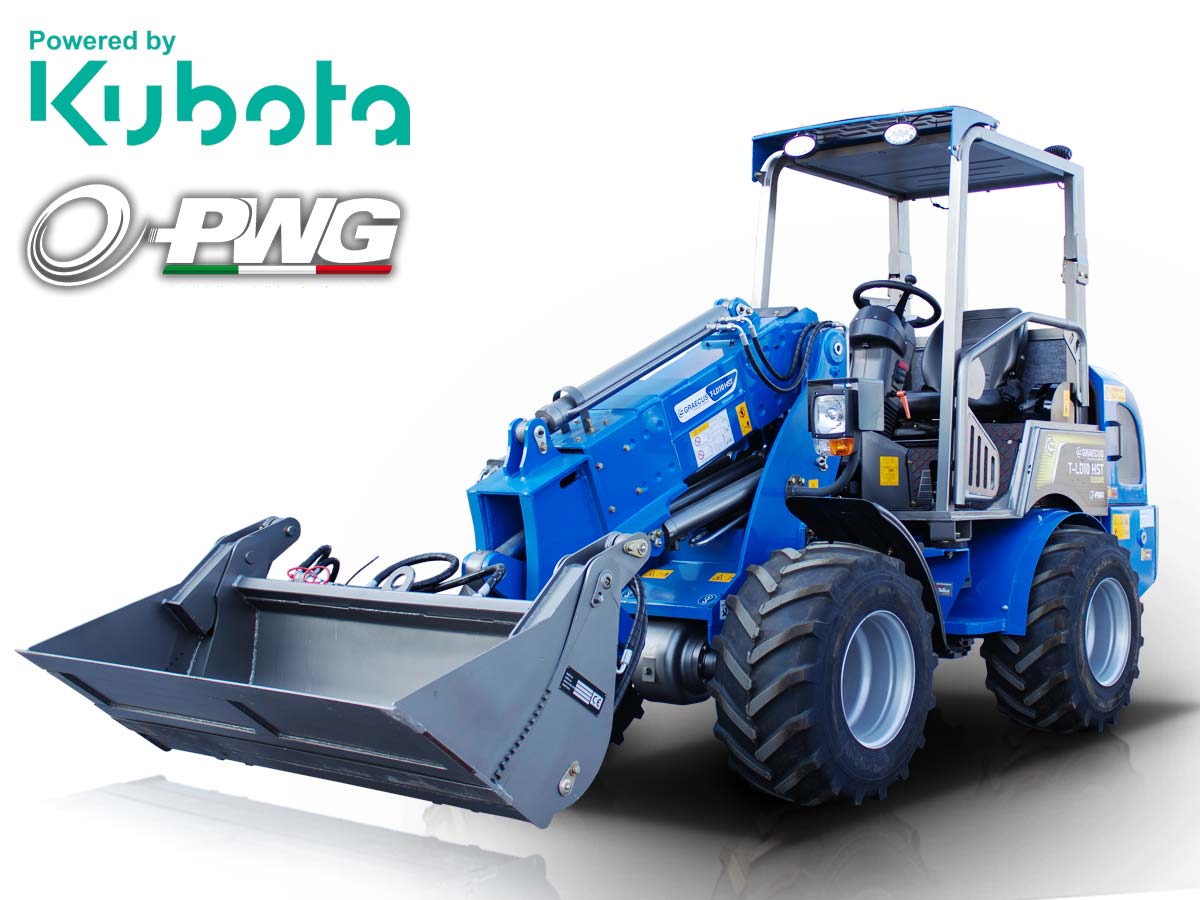

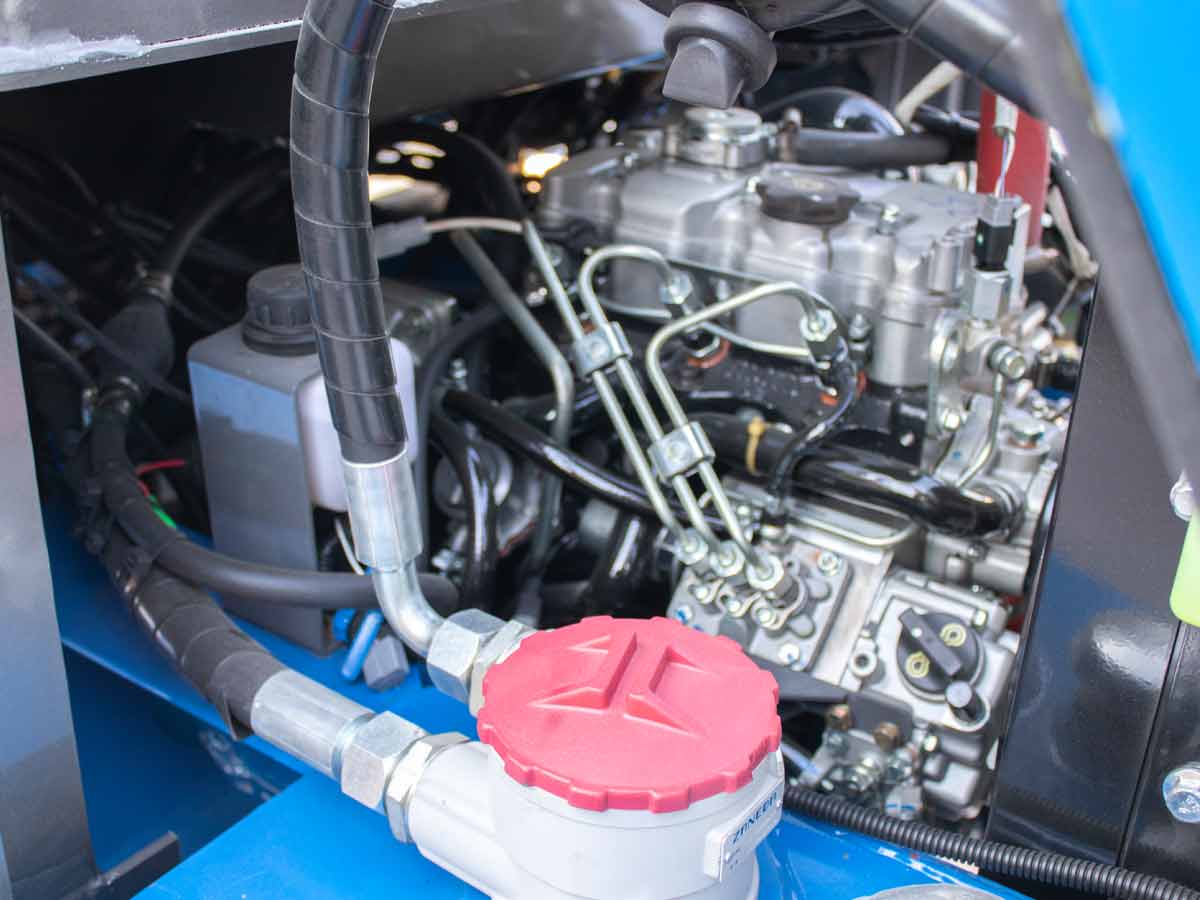

  • Four-cylinder water-cooled KUBOTA V1505 diesel engine, 25 hp at 2300 rpm, with a maximum output of 33 hp at 3000 rpm, new generation STAGE V with low fuel consumption.

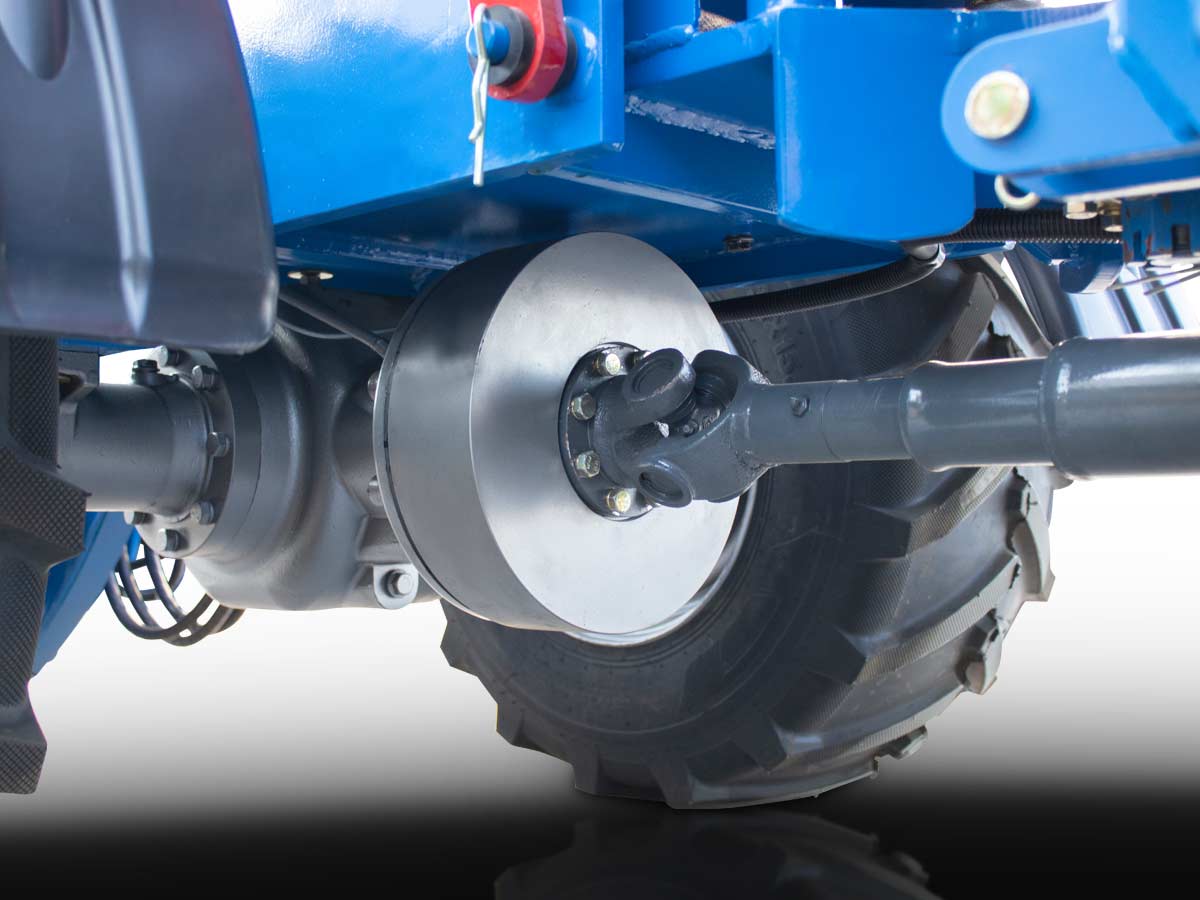

  • Four-wheel drive (4×4) provides impressive power and flexibility, allowing it to operate even in the most demanding conditions.
  • Selectable 2-speed function (low/high) with Hi-Lo switch.

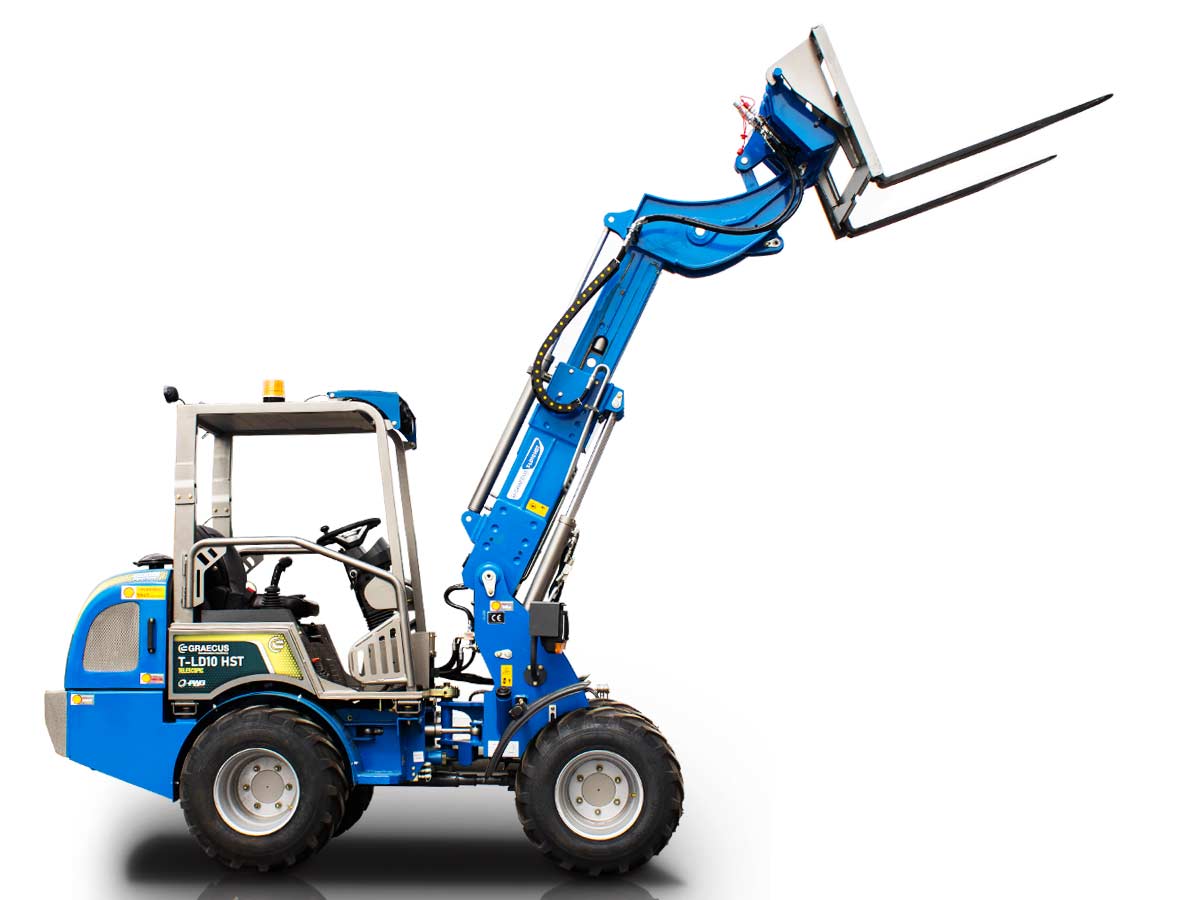

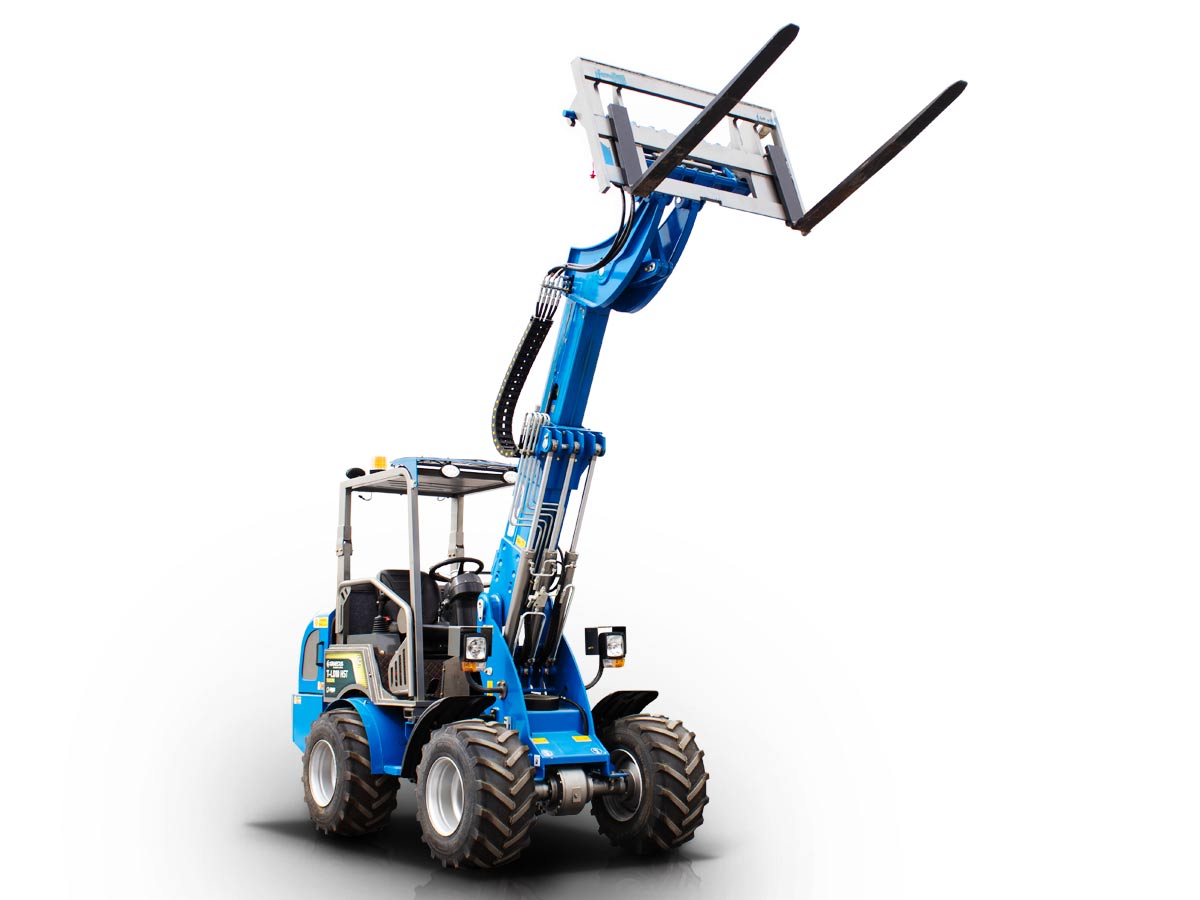

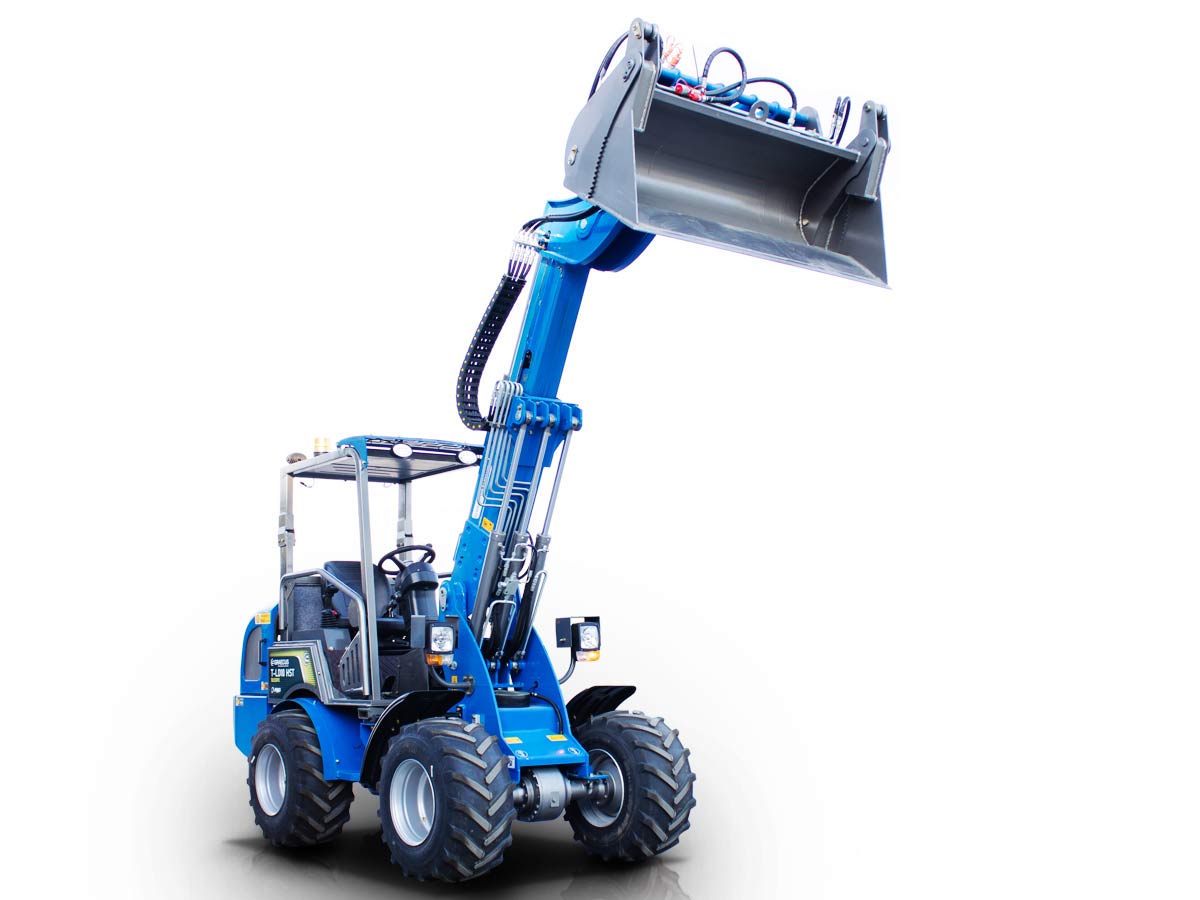

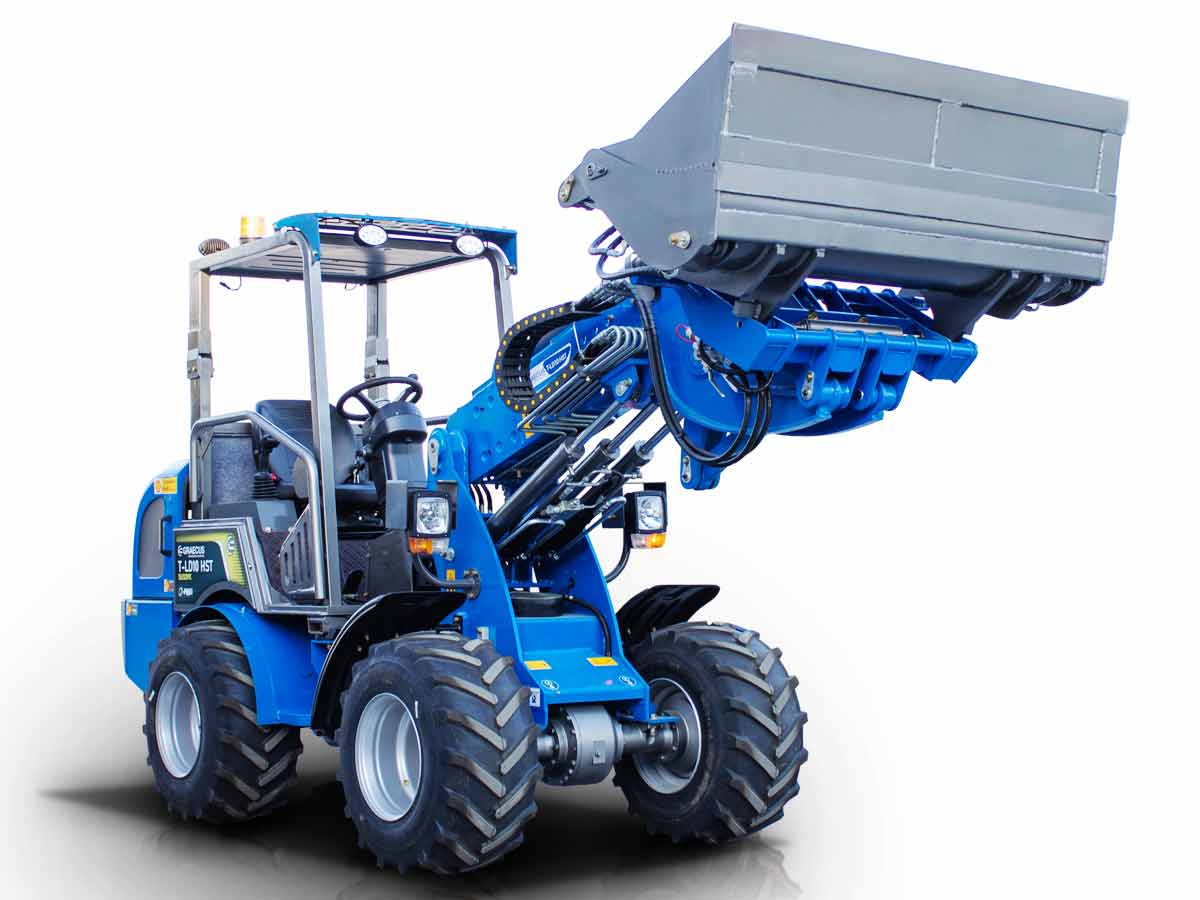

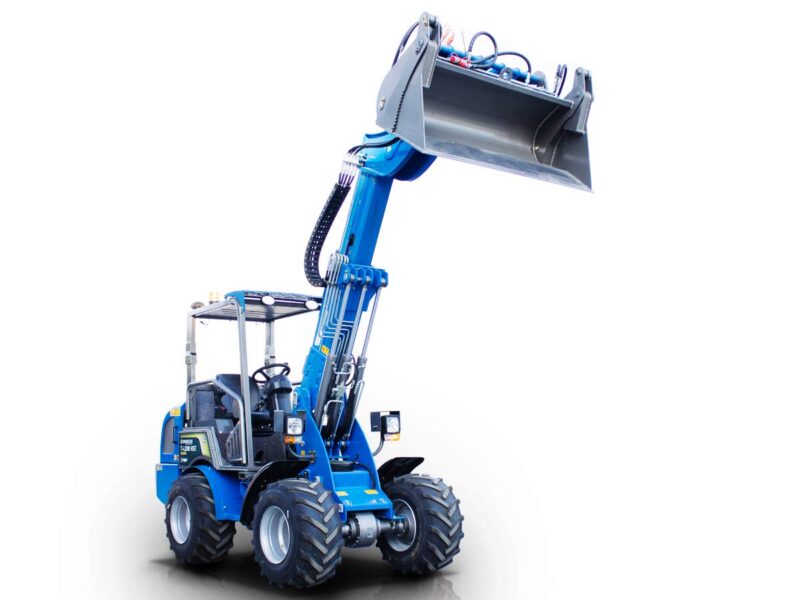

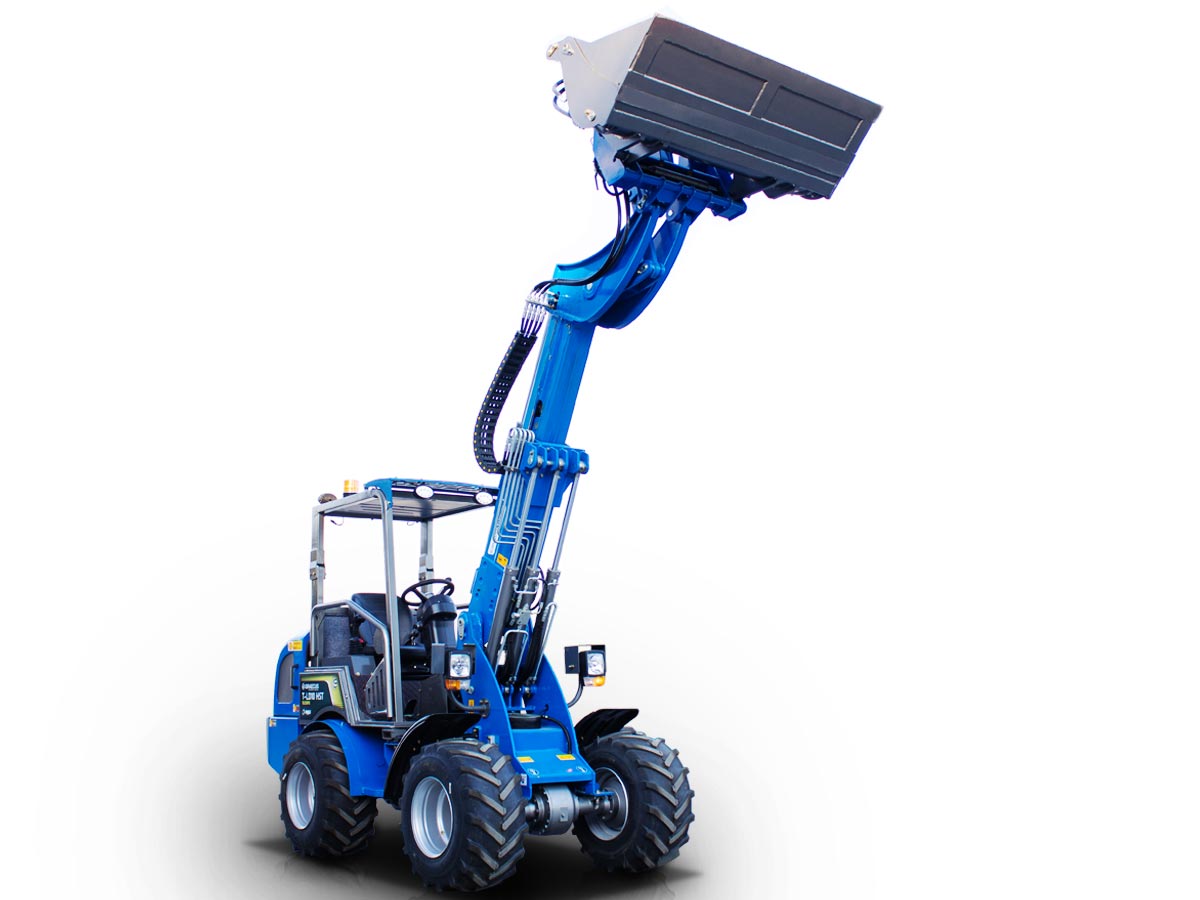

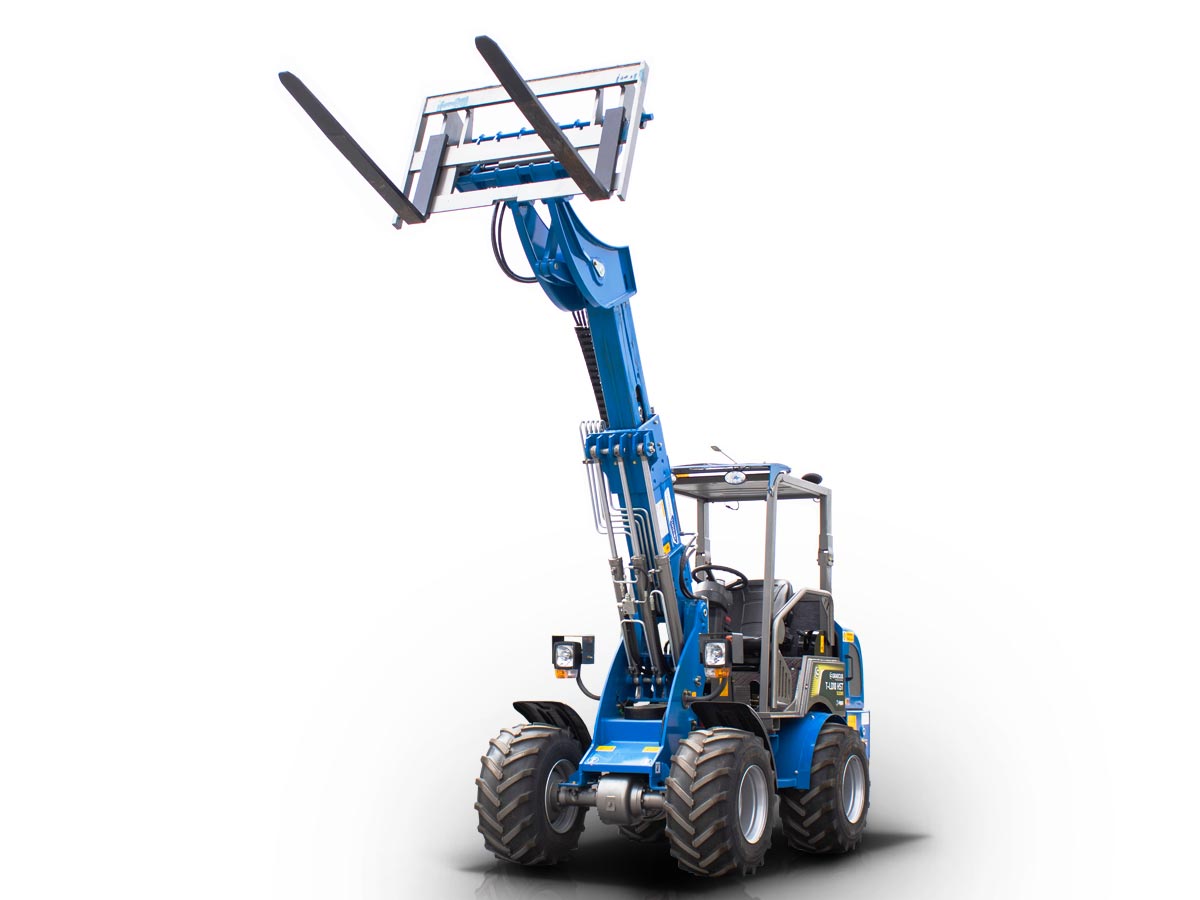

  • Mini articulated wheeled loader known for its compact design and maneuverability, suitable for all kinds of unusual tasks. Features a reinforced telescopic arm for increased lift height.

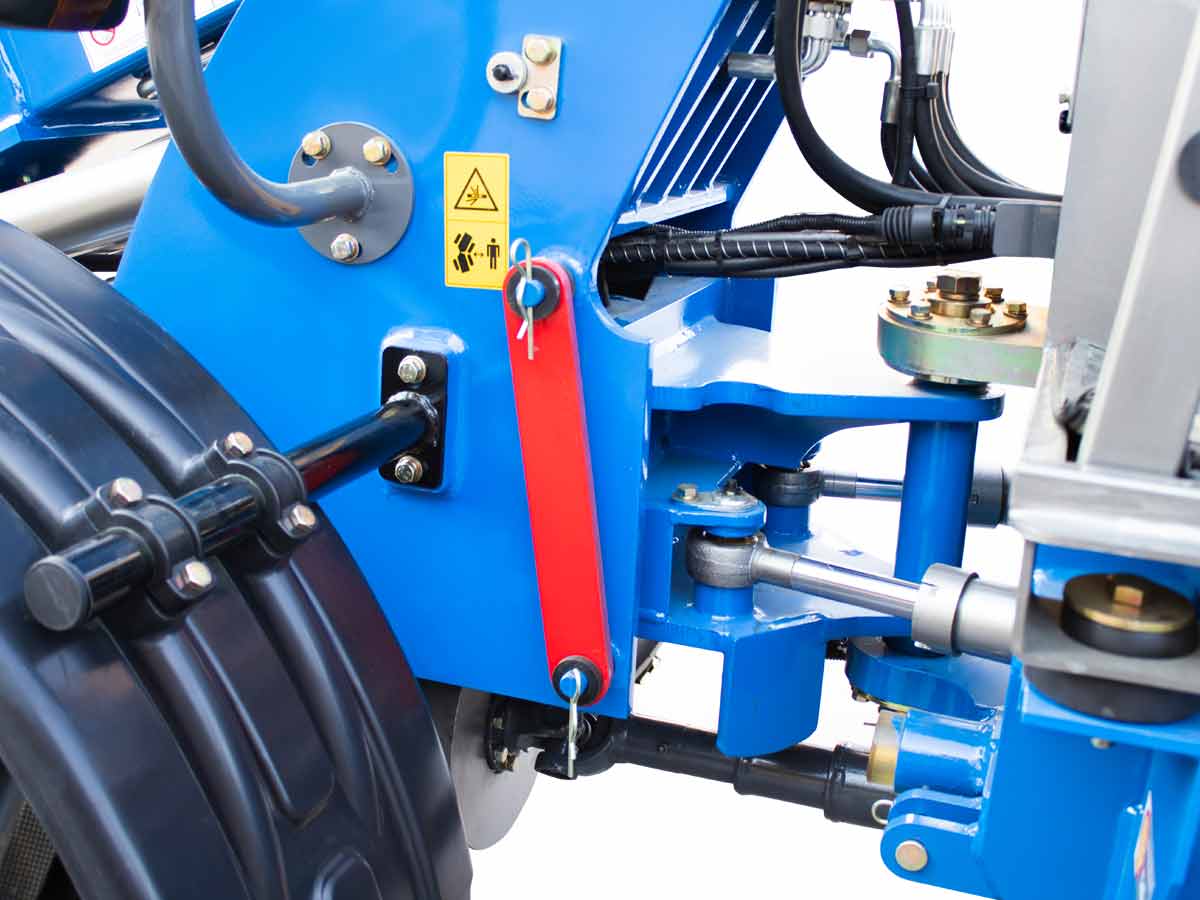

  • The wheelbase, narrow outer width of 1349 mm, and articulated frame make it highly agile even in the tightest spaces, with an inner turning radius of 1360 mm and outer radius of 2795 mm.
  • The angled loading arm is designed to be especially sturdy and torsion-resistant. The benefit of P-kinematics lies in precise parallel movement throughout the lifting range.

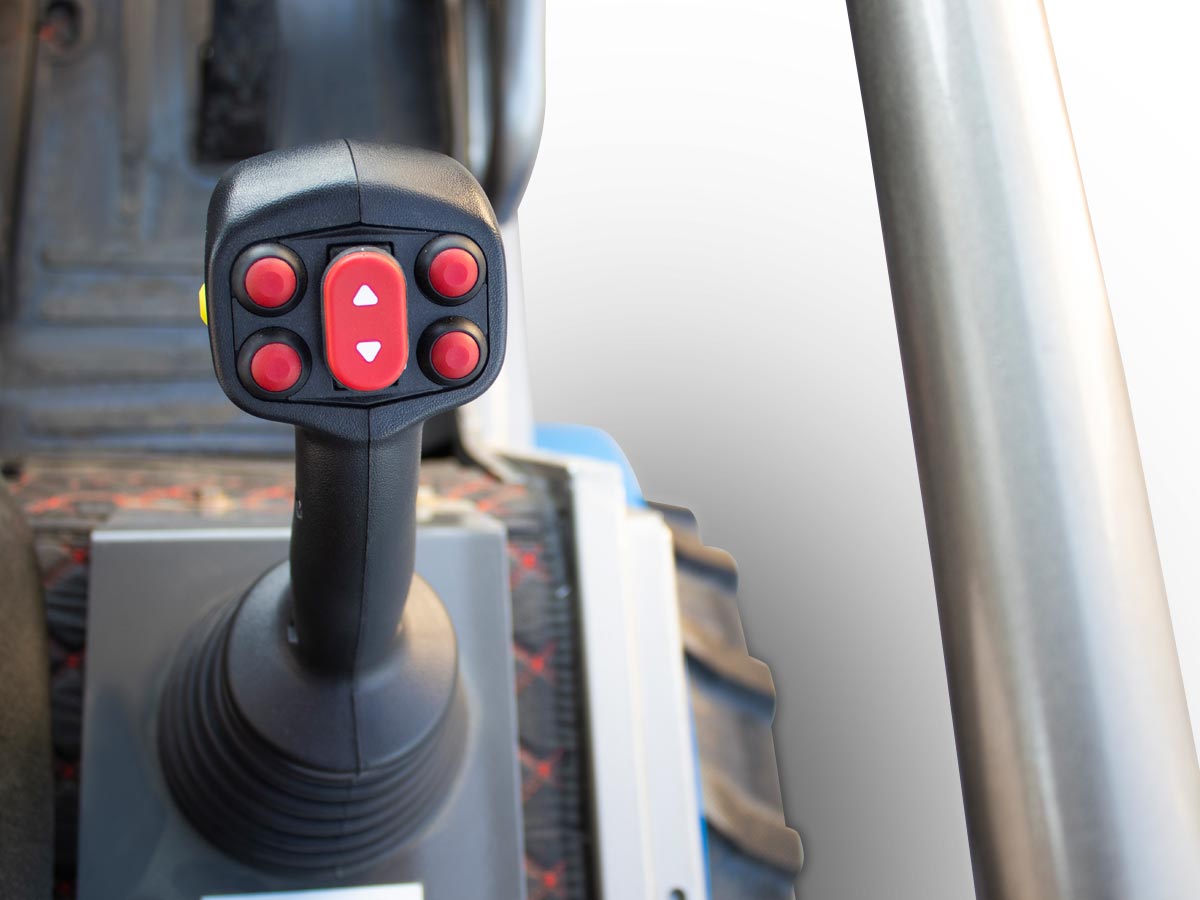

  • Ergonomic joystick — both strong and responsive. All operations, including telescopic movement, are controlled from a single joystick, giving the operator full control of the machine and its key functions.

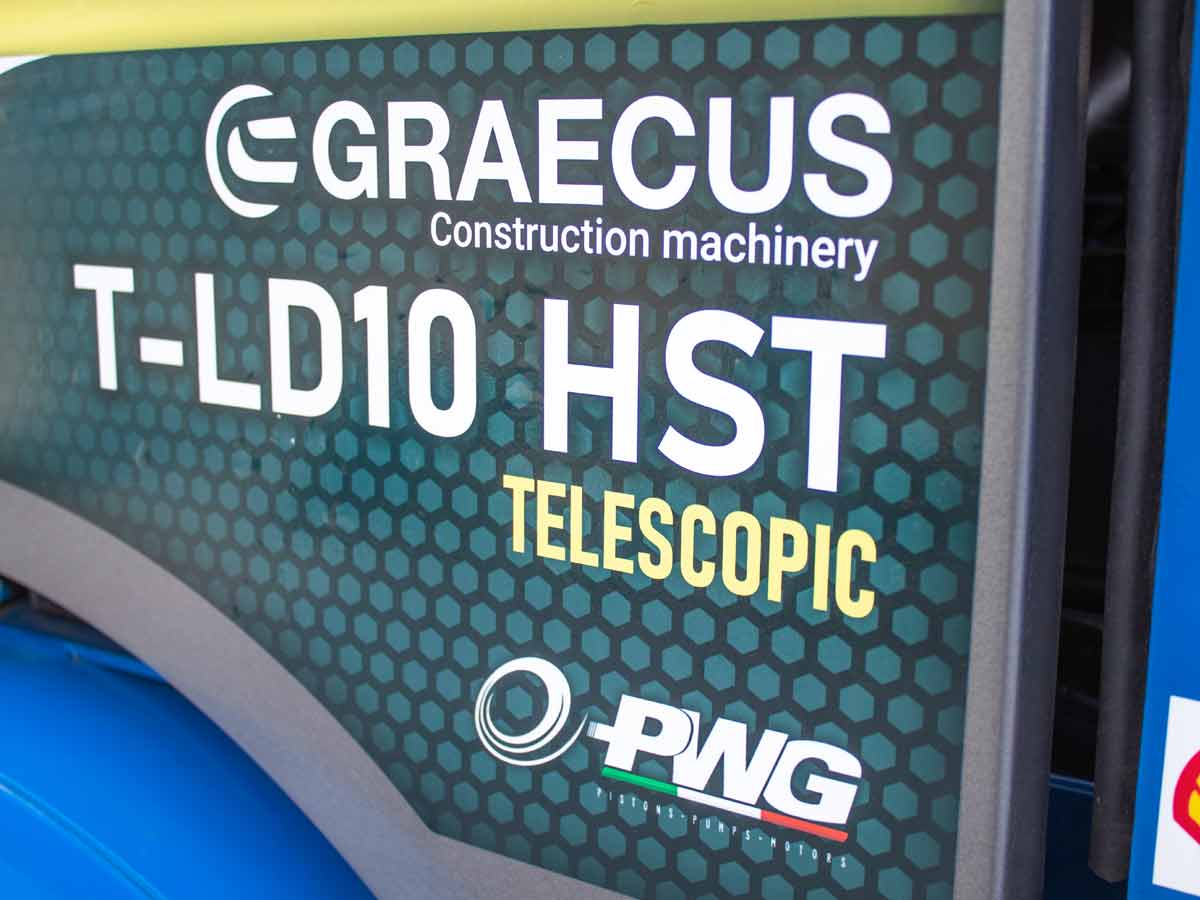

  • Top-tier performance guaranteed by Italian PWG: hydrostatic transmission, hydraulic pump, hydraulic steering system, and drive hydraulics.

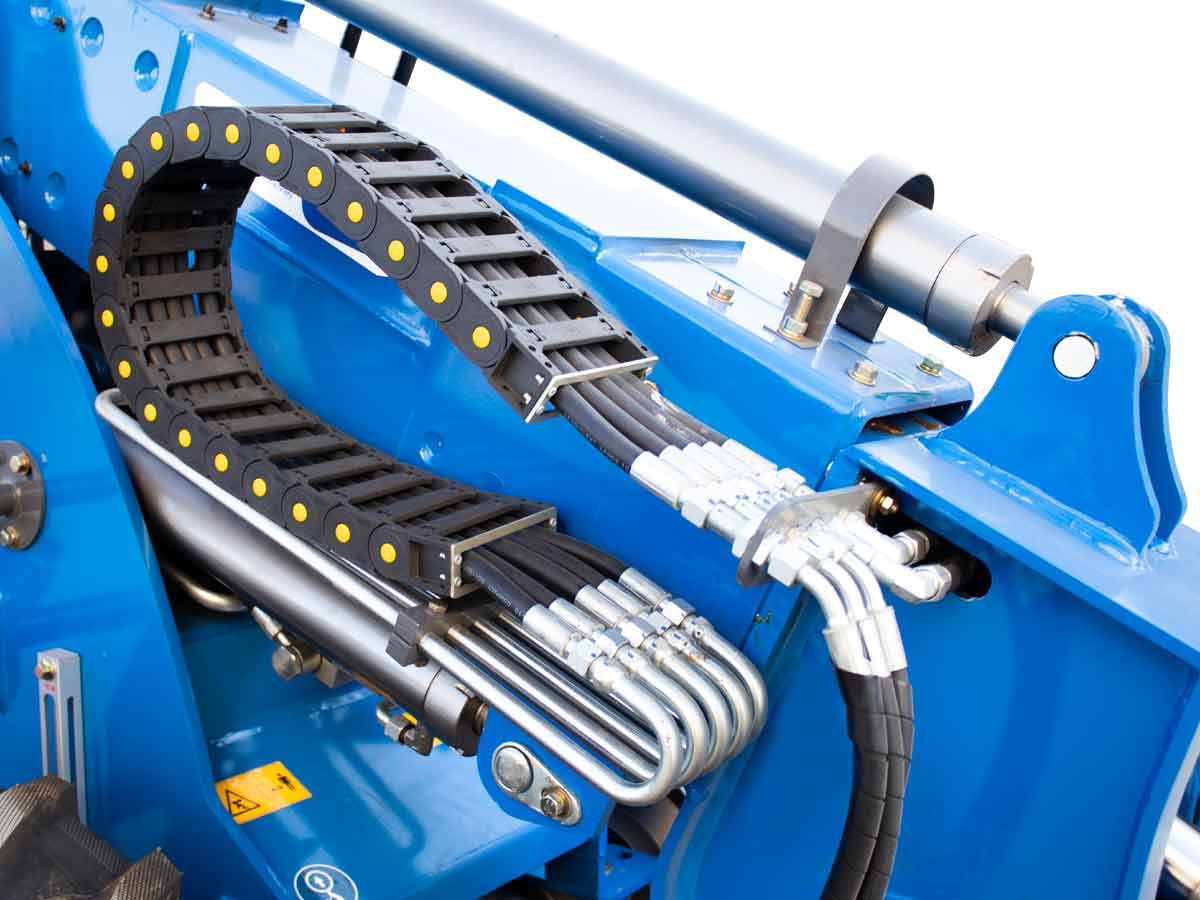

  • Third hydraulic line included for future connection of additional attachments (double-acting line).

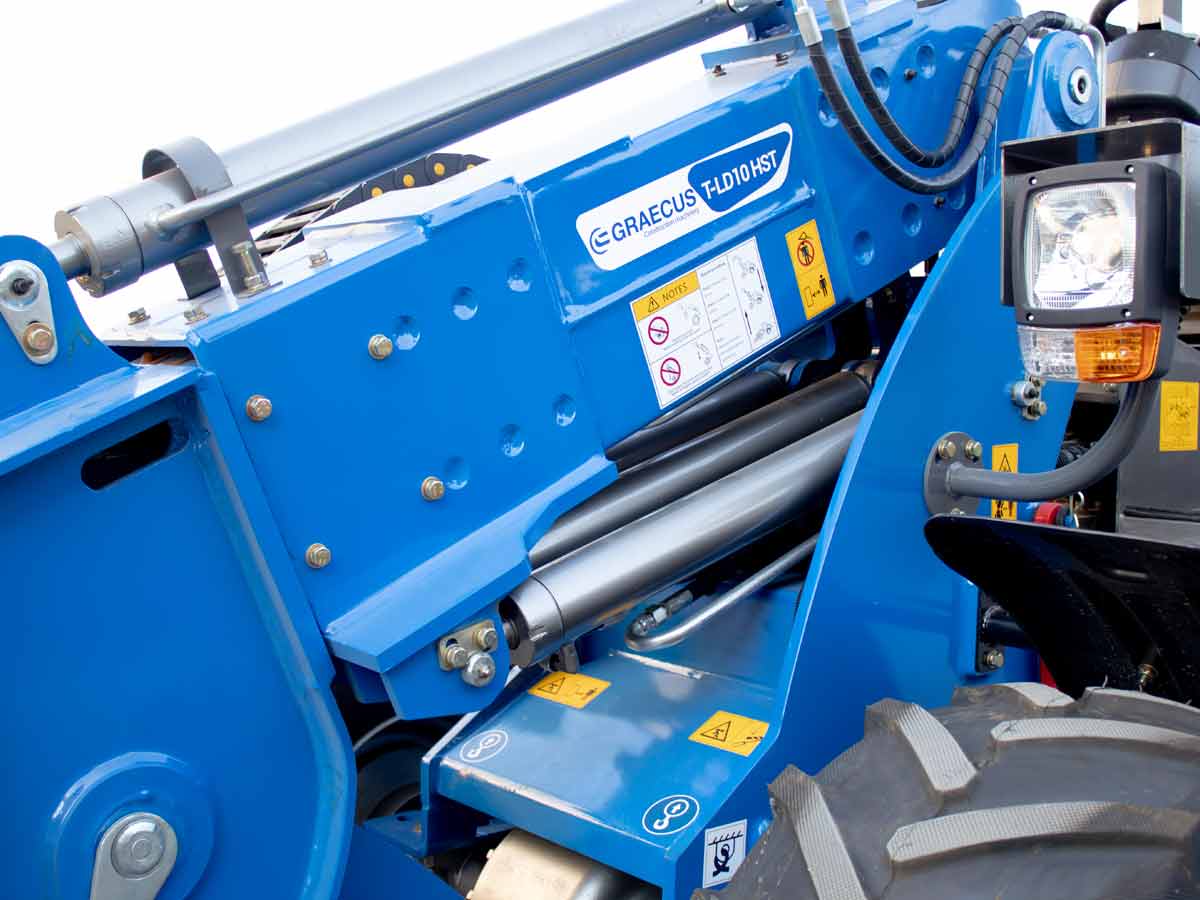

  • A larger and stronger hydraulic lift cylinder ensures optimal load distribution to the arm, providing maximum stability.

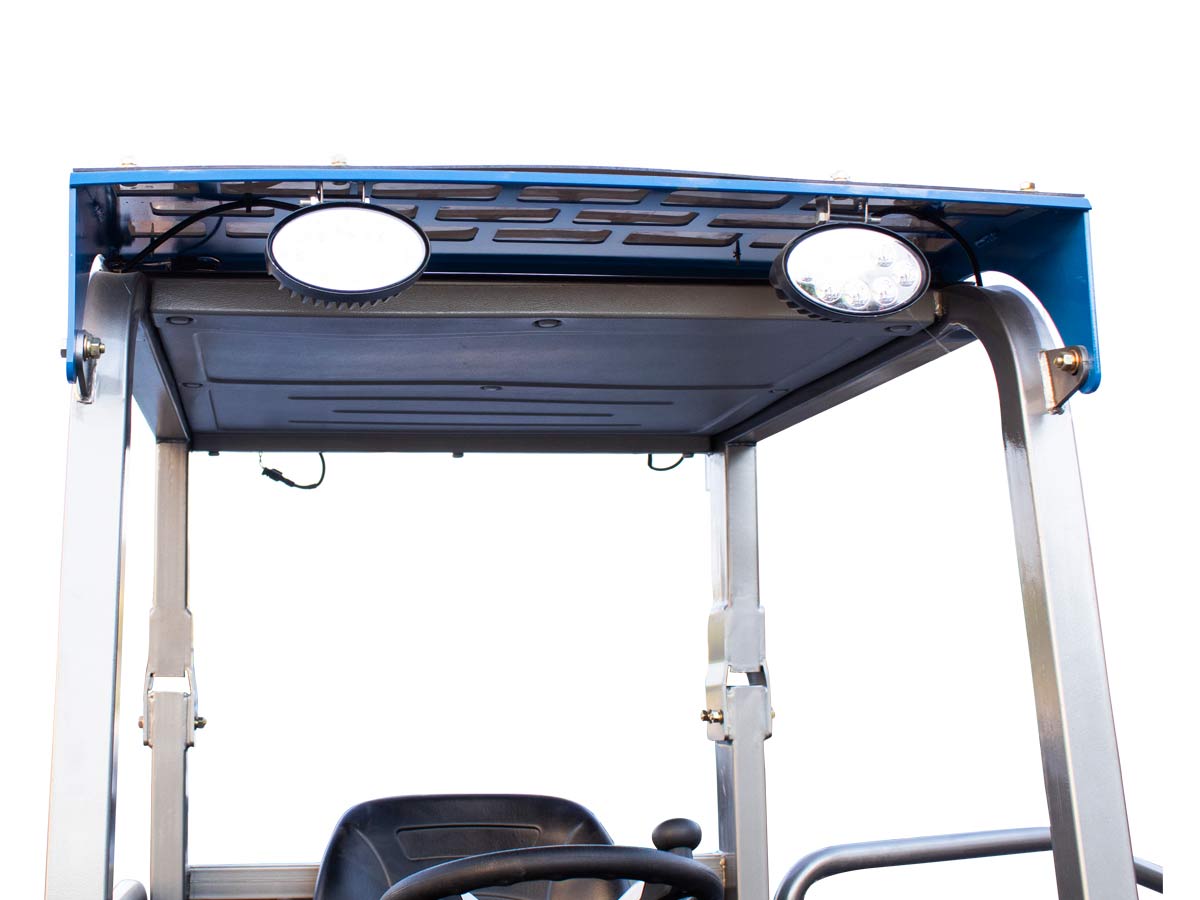

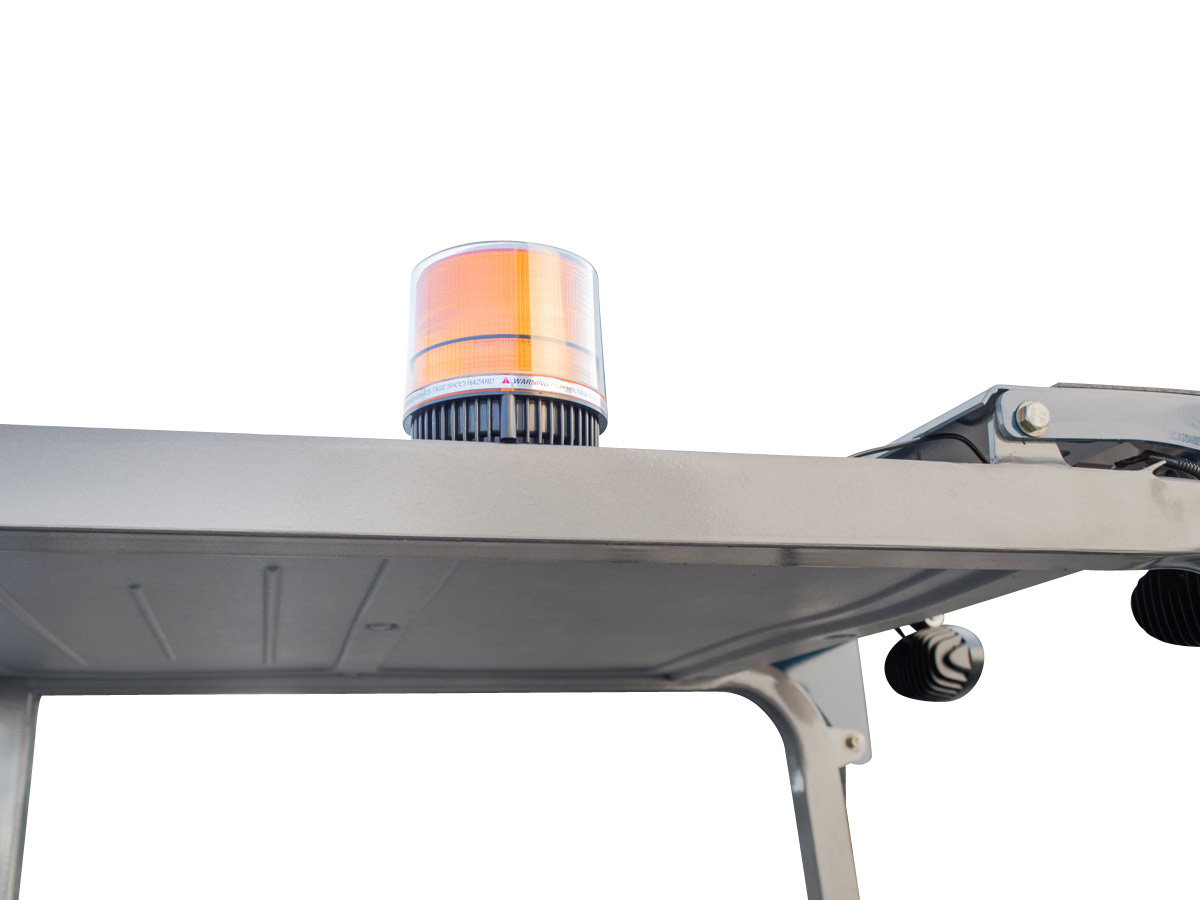

  • New-generation high-spec canopy for enhanced visibility and safety.

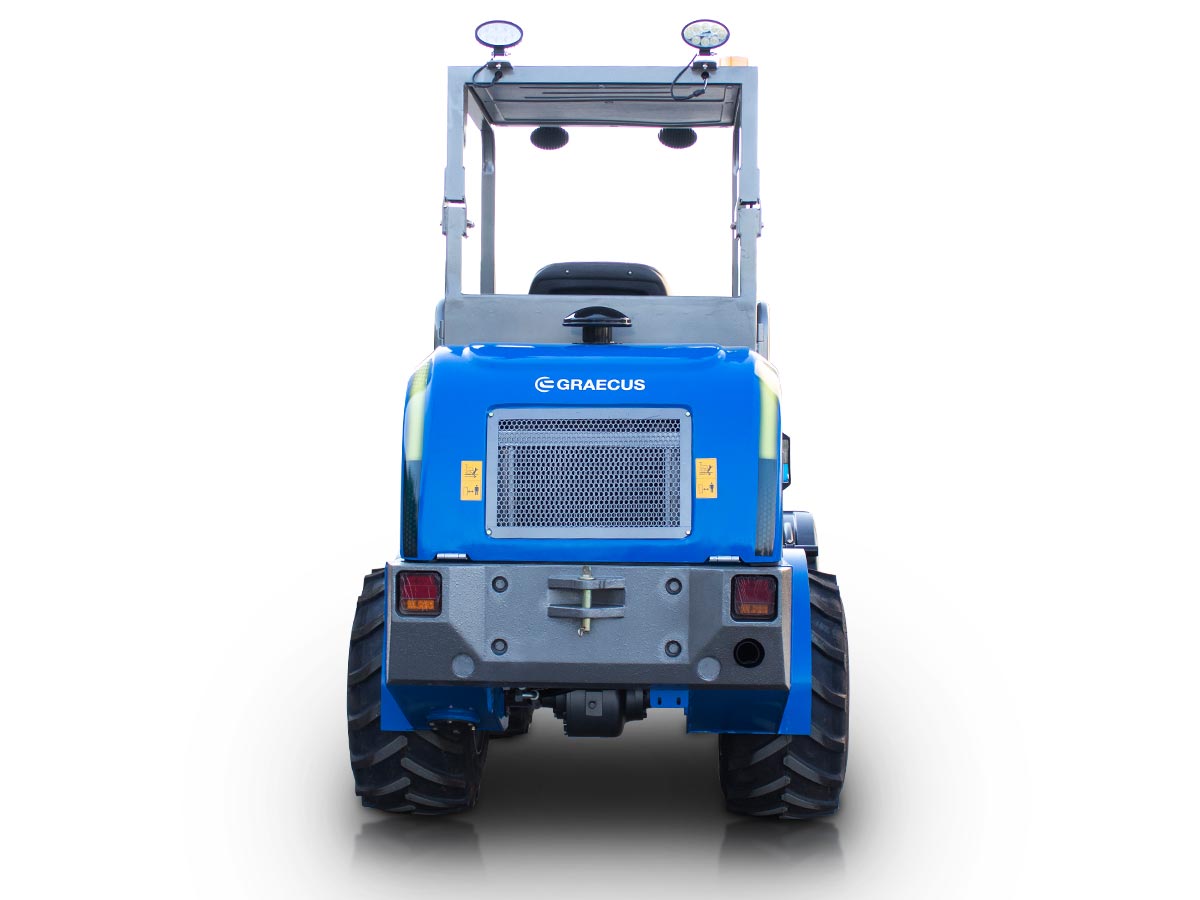

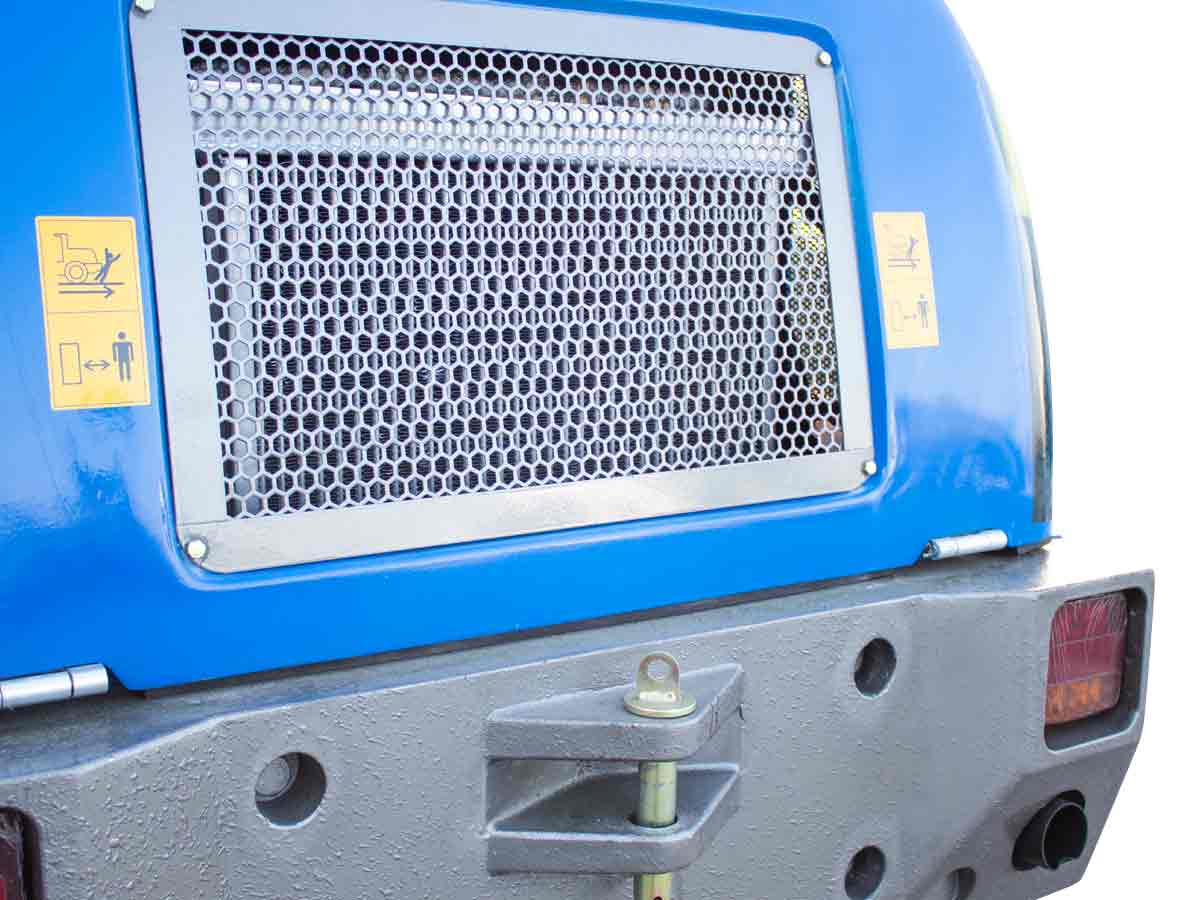

  • Cast rear counterweight significantly improves the loader’s balance.

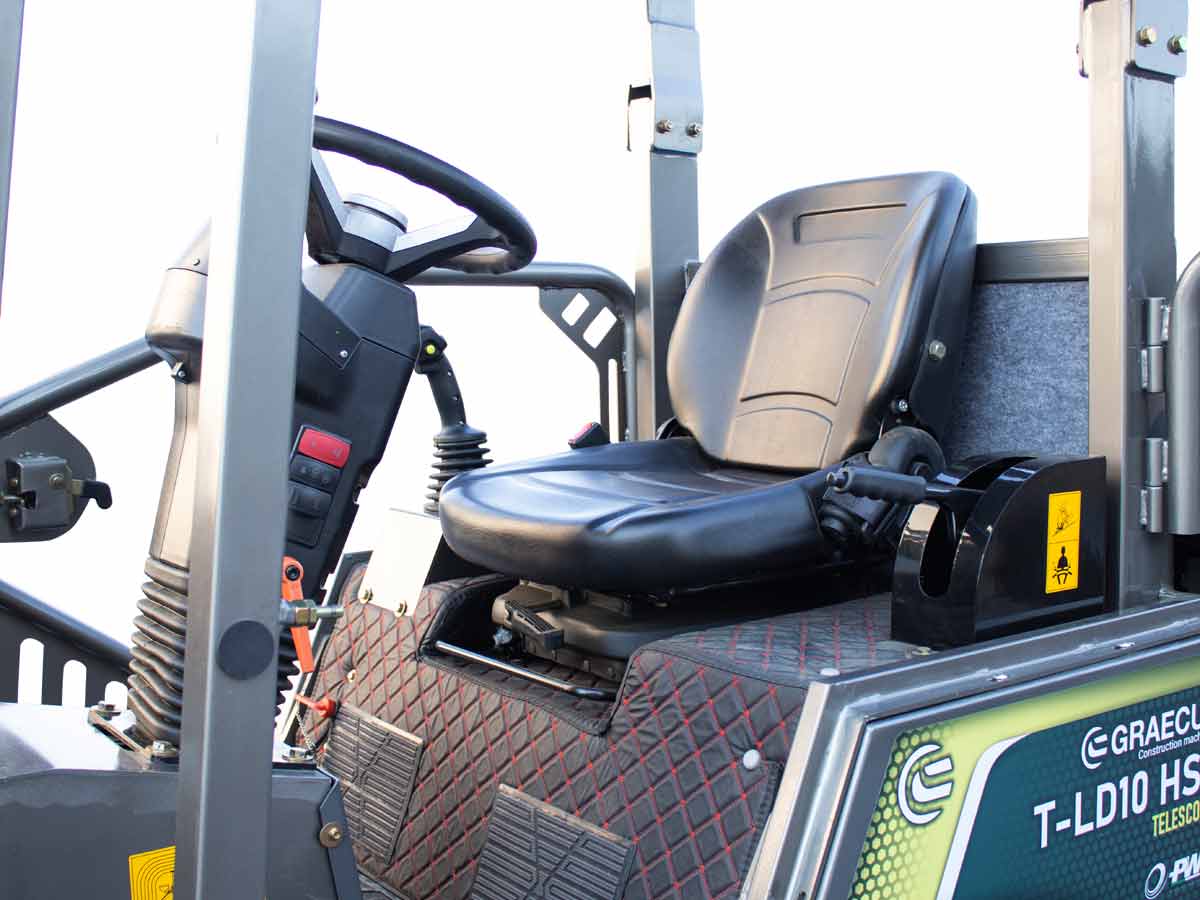

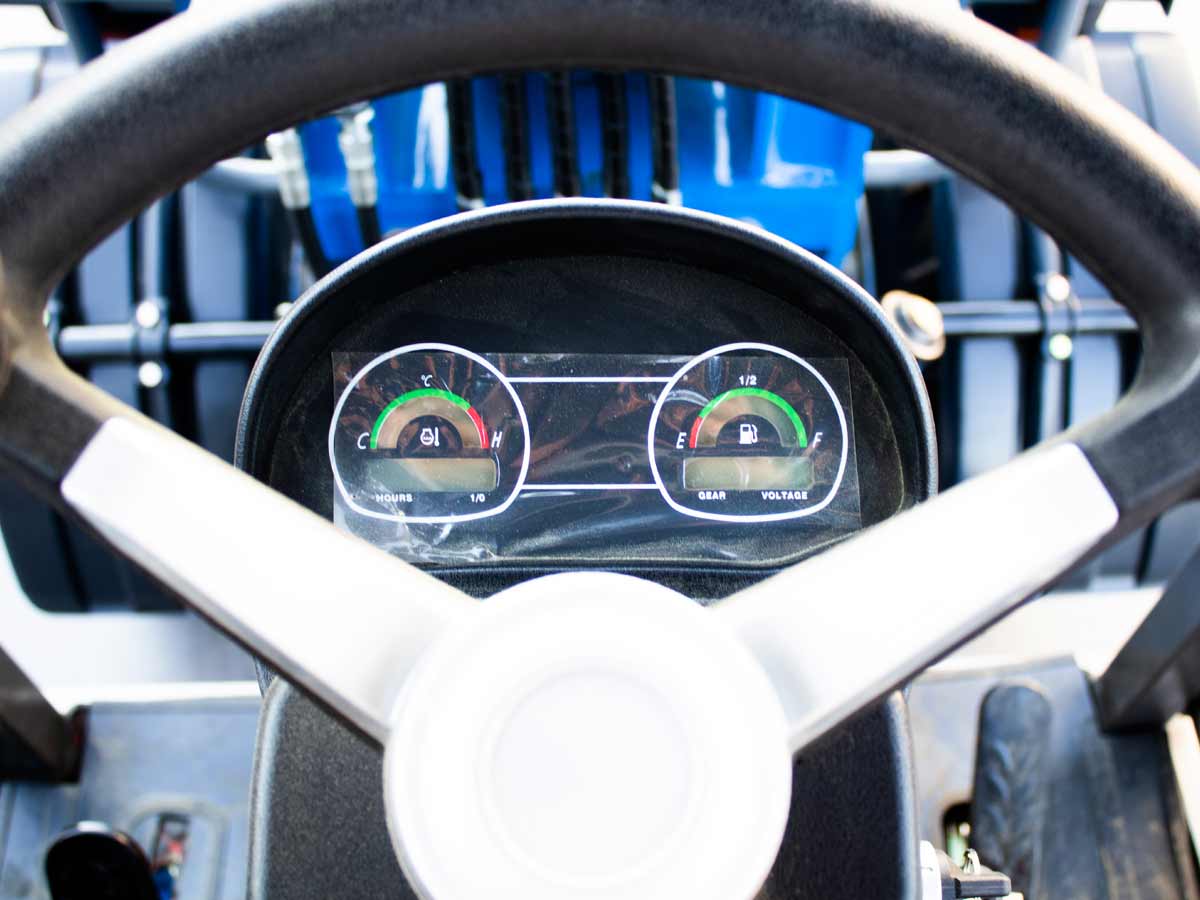

  • Steering column adjustable to the operator, ensuring ergonomic and fatigue-free operation.
  • Quick attachment connection via Euro-hitch quick coupler.

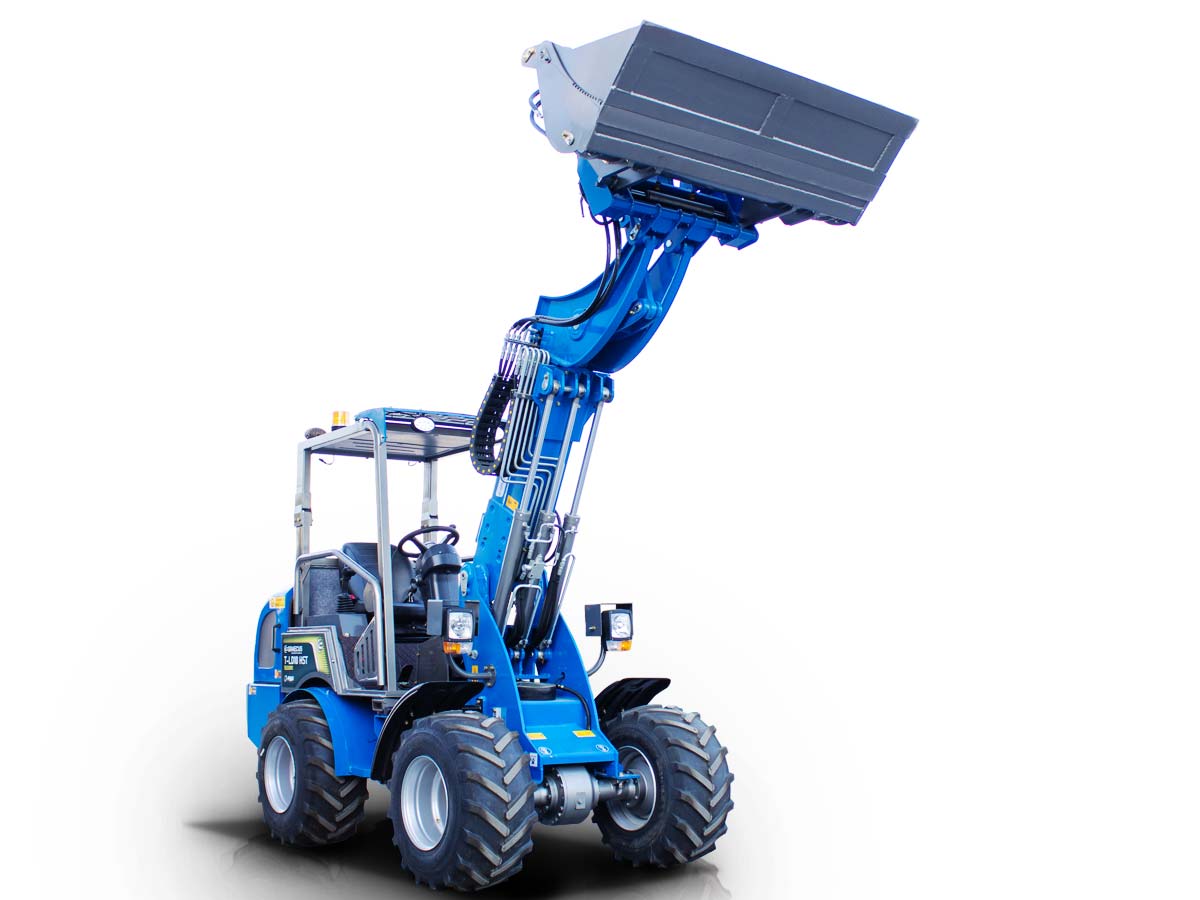

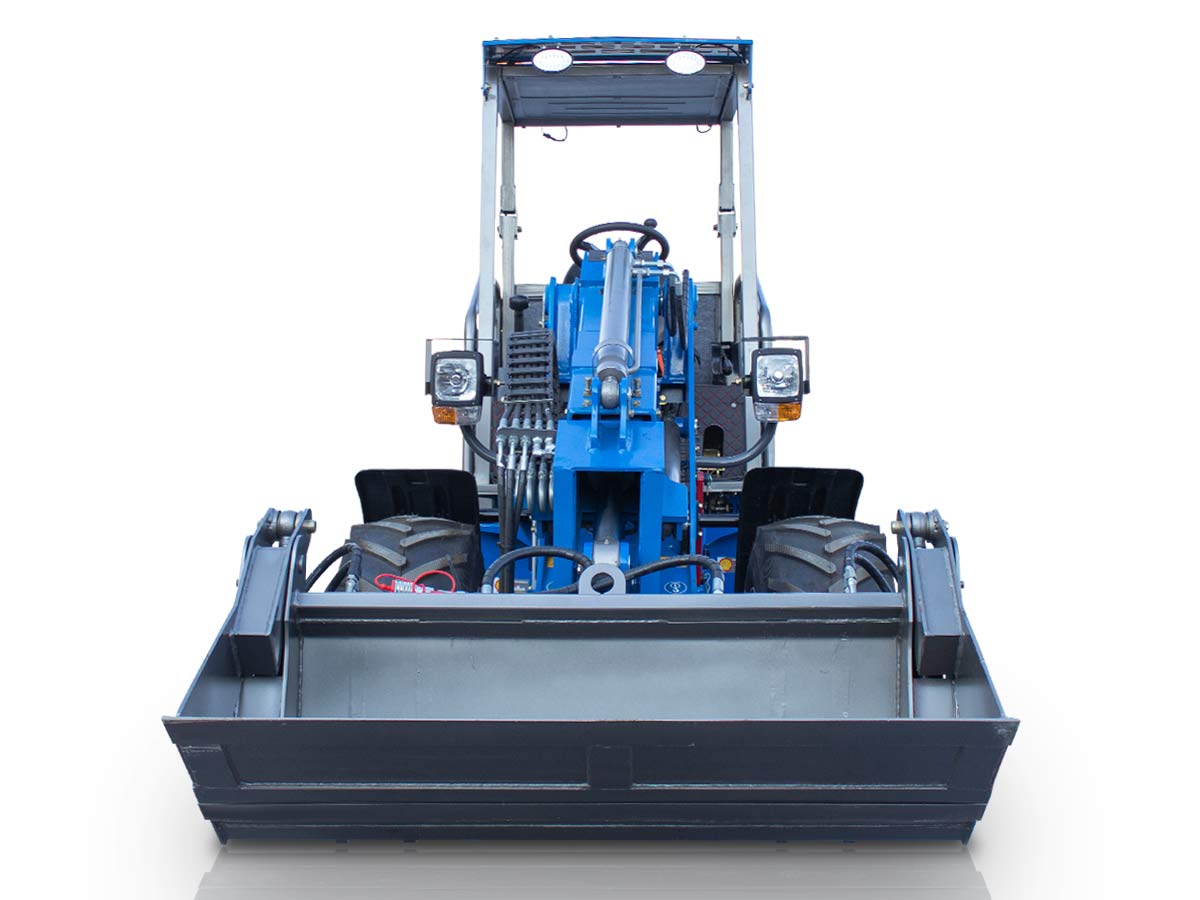

  • Includes a 1600 mm digging bucket.
  • Certified with European CE safety standard.
Category: Tags: , , , , , , ,

The T-LD10 is engineered for professionals who require extended lifting height, exceptional maneuverability, and reliable performance in demanding working environments. Combining compact dimensions with the capabilities of a telescopic wheeled loader, it delivers outstanding efficiency across agricultural, industrial, and construction applications where flexibility and productivity are essential.

Powered by a Kubota Stage V diesel engine, the T-LD10 provides dependable power delivery, low fuel consumption, and smooth operation throughout intensive daily workloads. Its reinforced telescopic arm with precise parallel movement ensures excellent lifting performance and handling accuracy, while the articulated chassis and hydrostatic four-wheel-drive system offer maximum control even in confined spaces and narrow working areas.

The modern ROPS canopy is designed to provide excellent visibility, operator safety, and comfortable everyday operation. Combined with ergonomic controls and responsive hydrostatic steering, the T-LD10 delivers a smooth and efficient working experience even under demanding conditions.

Built with durability, versatility, and operational efficiency at its core, the T-LD10 is a premium telescopic loader designed to deliver reliable productivity and outstanding performance across a wide range of professional applications.
