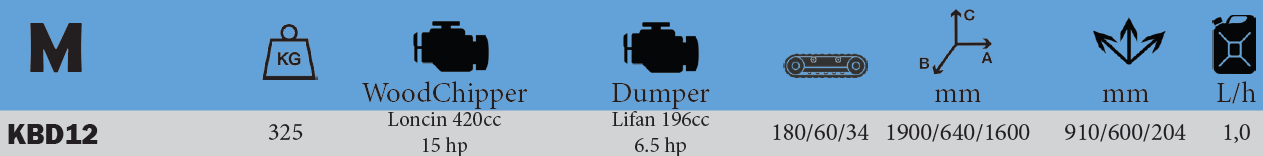

Tracked motorized woodchipper KBD12

  • 4-stroke gasoline engines, electric starter for the shredder and manual starter for the dumper.
  • Semi-automatic feed with slope.
  • The anti-vibration clutch minimizes direct movement between the engine and the drum, facilitating cold start and protecting the crank in the event of a cutting system jam.
  • Folding hopper to protect and reduce the space required during storage / transport.
  • Anti-fouling spray duct design. Easy rotation of the launch line 360°.
  • Drum cutting system with 2 double profile knives plus 1 fixed, high hardening to adjust the cutting thickness.
  • Long life bearing.
  • Transmission with Kevlar belts.
  • The ejection distance is adjusted by the door at the top of the duct.
  • The package includes a 300kg transport box transforming the KBD into a dumper and into the ultimate shredder.
  • Durable and reliable gearbox 3 front + 1 rear.
  • The tracks allow its use in up to 30% inclination and loading and transport capacity up to 300kg.
  • Low center of gravity and proper load distribution ensure maximum stability in any terrain.
  • Independent clutch and disengagement levers on each wheel that contribute to easy change of course and onsite rotation.
  • Automatic parking brake offers maximum safety.
  • Fully ergonomic controls, easy to use, guarantee exceptional flexibility and precise control.
  • 5 mm metal guard at the bottom to protect the engine and transmission.
  • Fully made of high-strength metals. Reinforcement hollow section at the bottom, make it suitable for any load or pressure.
  • Operation with safety system and emergency button for immediate shutdown.
  • EC Conformity.
