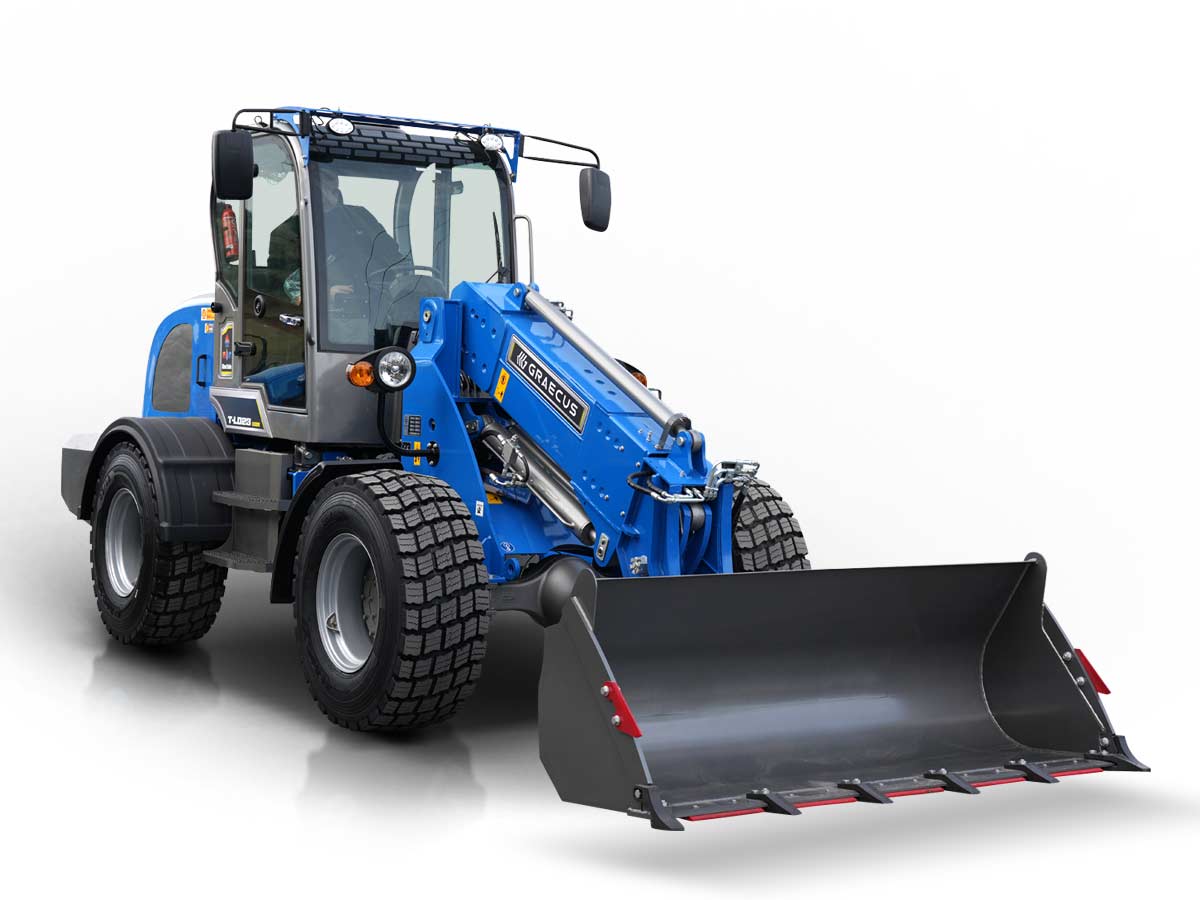

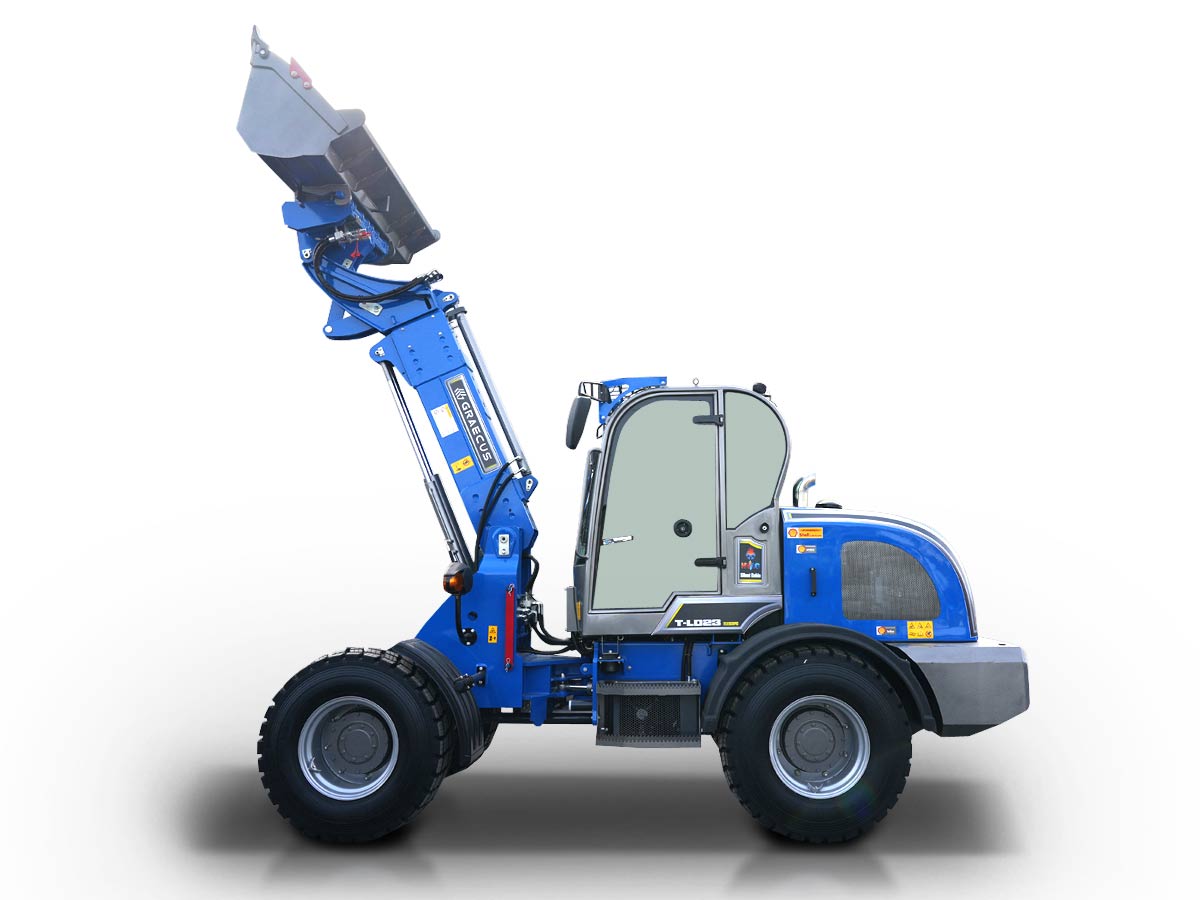

Telescopic wheel loader T-LD23

Telescopic Wheel Loader 4×4 4WD | STAGE-V

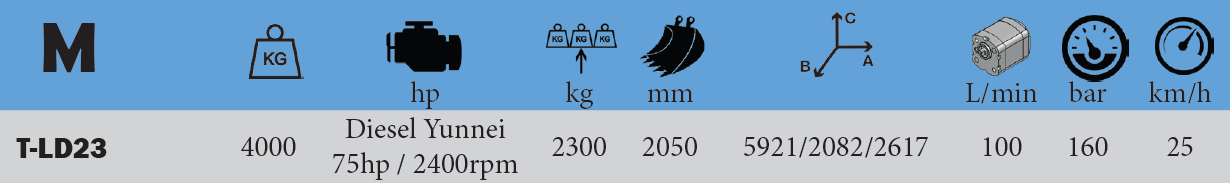

  • Maximum lifting capacity: 2300 kg

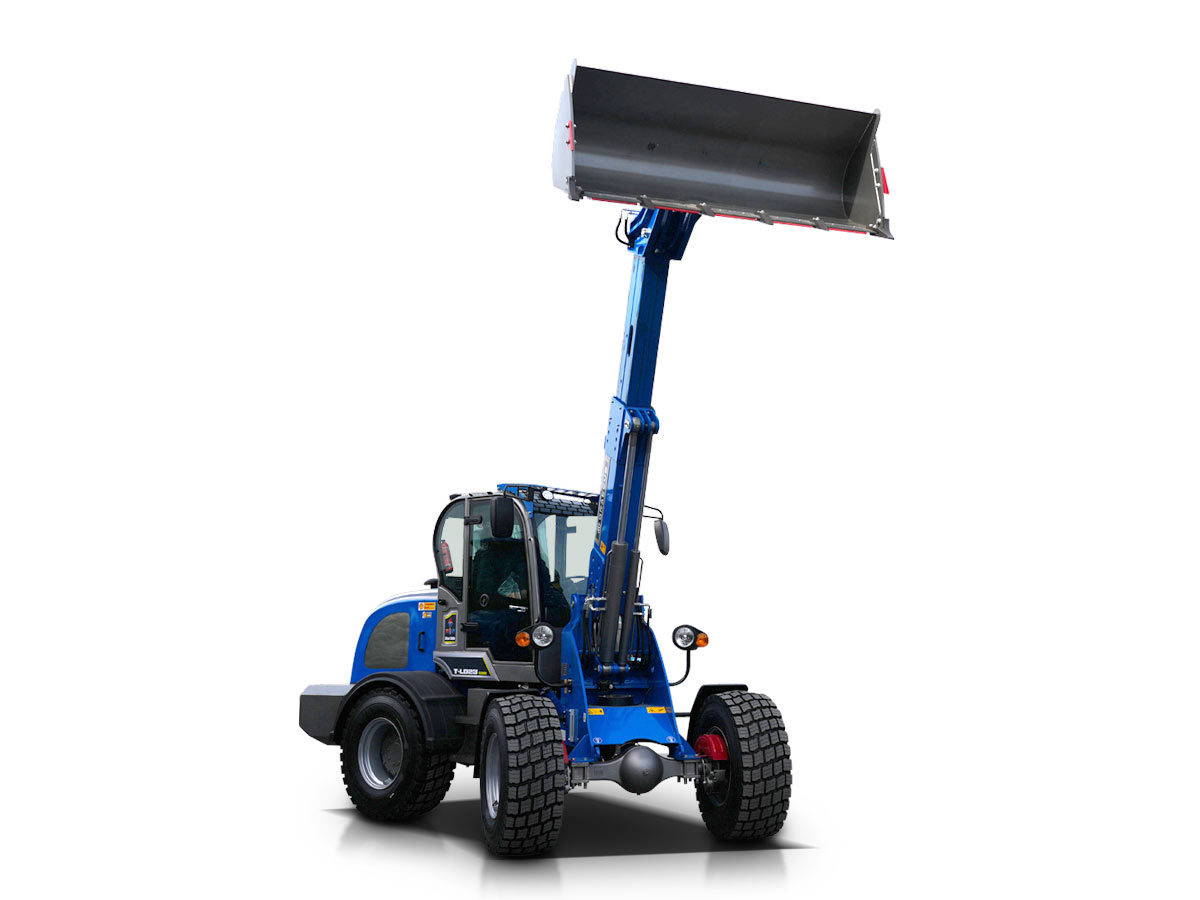

  • Maximum lifting height (at the pin): 4813 mm

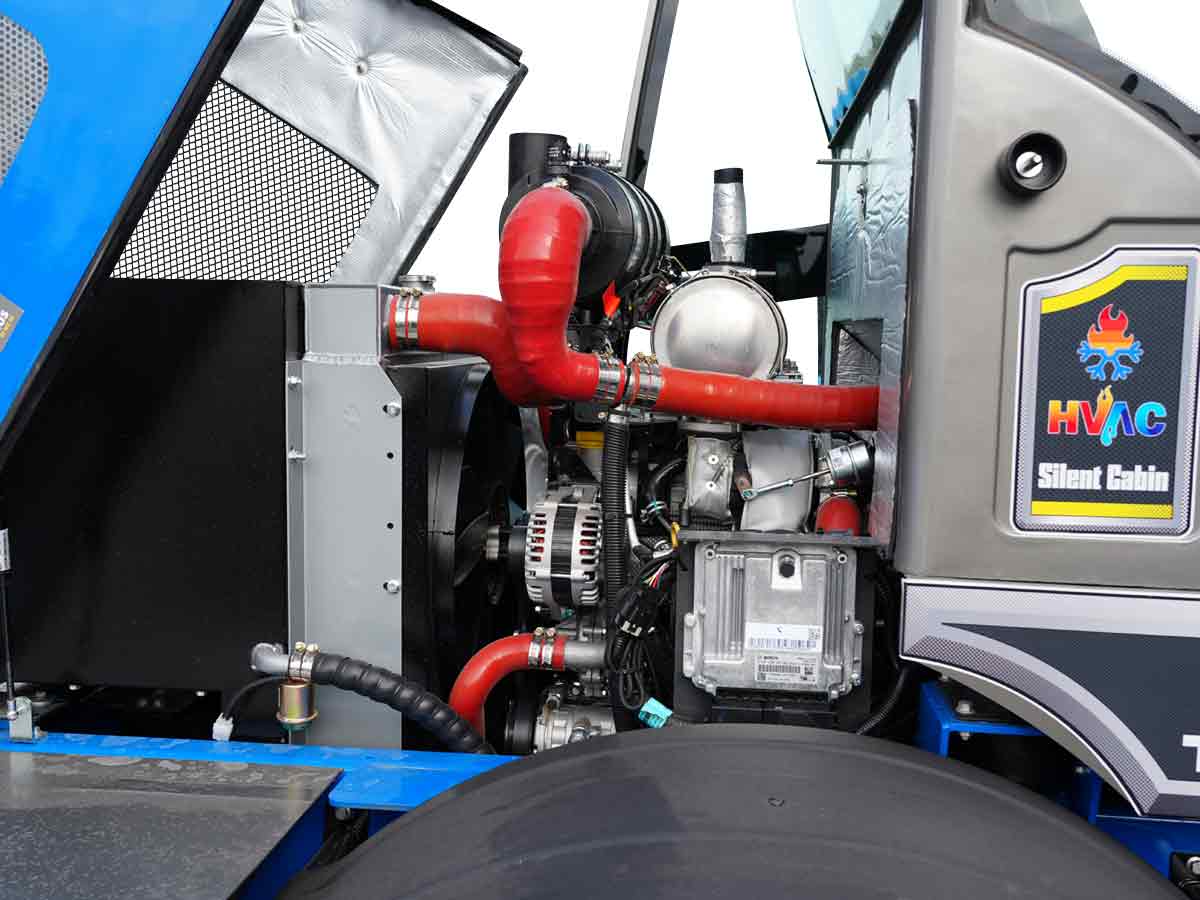

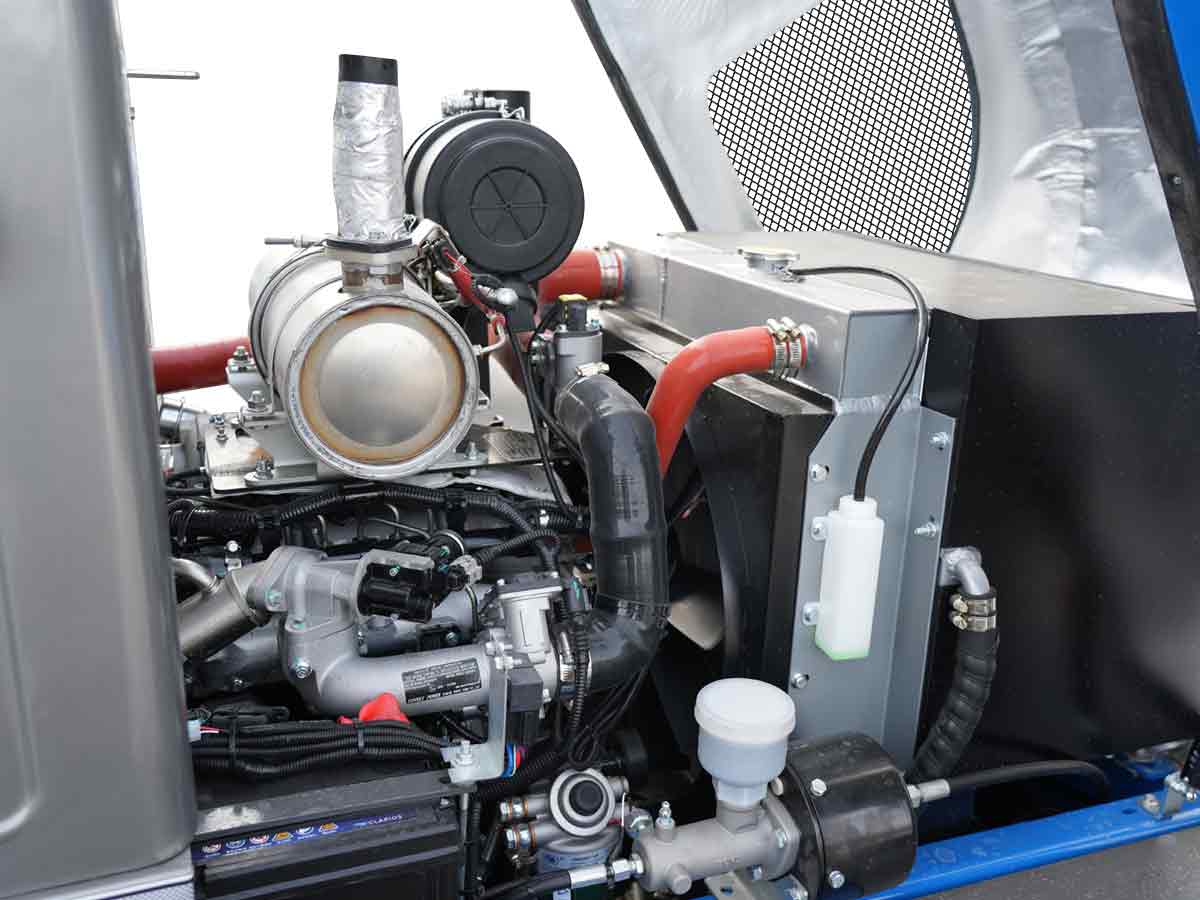

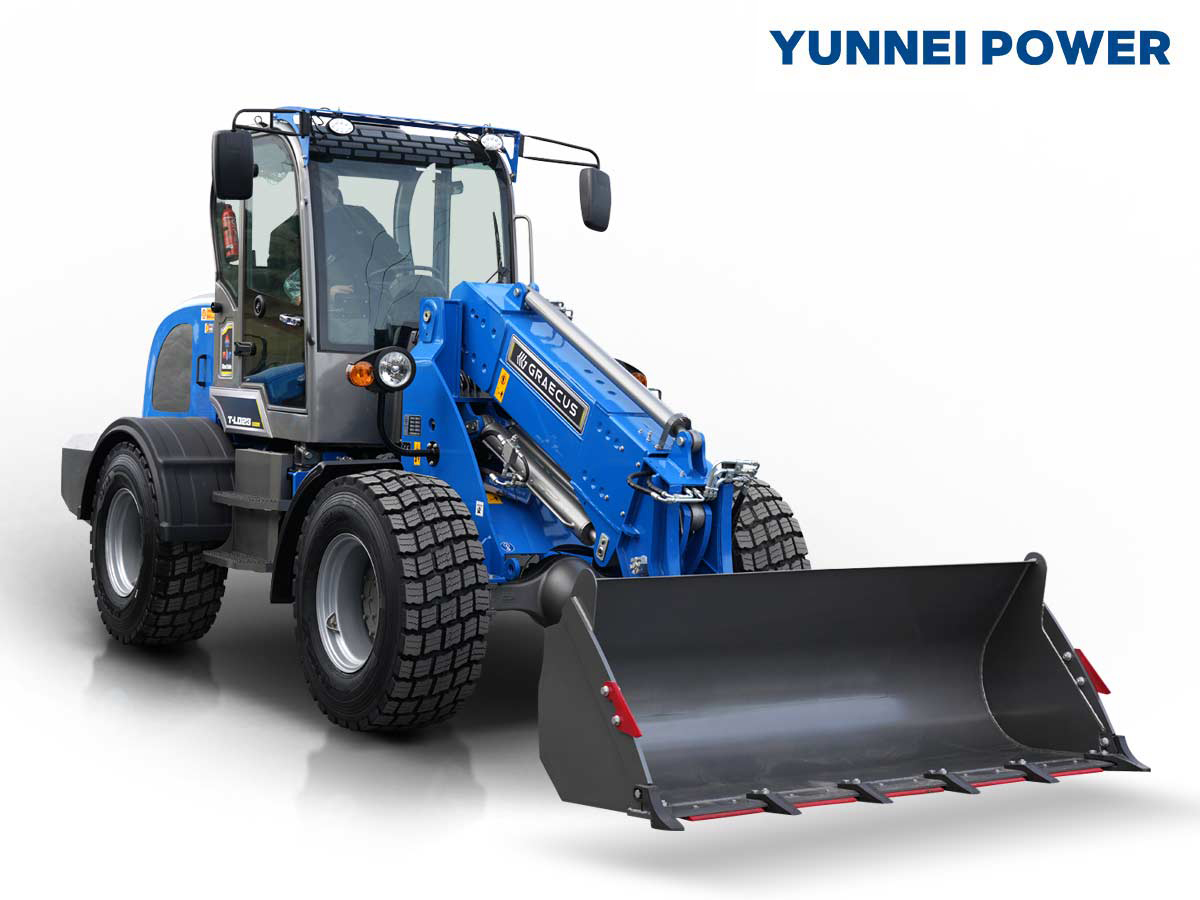

  • Four-cylinder water-cooled Yunnei diesel engine 75 hp / 2400 rpm, new generation STAGE V with low fuel consumption

  • Four-wheel drive (4×4) provides impressive power and agility, enabling it to perform even in the toughest conditions

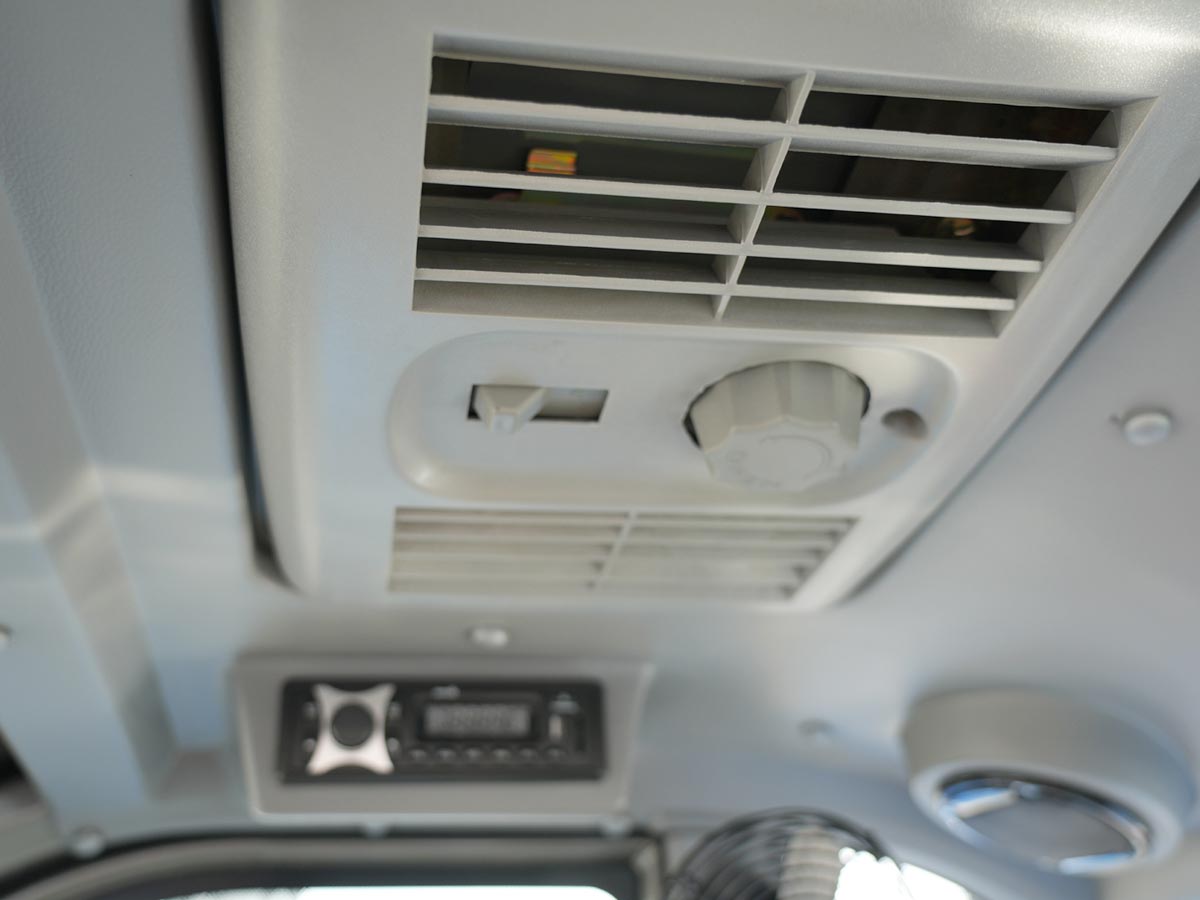

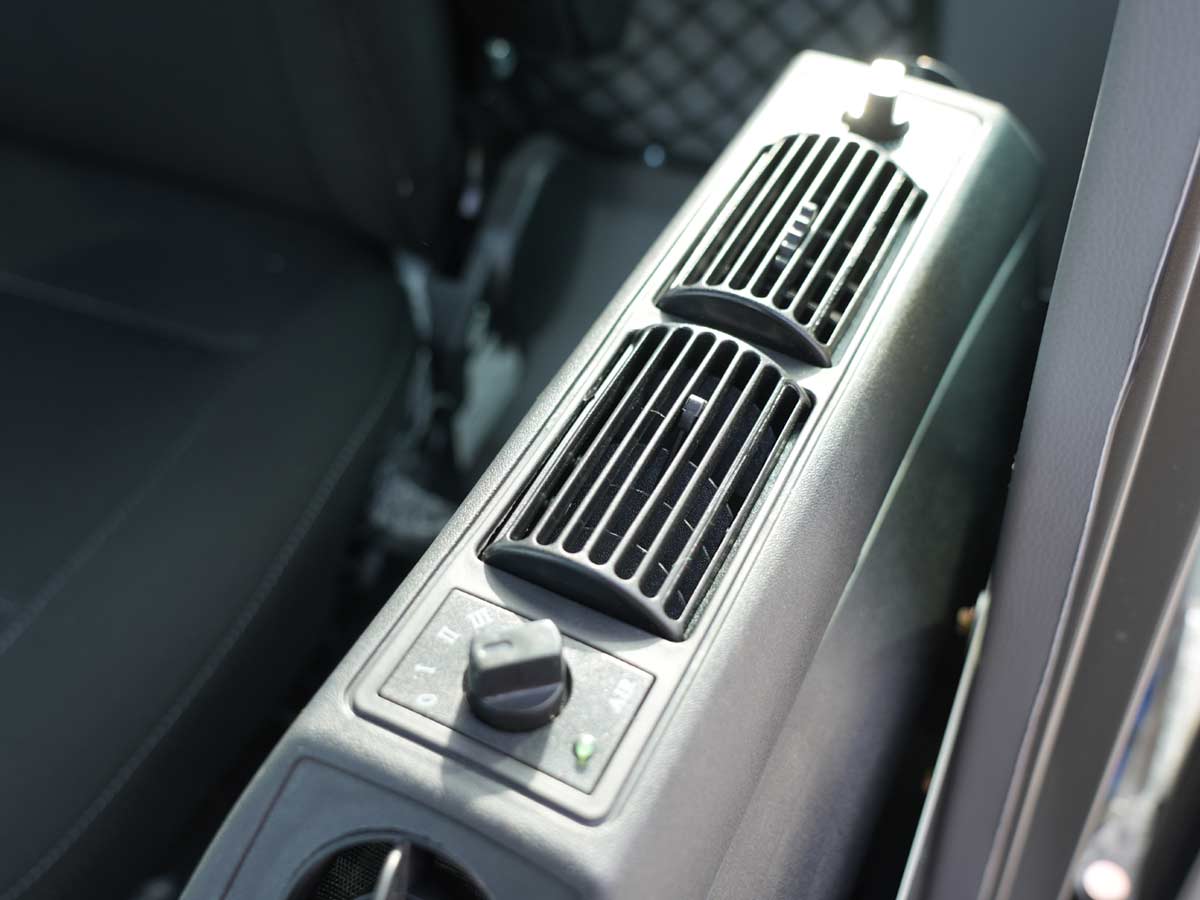

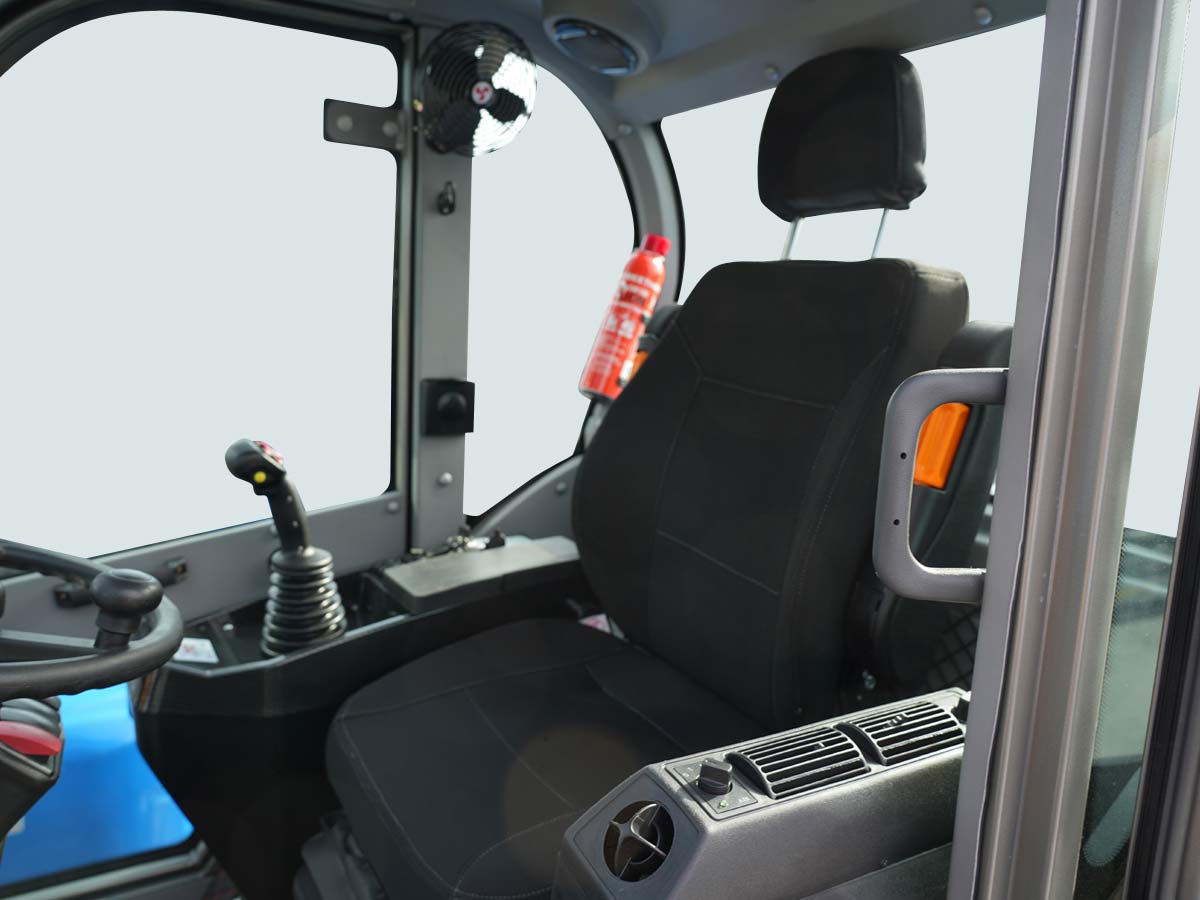

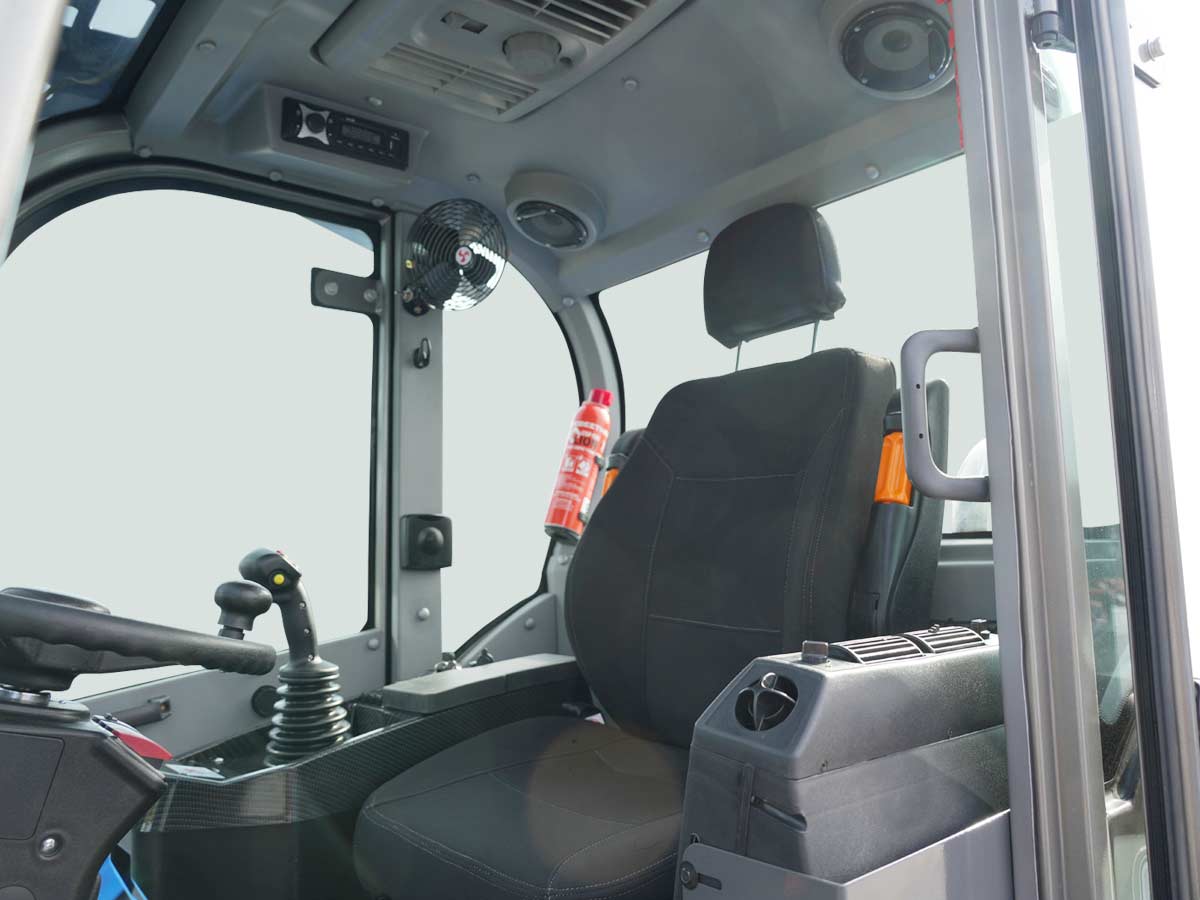

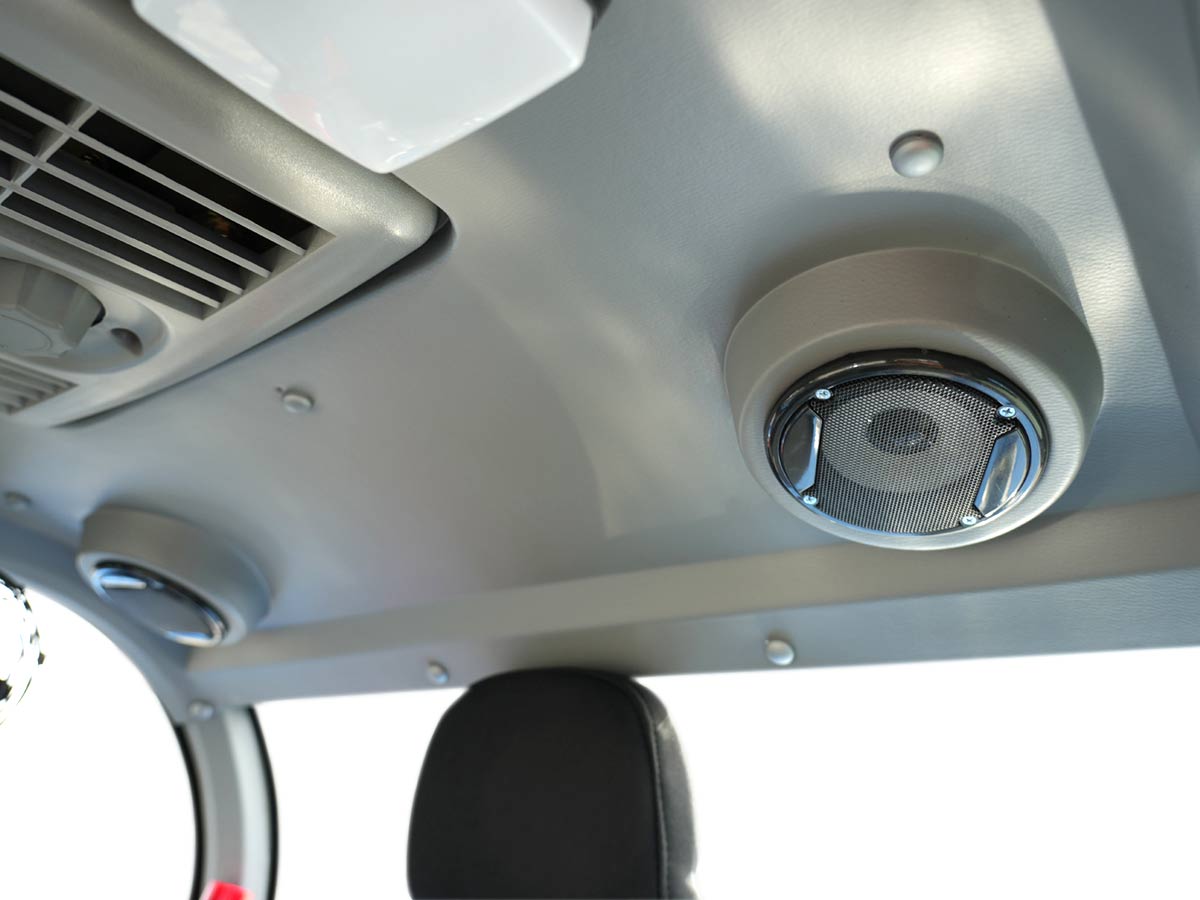

  • Spacious safety cabin with air conditioning and rearview camera

  • Two-speed selection slow-fast with Hi-Lo switch

  • Mini articulated wheel loader known for its compact design and flexibility, suitable for all kinds of unusual tasks

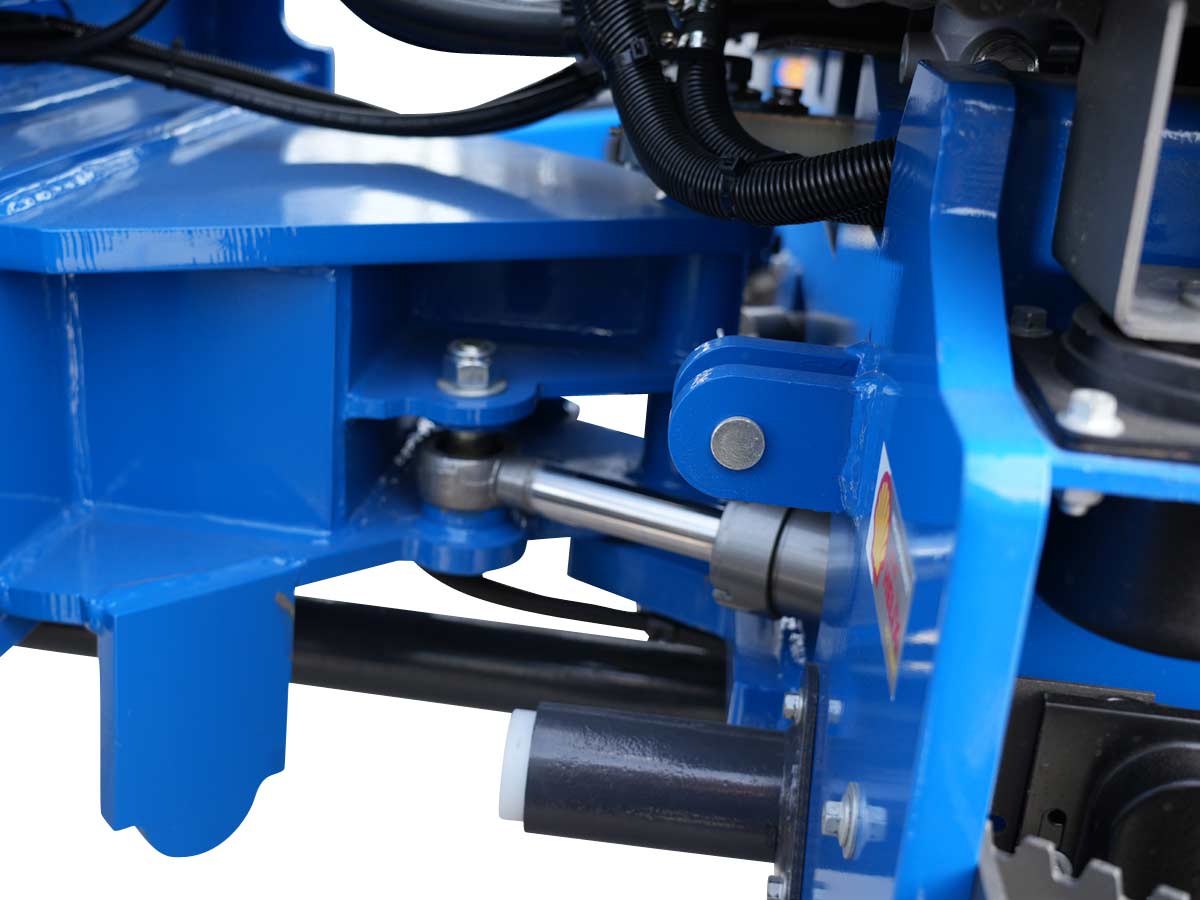

  • Wheelbase, limited external width 2082 mm, and articulated frame make it very maneuverable even on the narrowest paths with an inside turning radius of 4044 mm and outside turning radius of 4524 mm

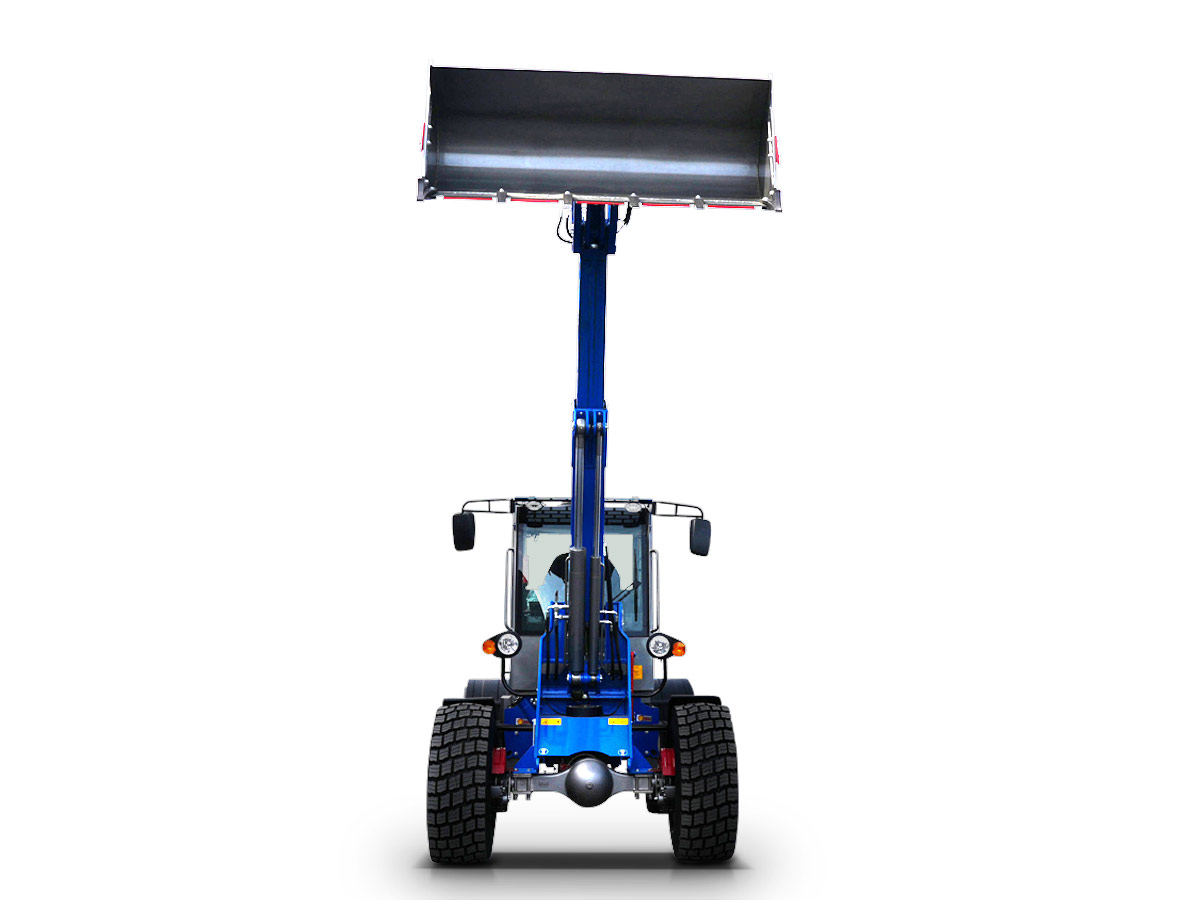

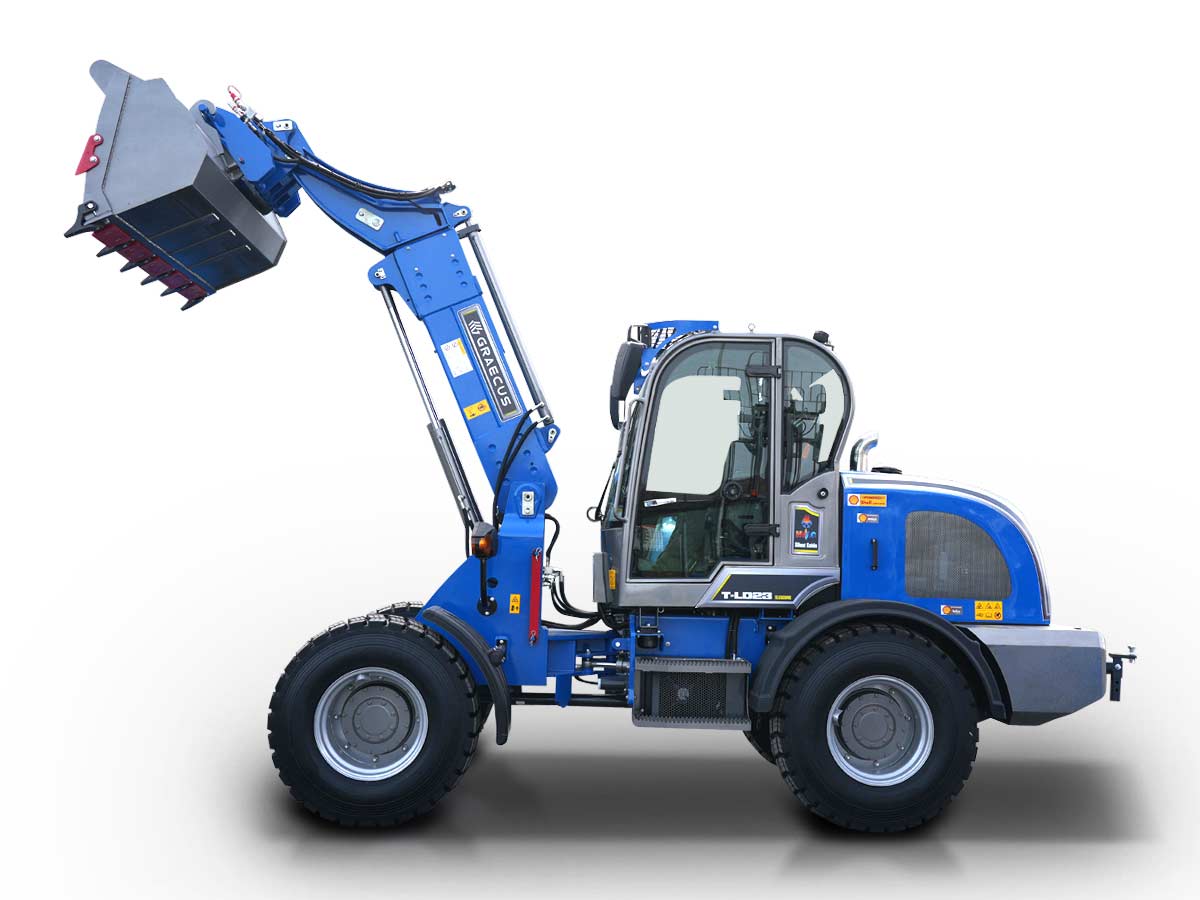

  • The angled loading arm is designed to be very sturdy and resistant to torsion. The advantage of P-kinematics lies in the precise parallel movement throughout the lifting range

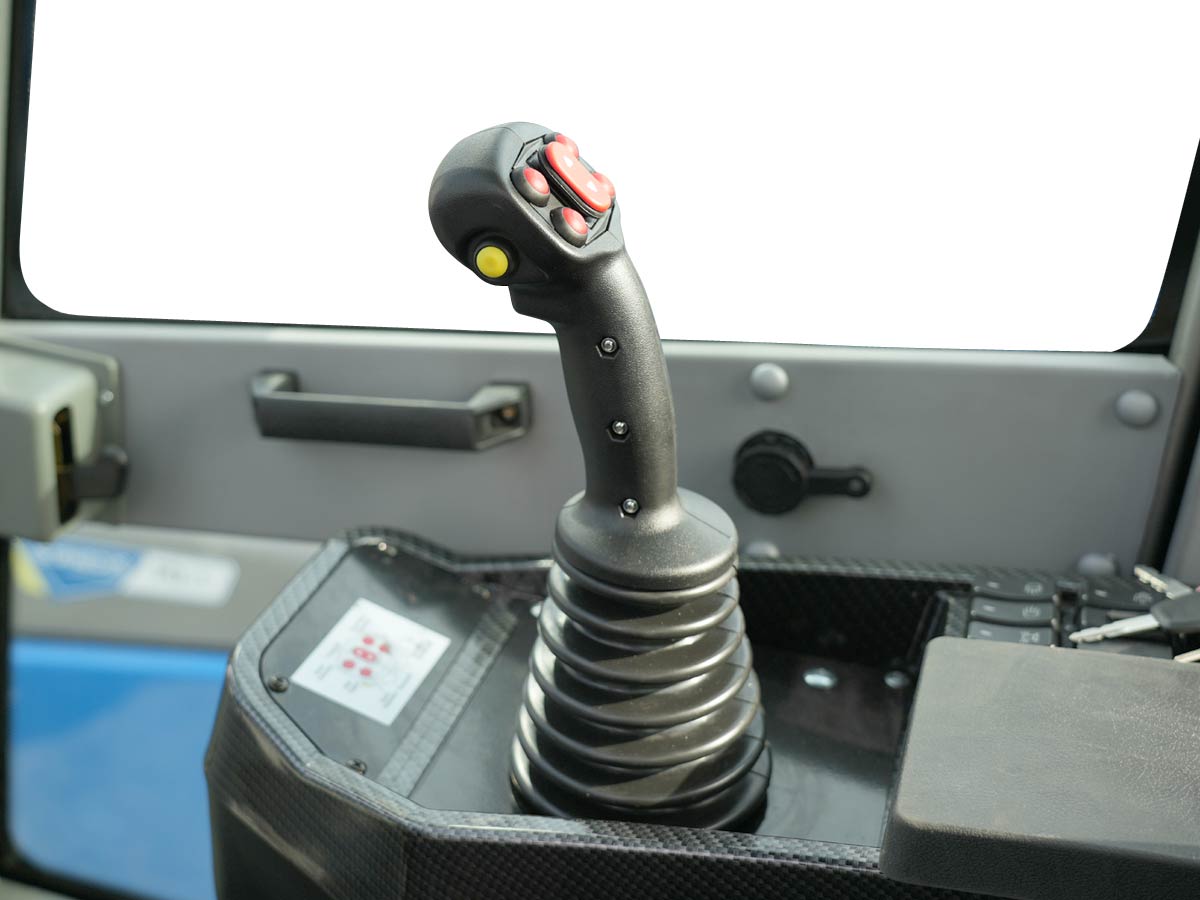

  • Ergonomic joystick, sturdy and sensitive at the same time. All movements are controlled by the same joystick, including the telescopic function, giving you full control of the machine and its main functions

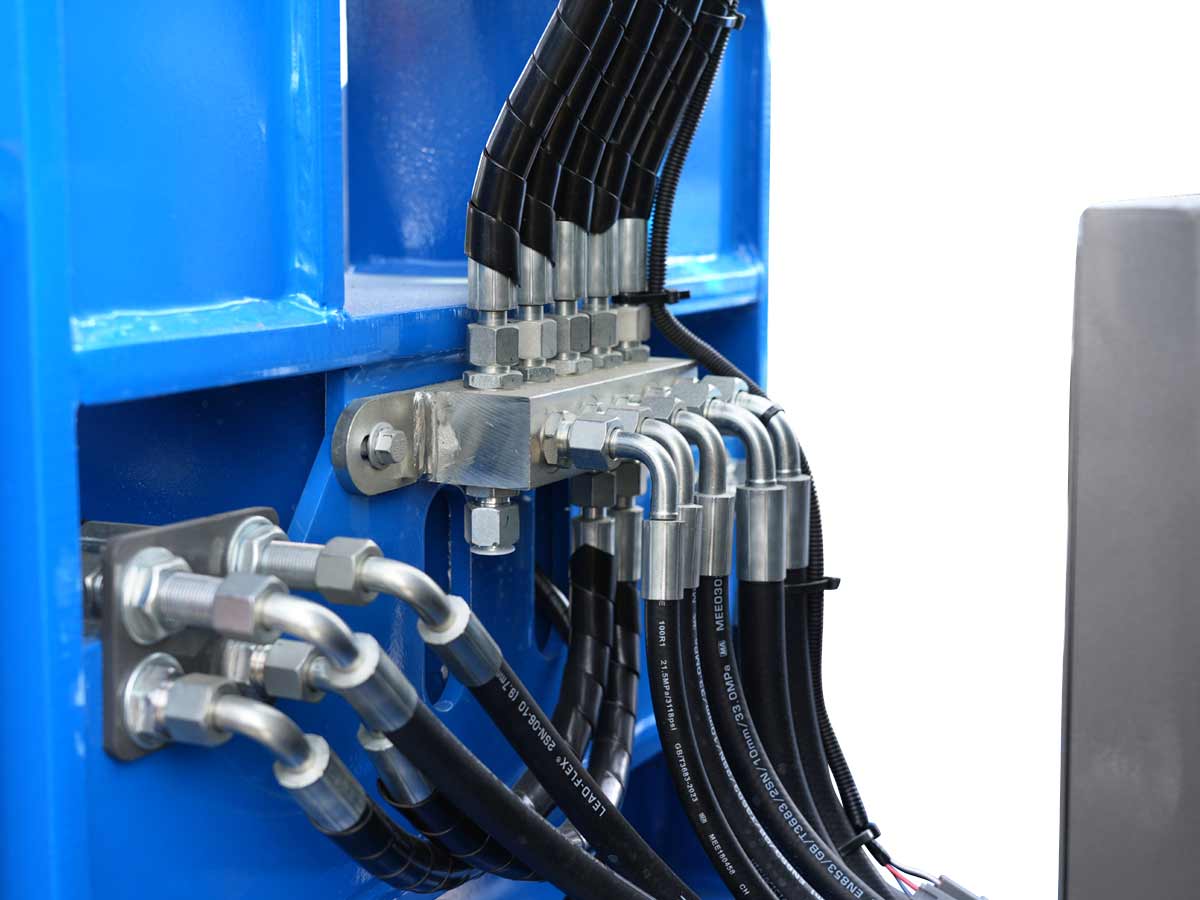

  • Third hydraulic supply line for future attachment connections (double-acting line)

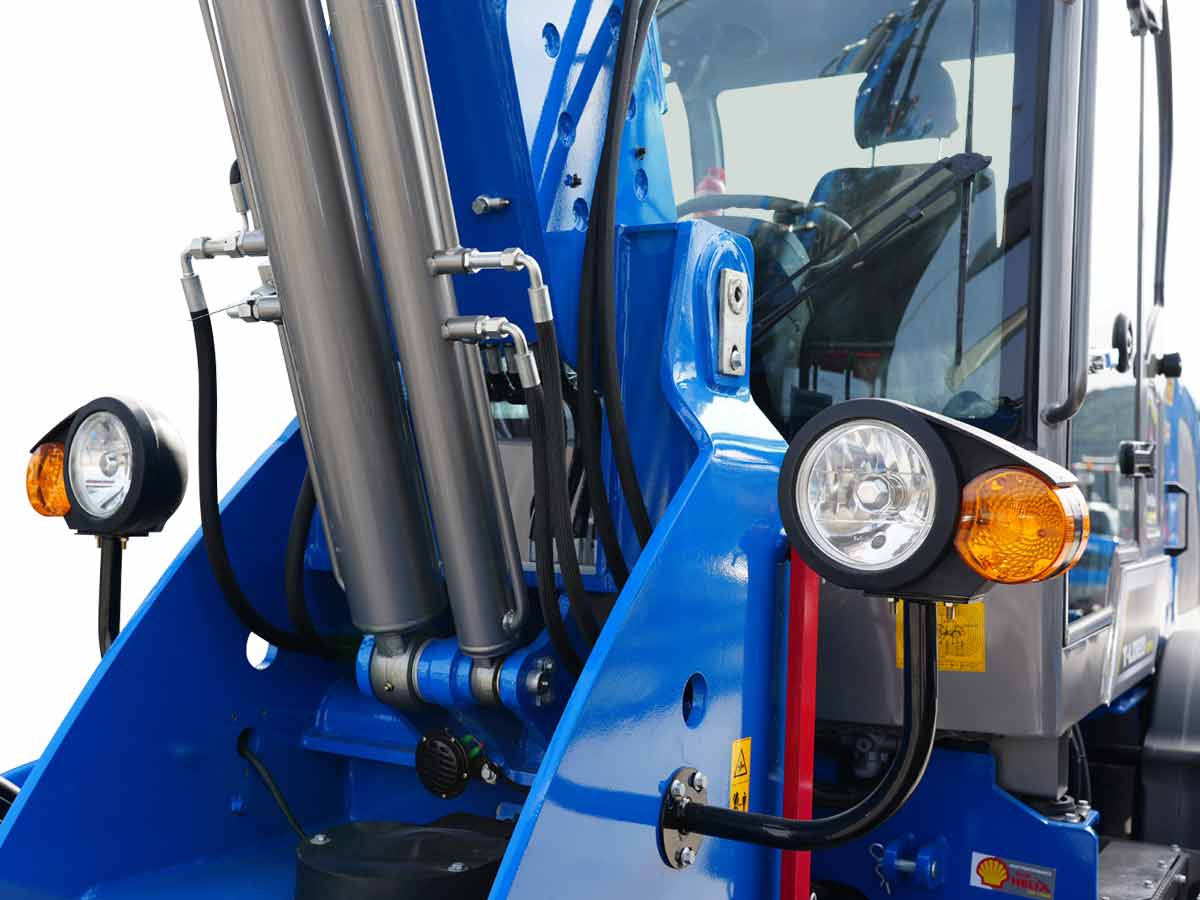

  • Larger and stronger hydraulic lifting cylinder ensures optimal load distribution to the loading arm, offering maximum stability

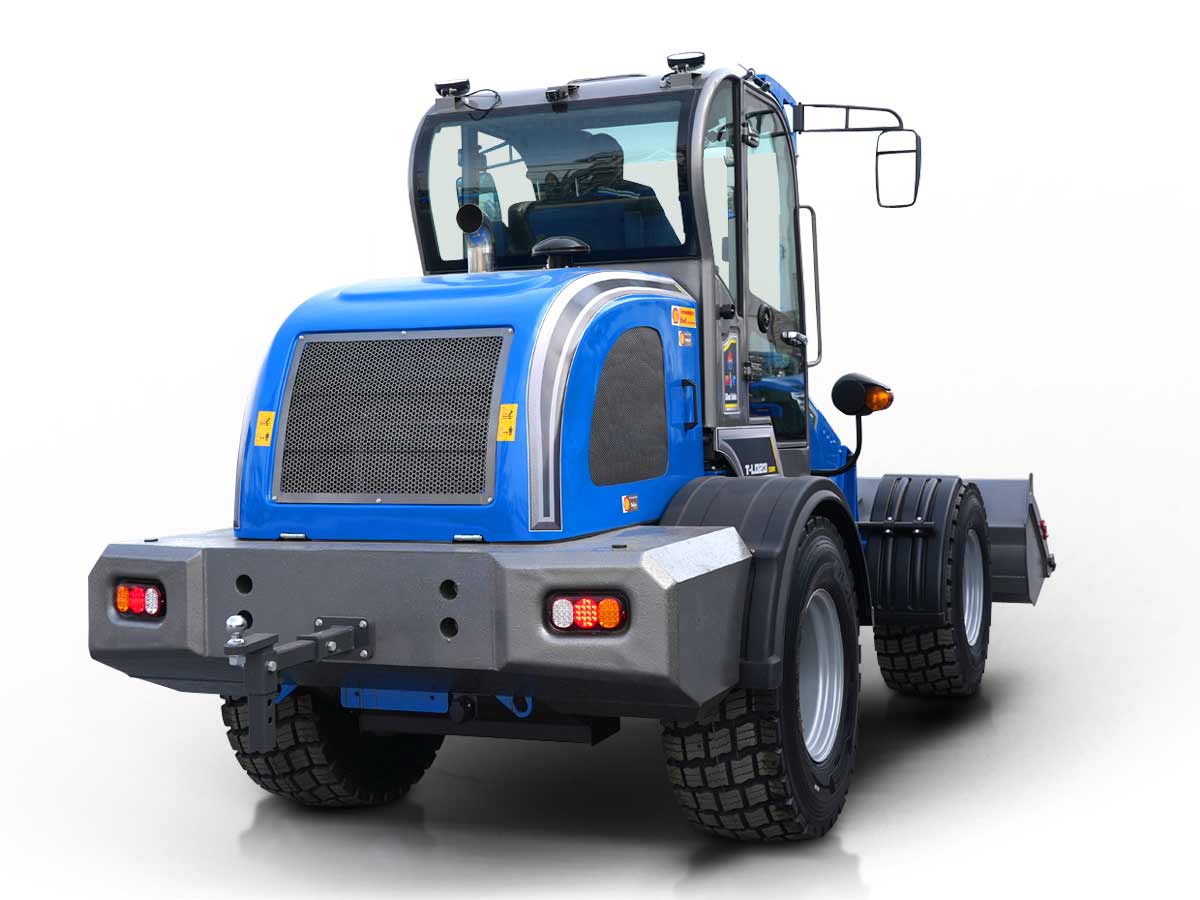

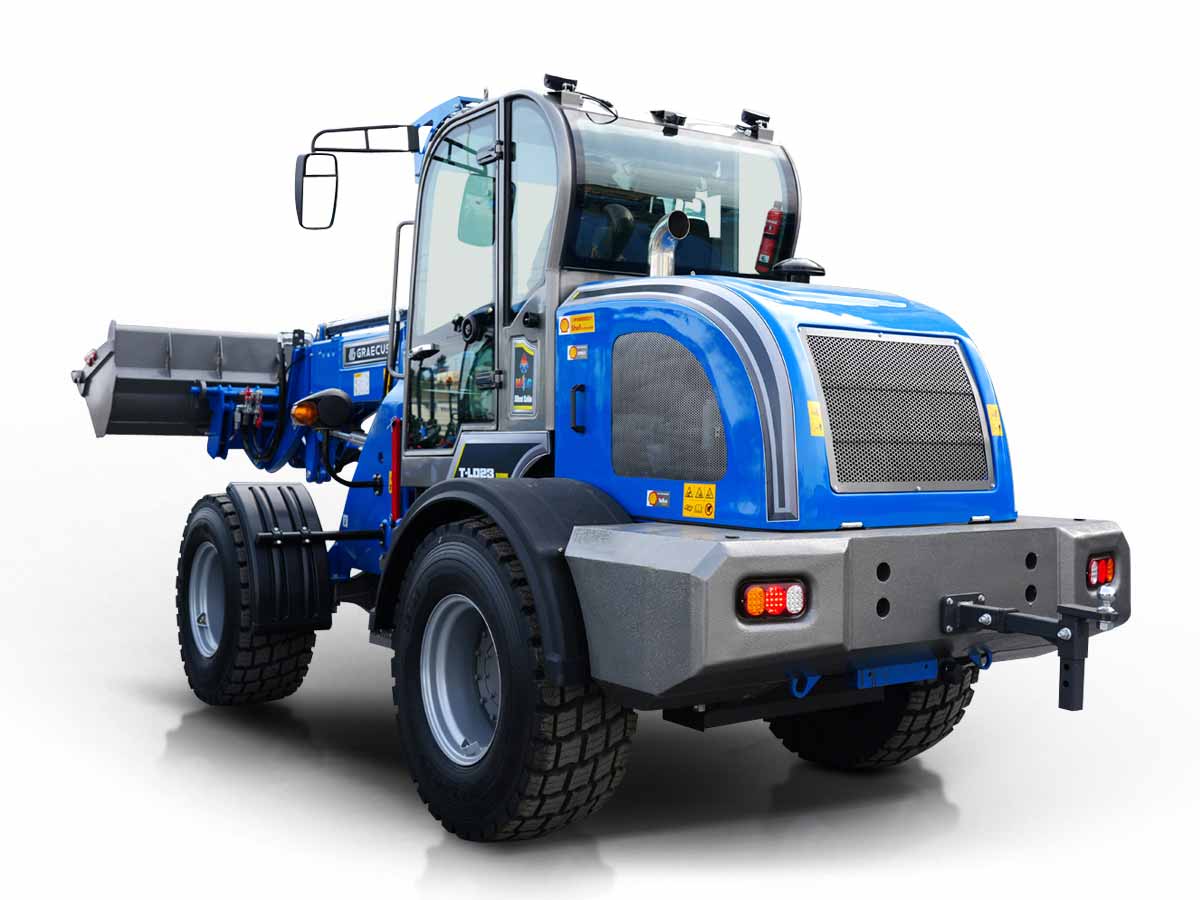

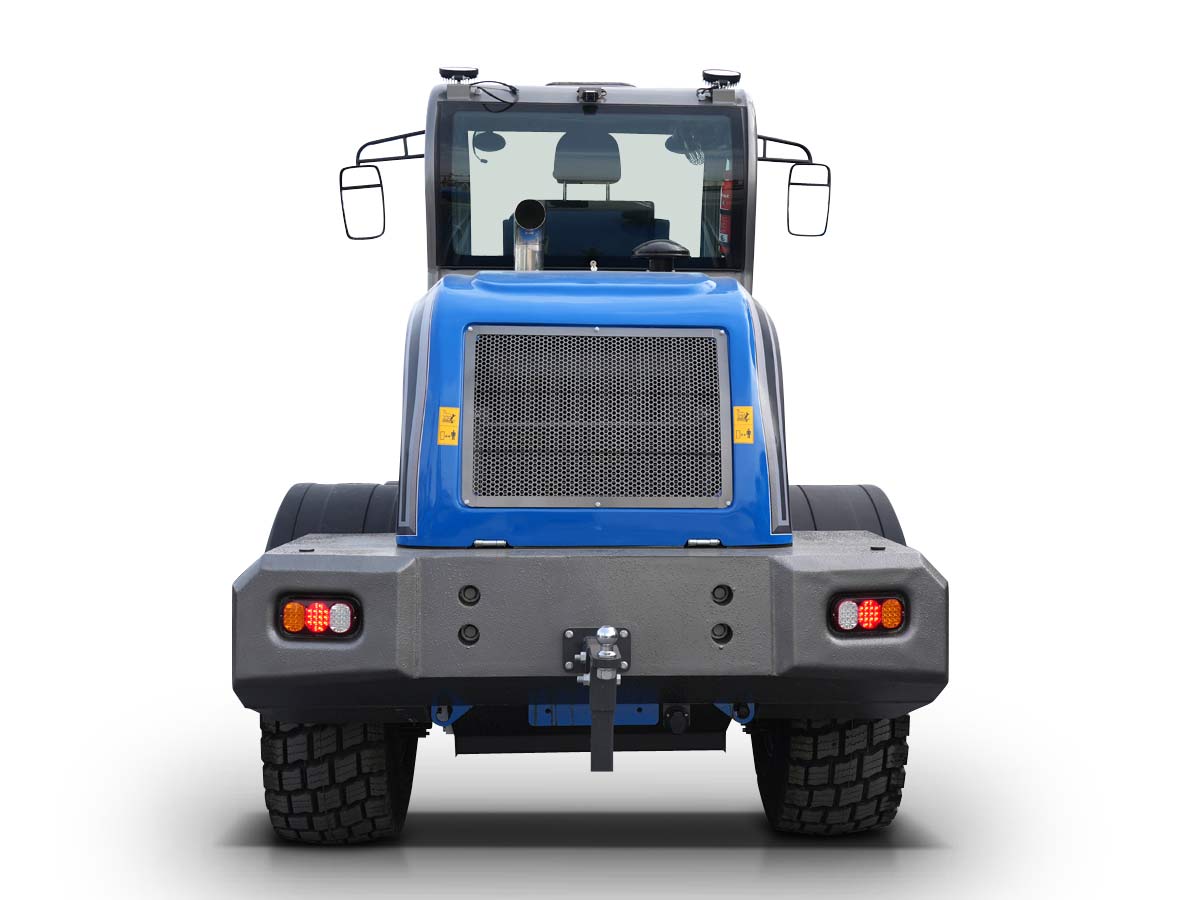

  • Cast counterweight at the rear significantly improves loader stability

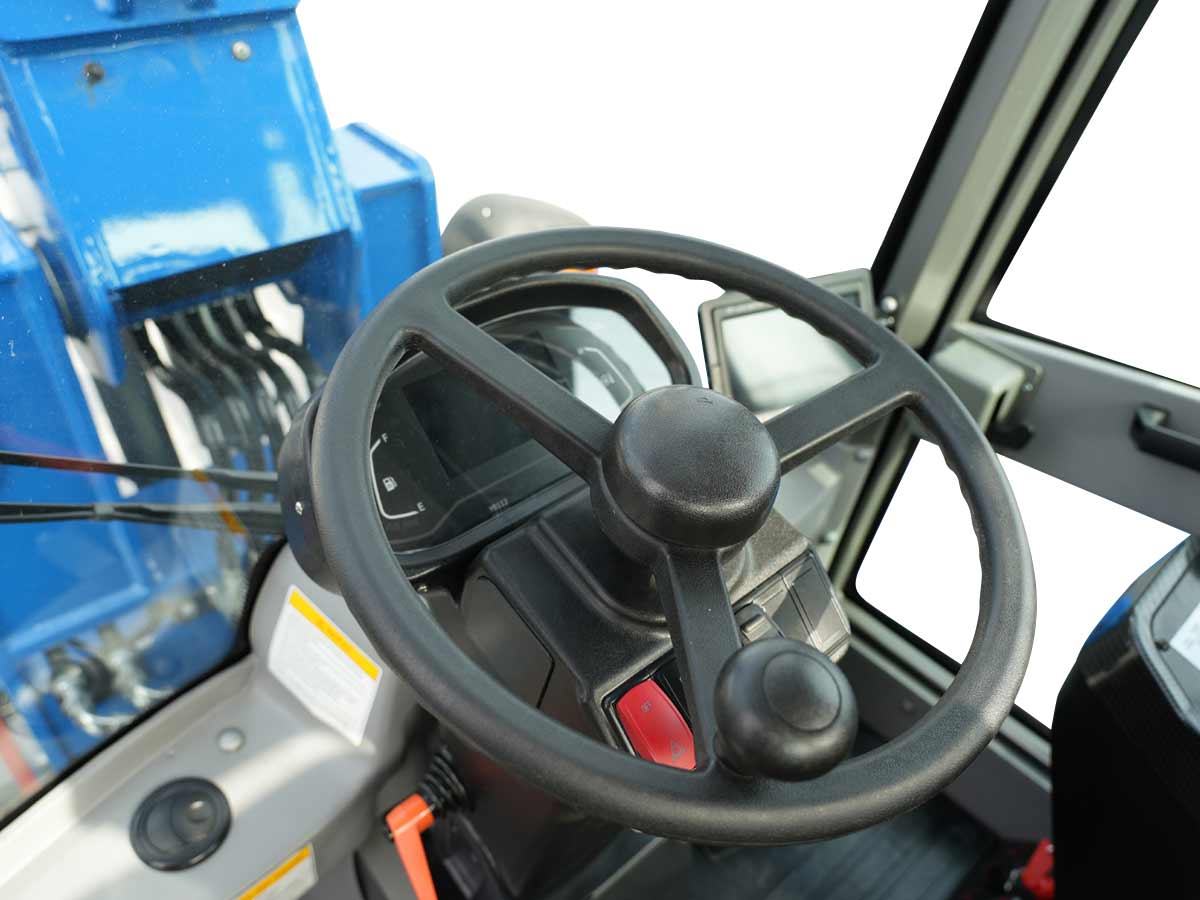

  • Adjustable steering column according to the operator ensures ergonomic handling without fatigue

  • Quick attachment connection with Euro-hitch coupler

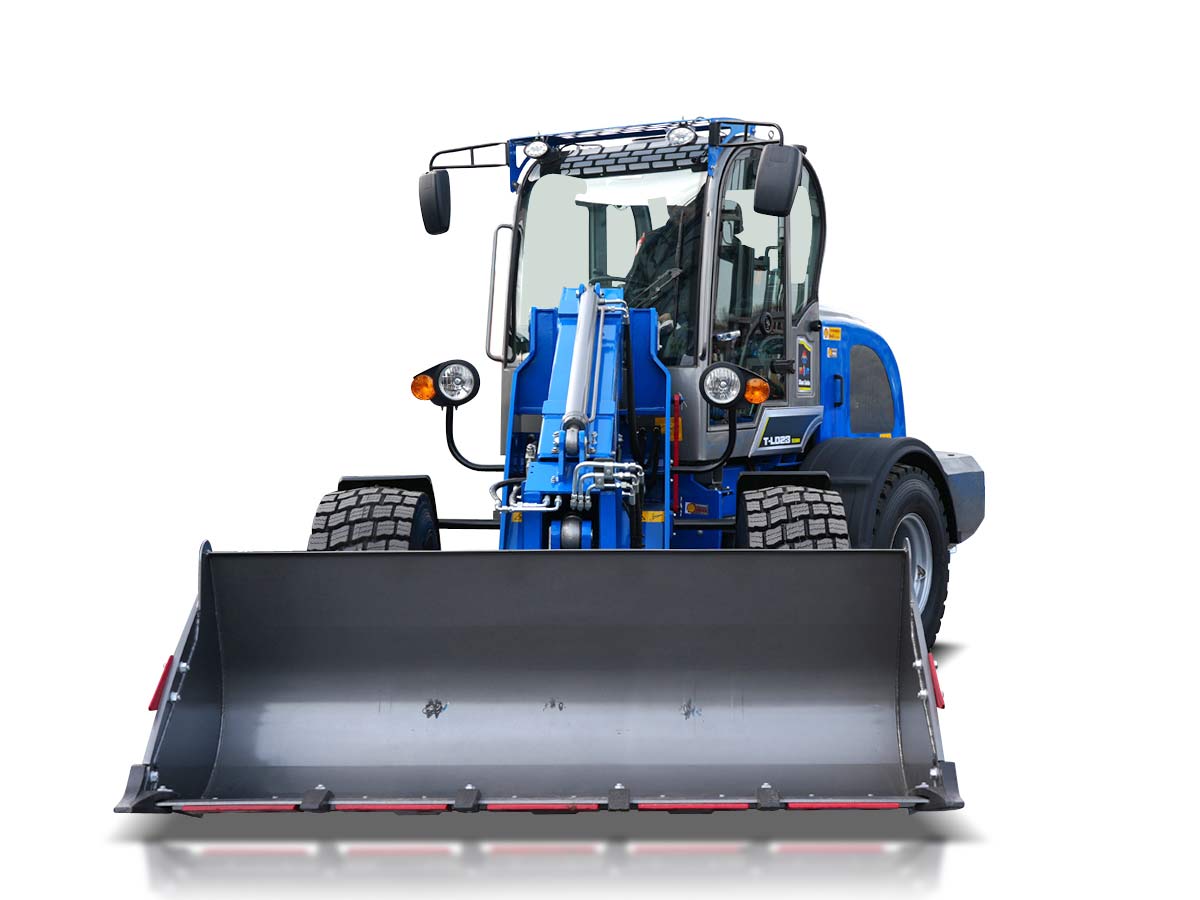

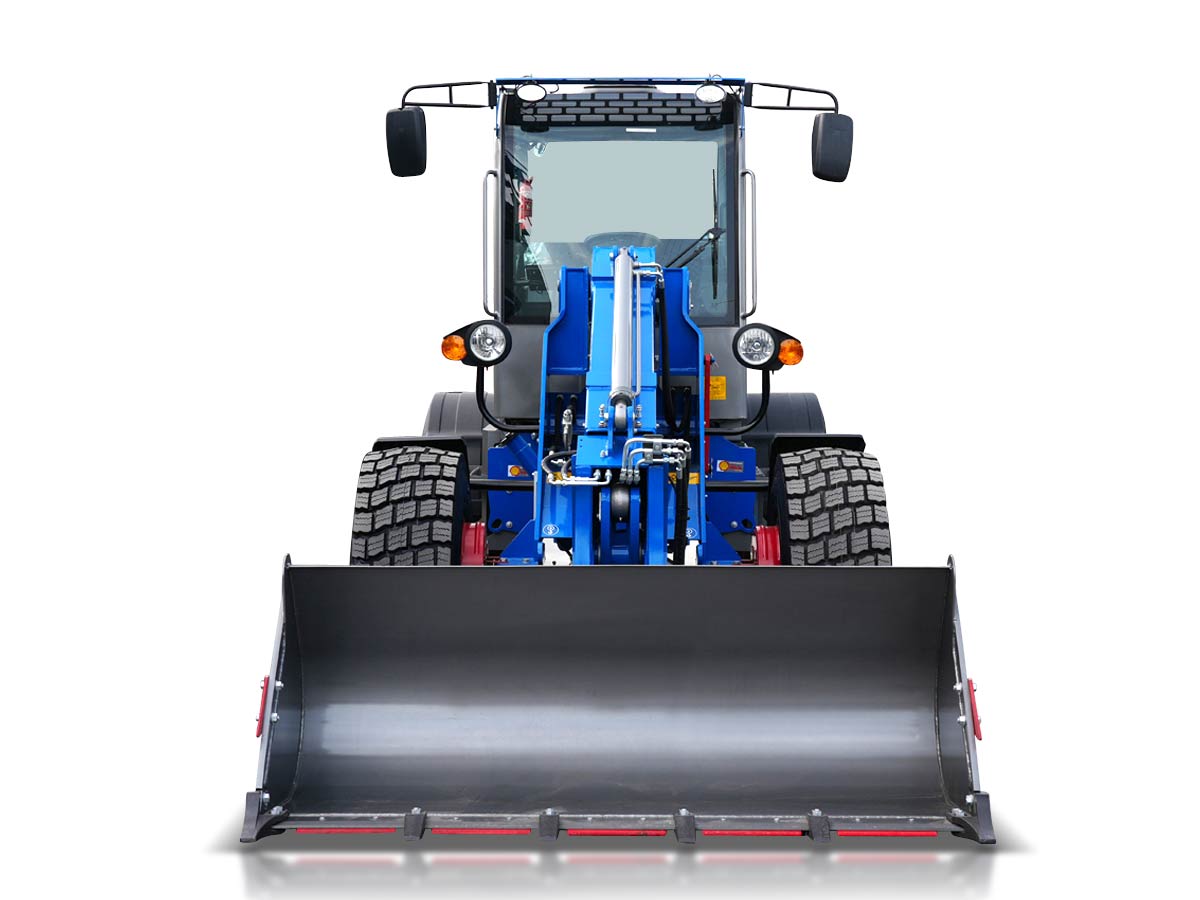

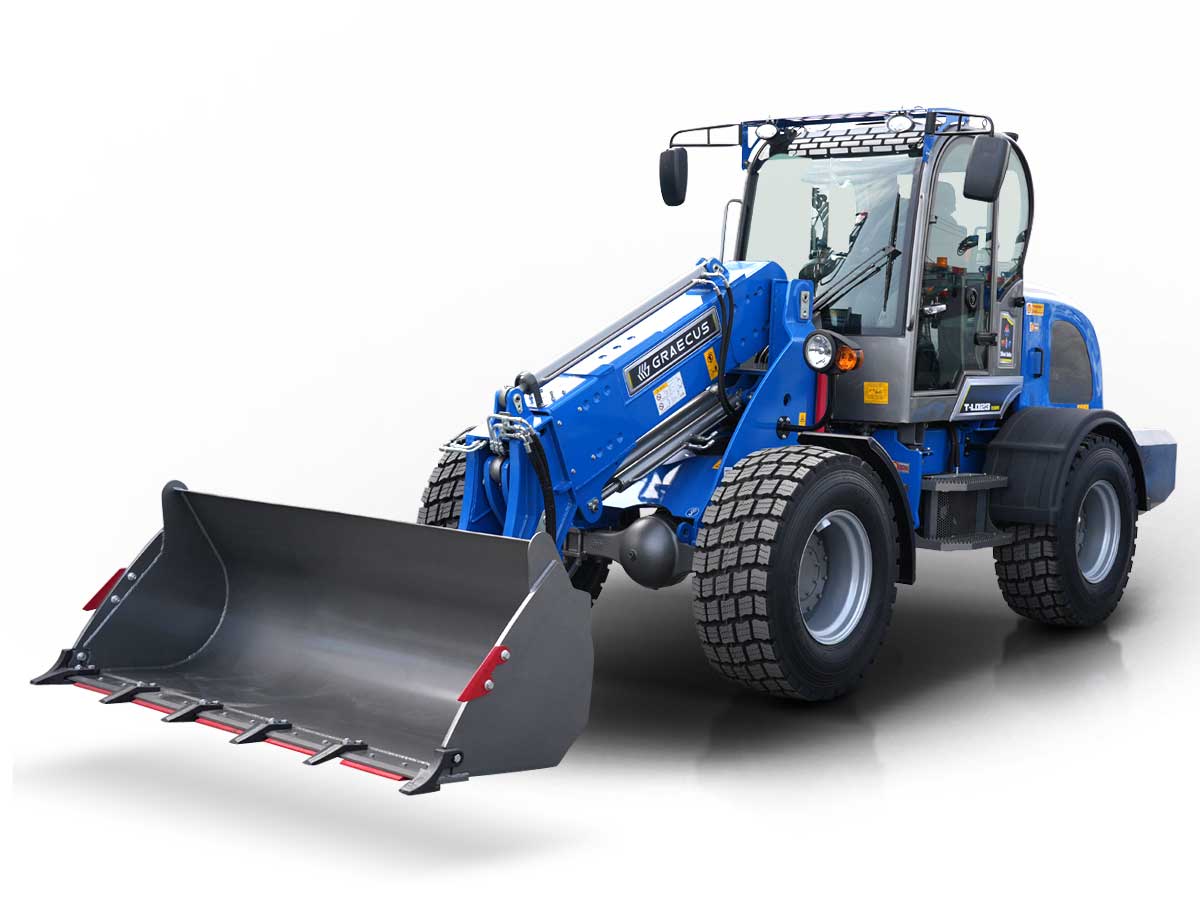

  • Includes 2050 mm excavator bucket

  • European CE safety certification

Category: Tags: , , , , , , ,

The T-LD23 telescopic wheeled loader is designed to deliver high lifting performance, stability, and versatility for demanding agricultural, construction, and material-handling applications. With strong lifting capacity, excellent reach, and precise hydraulic control, it ensures efficient operation even in confined working environments. The robust articulated chassis, telescopic boom, and operator-focused cabin with air conditioning and rear-view camera provide comfort, control, and productivity throughout the working day.

It features four-wheel drive, a reinforced frame, ergonomic joystick controls, Euro-hitch quick coupling system, and excellent stability under load. The hydrostatic transmission and compact design ensure smooth handling, precise movements, and reliable performance in both tight and open working areas.

Built for professionals who require durability, reach, and dependable power, the T-LD23 combines modern engineering with operator comfort to deliver consistent productivity in all conditions.
