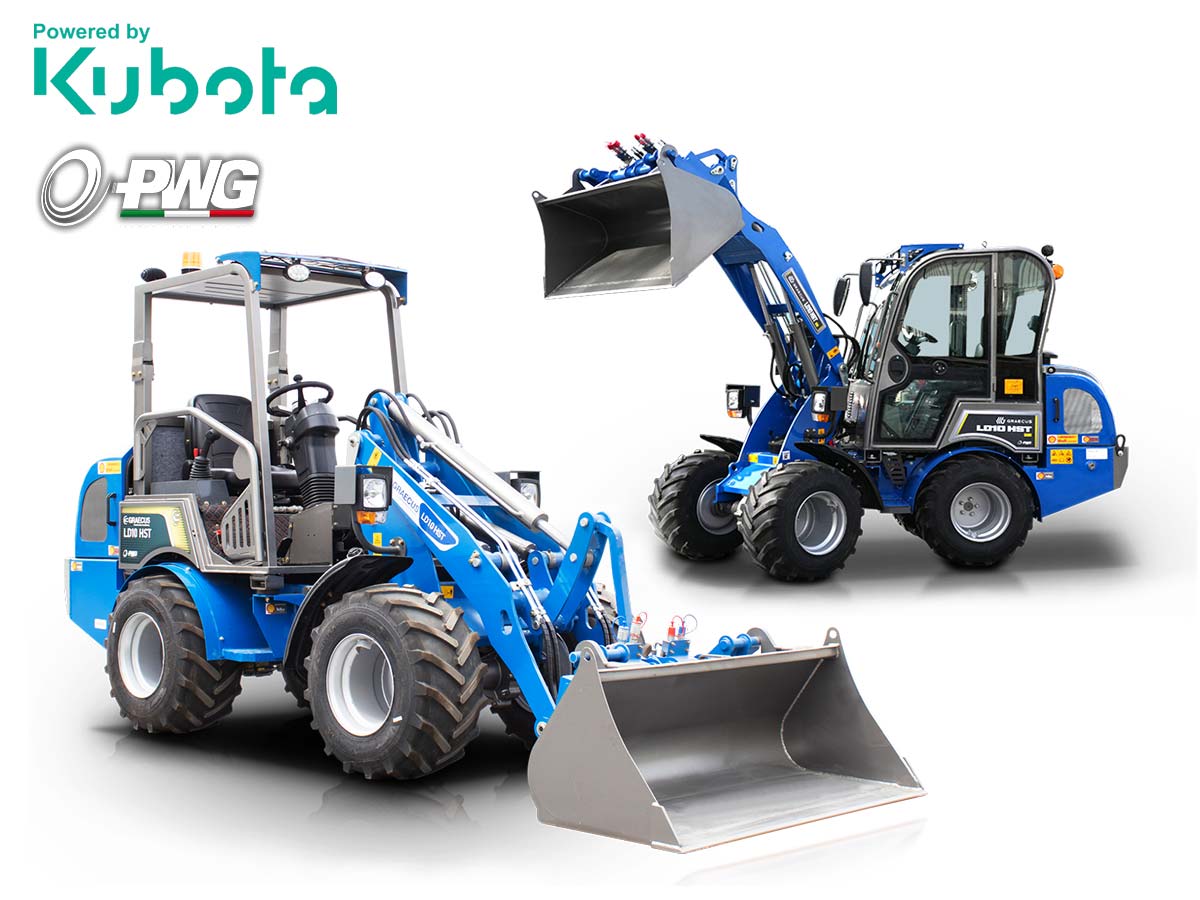

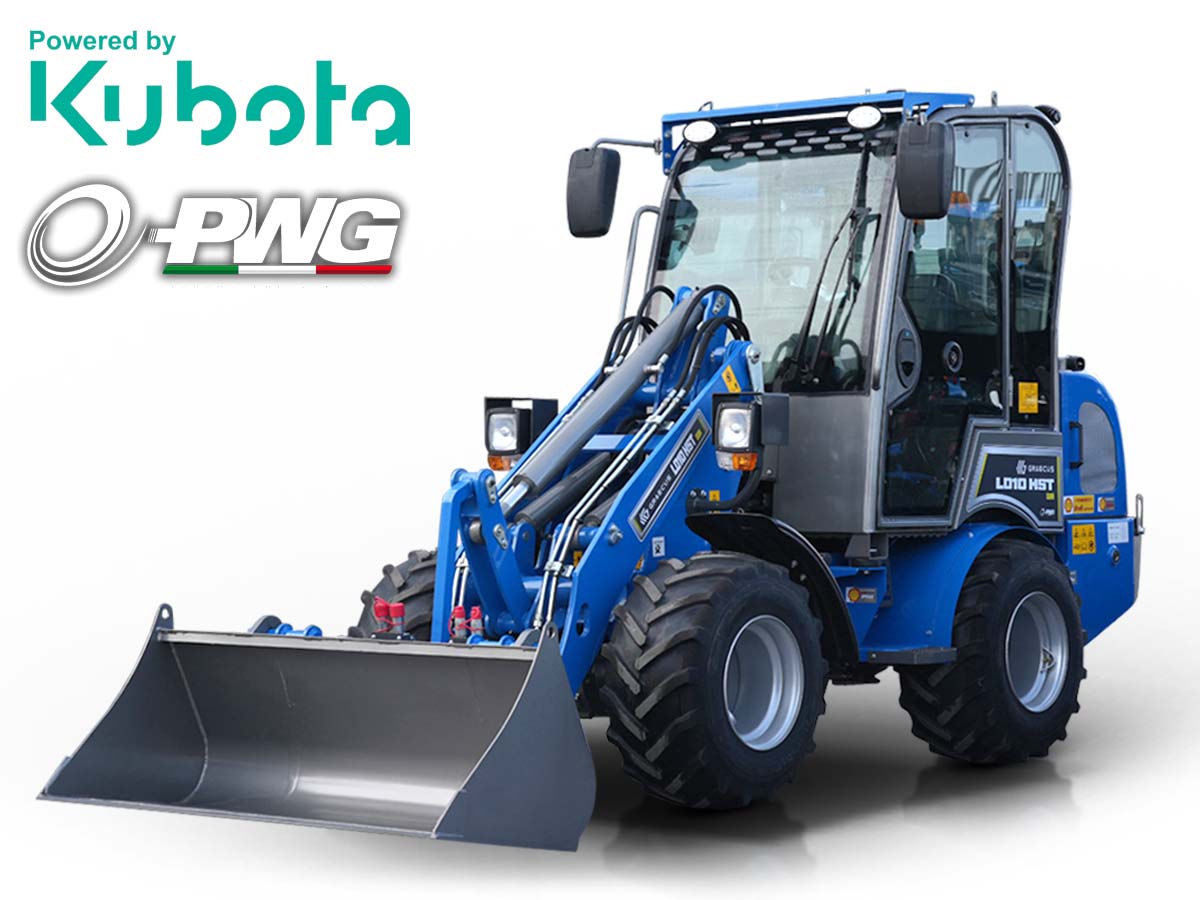

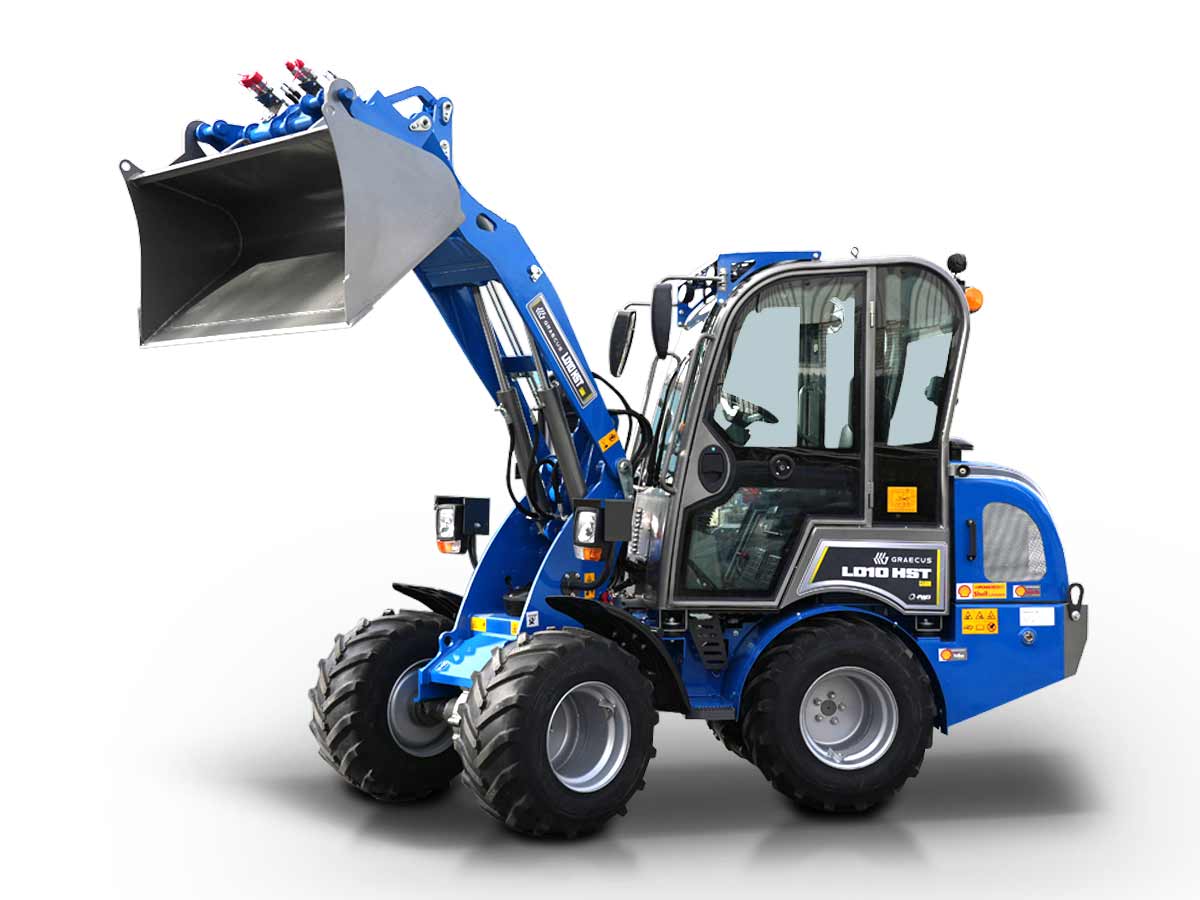

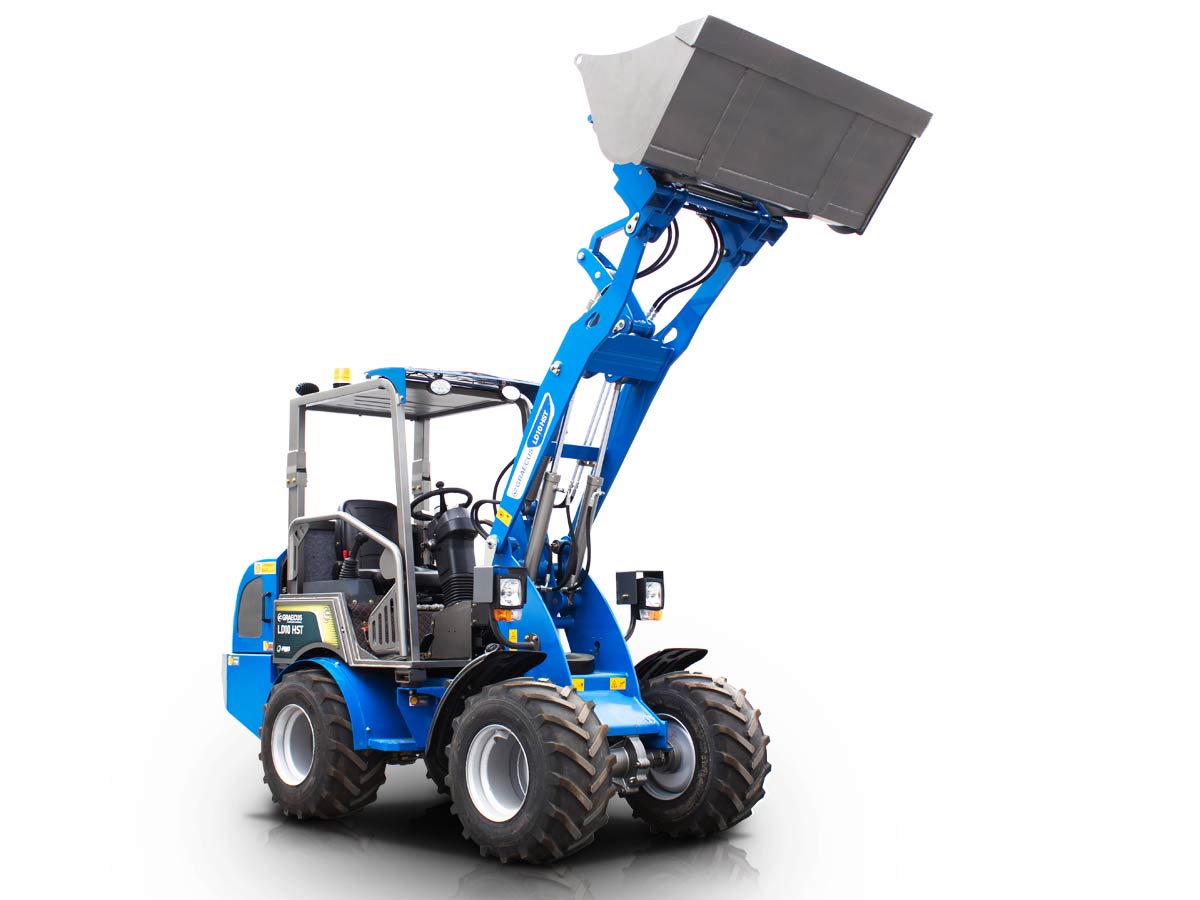

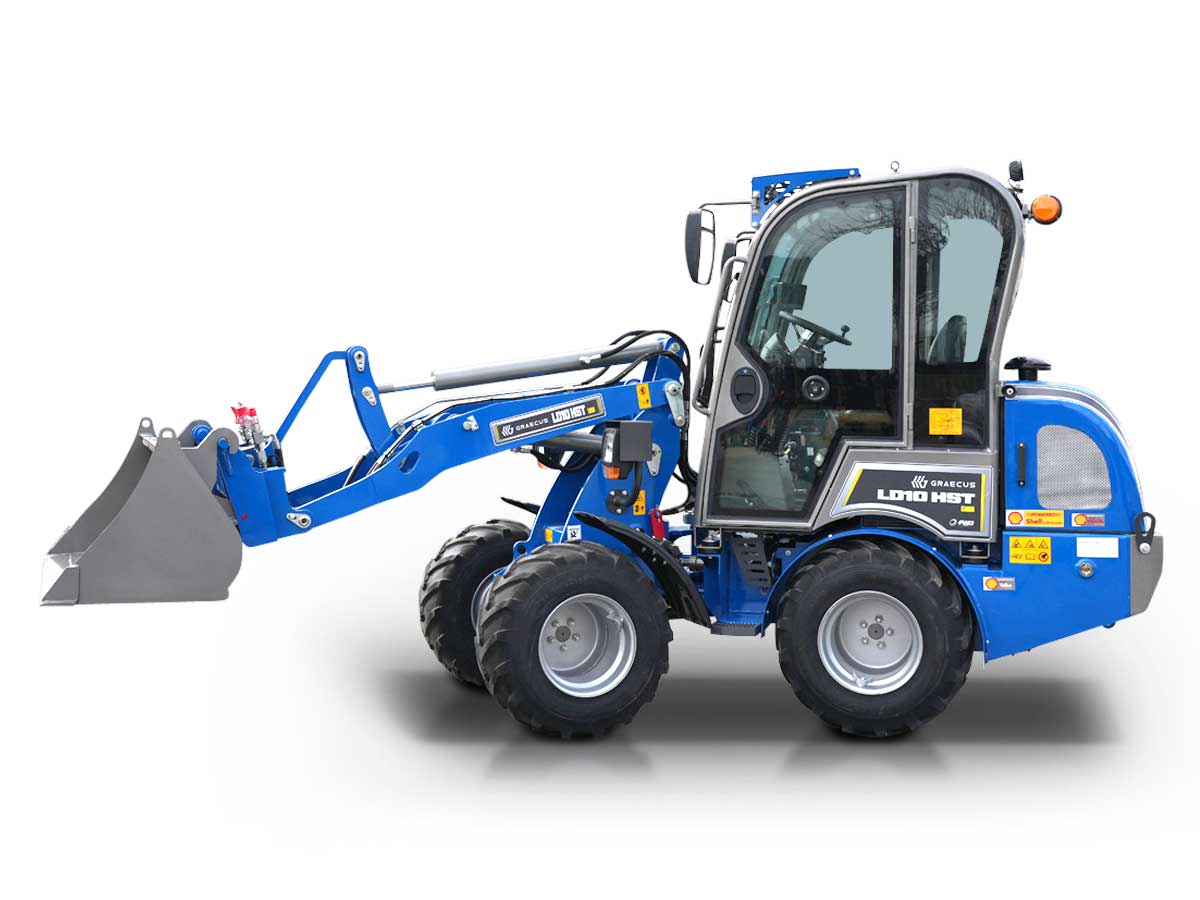

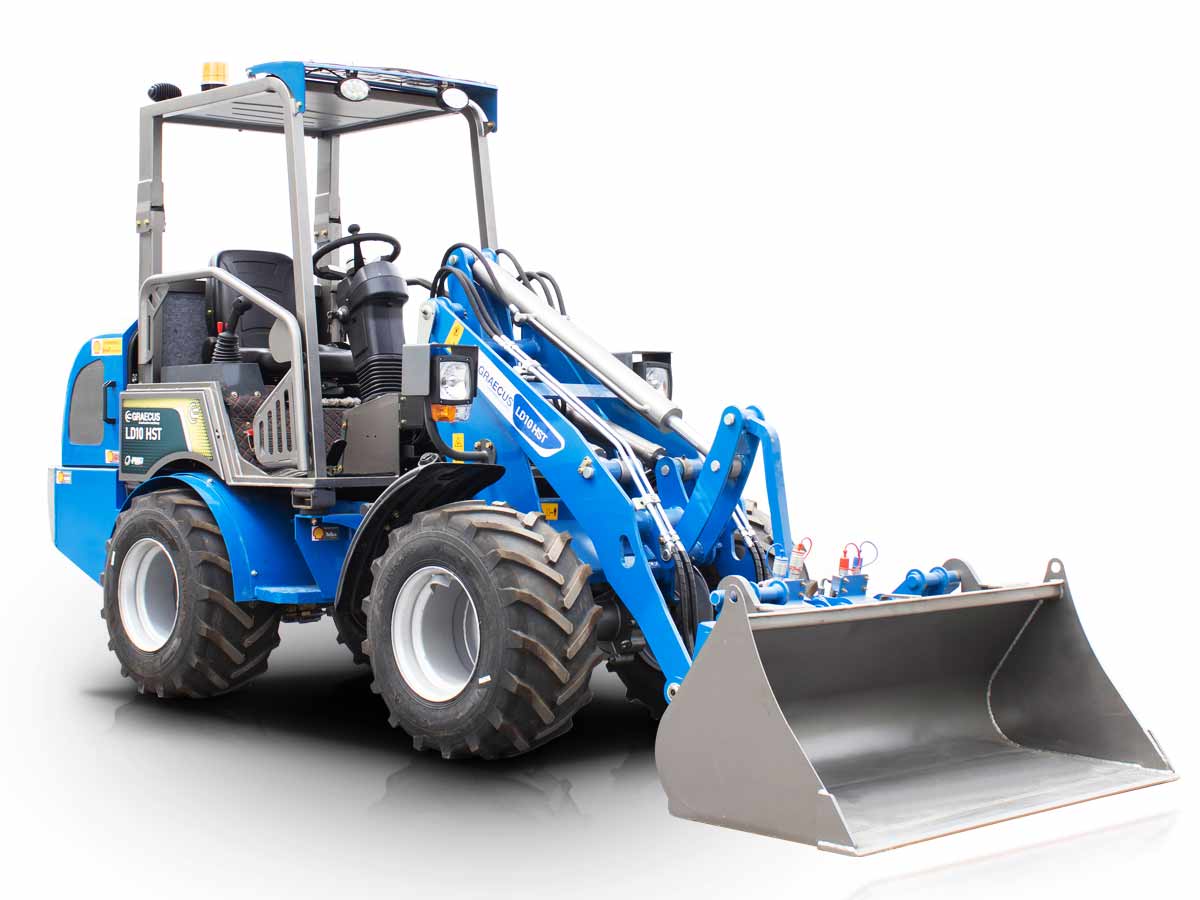

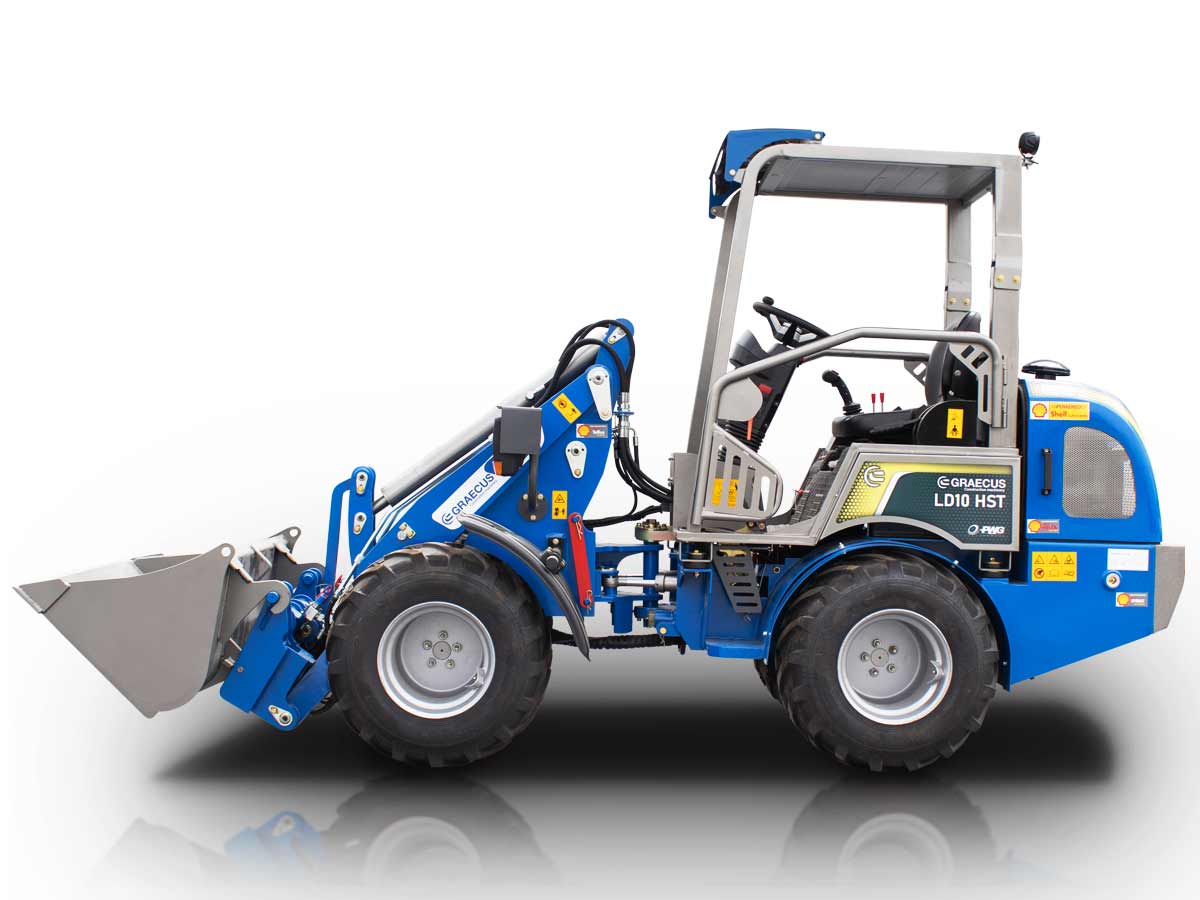

Small Articulated Wheeled Loaders LD10

Mini articulated hydrostatic wheeled loader 4×4 4WD | STAGE-V

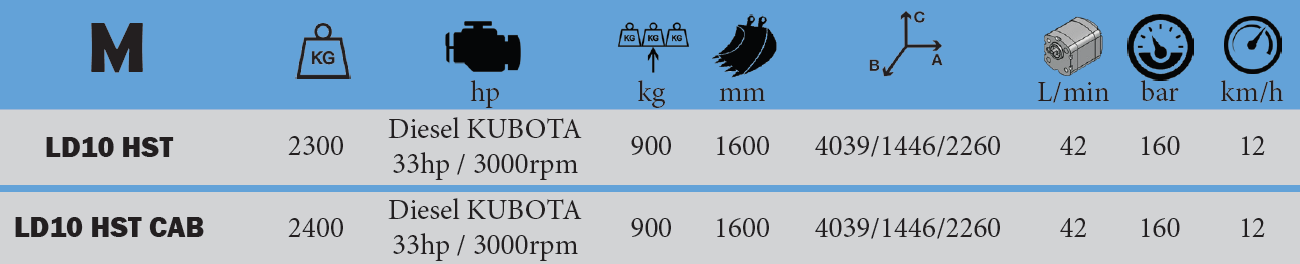

Maximum load capacity: 1600 kg, maximum lifting capacity: 900 kg.

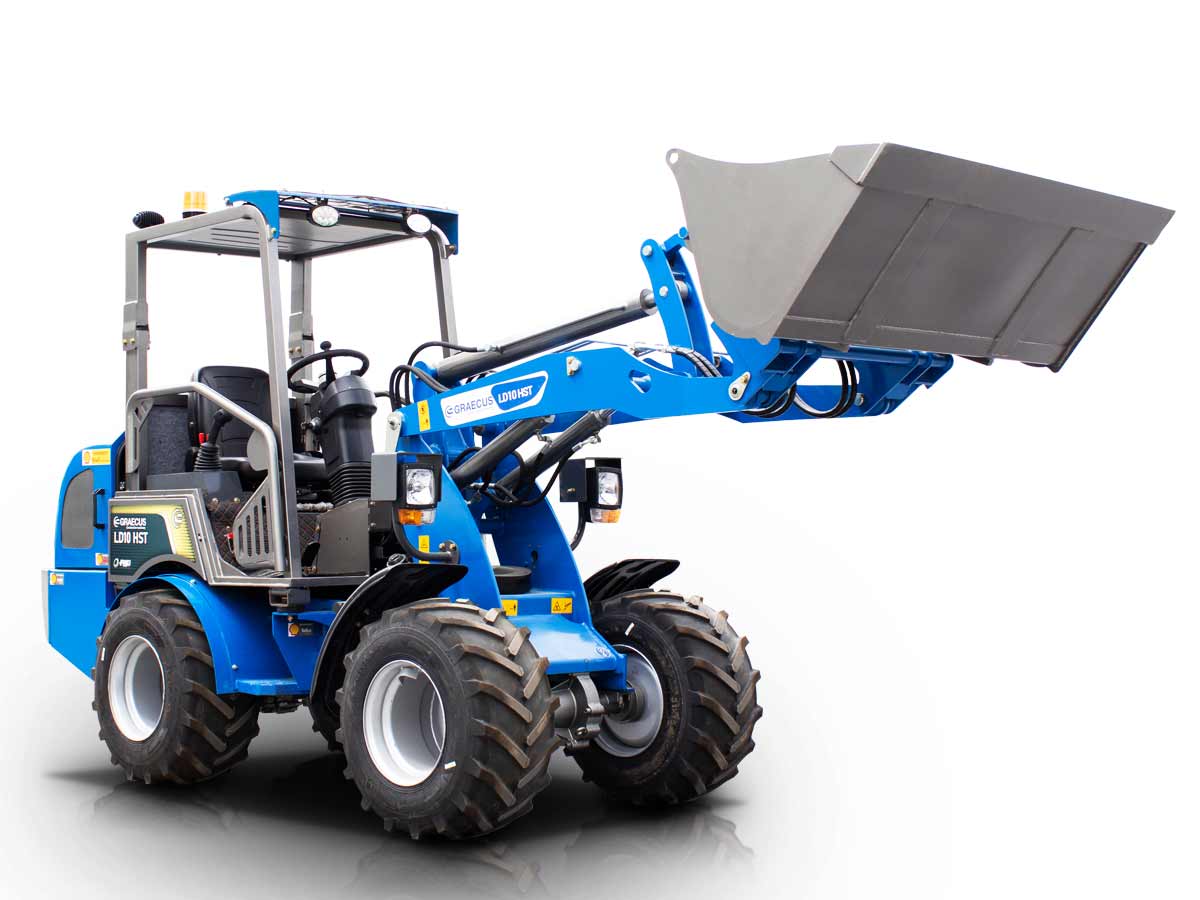

Maximum lift height (at the pin): 2678 mm.

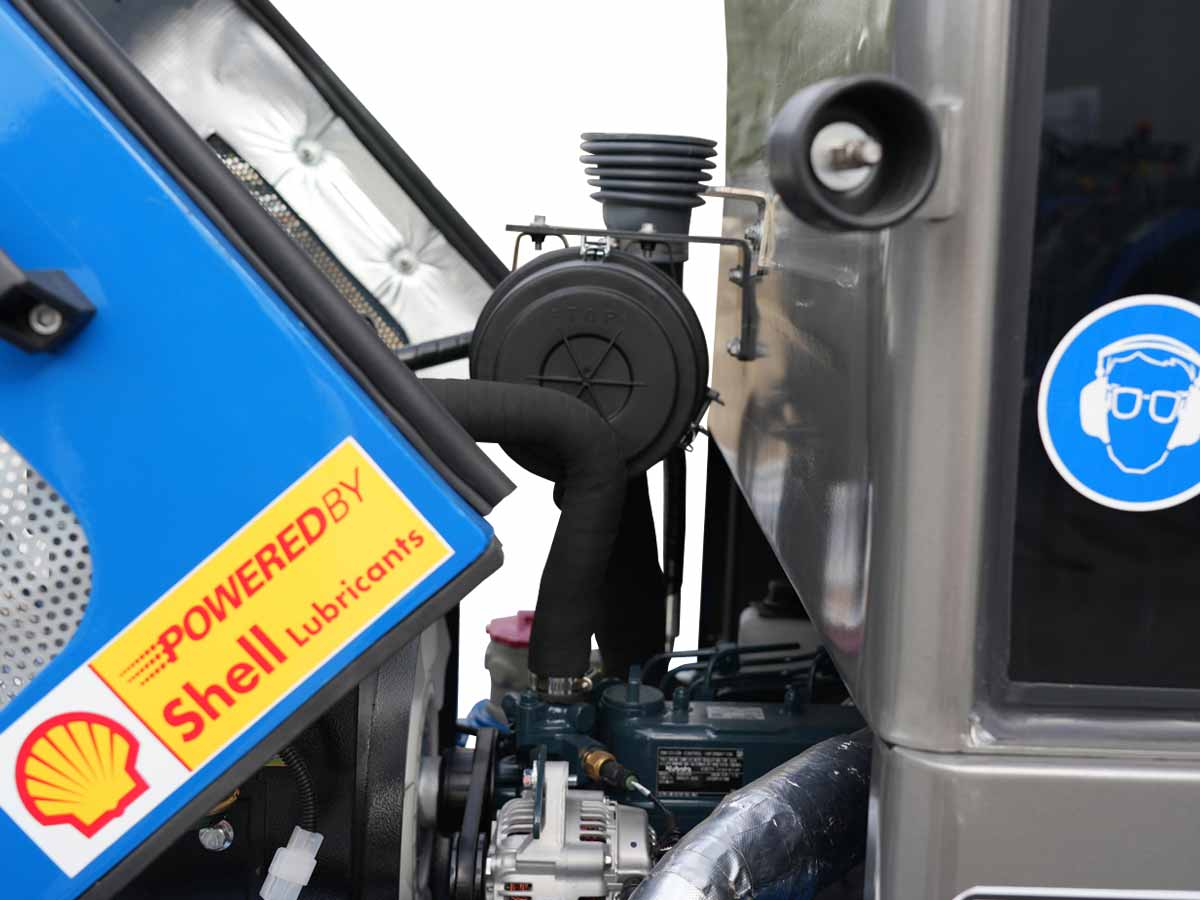

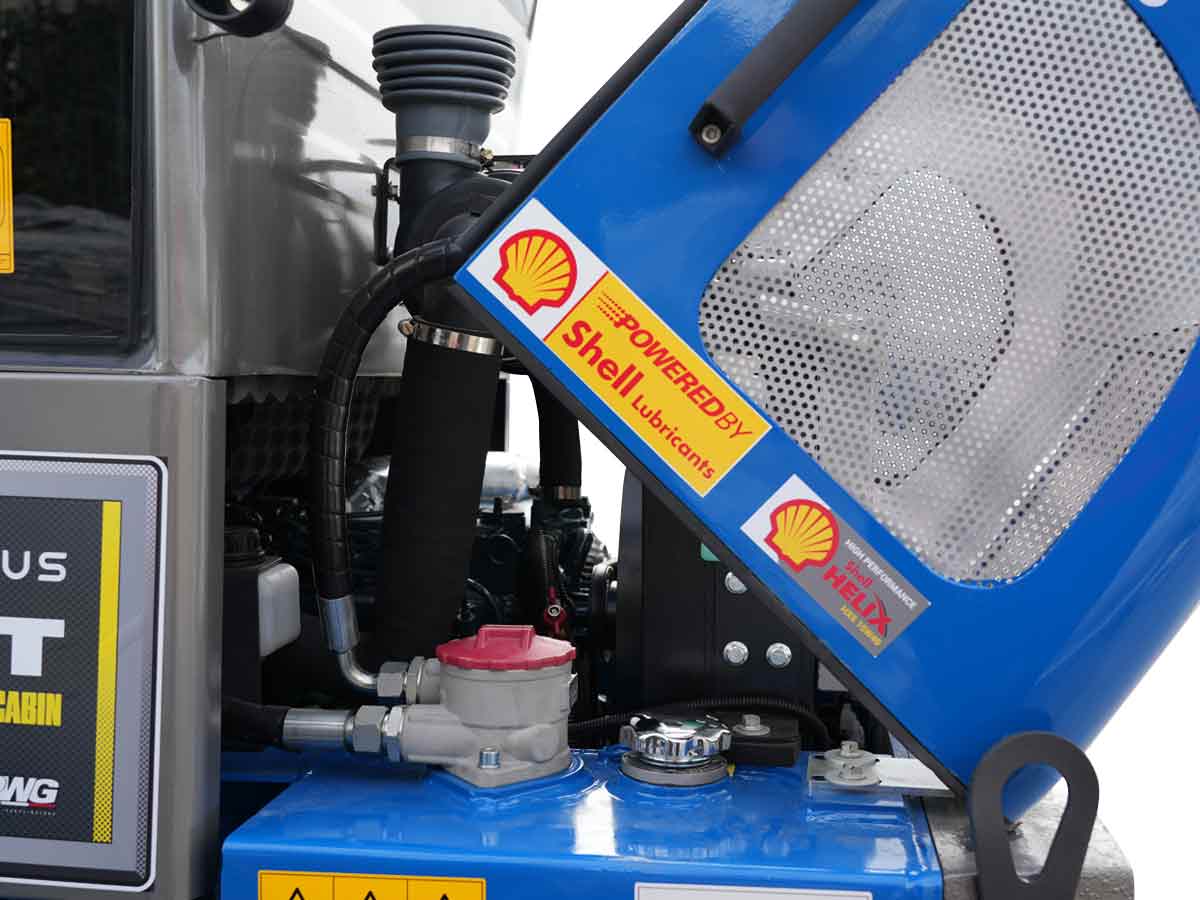

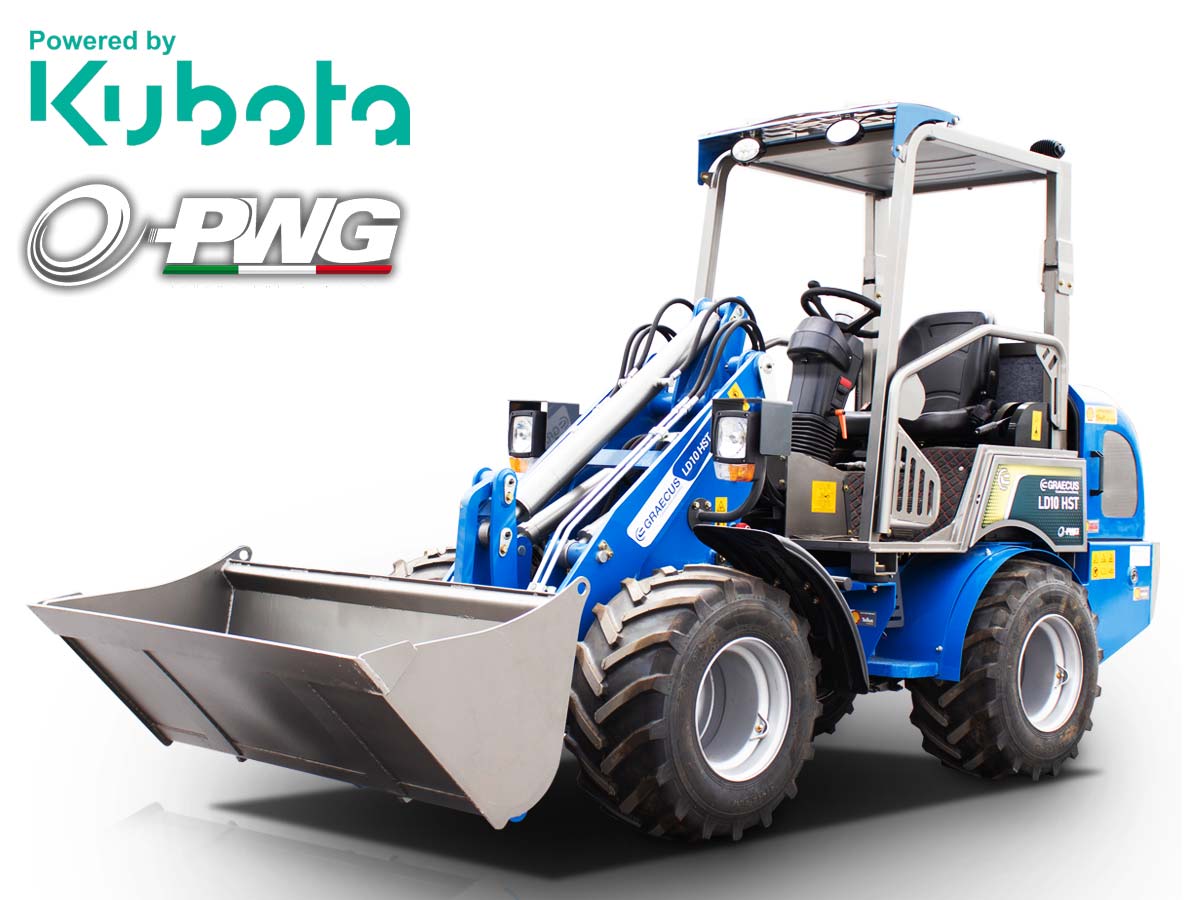

Four-cylinder water-cooled KUBOTA V1505 diesel engine, 25 hp at 2300 rpm, with a maximum output of 33 hp at 3000 rpm, new generation STAGE V with low fuel consumption.
Four-wheel drive (4×4) delivers impressive power and agility, enabling it to operate even in the toughest conditions.
This mini articulated wheeled loader is known for its compact design and versatility, making it suitable for all kinds of unconventional tasks.
The wheelbase, narrow external width of 1446 mm, and articulated chassis make it extremely maneuverable, even in tight spaces, with an inner turning radius of 1869 mm and outer turning radius of 3172 mm.

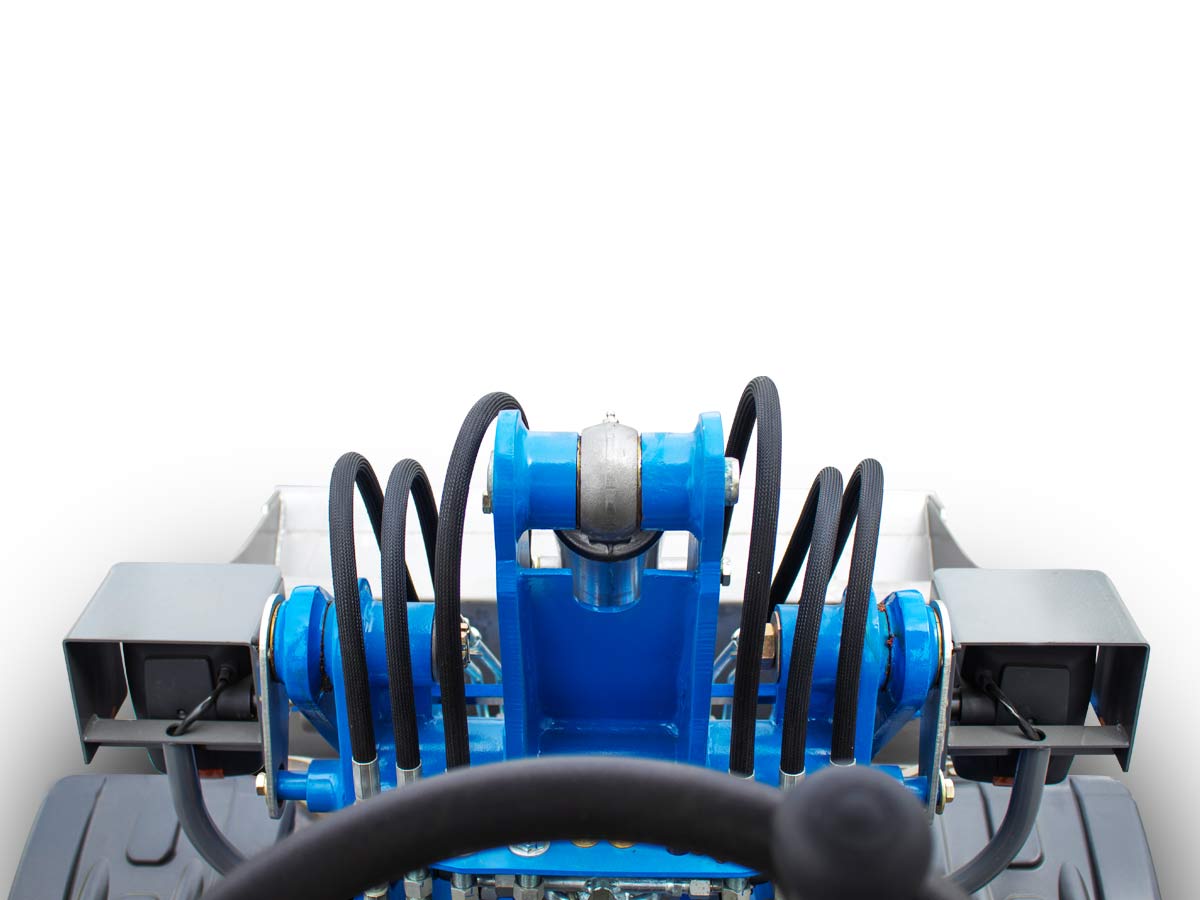

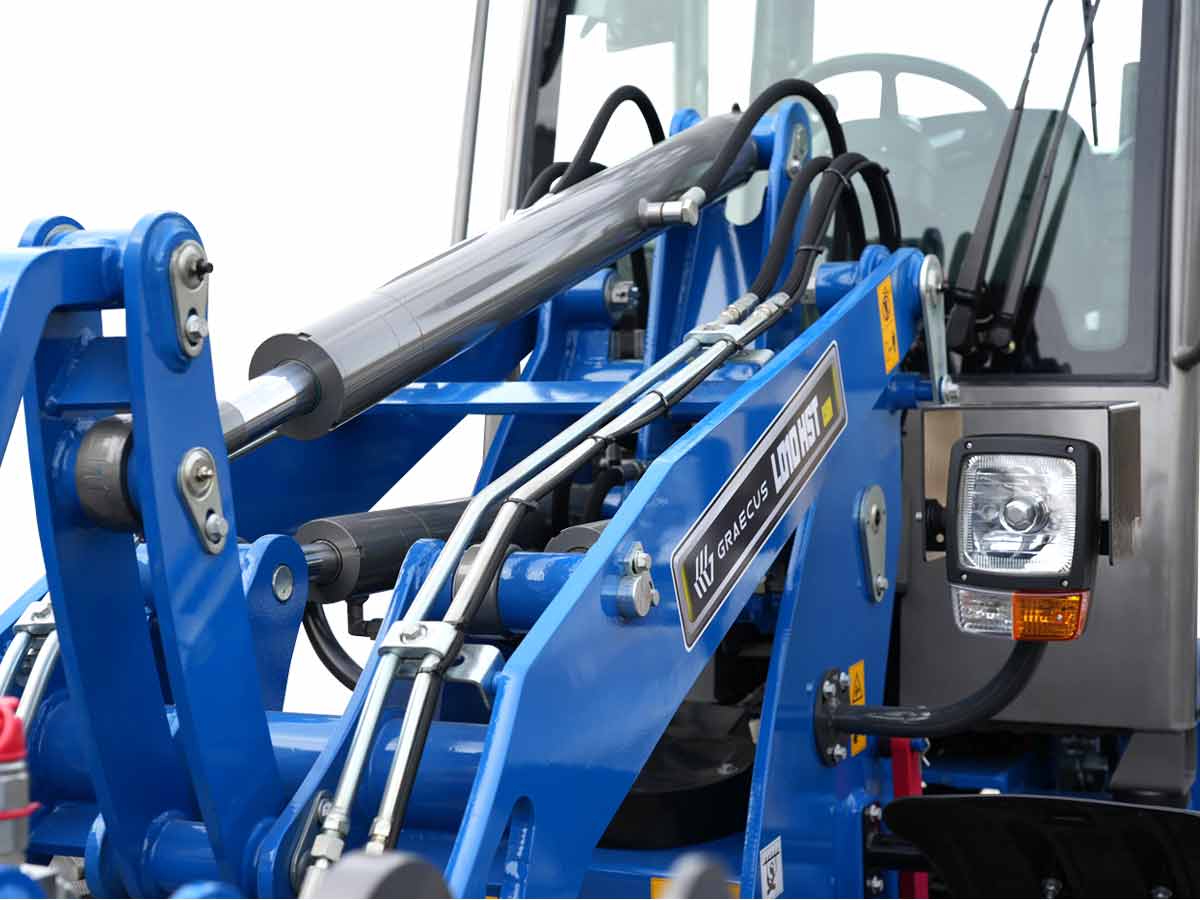

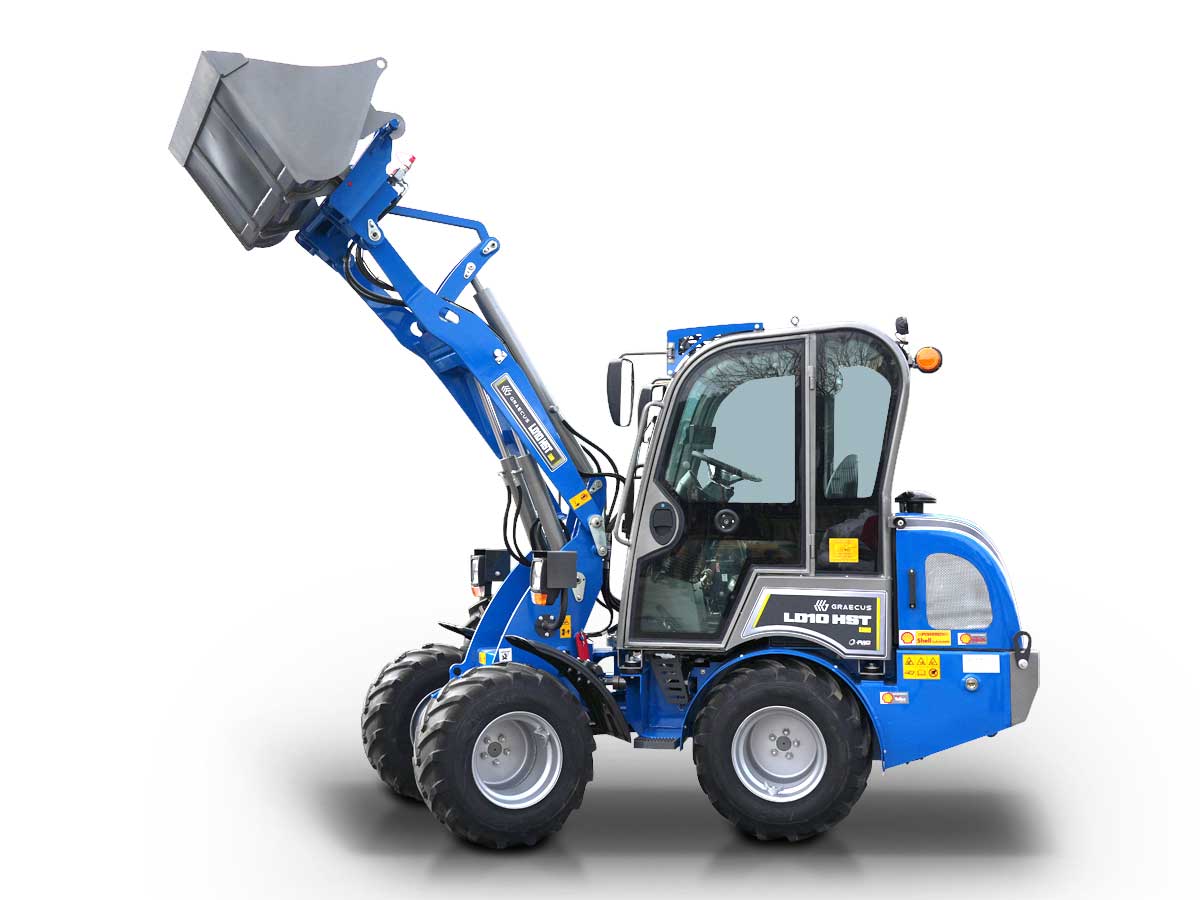

The angled loading arm is designed to be especially robust and torsion-resistant. The advantage of P-kinematics lies in precise parallel movement throughout the entire lifting range.

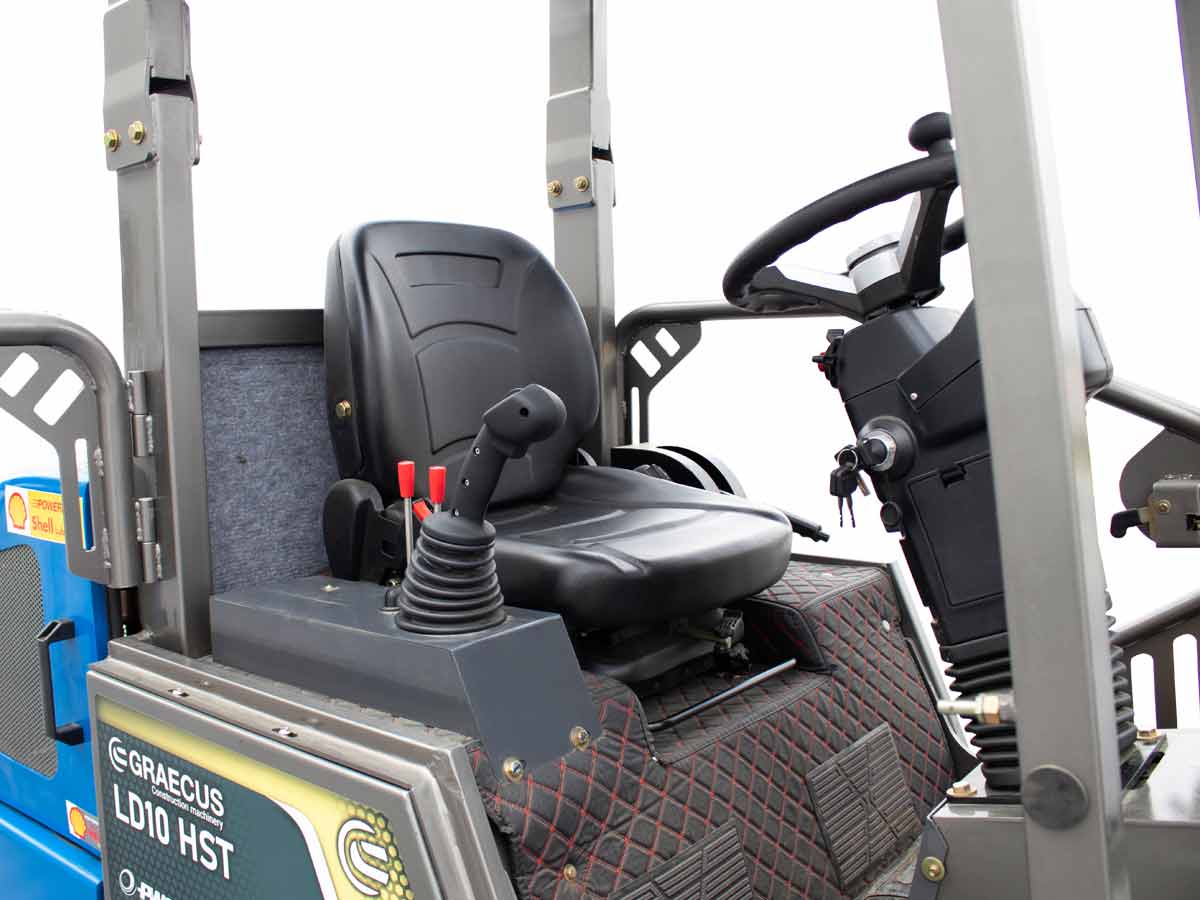

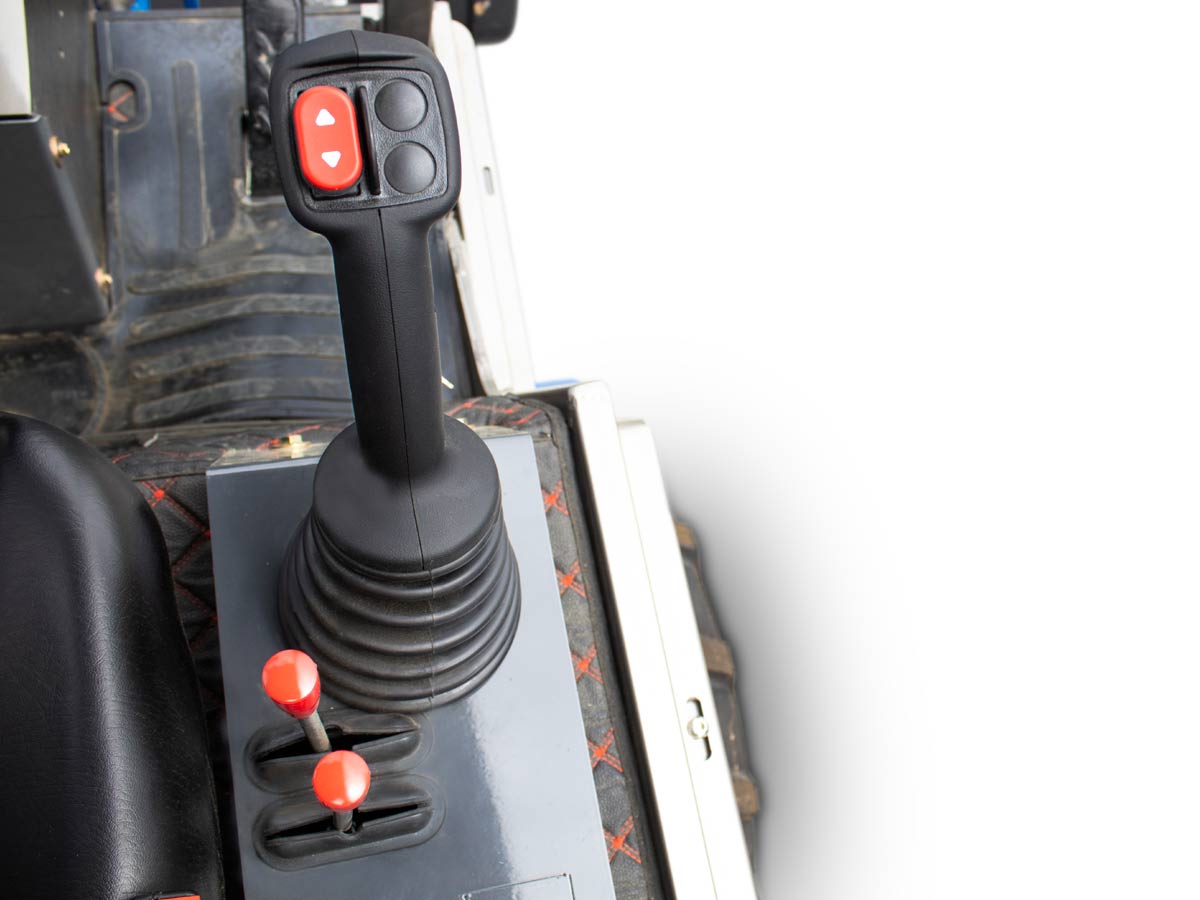

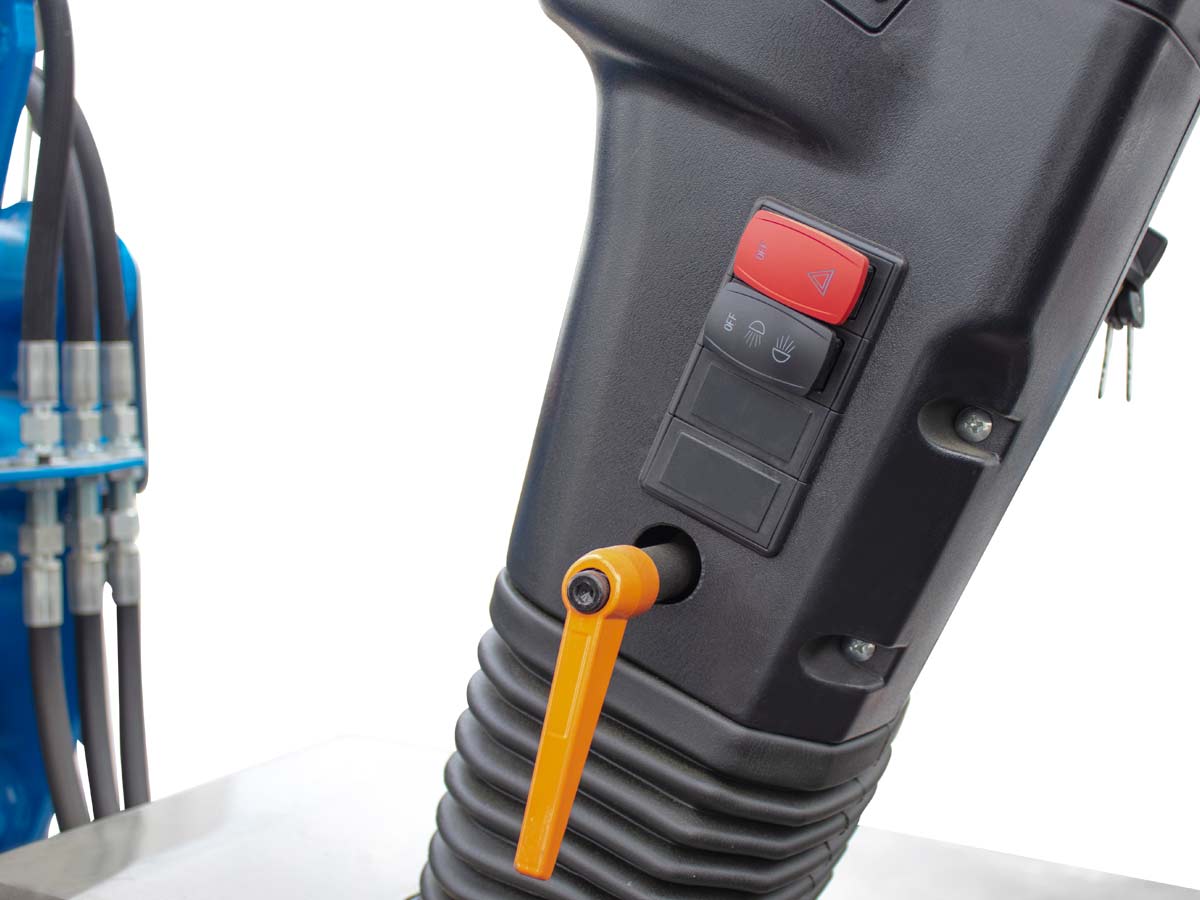

Ergonomic joystick — both sturdy and sensitive. All movements, including telescopic, are controlled from a single joystick, giving you total control over the machine and its core functions.
Top performance guaranteed by Italian PWG components: hydrostatic transmission, hydraulic pump, steering system, and drive hydraulics.
Third hydraulic line included for future attachment connections (double-acting line).
A larger and stronger hydraulic lifting cylinder ensures optimal load distribution to the arm, delivering maximum stability.

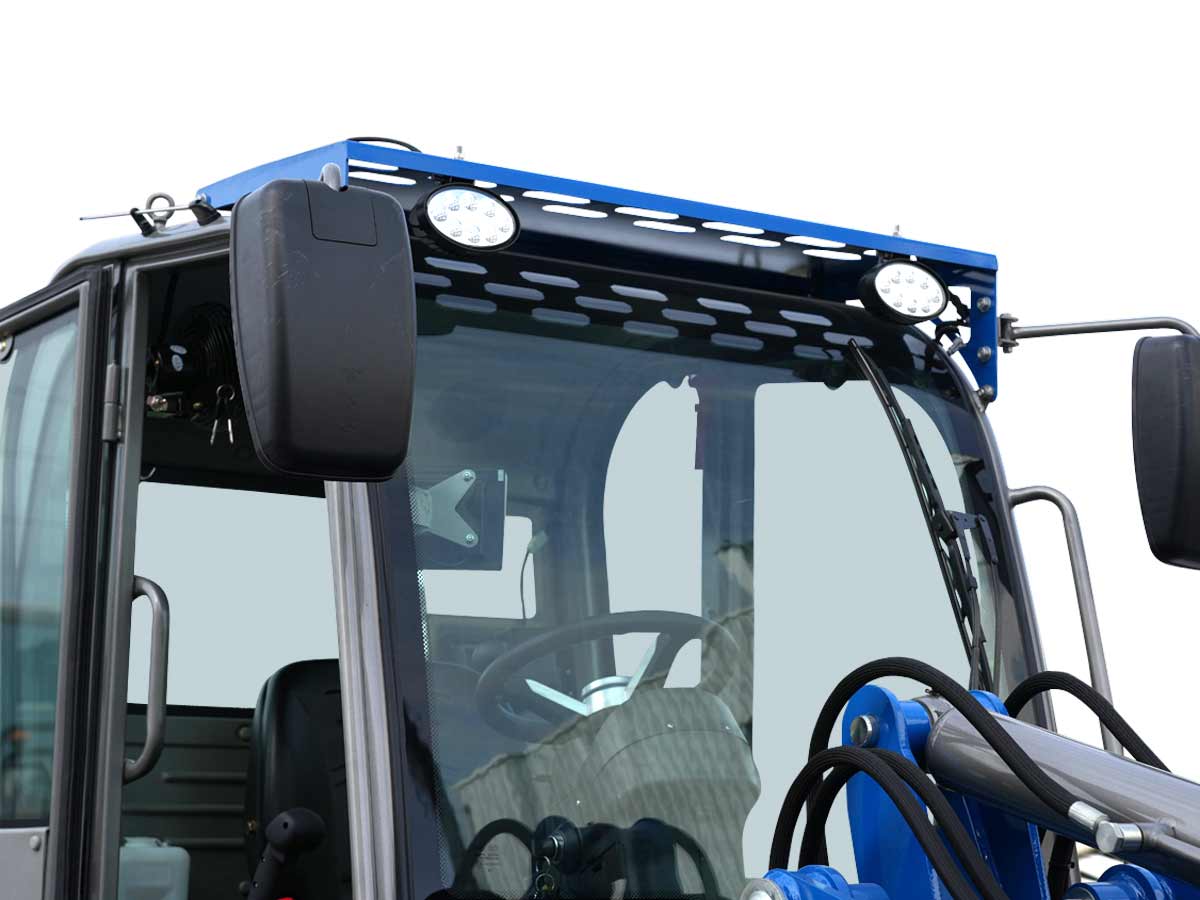

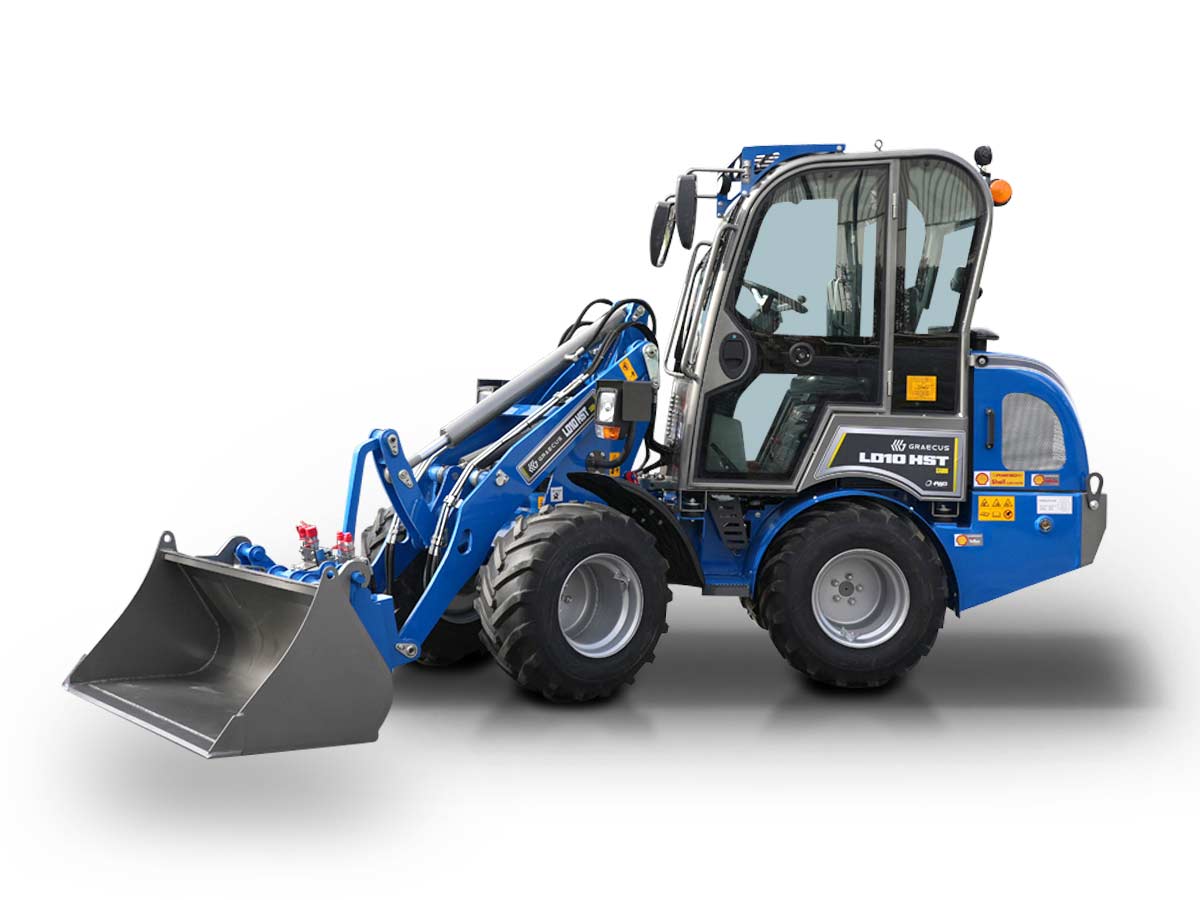

New high-spec canopy design offers enhanced visibility and safety.

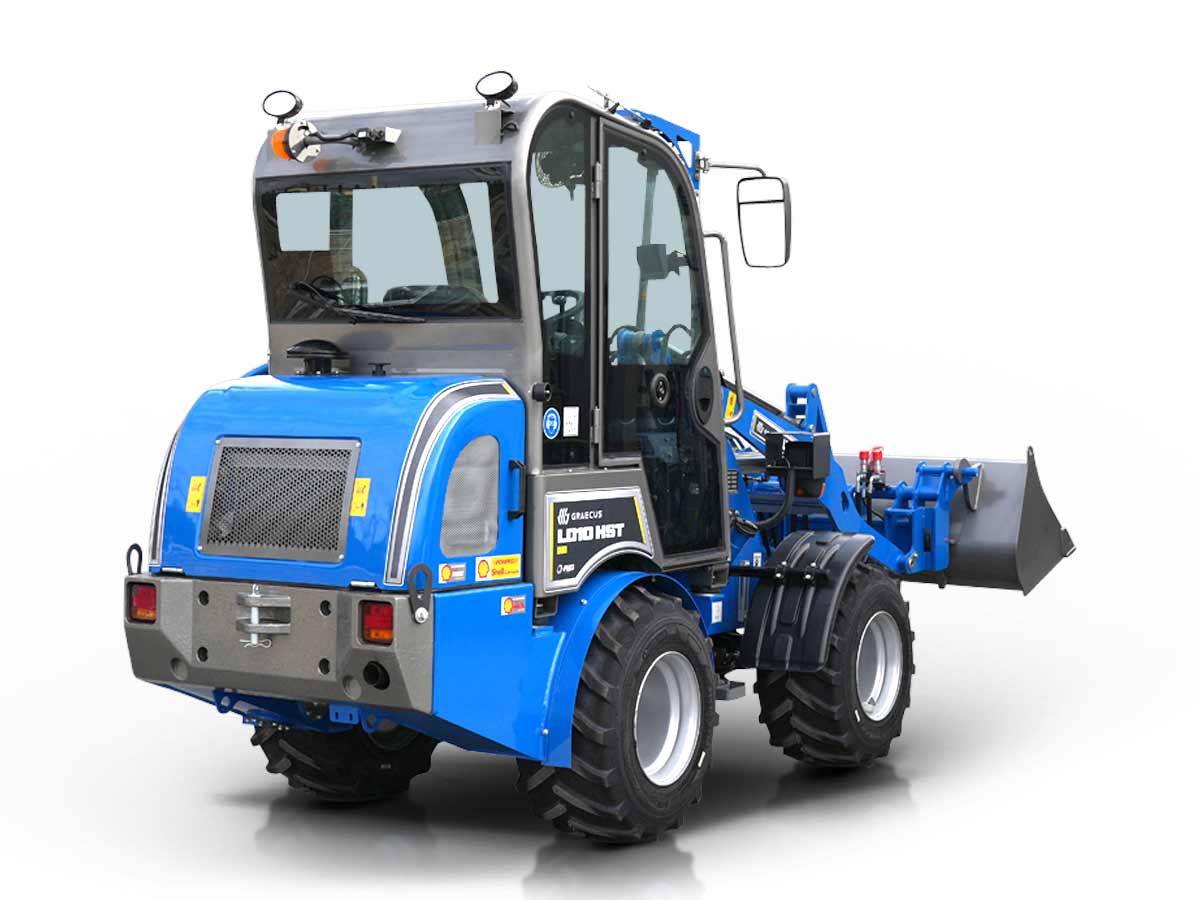

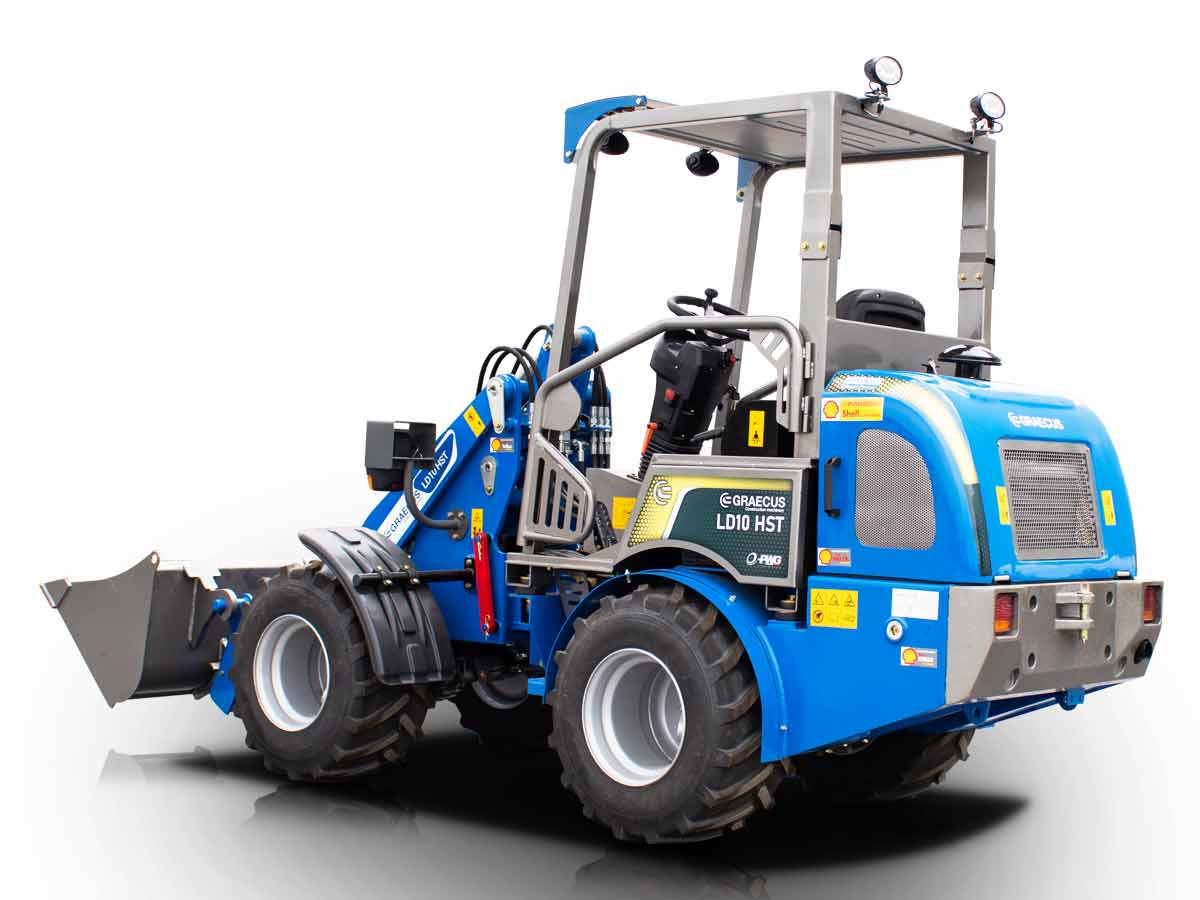

Cast rear counterweight significantly improves loader stability.

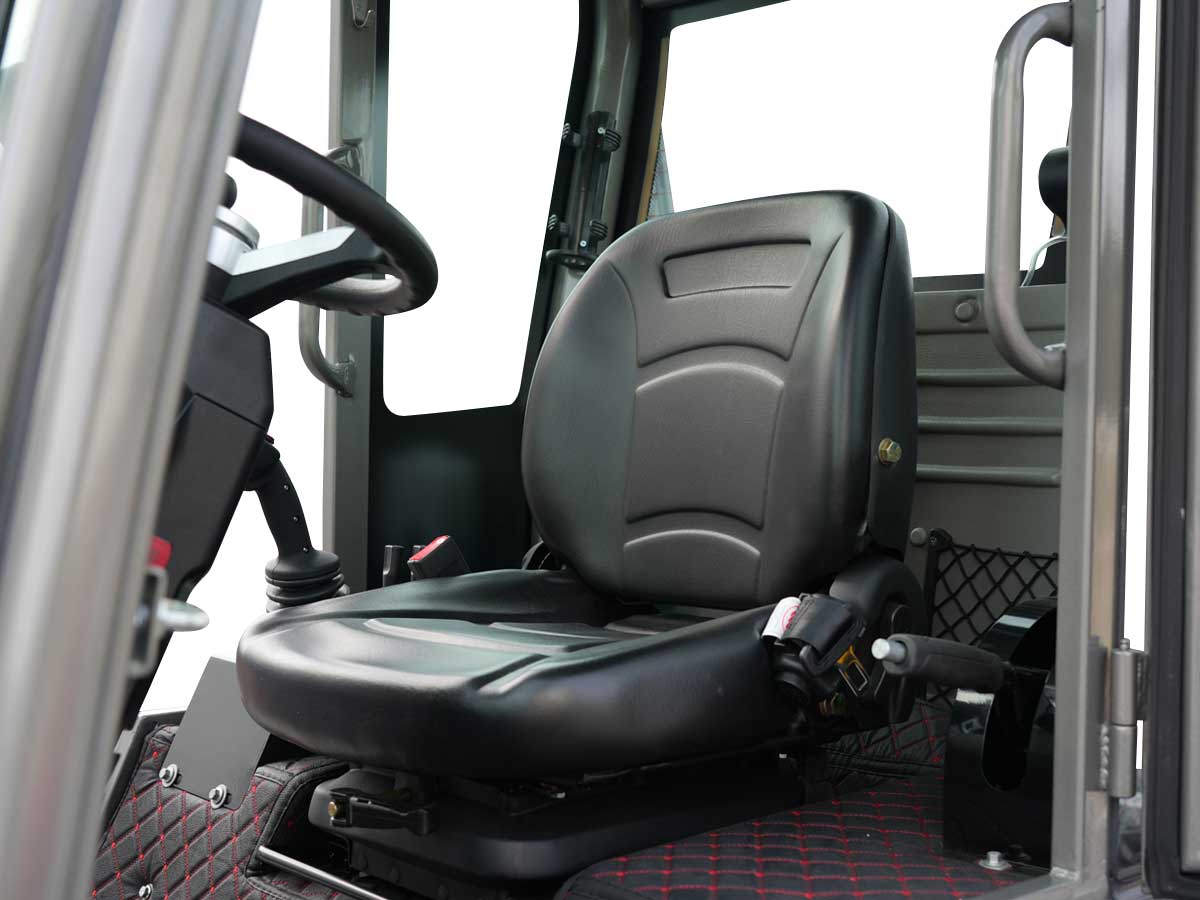

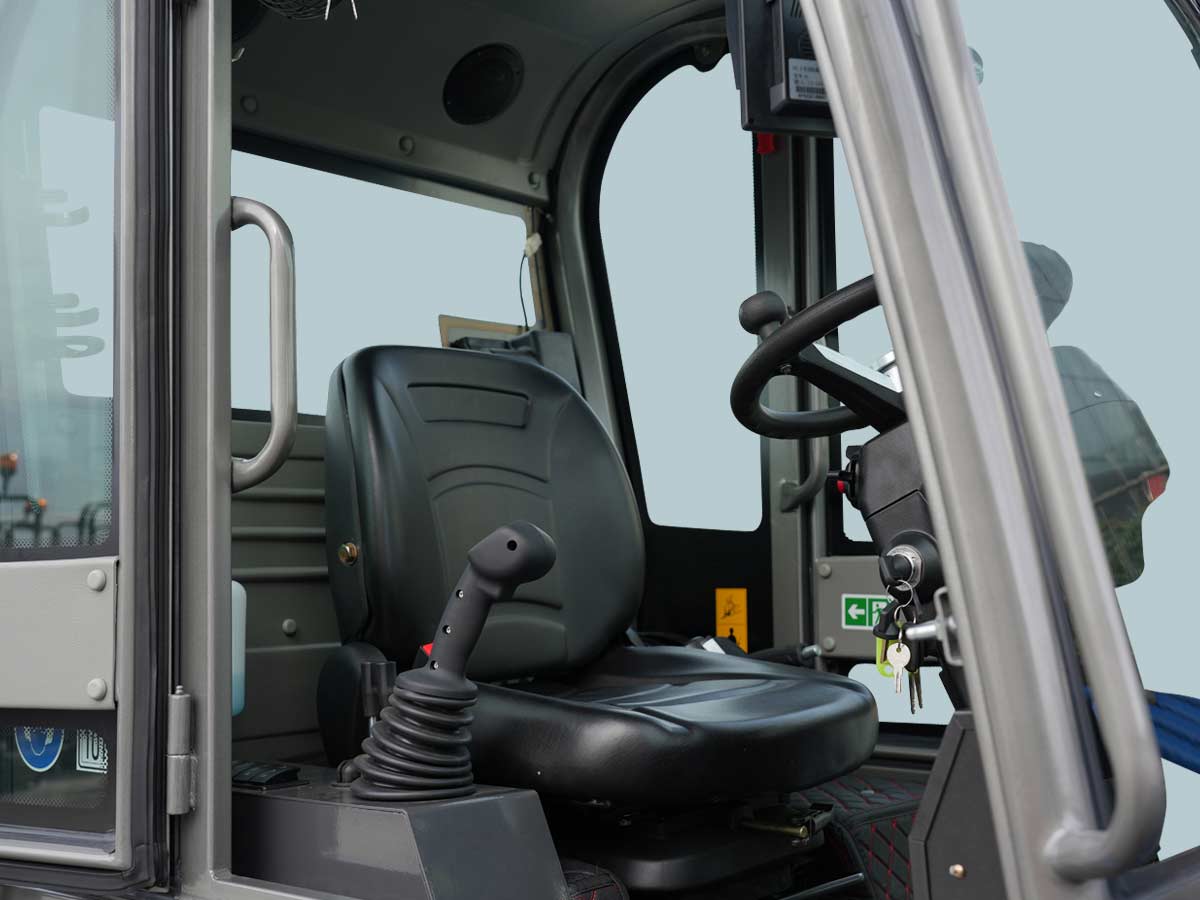

Adjustable steering column tailored to the operator ensures ergonomic and fatigue-free operation.
Quick attachment connection via Euro-hitch coupler.

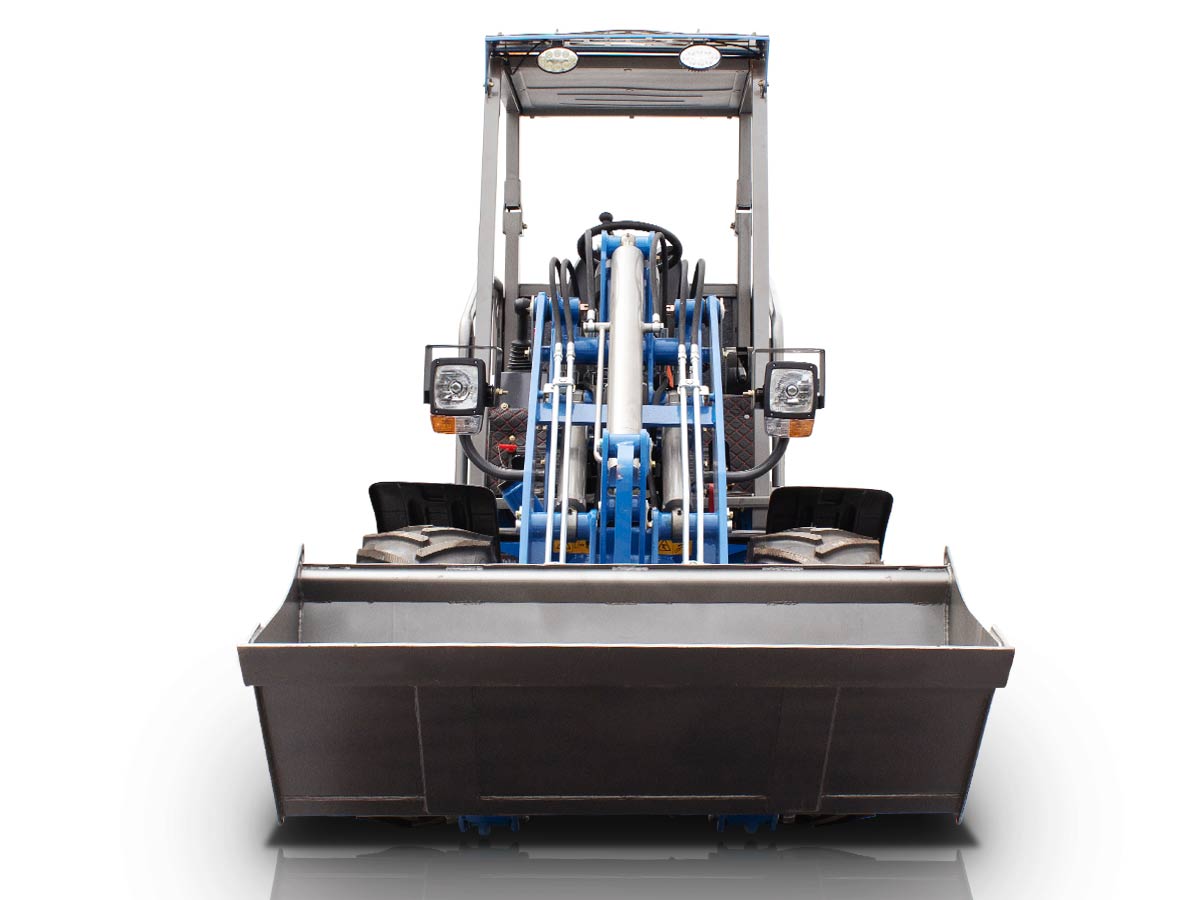

Includes a 1600 mm digging bucket.
Certified with European CE safety approval.
