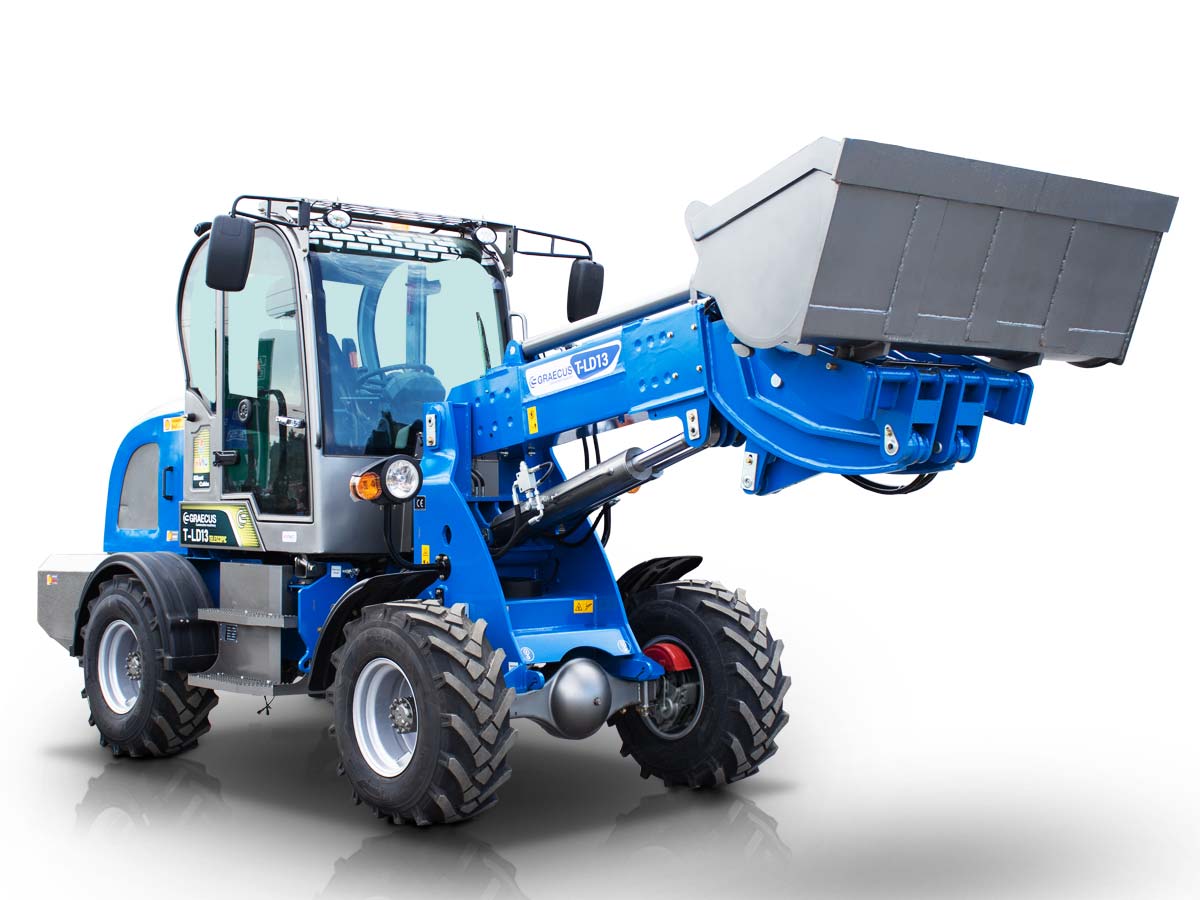

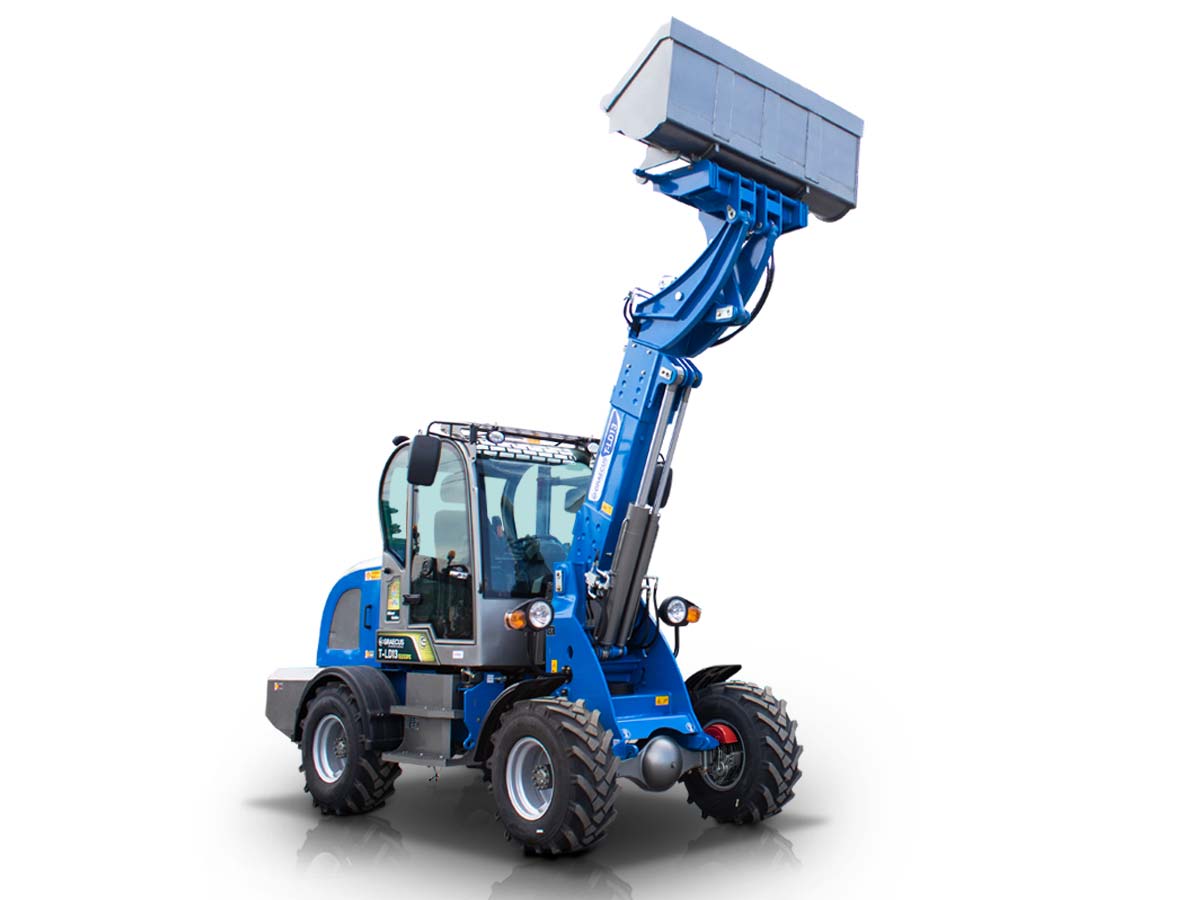

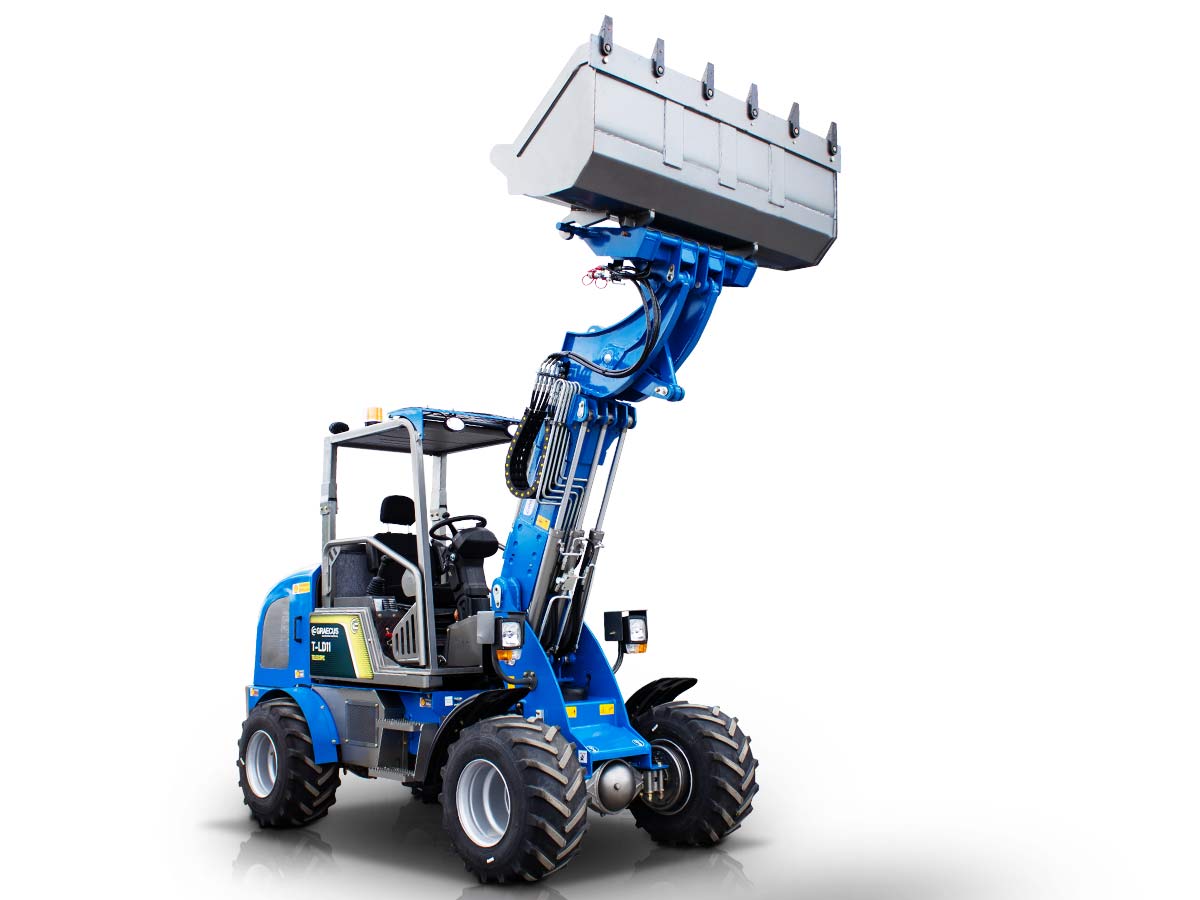

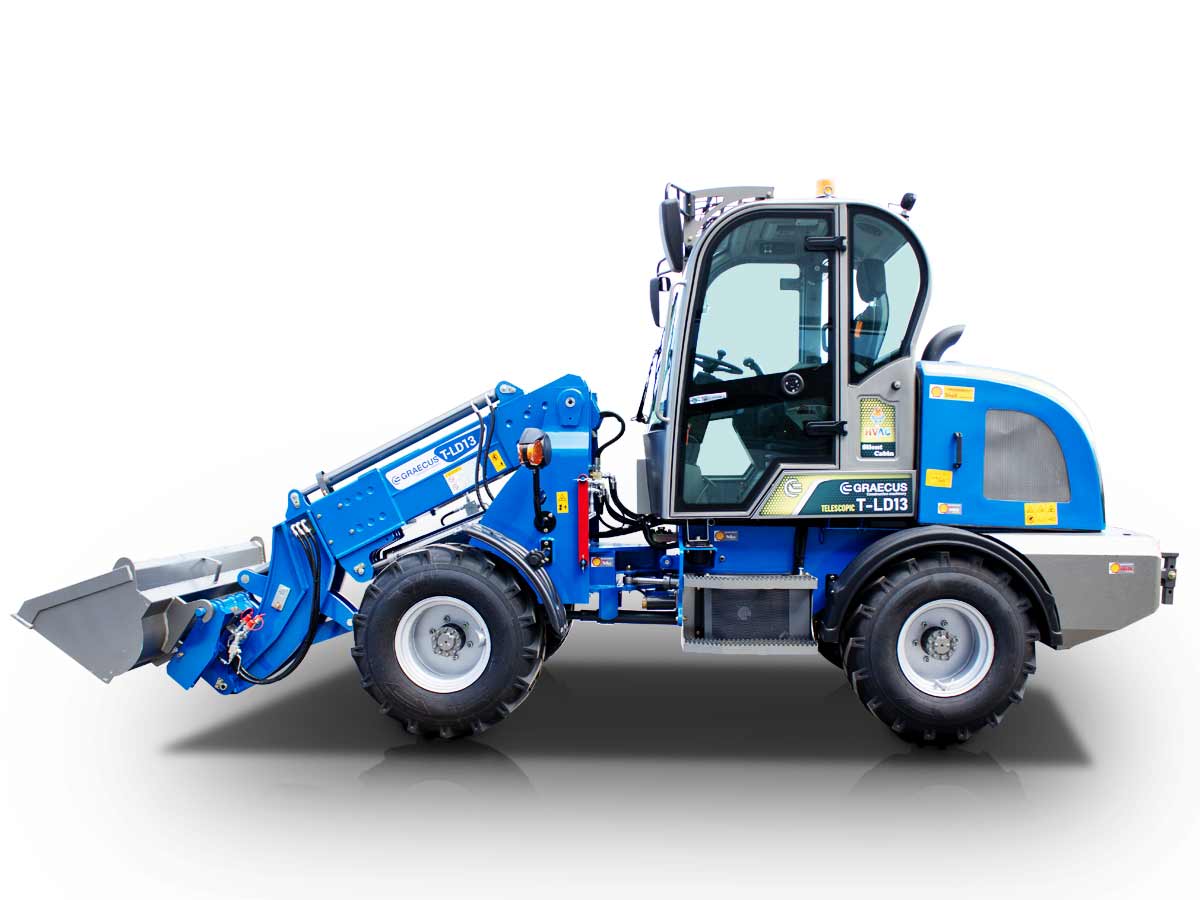

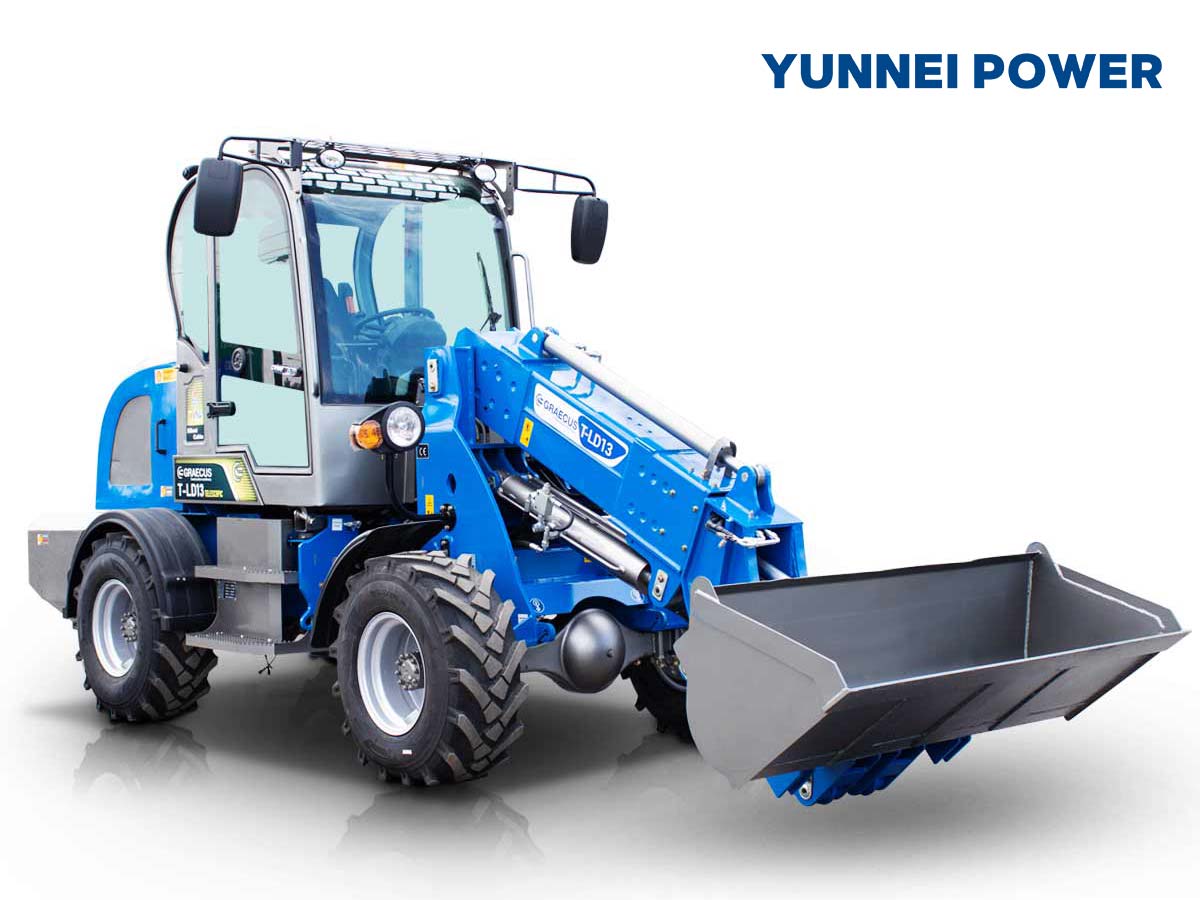

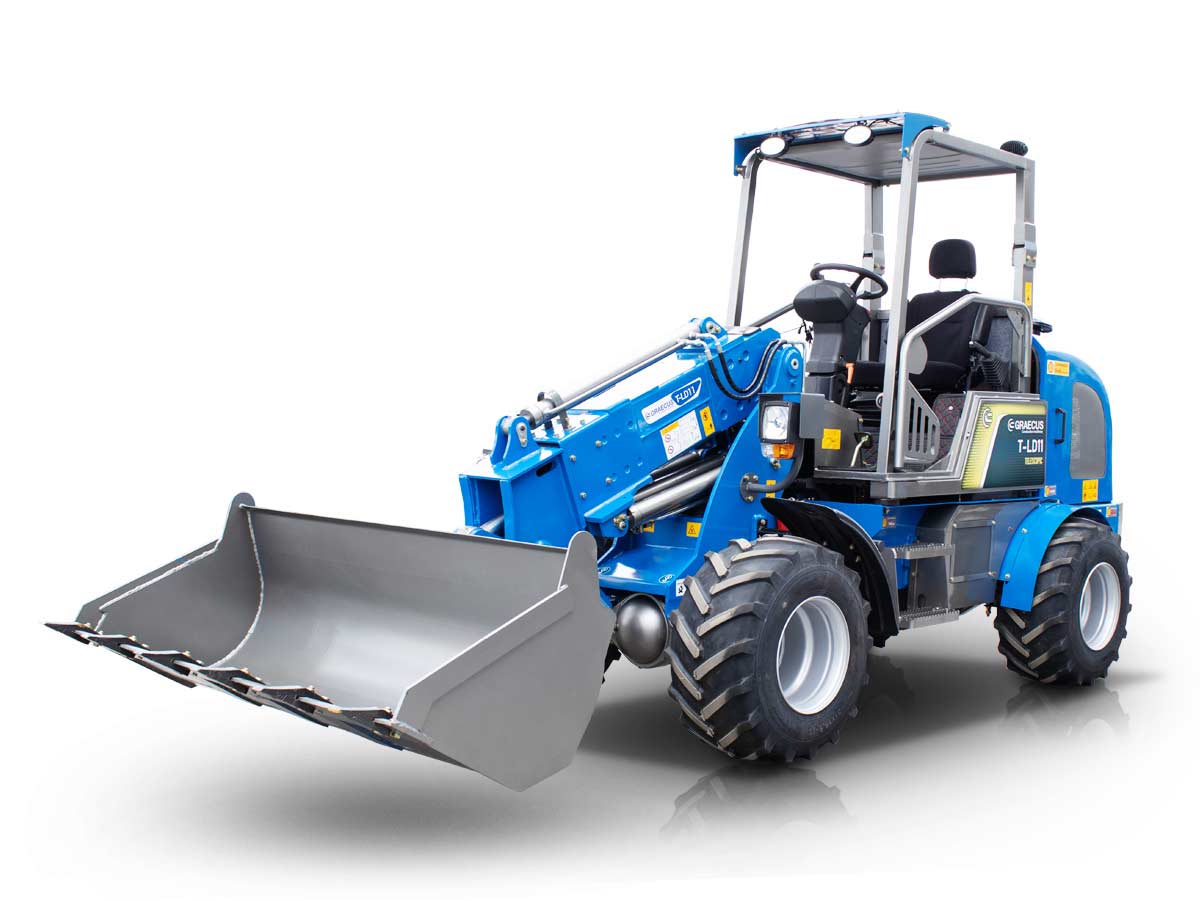

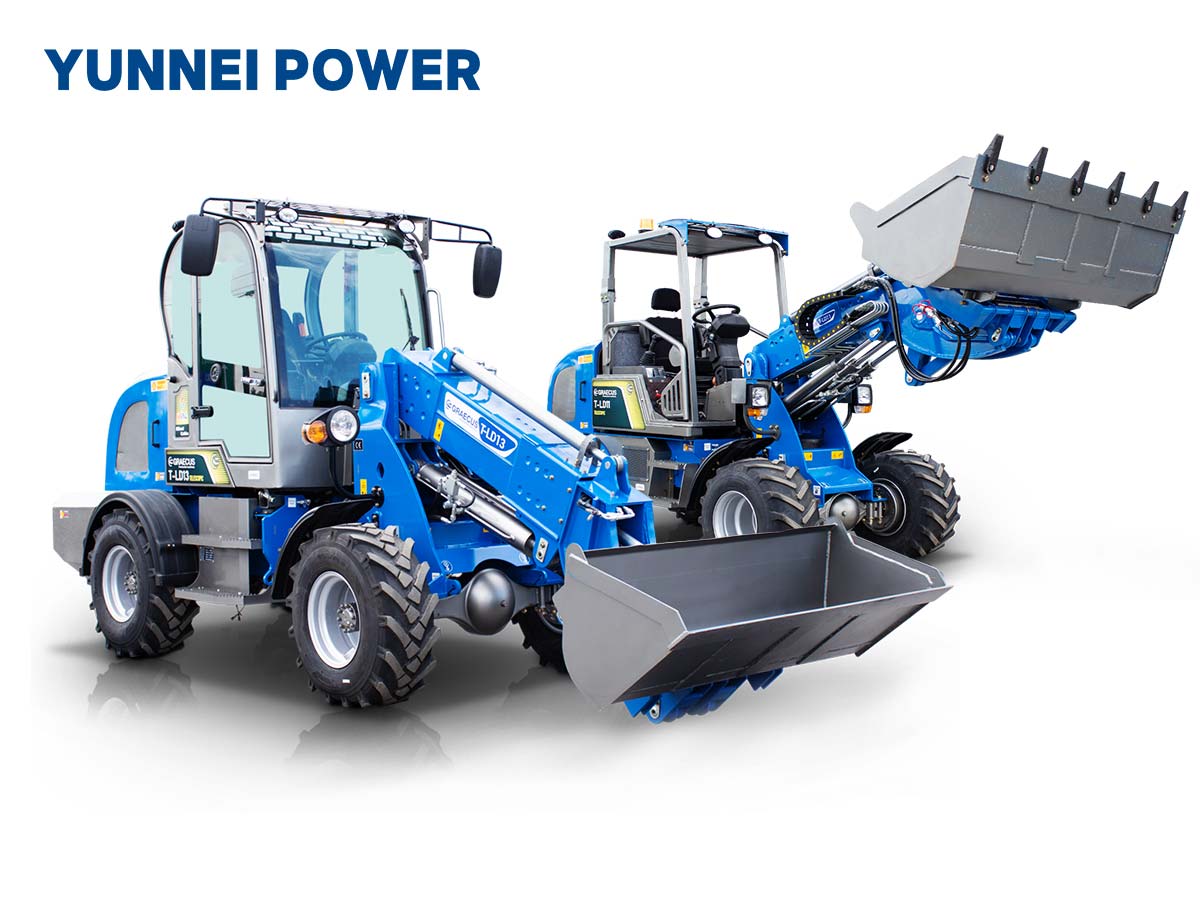

Telescopic Wheeled Loaders 4×4 4WD | STAGE-V

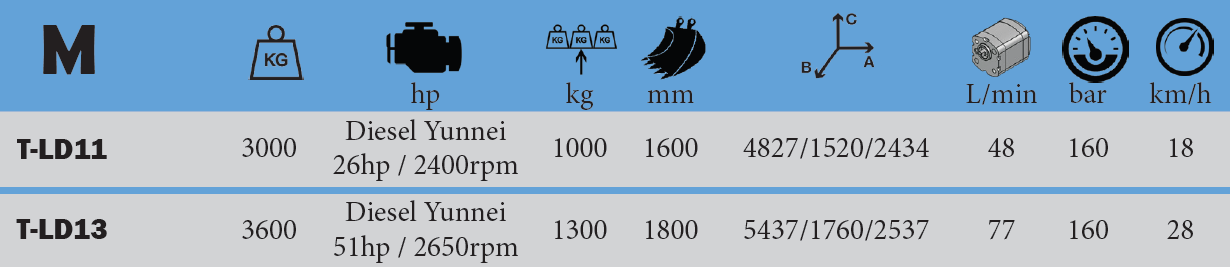

• Maximum load capacity: 1700 kg (T-LD11) and 2200 kg (T-LD13)

• Maximum lifting capacity: 1000 kg (T-LD11) and 1300 kg (T-LD13)

• Maximum lifting height (at the pin): 3442 mm (T-LD11) and 4129 mm (T-LD13)

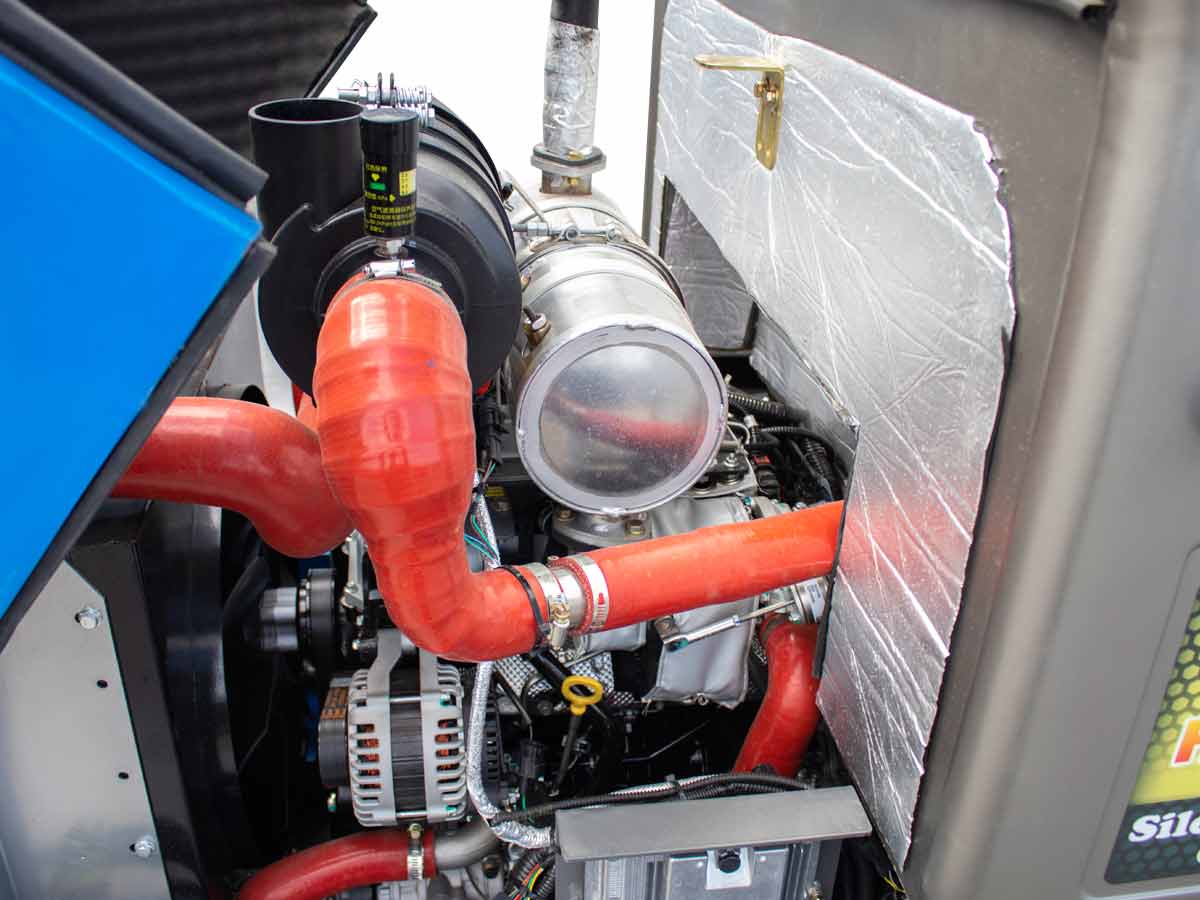

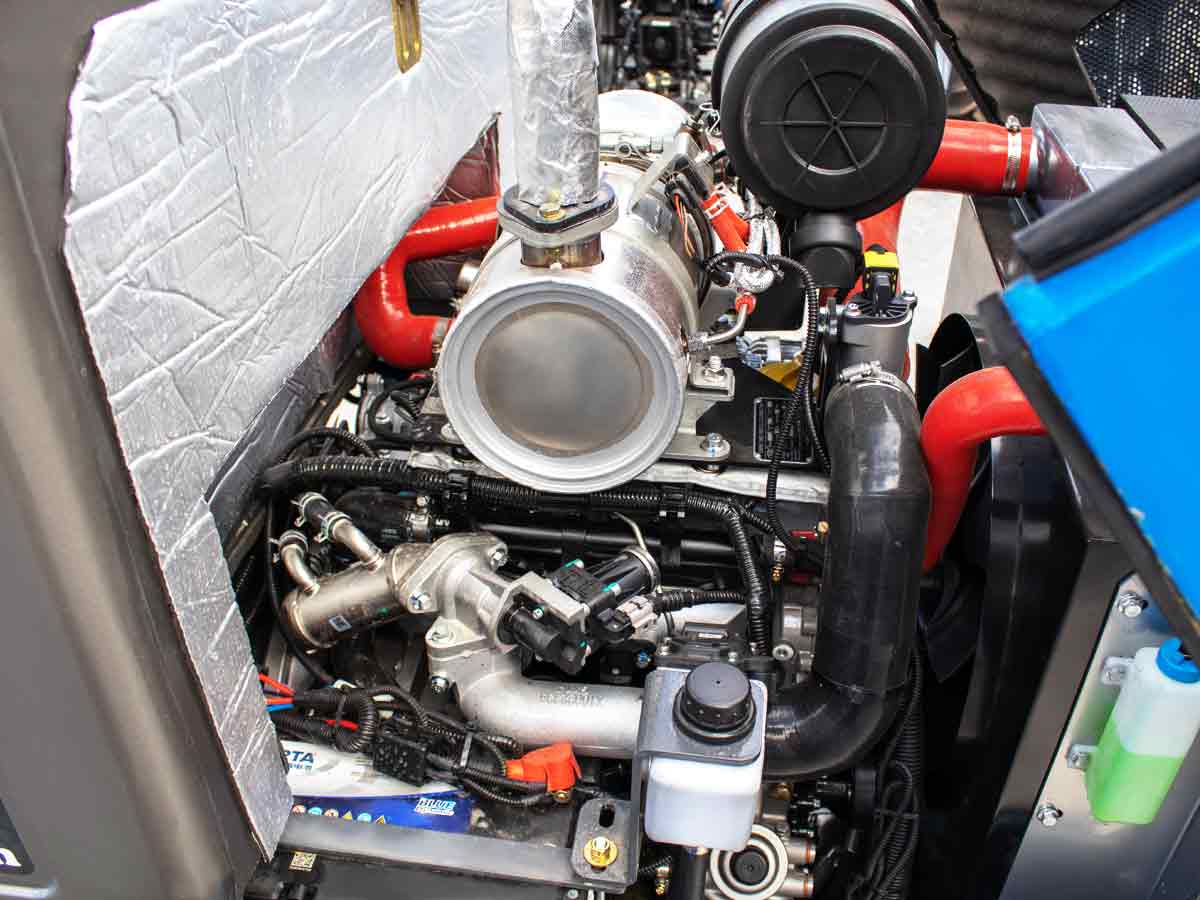

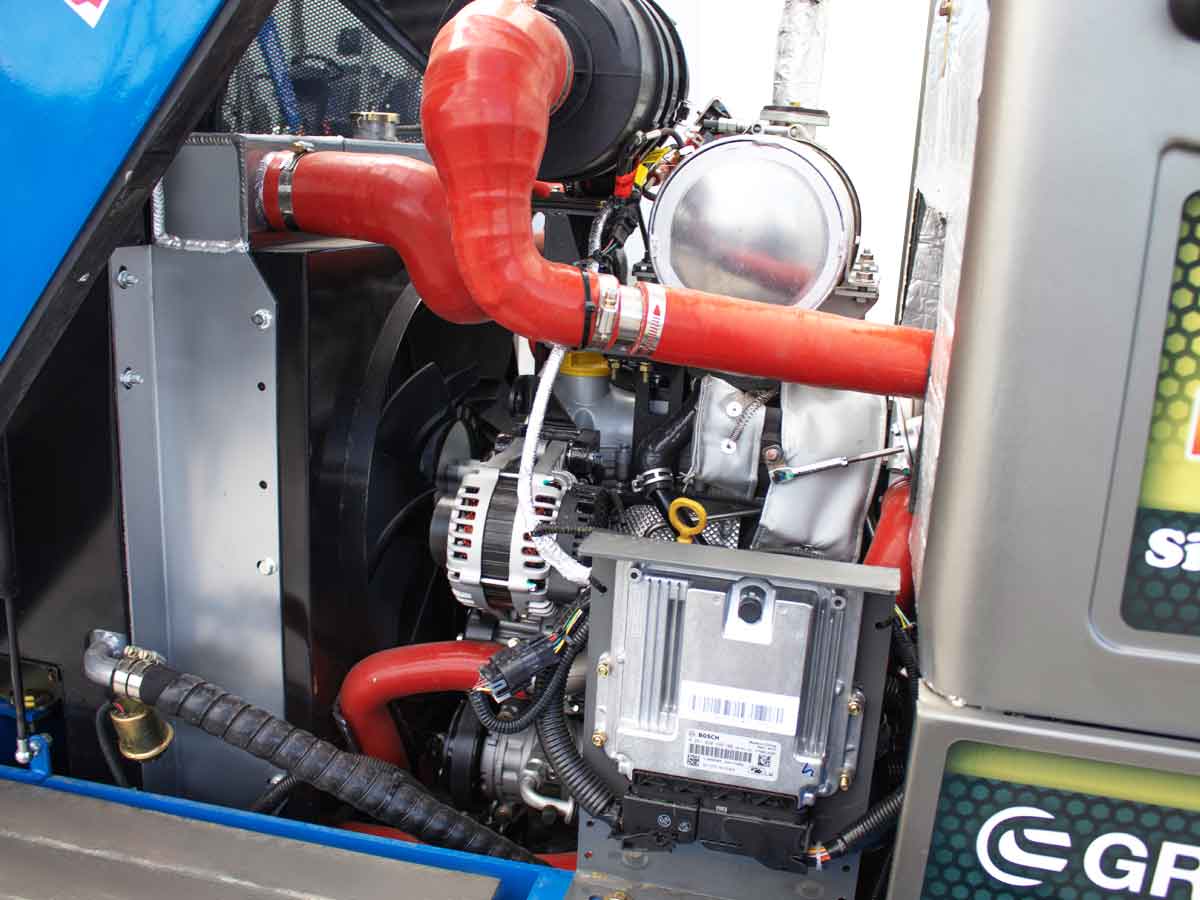

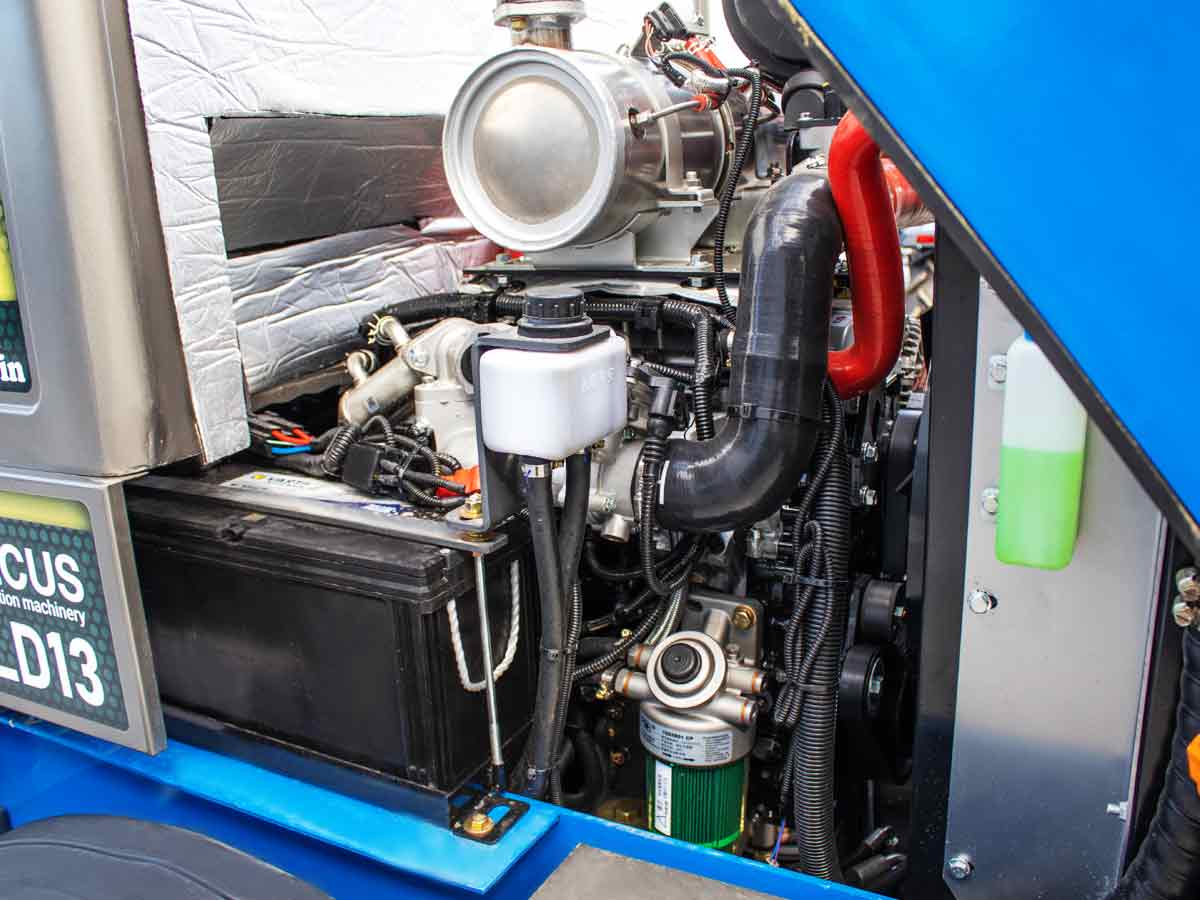

• Four-cylinder water-cooled Yunnei diesel engine:
    • 26 hp at 2400 rpm (T-LD11)
    • 51 hp at 2650 rpm (T-LD13)
    New generation STAGE V with low fuel consumption

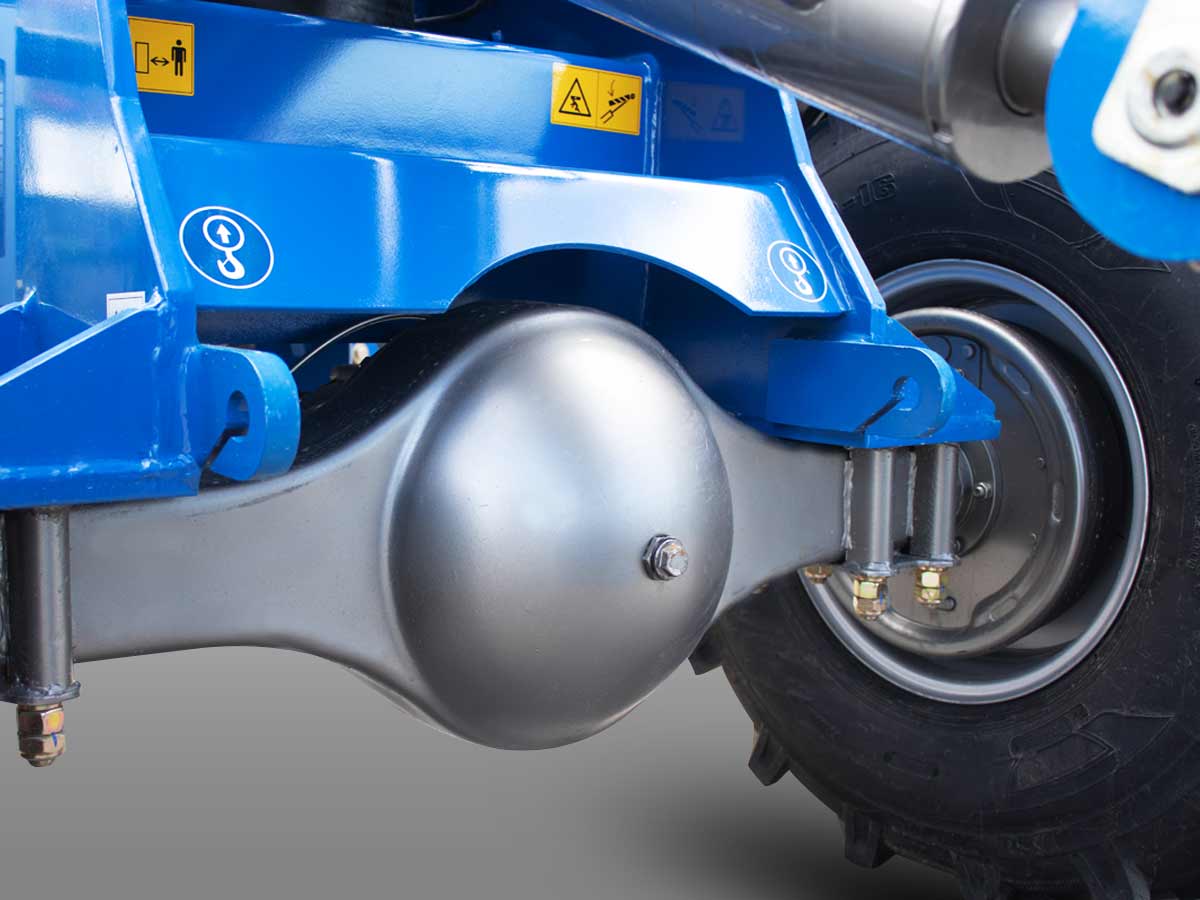

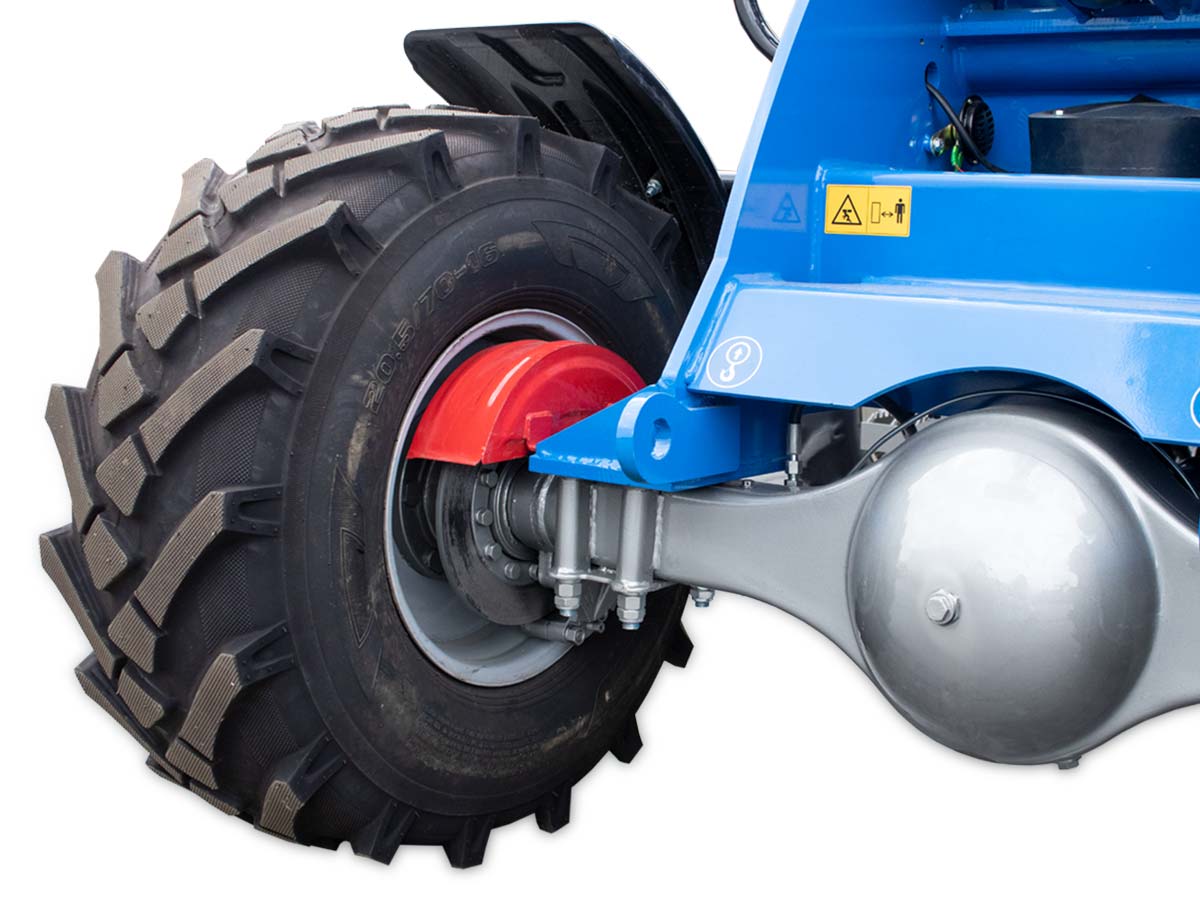

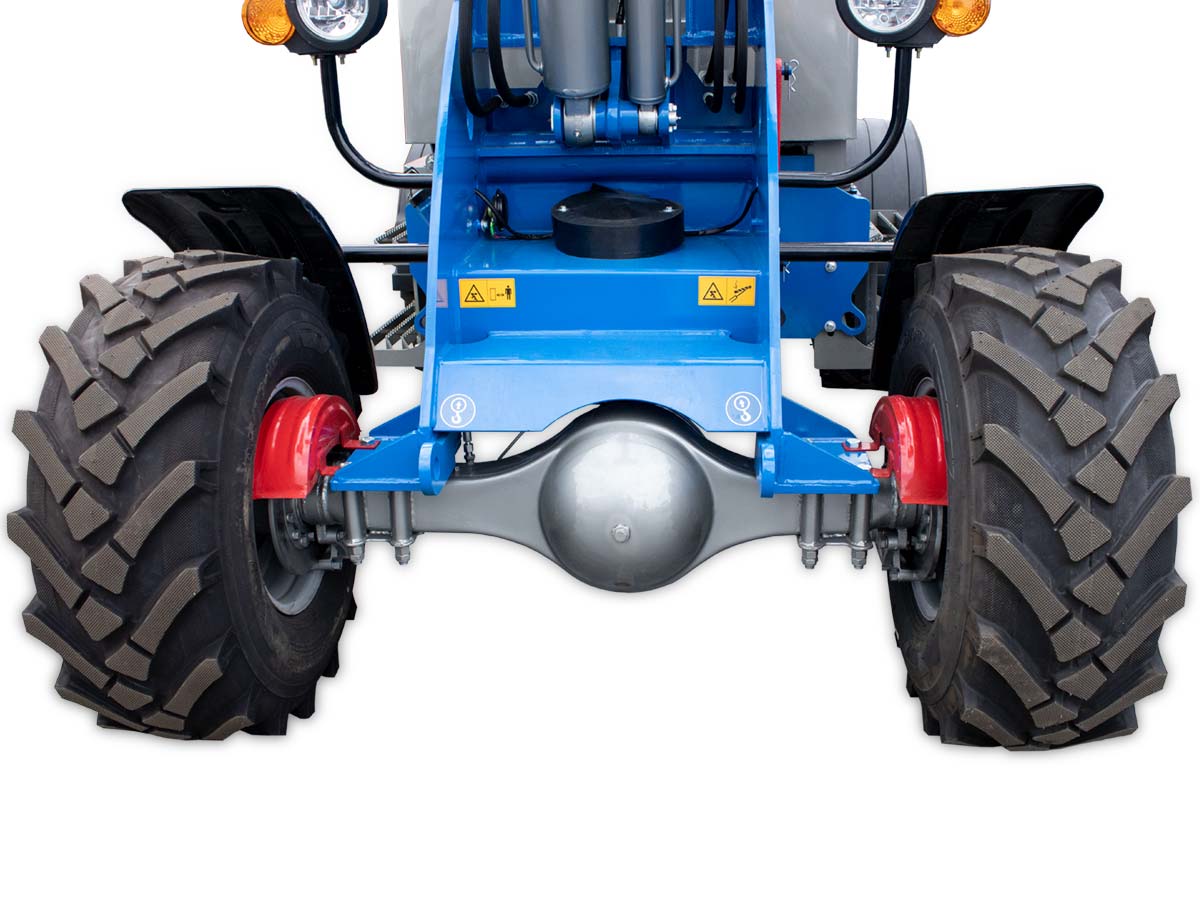

• 4×4 all-wheel drive offers impressive power and flexibility, allowing the machine to perform in even the most demanding conditions

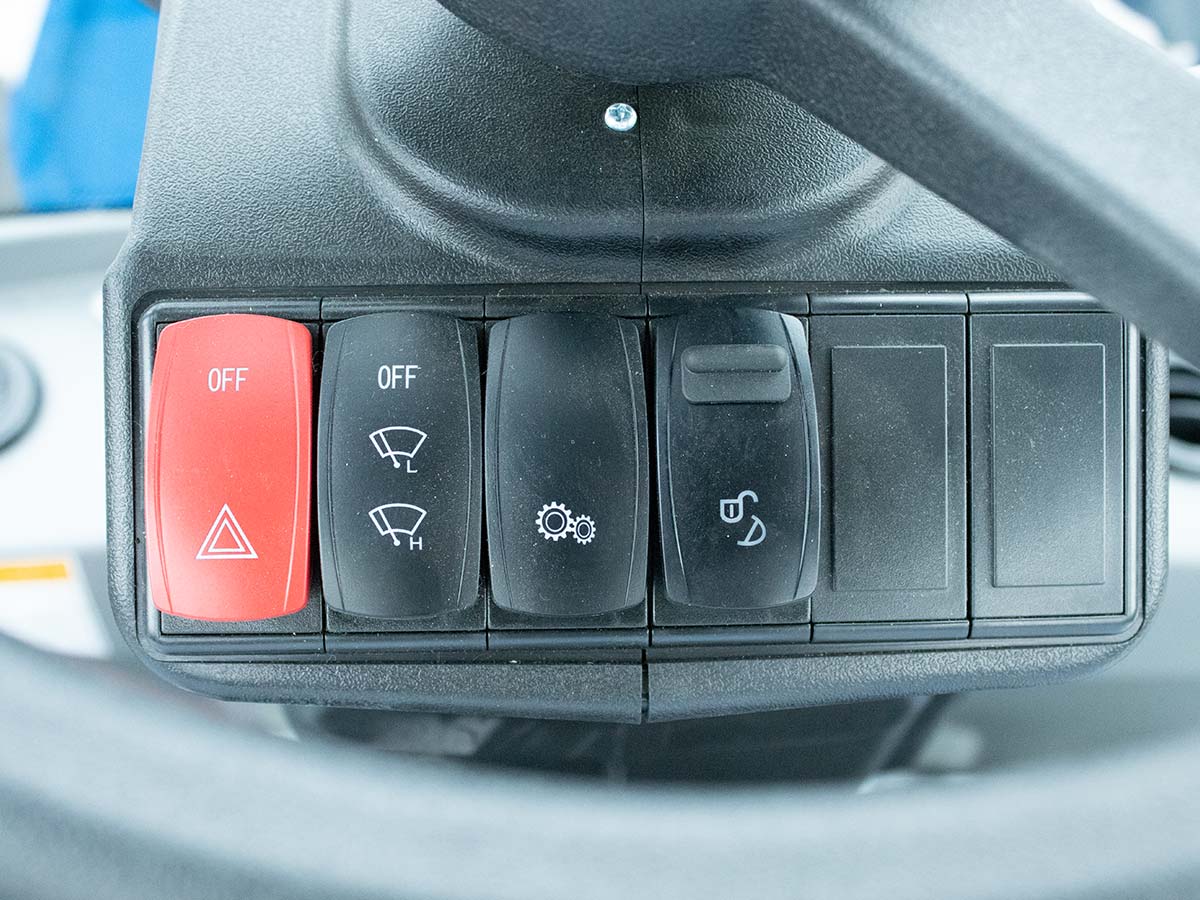

• Selectable 2-speed transmission (low/high) with Hi-Lo switch

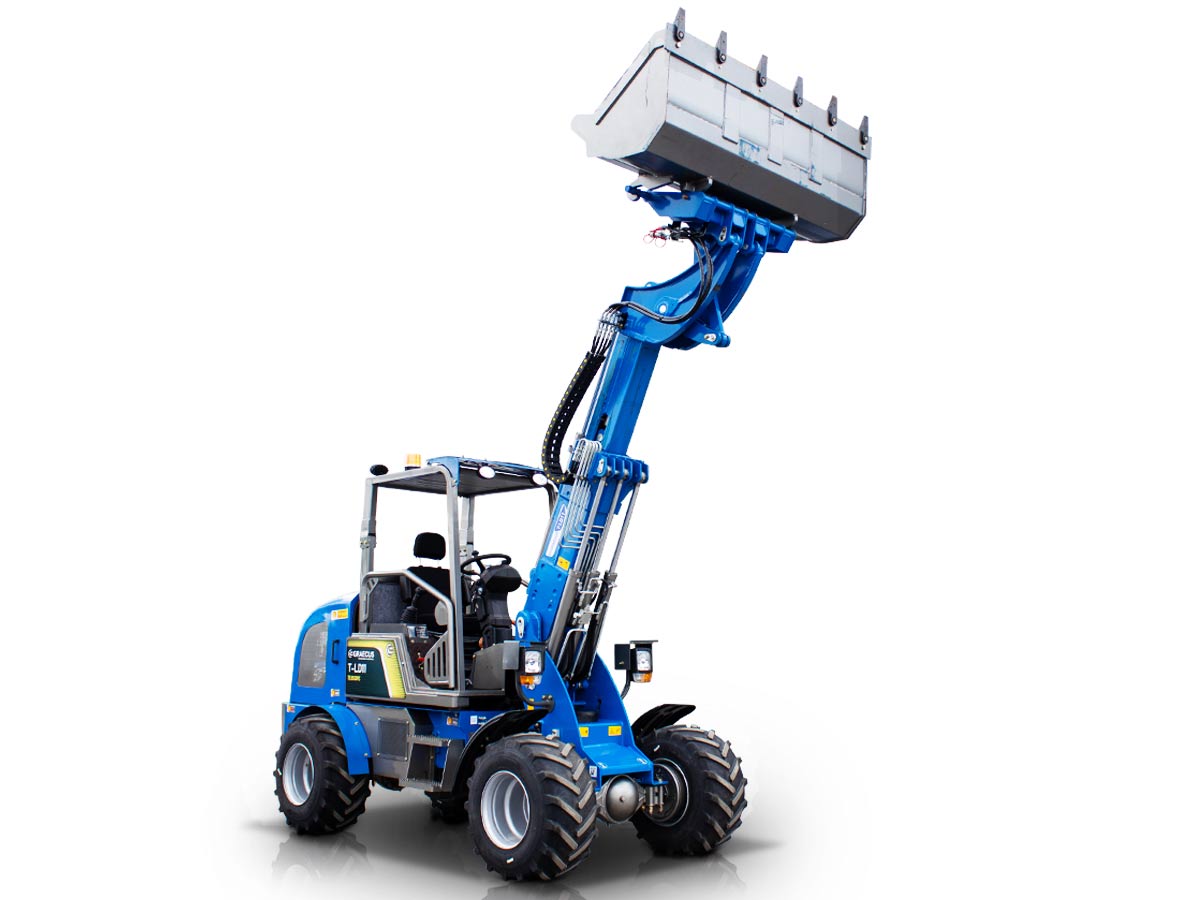

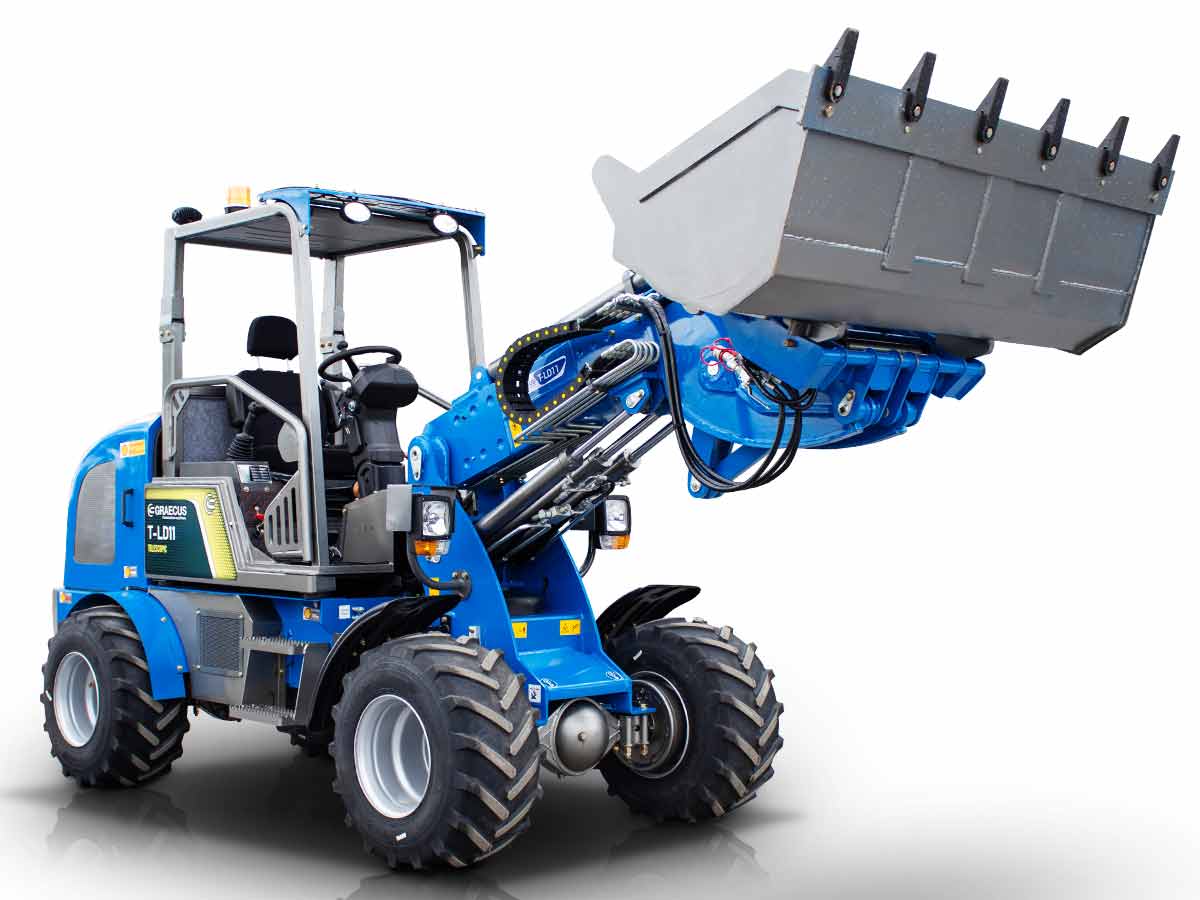

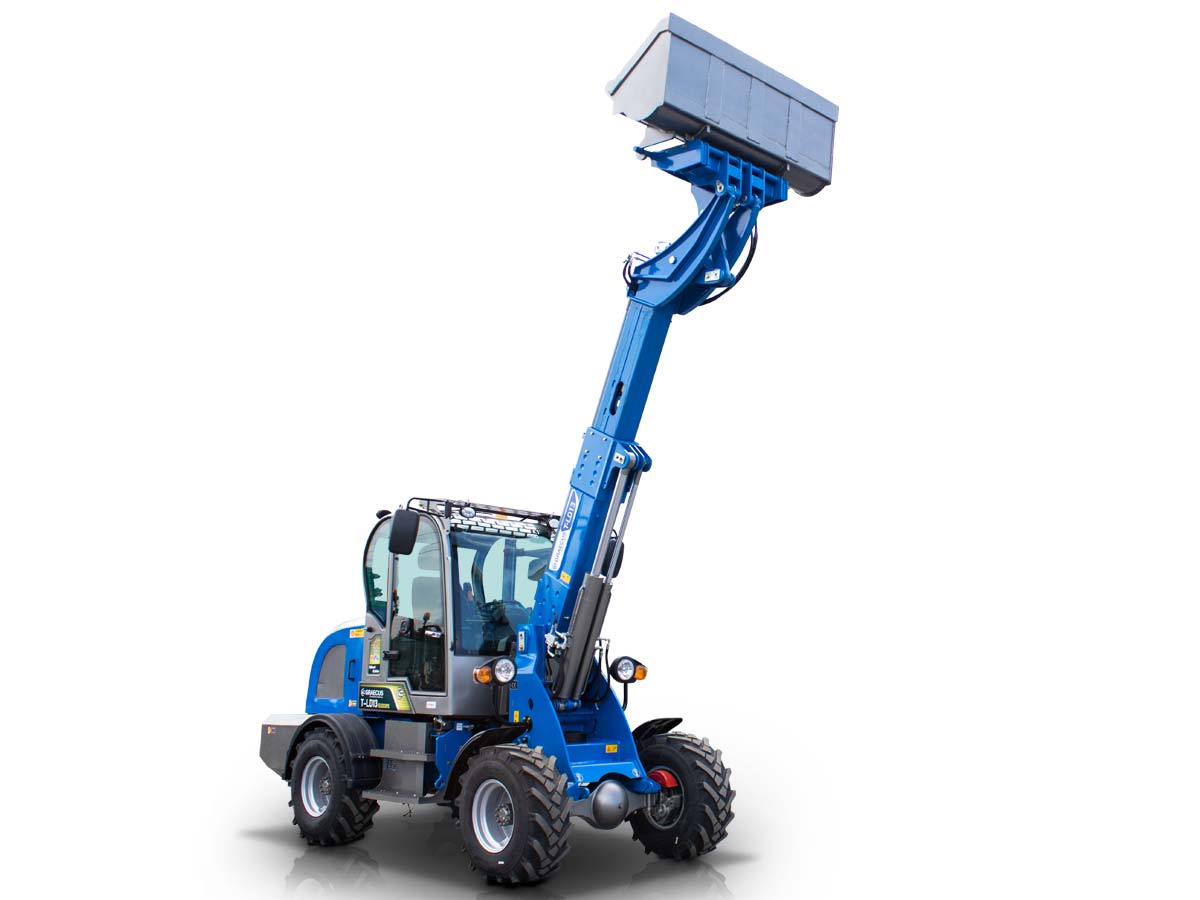

• Mini articulated wheeled loader known for its compact design and excellent maneuverability, ideal for a wide range of specialized tasks. Equipped with a reinforced telescopic boom for extended lift reach

• Wheelbase, compact outer width of 1520/1760 mm and articulated chassis provide excellent agility even in narrow paths
    • Inner turning radius: 2200 mm (T-LD11) / 2057 mm (T-LD13)
    • Outer turning radius: 3950 mm (T-LD11) / 3817 mm (T-LD13)

• The angular loading arm is designed to be robust and torsion-resistant. P-kinematics ensures accurate parallel movement across the entire lifting range

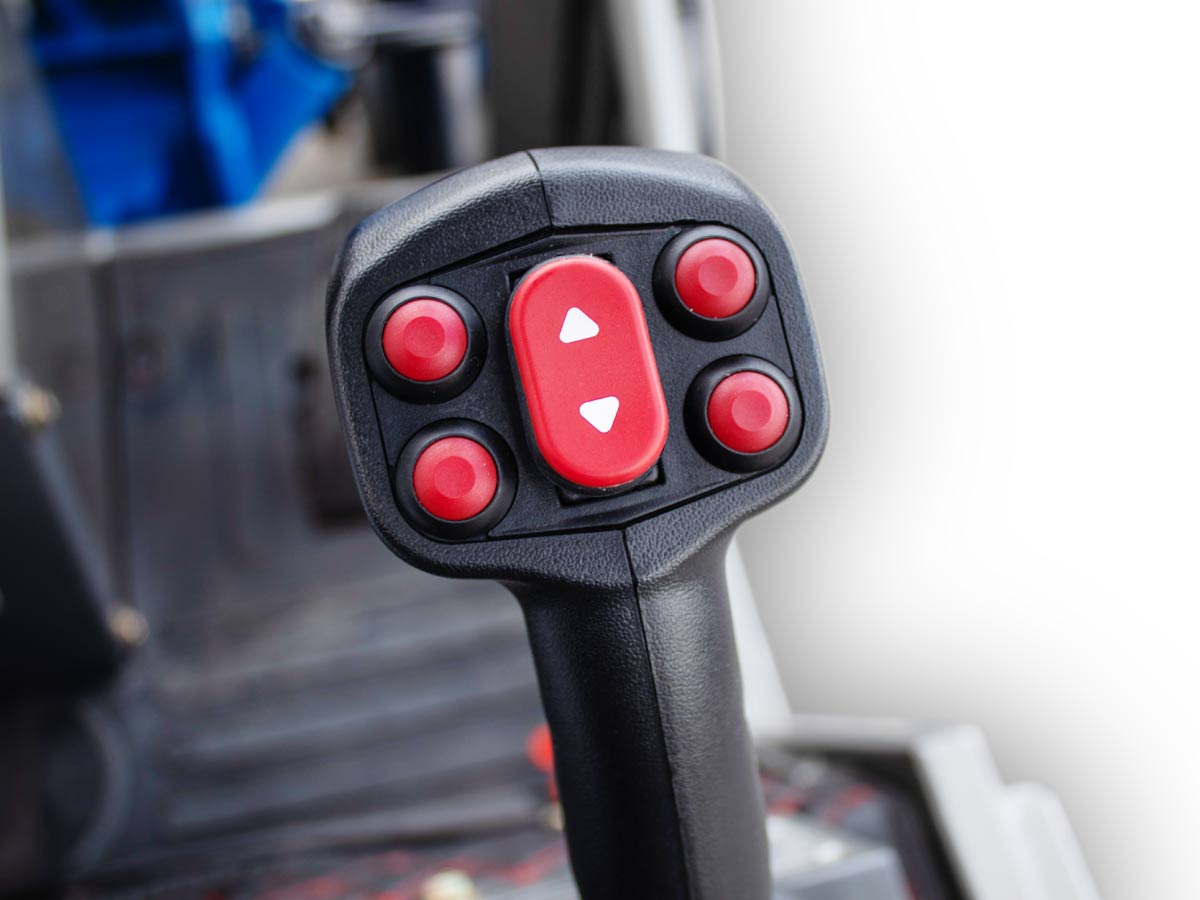

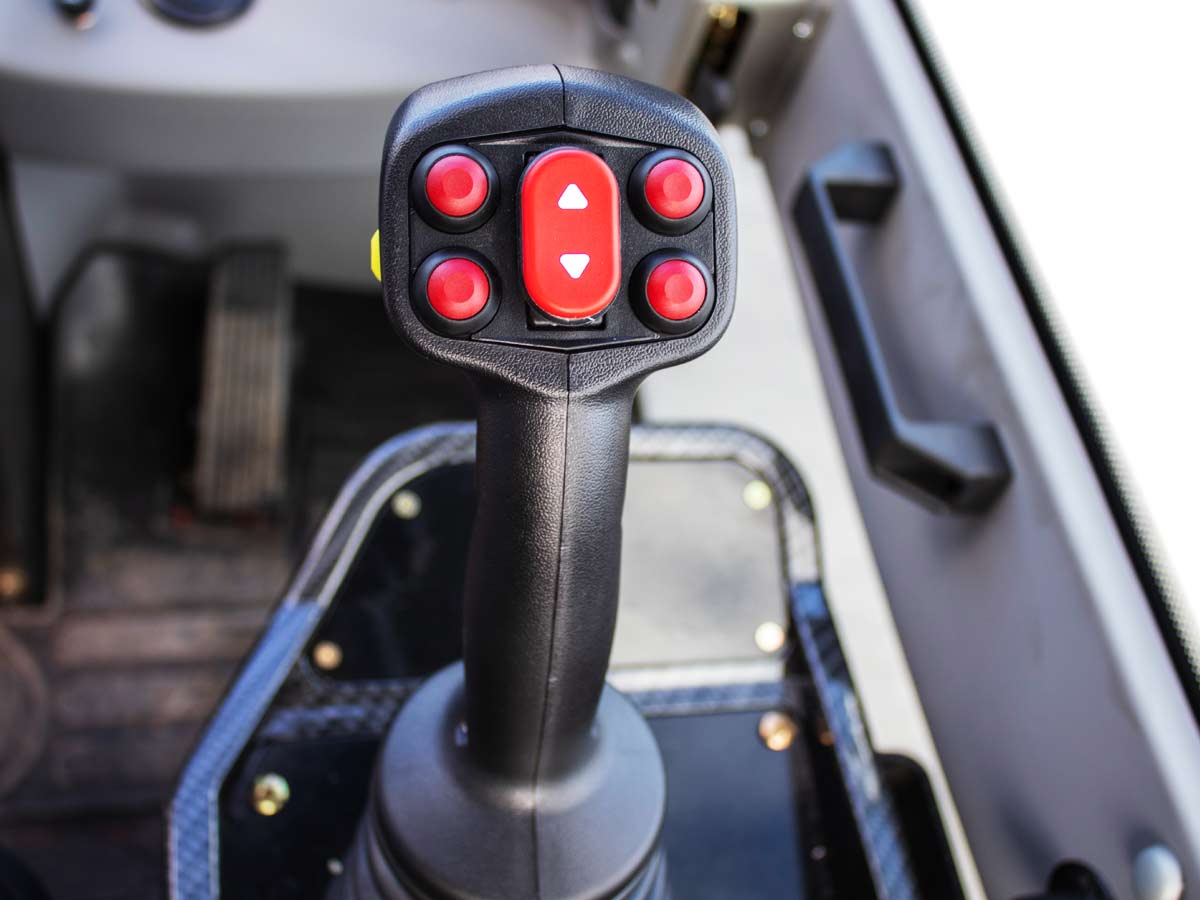

• Ergonomic joystick – strong and responsive. All operations (including telescopic) controlled from a single joystick for full control over the machine and core functions

• Third hydraulic line for future attachment compatibility (double-acting circuit)

• Larger, stronger hydraulic lift cylinder ensures optimal load distribution to the boom for maximum stability

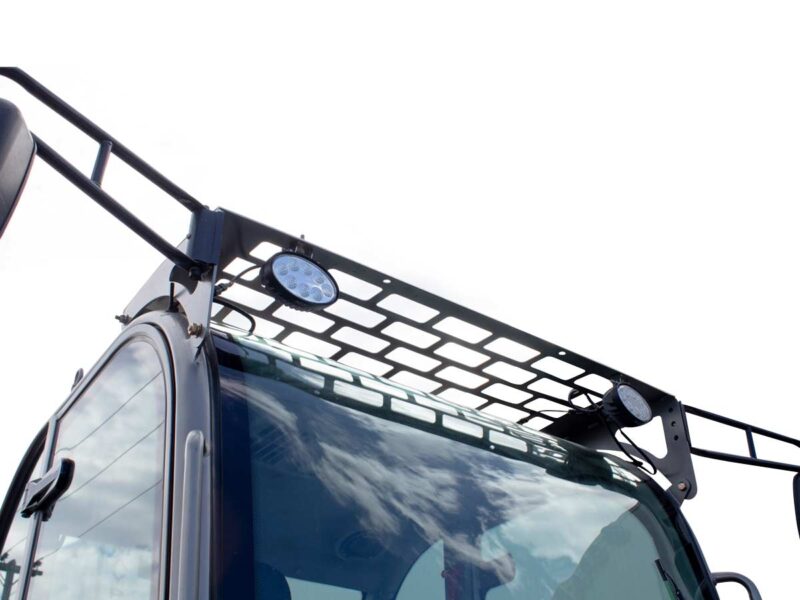

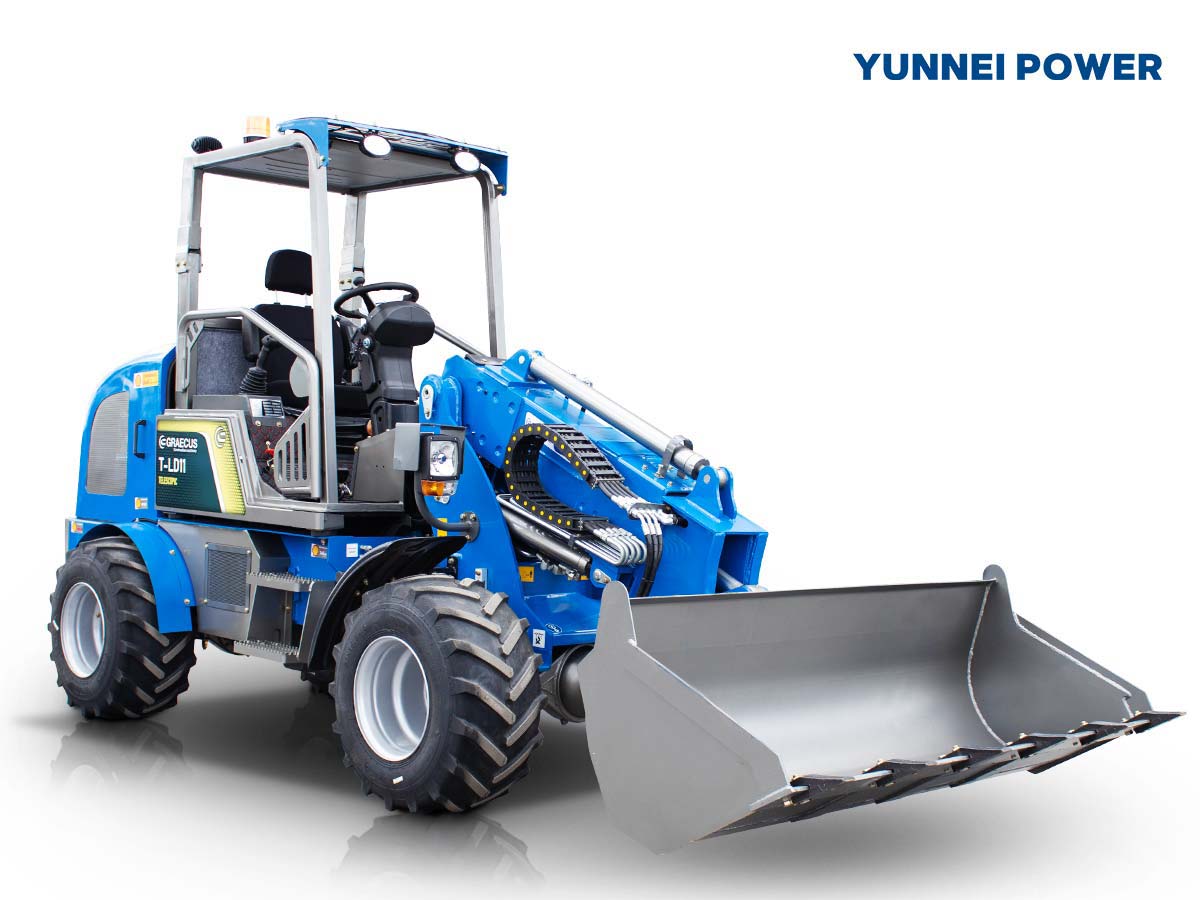

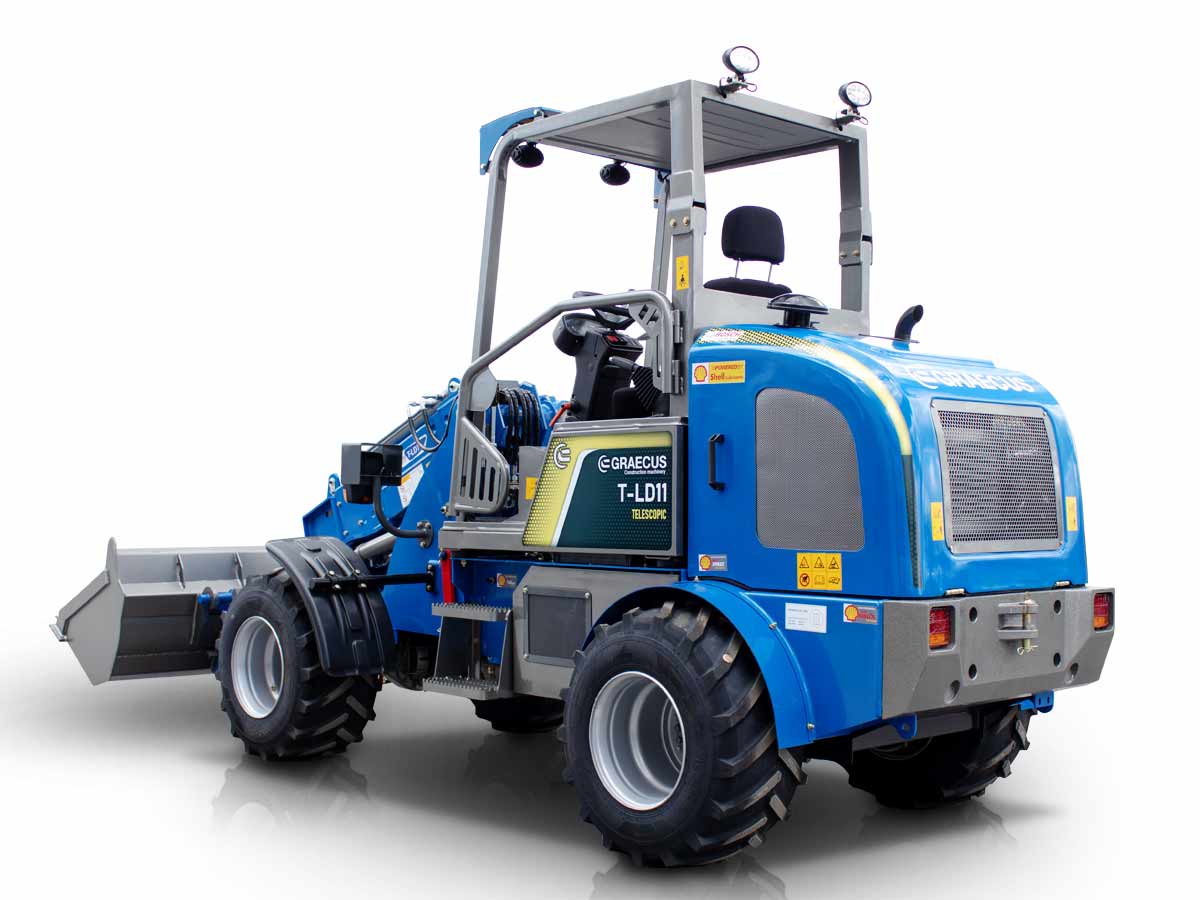

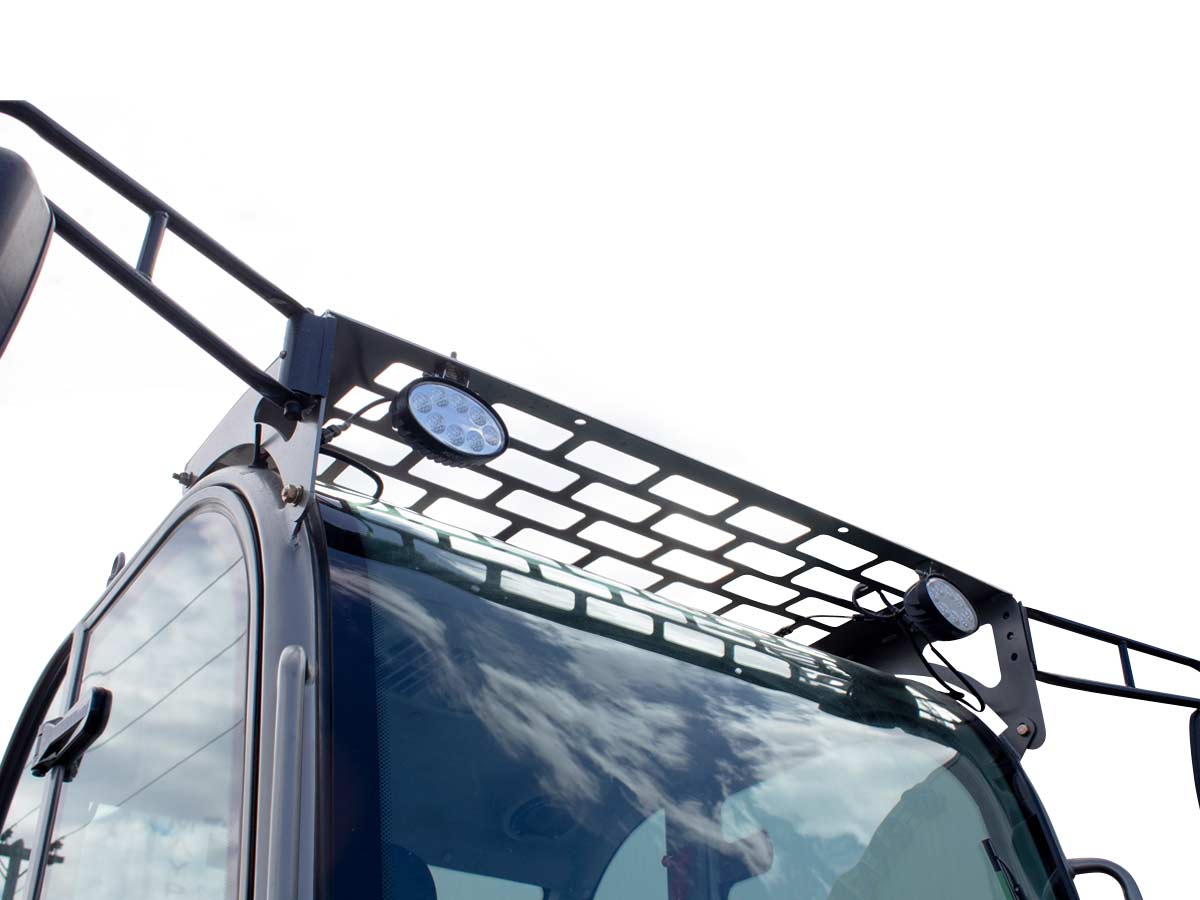

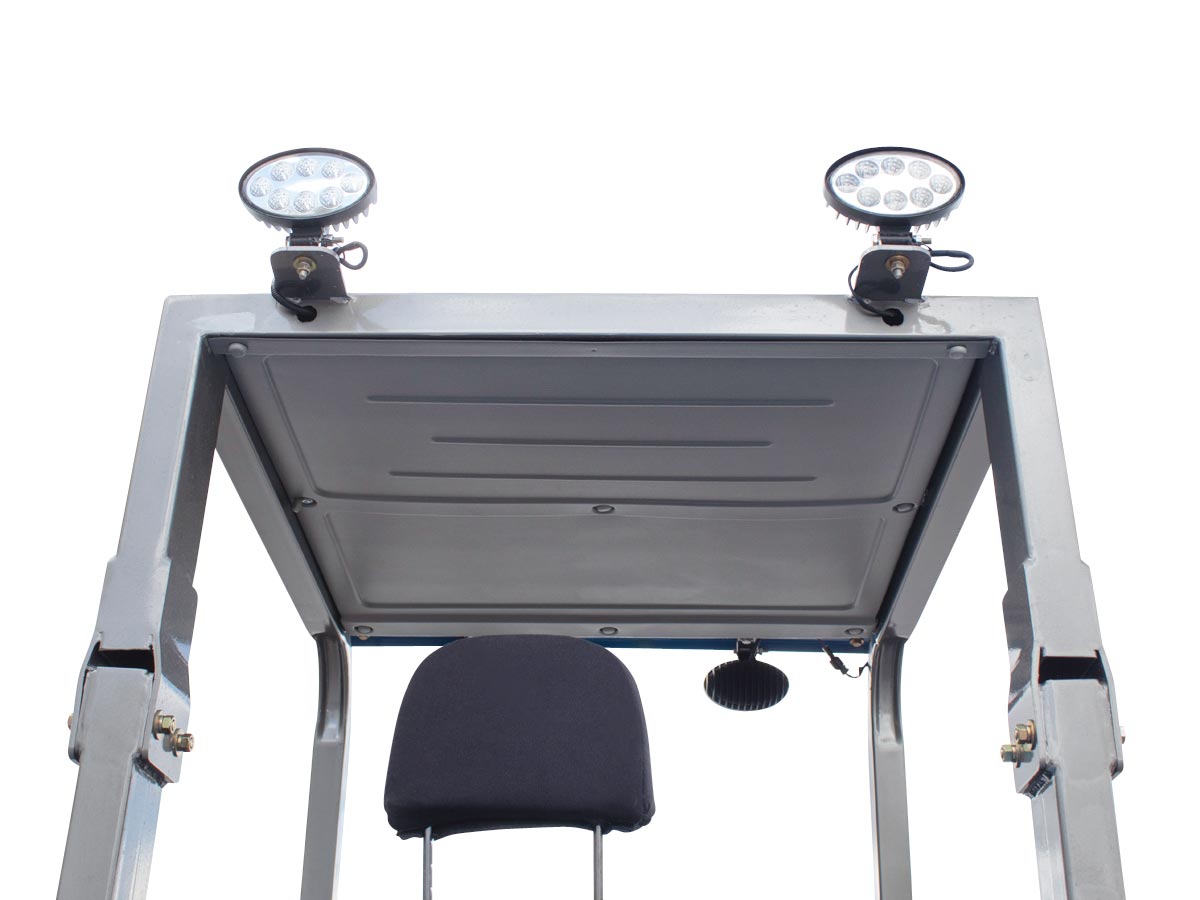

• New-type protective canopy (T-LD11) with high specs for enhanced visibility and safety

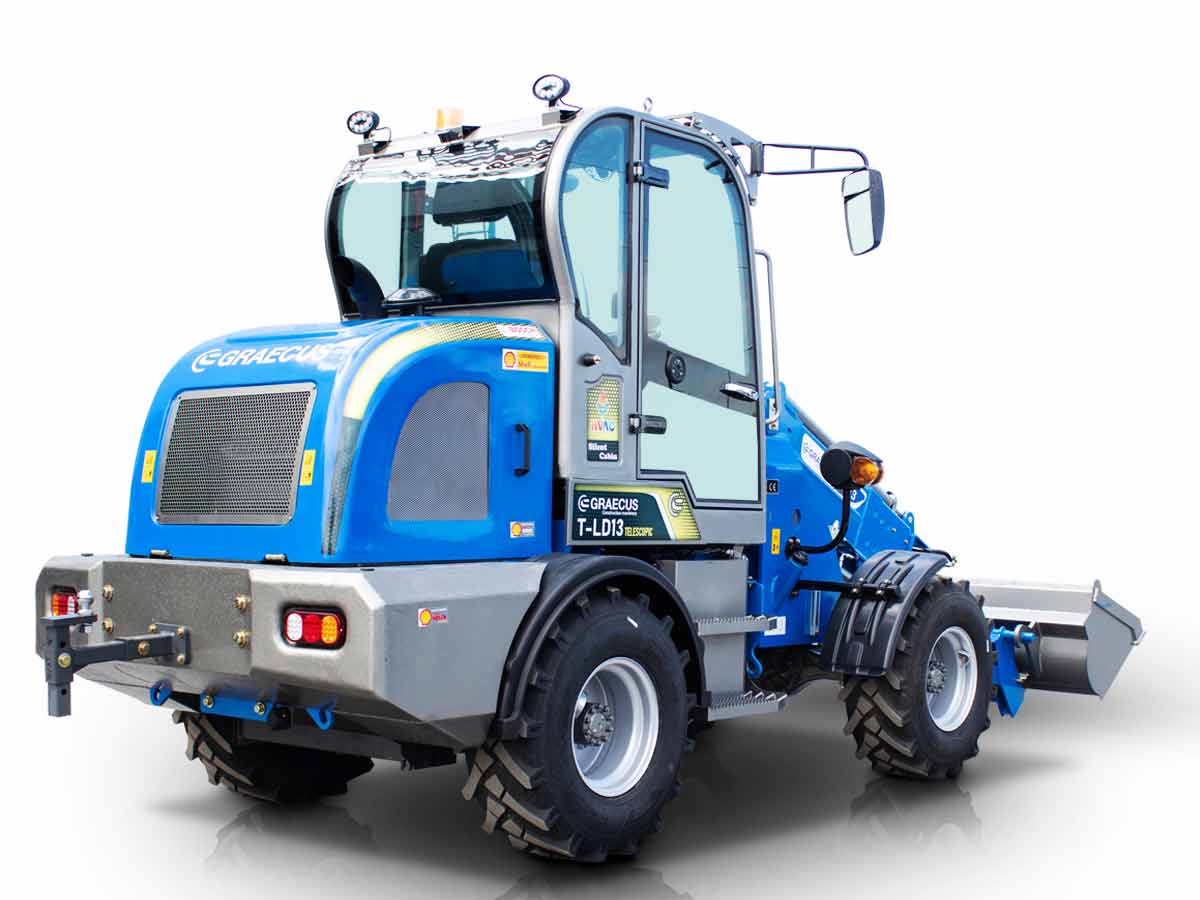

• Rear cast counterweight significantly improves the loader’s stability

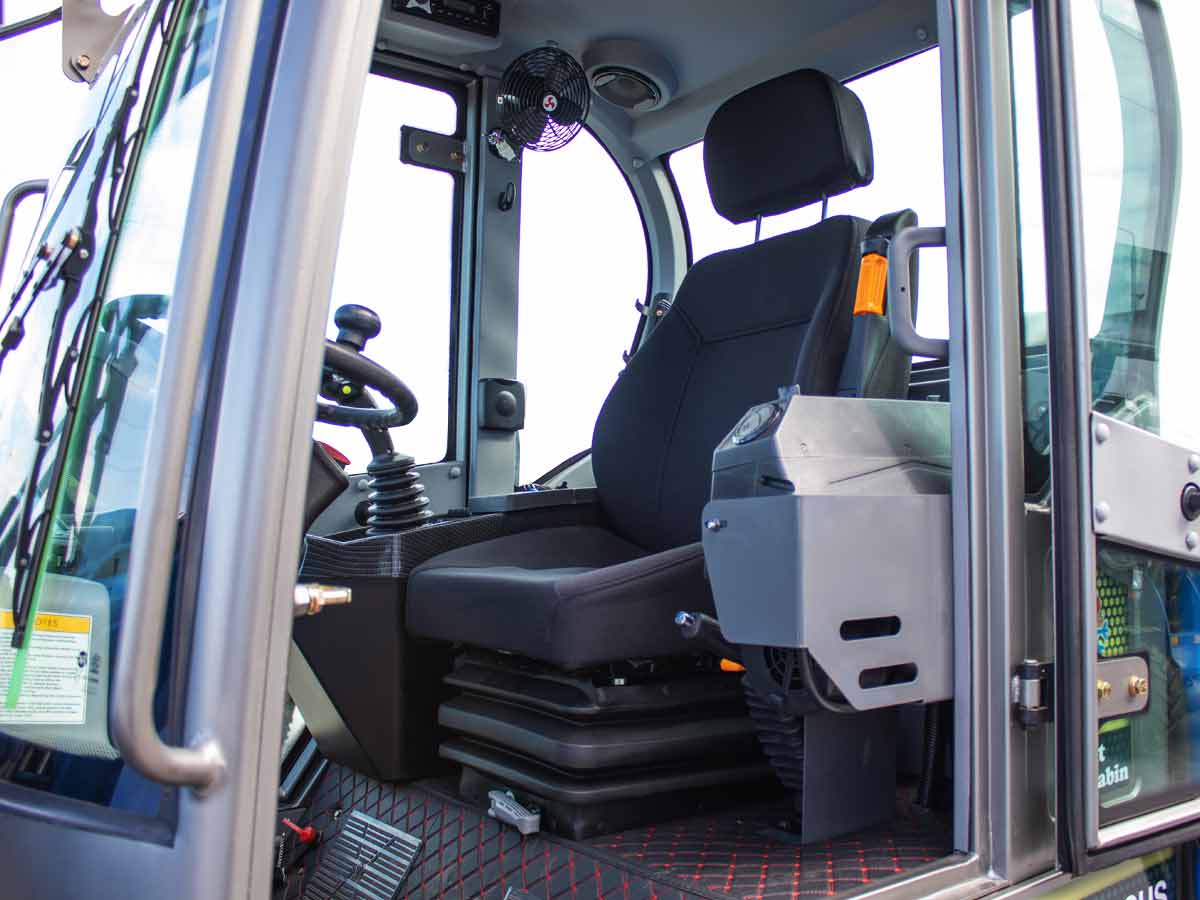

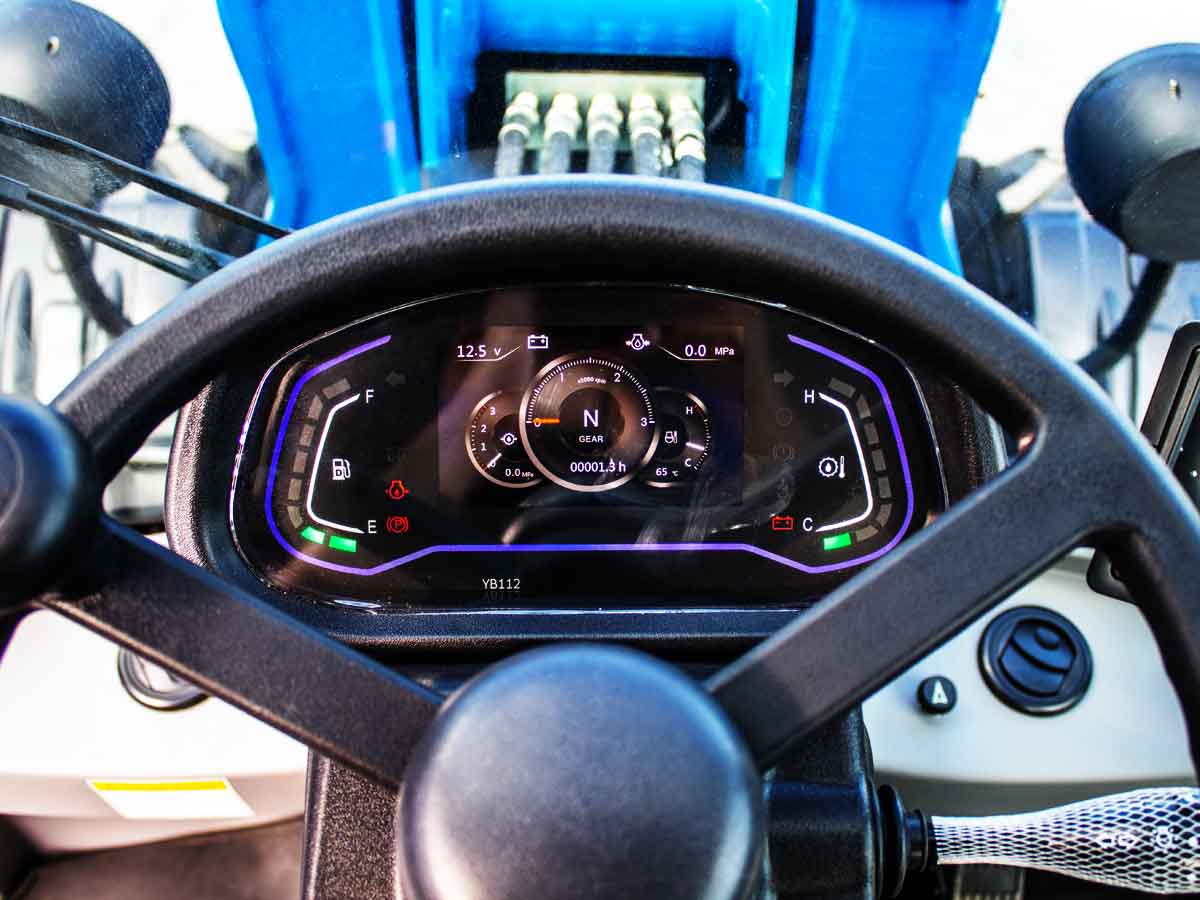

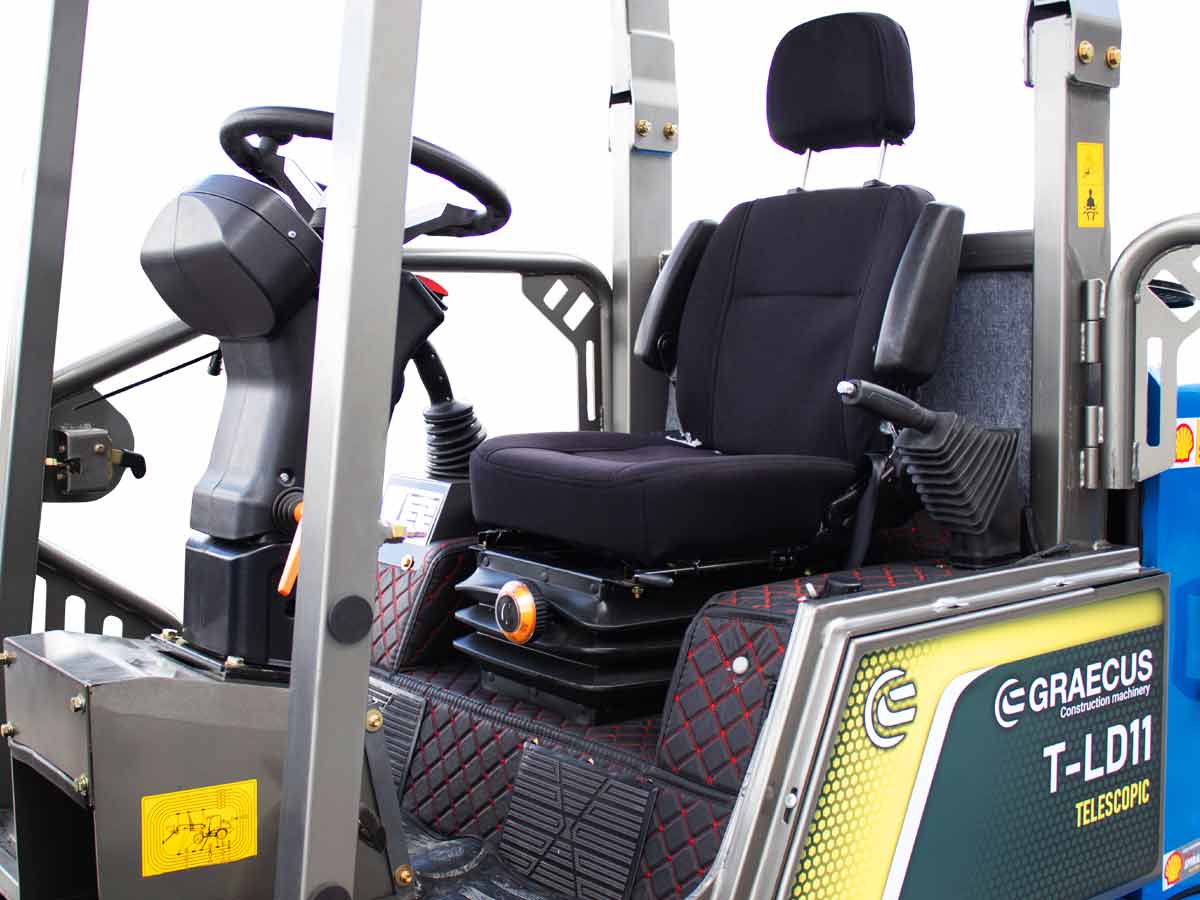

• Adjustable steering column for fatigue-free, ergonomic operation

• Quick attachment coupling via Euro-hitch

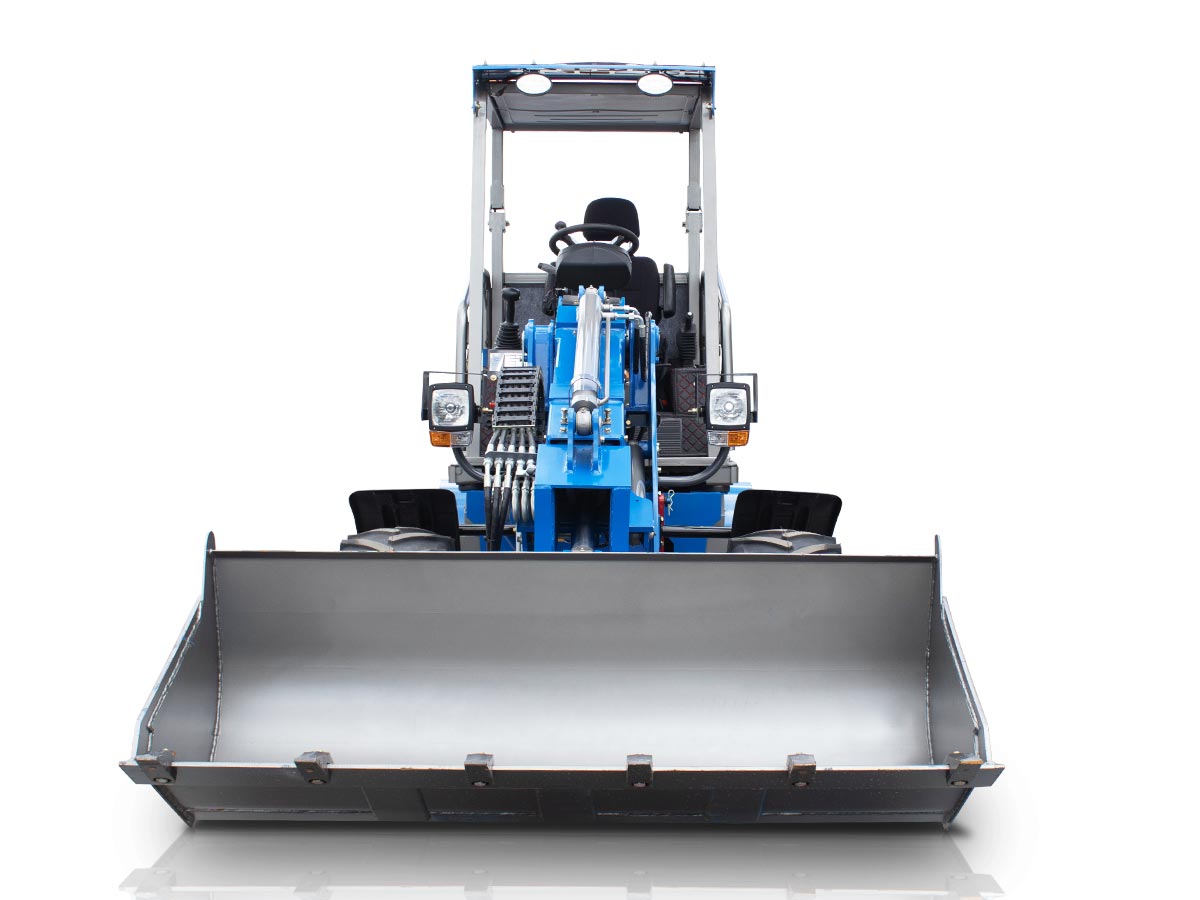

• Includes digging bucket: 1600 mm (T-LD11) / 1800 mm (T-LD13)

• CE-certified for European safety compliance
