Mini Loader with Ride-On Platform for Agricultural and Construction Applications | DACTYL-E550

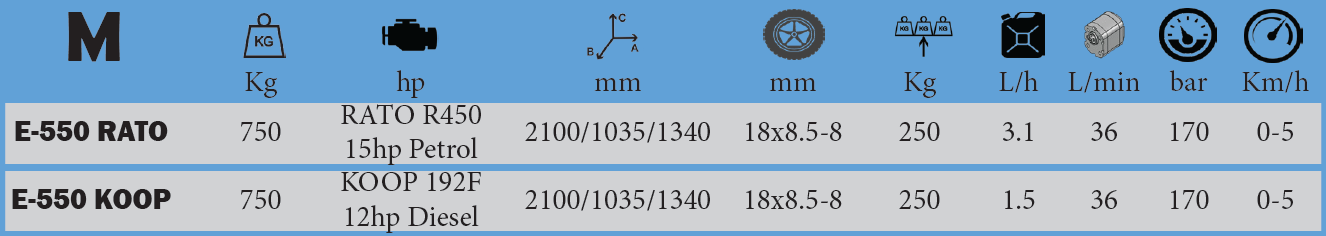

  • RATO petrol engine 15 hp/3600 rpm on the E-550 RATO model and KOOP diesel engine 12 hp/3600 rpm on the E-550 KOOP model.
  • Compact design with small dimensions, ideal for narrow passages, courtyards, gardens, warehouses, greenhouses, construction sites and confined working areas.
  • Stand-on configuration with an operator platform, providing direct control, improved visibility and convenience in everyday operation.
  • Zero Turn Capability, ensuring maximum maneuverability and quick turning in confined spaces.
  • Hydrostatic transmission system for smooth movement, immediate response and effortless operation.
  • Rated operating capacity of 250 kg and maximum lifting capacity of 630 kg.
  • 0.14 m³ bucket capacity, suitable for everyday loading and material handling tasks.
  • Travel speed of 0–5 km/h and 30% gradeability.
  • 2 hydraulic pumps × 18 L/min, delivering a total hydraulic flow of 36 L/min.
  • Rated hydraulic pressure of 17 MPa and maximum pressure of 25 MPa, ensuring efficient operation of the drive system and attachments.
  • DANFOSS hydraulic motors and Hydrocontrol hydraulic valve system for reliability, smooth operation and precise control.
  • Integrated hydraulic oil cooler for consistent performance during continuous and demanding operation.
  • Hydraulic circuit for machine movement and attachment operation.
  • Quick attachment connection via the GRAECUS DACTYL E-Series quick coupler.
  • User-friendly control panel featuring electric start, horn, hour meter, light switch and throttle control.
  • 18×8.5-8 tyres for stable movement across construction sites, agricultural areas, gardens and other working environments.
  • European CE safety certification.
Category:

The GRAECUS DACTYL E-550 is a versatile and compact mini wheeled loader, engineered to deliver outstanding performance even in the most confined spaces. Ideal for construction, agricultural and landscaping applications, it combines practicality, effortless operation and adaptability to a wide range of professional requirements.

The ergonomic ride-on platform provides excellent visibility and precise control, while the zero-turn capability enables exceptional maneuverability, even in narrow working areas. With a 250 kg load capacity, hydrostatic transmission and a highly responsive hydraulic system, it delivers efficiency and flexibility across various tasks.

Available with a 15 hp petrol engine or a 12 hp KOOP diesel engine, the DACTYL E-550 offers options to suit different operational needs. DANFOSS hydraulic motors, a Hydrocontrol valve system and an integrated hydraulic oil cooler ensure smooth operation and consistent performance. Additionally, the quick-attach system allows for easy integration of various attachments, significantly expanding the machine’s capabilities.

The ability to accommodate a wide selection of attachments transforms the GRAECUS DACTYL E-550 into a truly multifunctional machine. From loading buckets and pallet forks to specialized equipment for earthmoving and material handling, it adapts effortlessly to different applications, maximizing versatility and productivity with a single machine.



Hydraulic 4-in-1 Bucket, Hydraulic Concrete Mixer, Hydraulic Auger Ø200/300 mm

Hydraulic Hammer, Grader/Land Leveler, Hydraulic Sweeper Brush

Pallet Forks, Rock Bucket, Hydraulic Backhoe Attachment with Bucket

Compact in size, powerful in performance. The GRAECUS DACTYL E-550 is a complete solution for professionals seeking versatility, reliability and productivity in a multifunctional machine.
