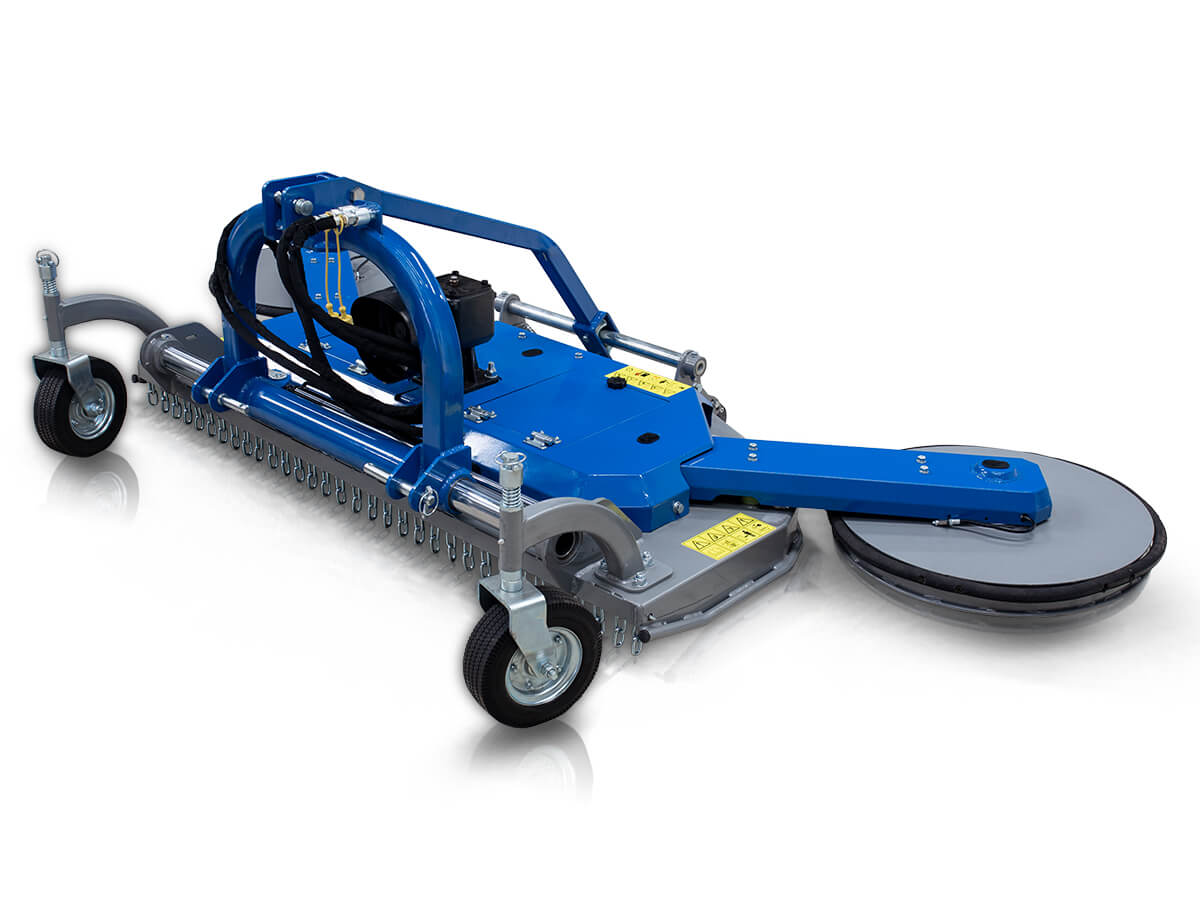

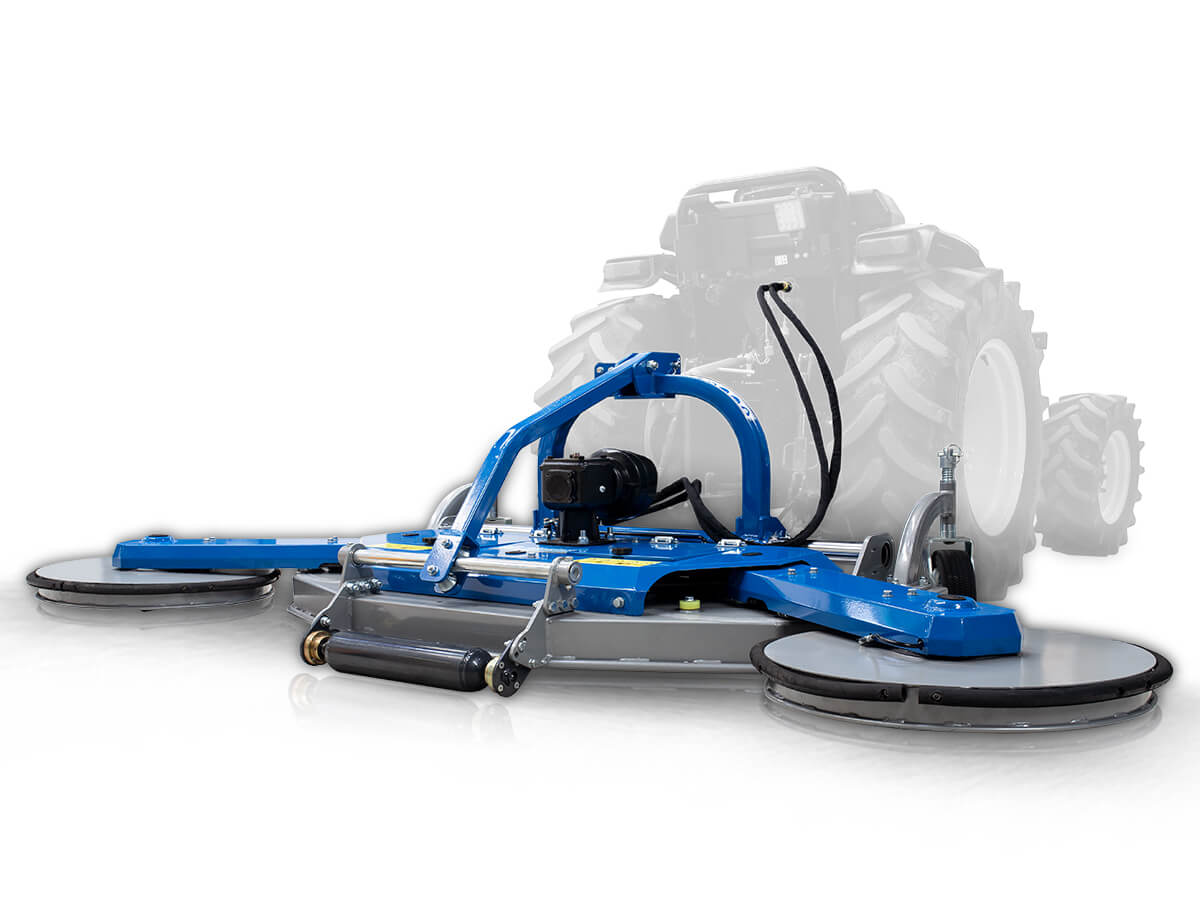

LAWN MOWER with inter-row discs DTS-H

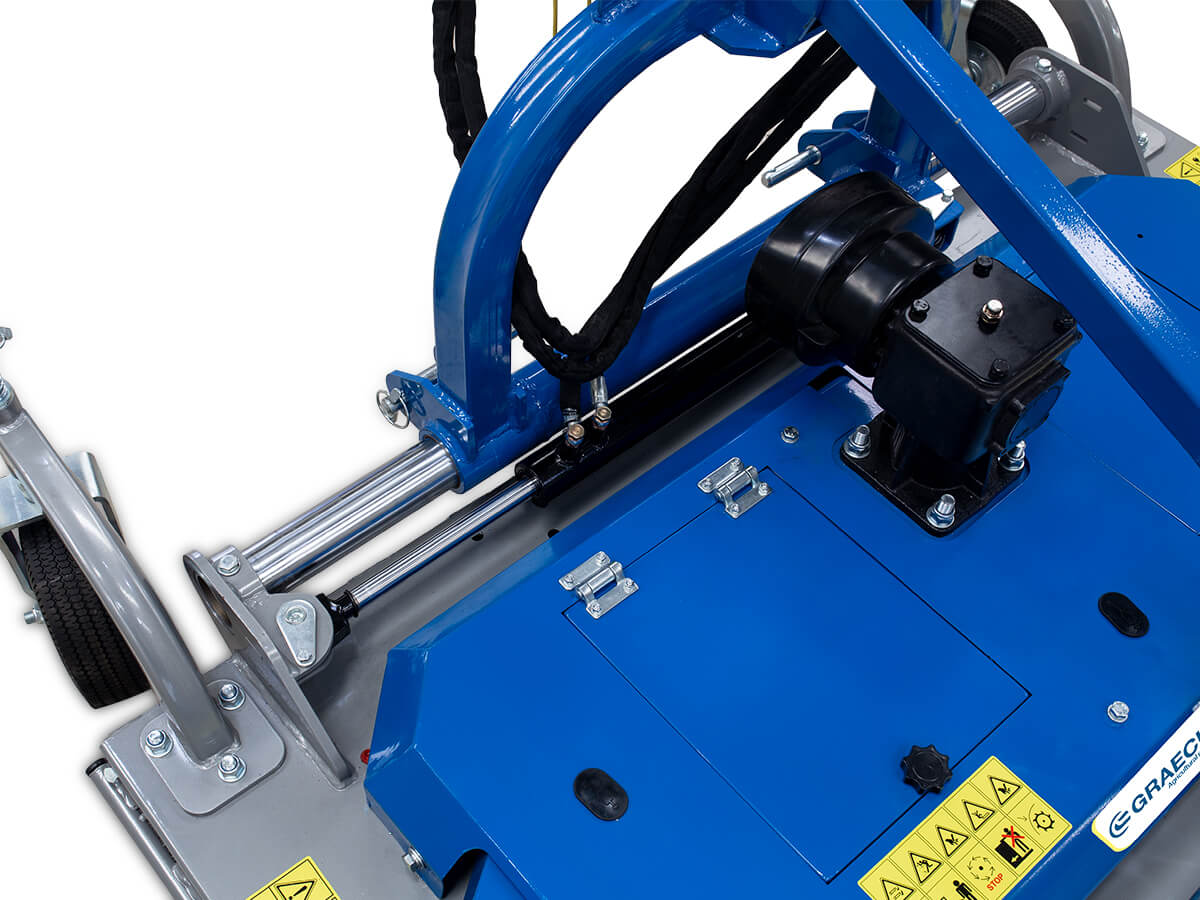

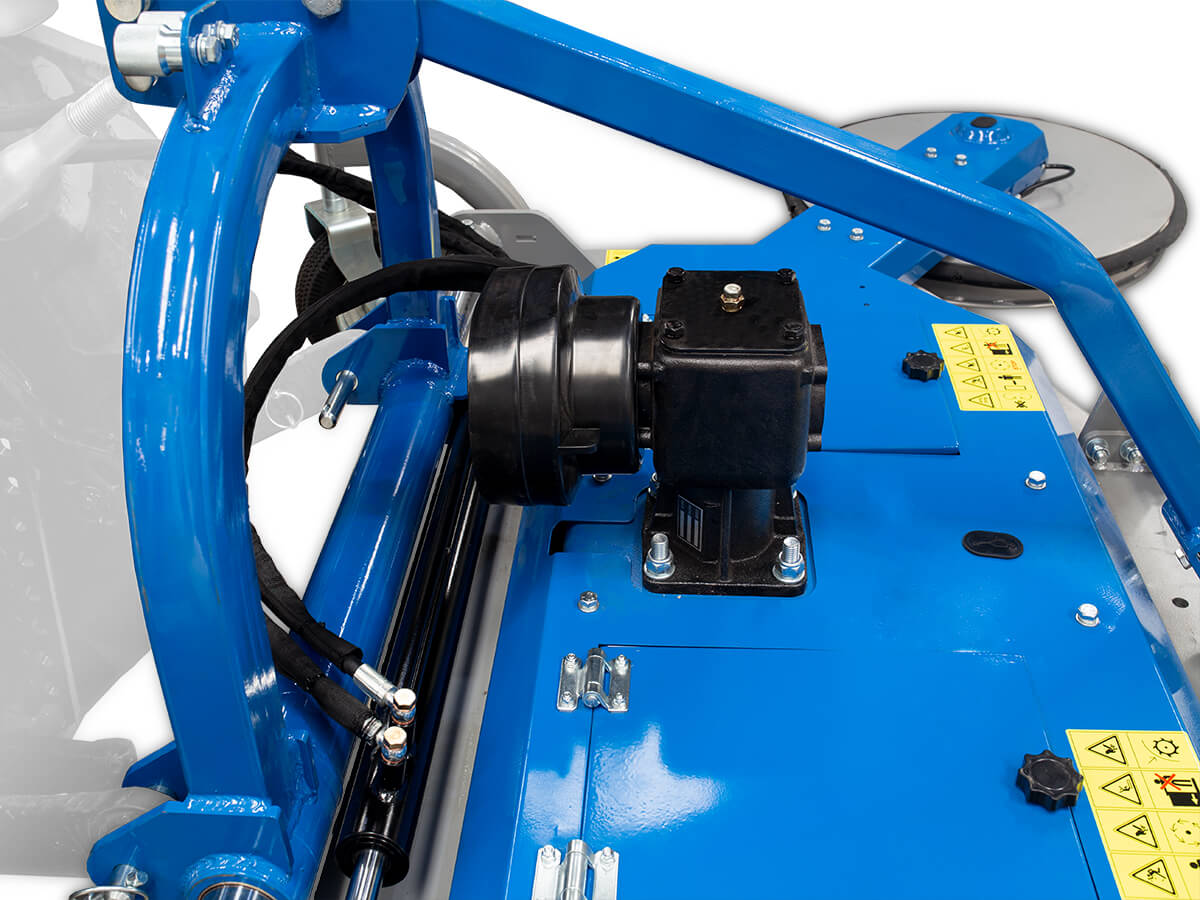

  • Cast iron gear box 540r/min clockwise and counterclockwise.

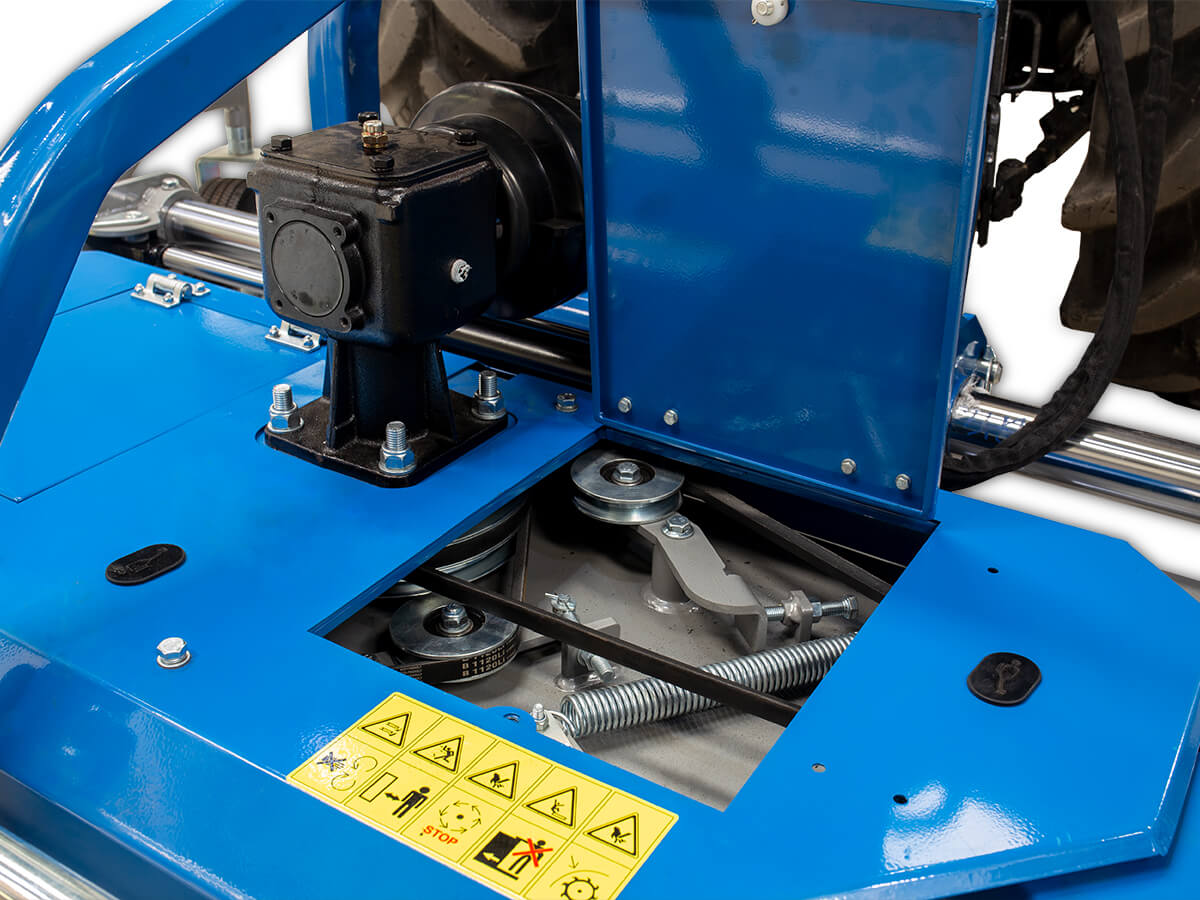

  • Autonomous mechanical movement with transmission and belts.

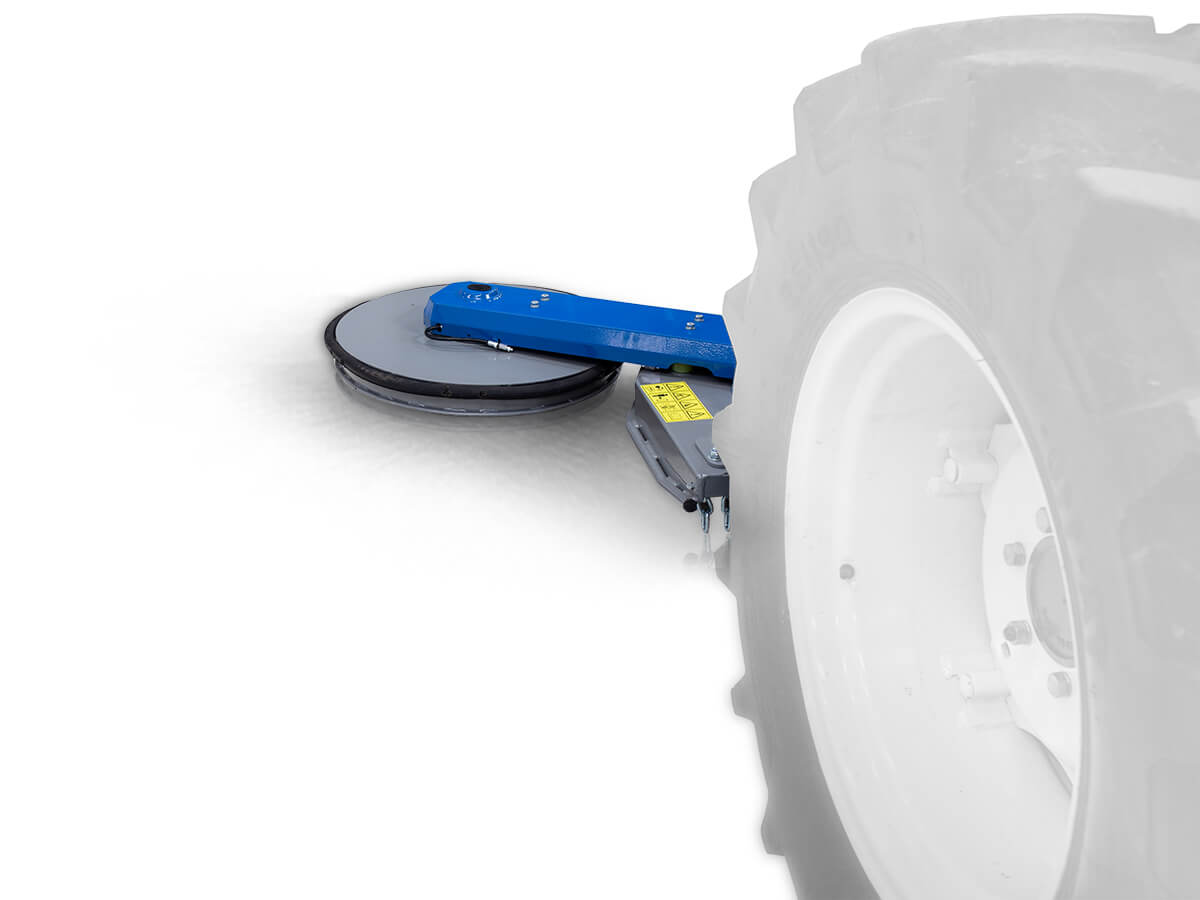

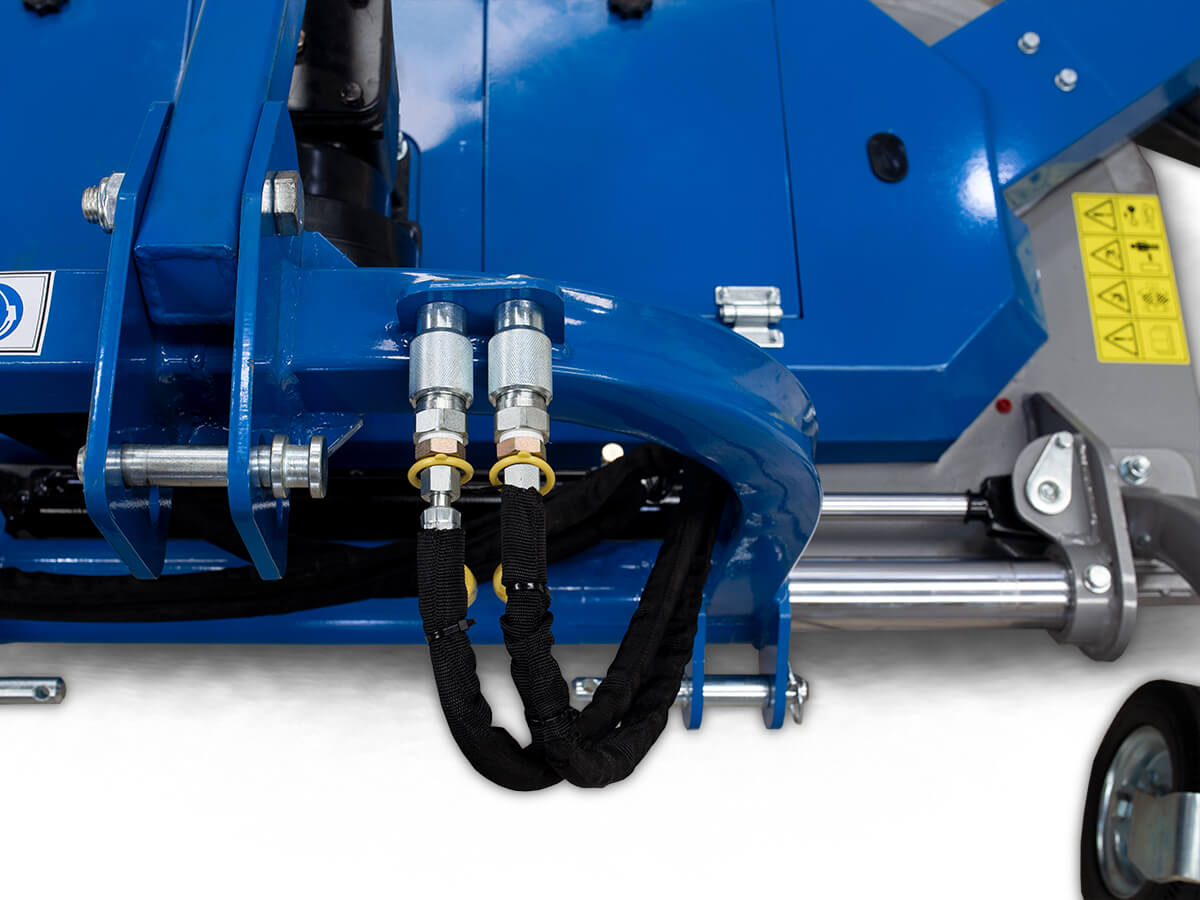

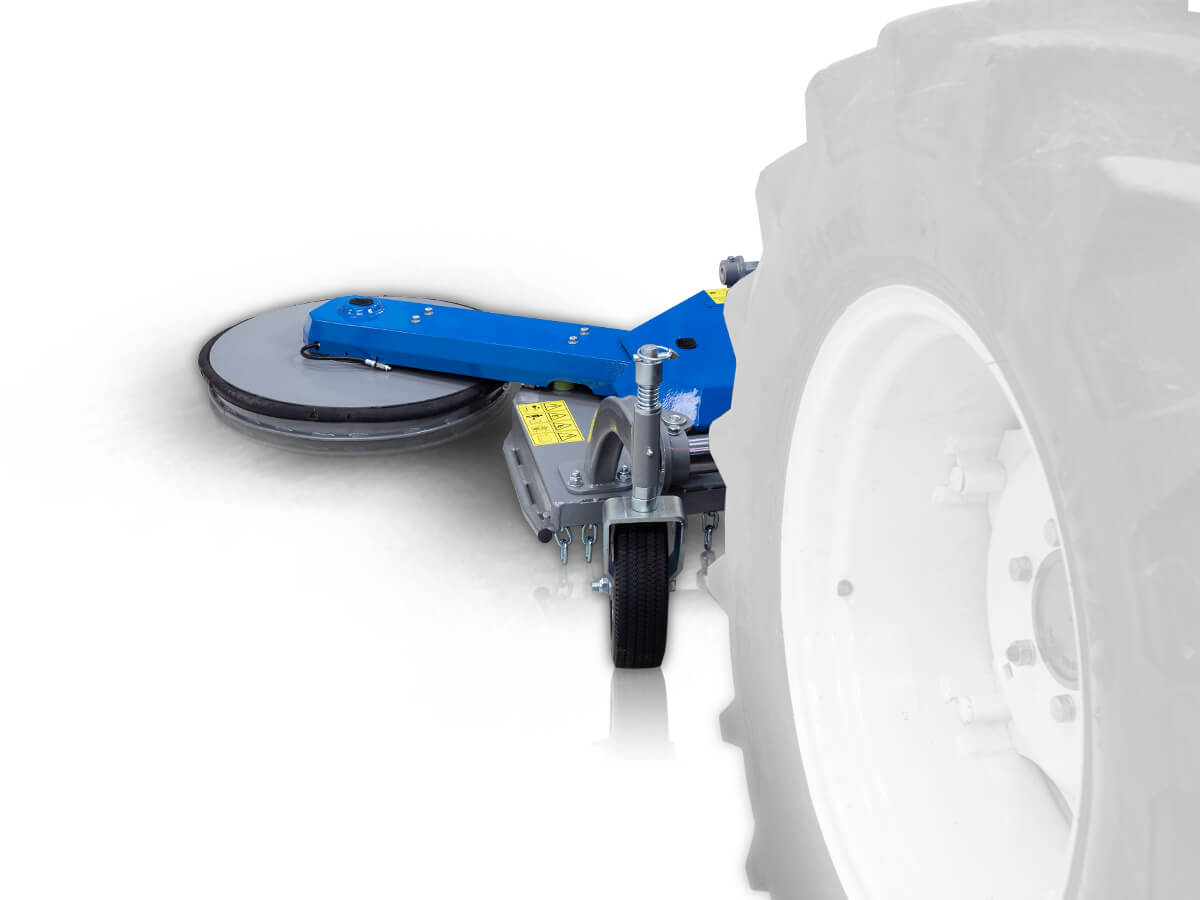

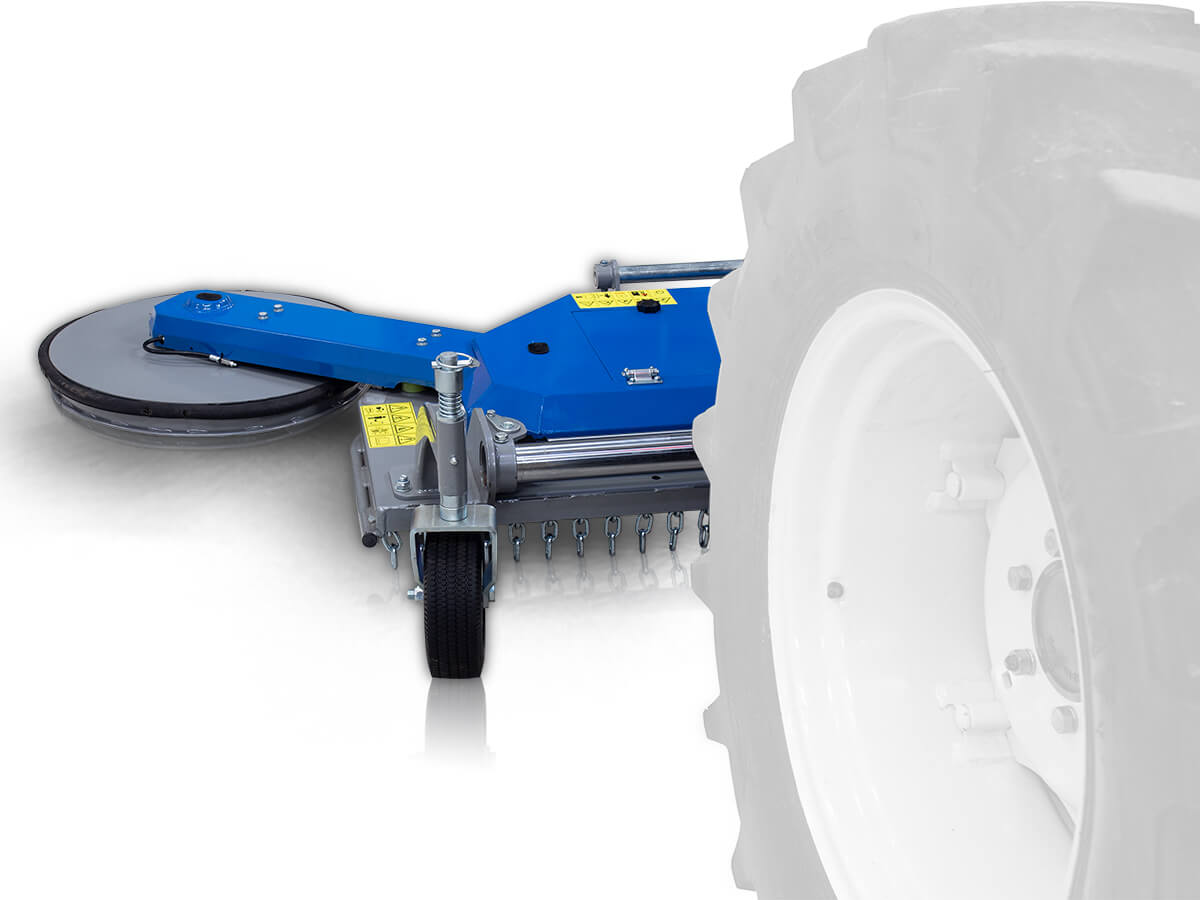

  • Reinforced suction tower with hydraulic side shift on DTS-H.

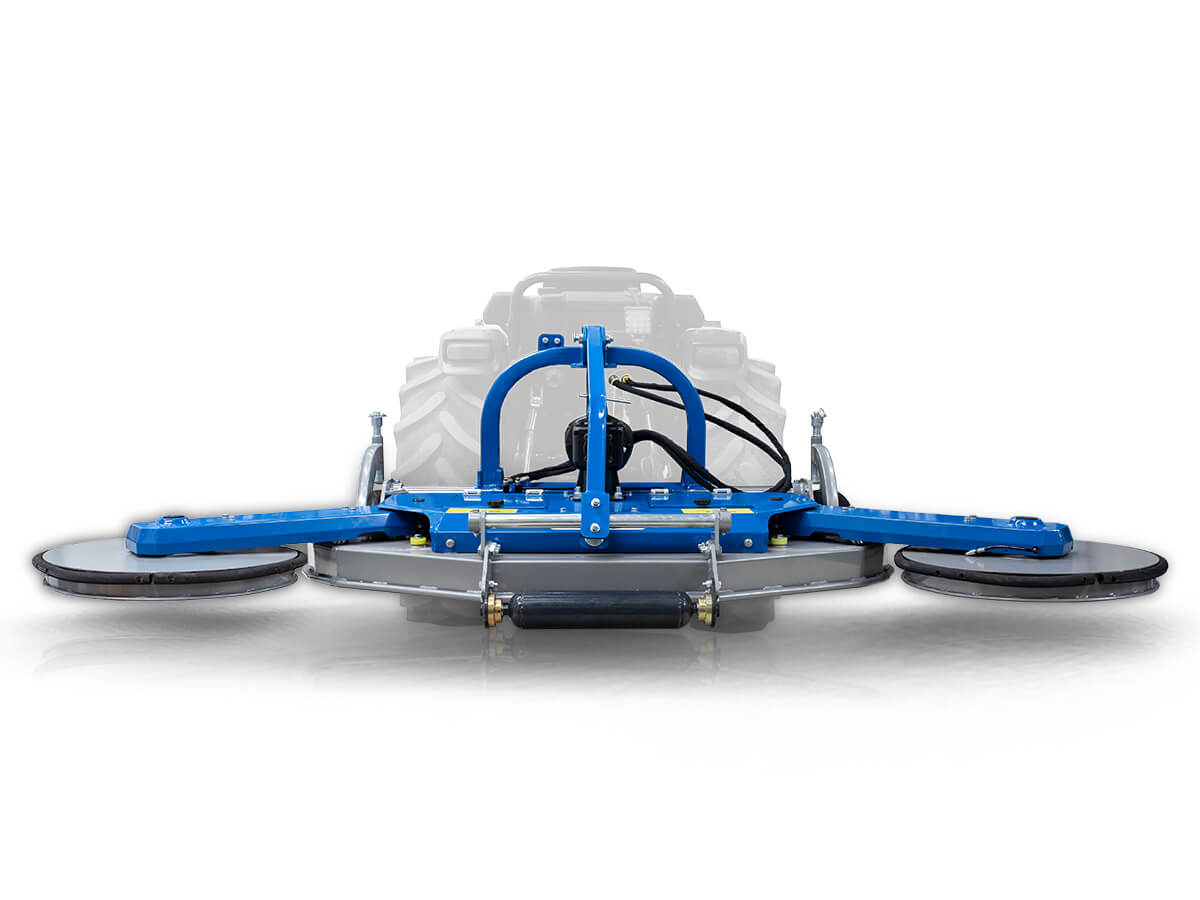

  • Two side hydraulic mowing discs.

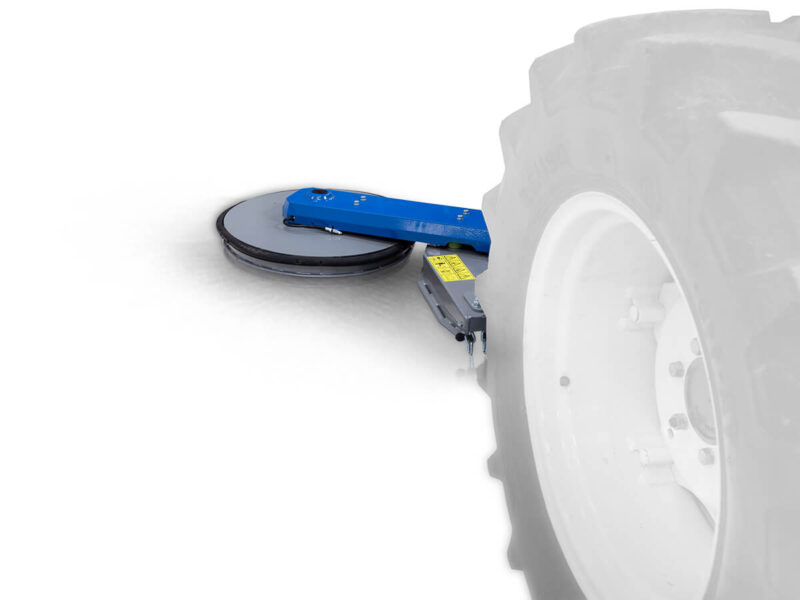

  • Adjust disk recovery speed.
  • Long life bearing.

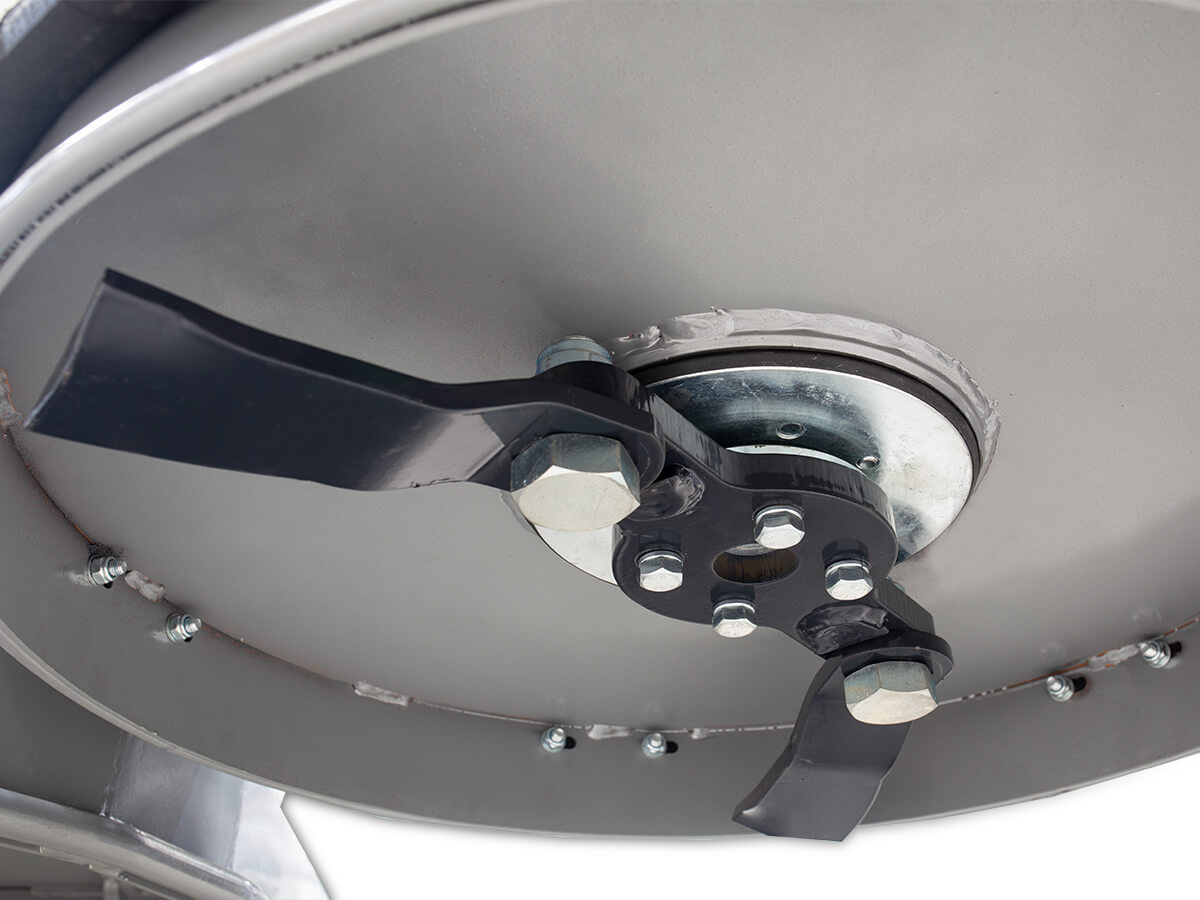

  • Steel knives.
  • Reinforced at all points of stress.

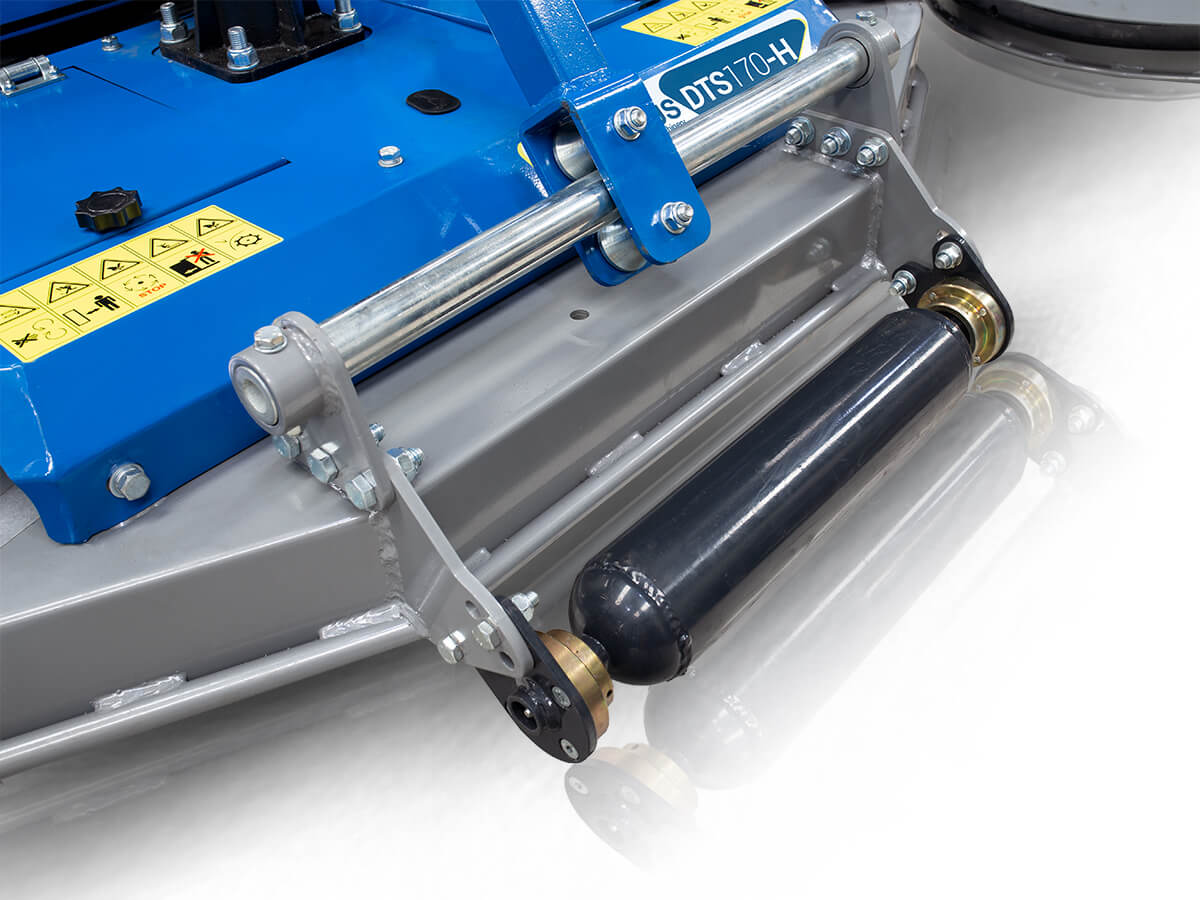

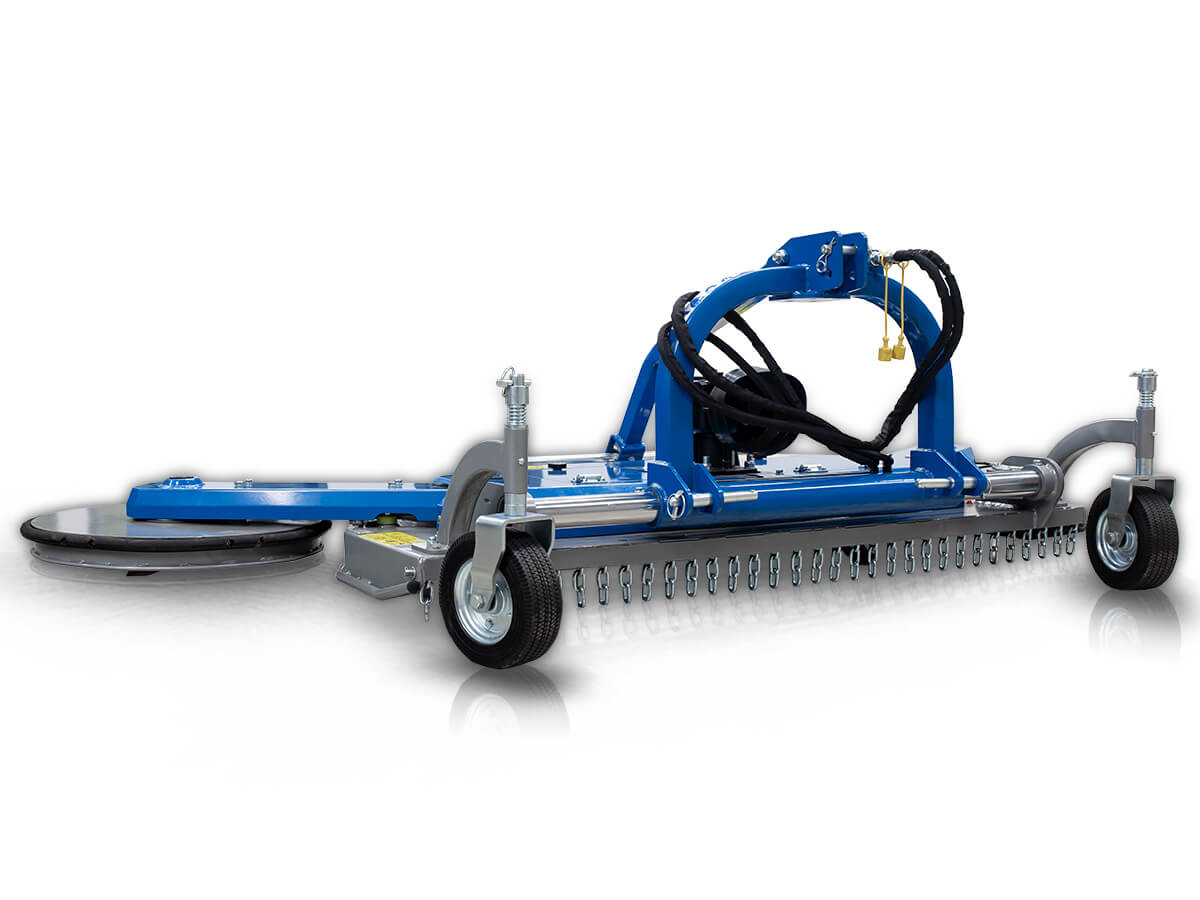

  • Adjustable roller unit.
  • Front protective blade.

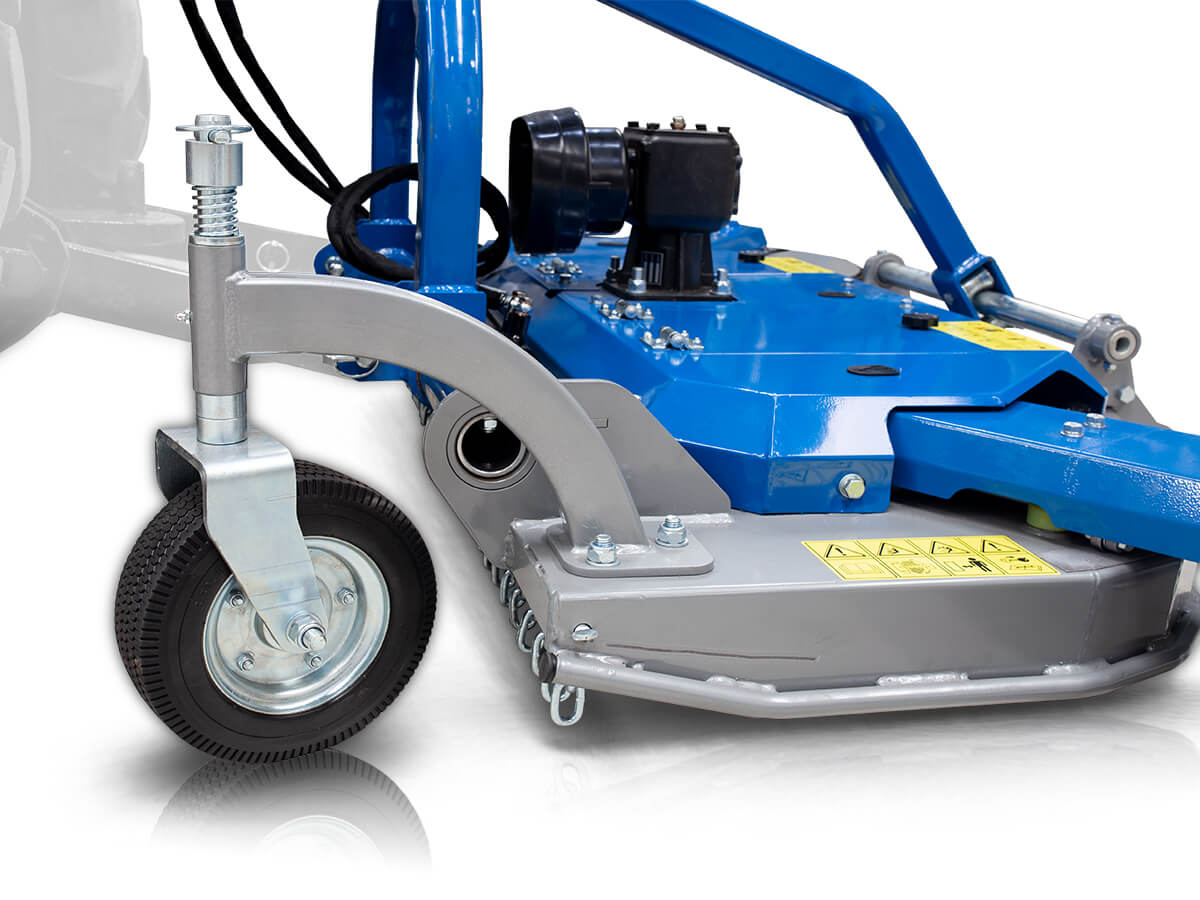

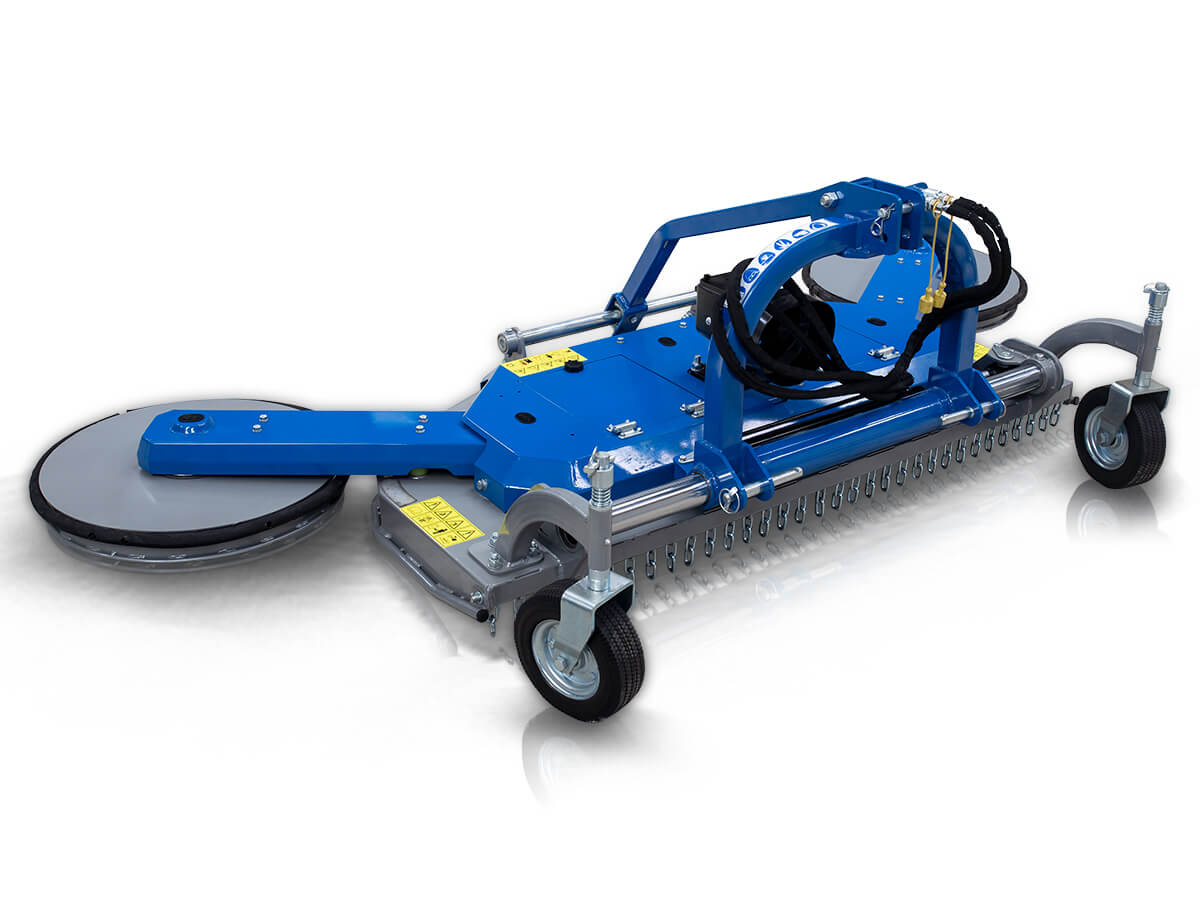

  • Working height adjustment by wheels and roller.
  • Universal 3 points linkage cat. Ι-ΙΙ (o 19.0-22.0mm / 25.0-28.0mm).
  • EC Conformity
Category: Tags: , , , ,

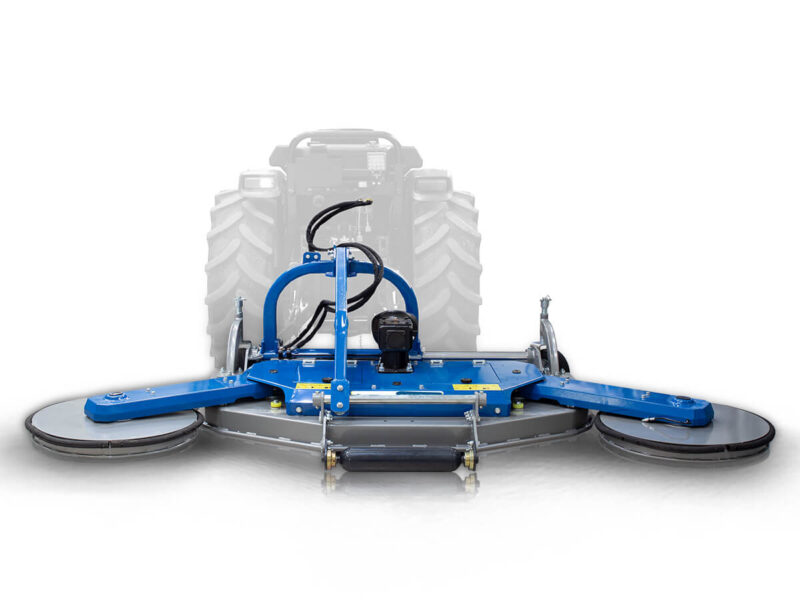

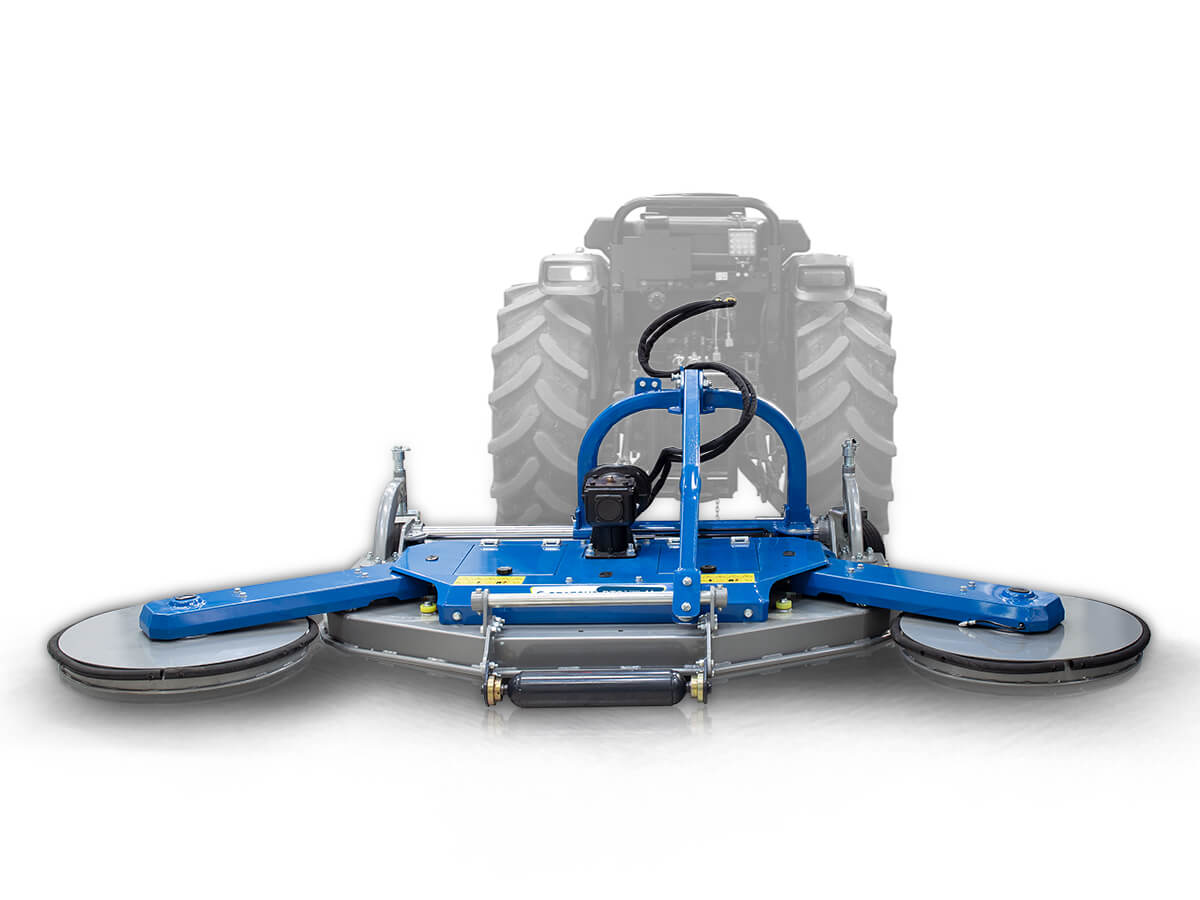

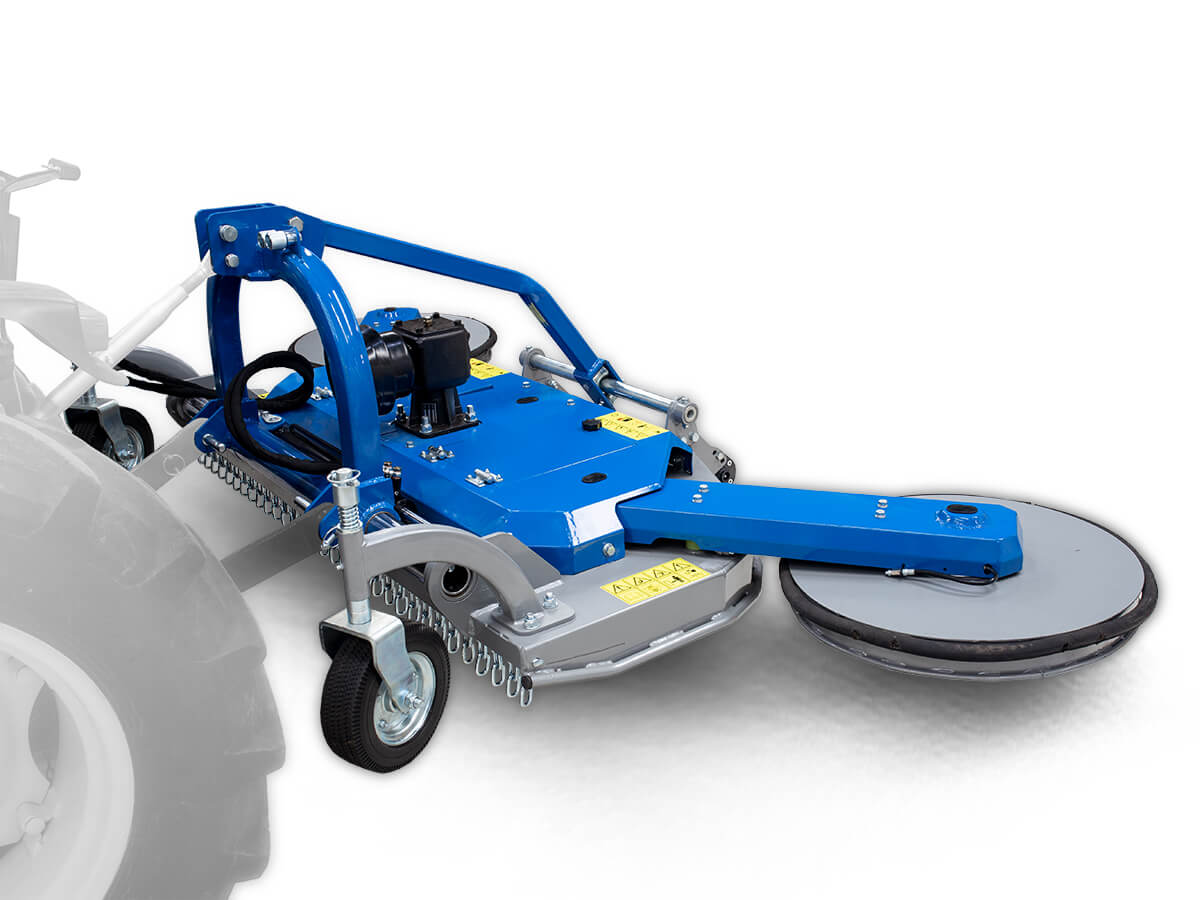

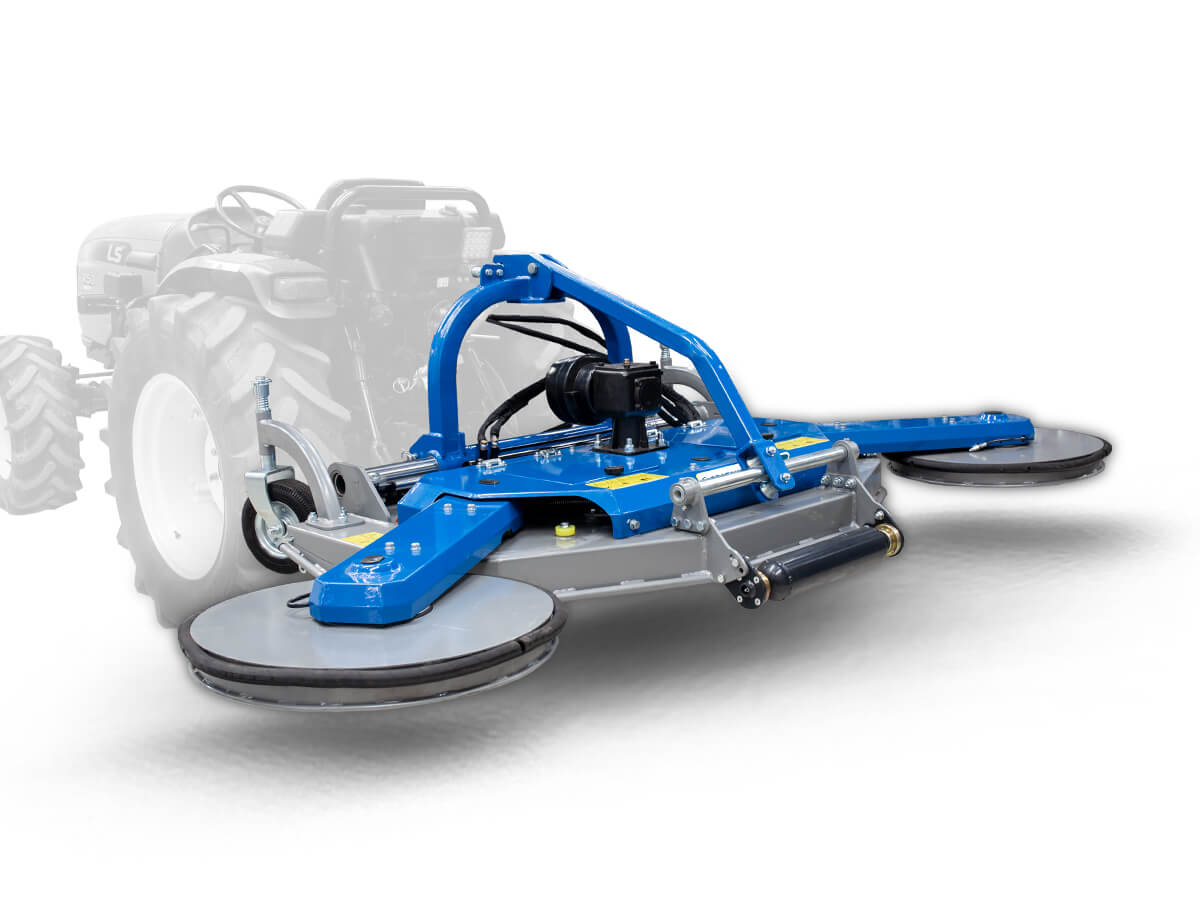

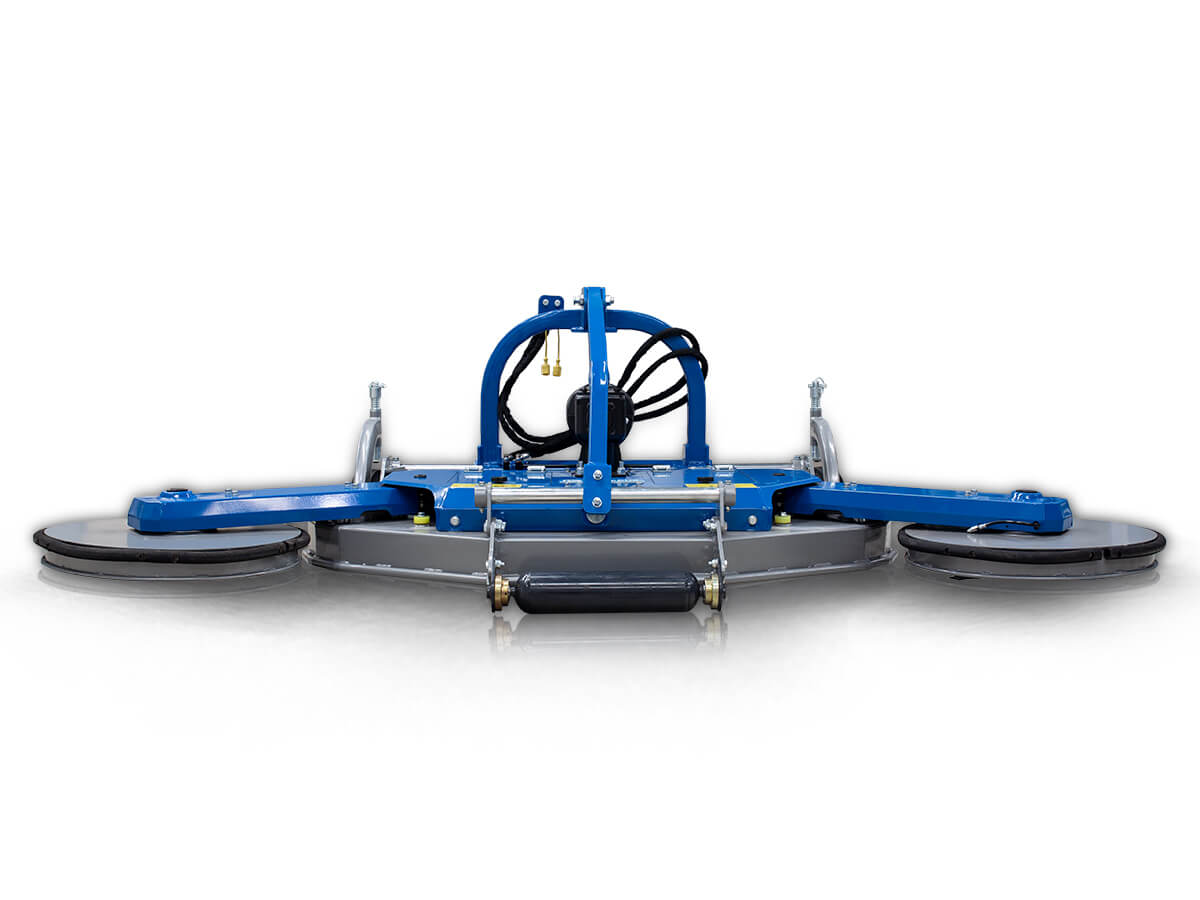

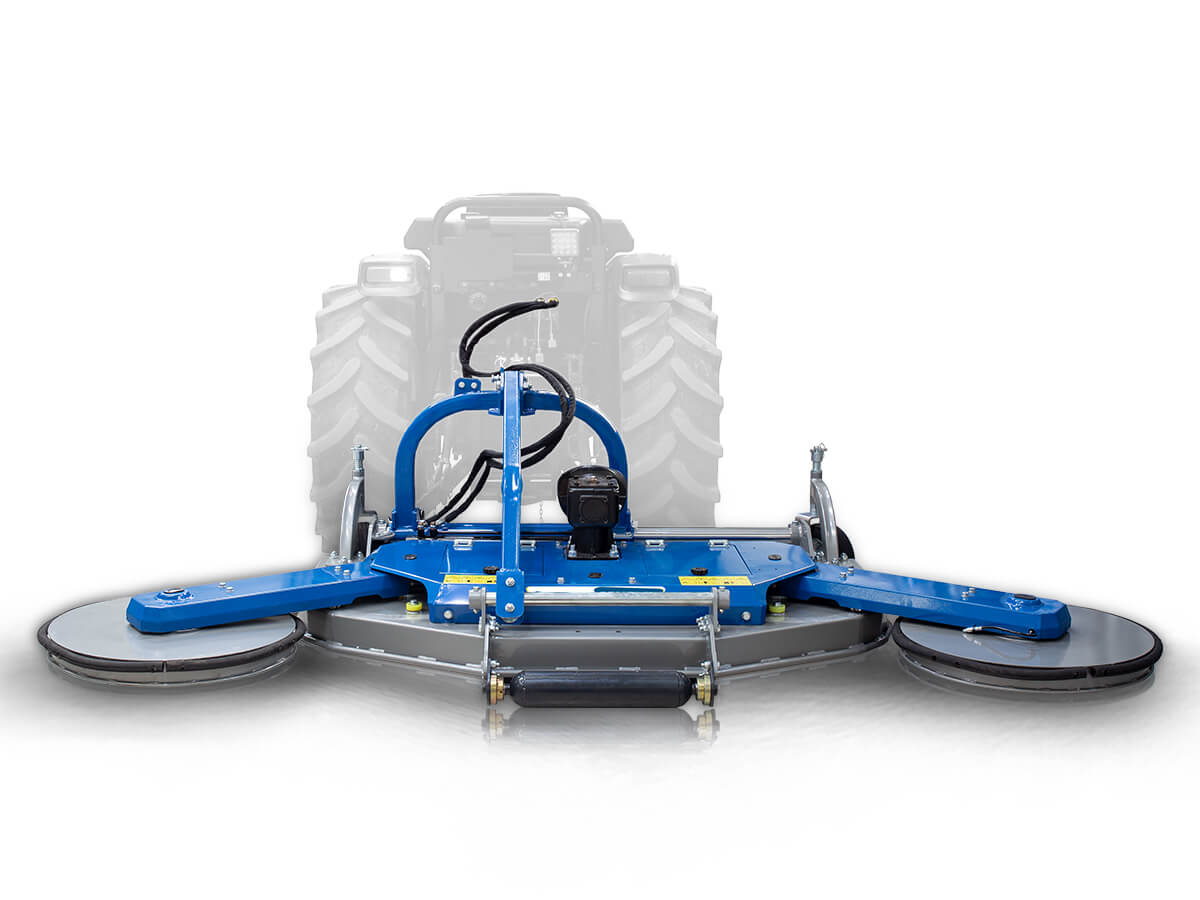

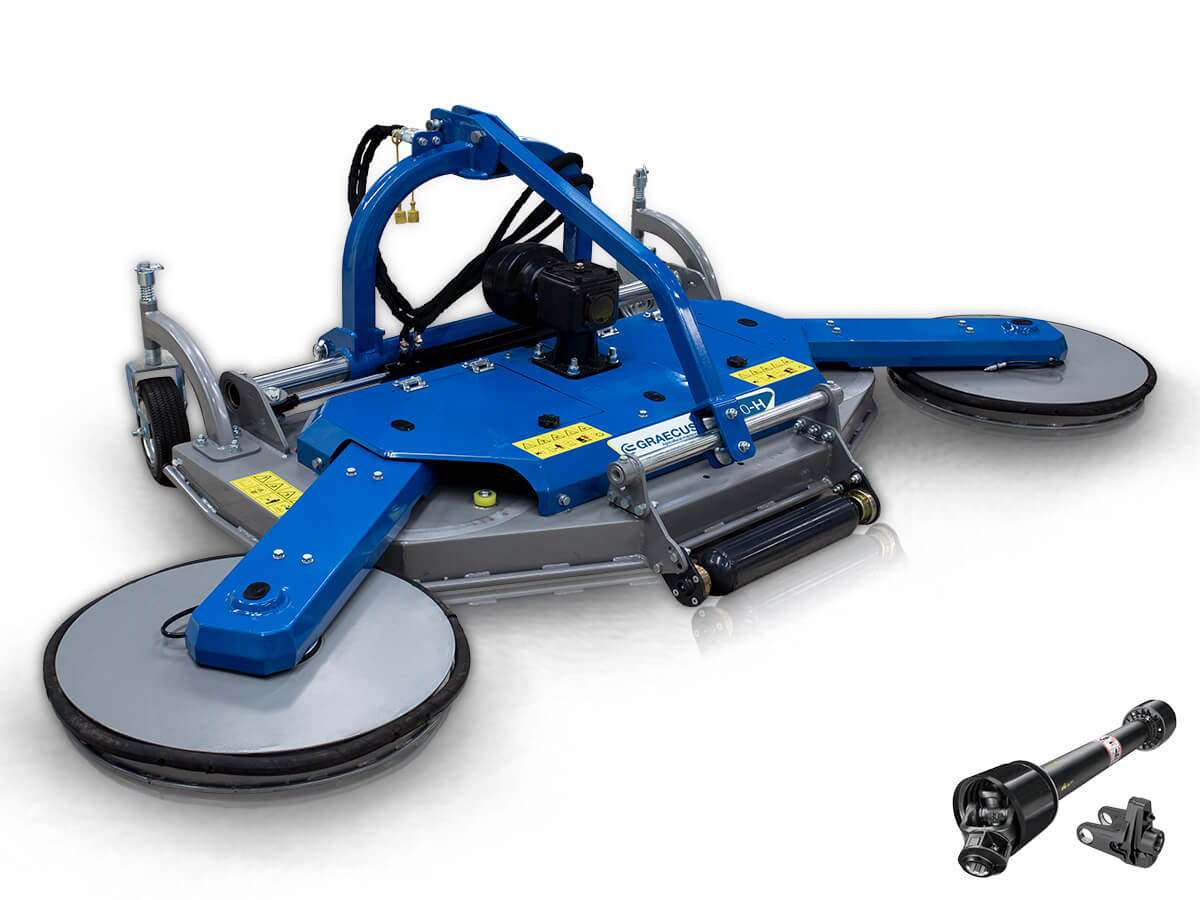

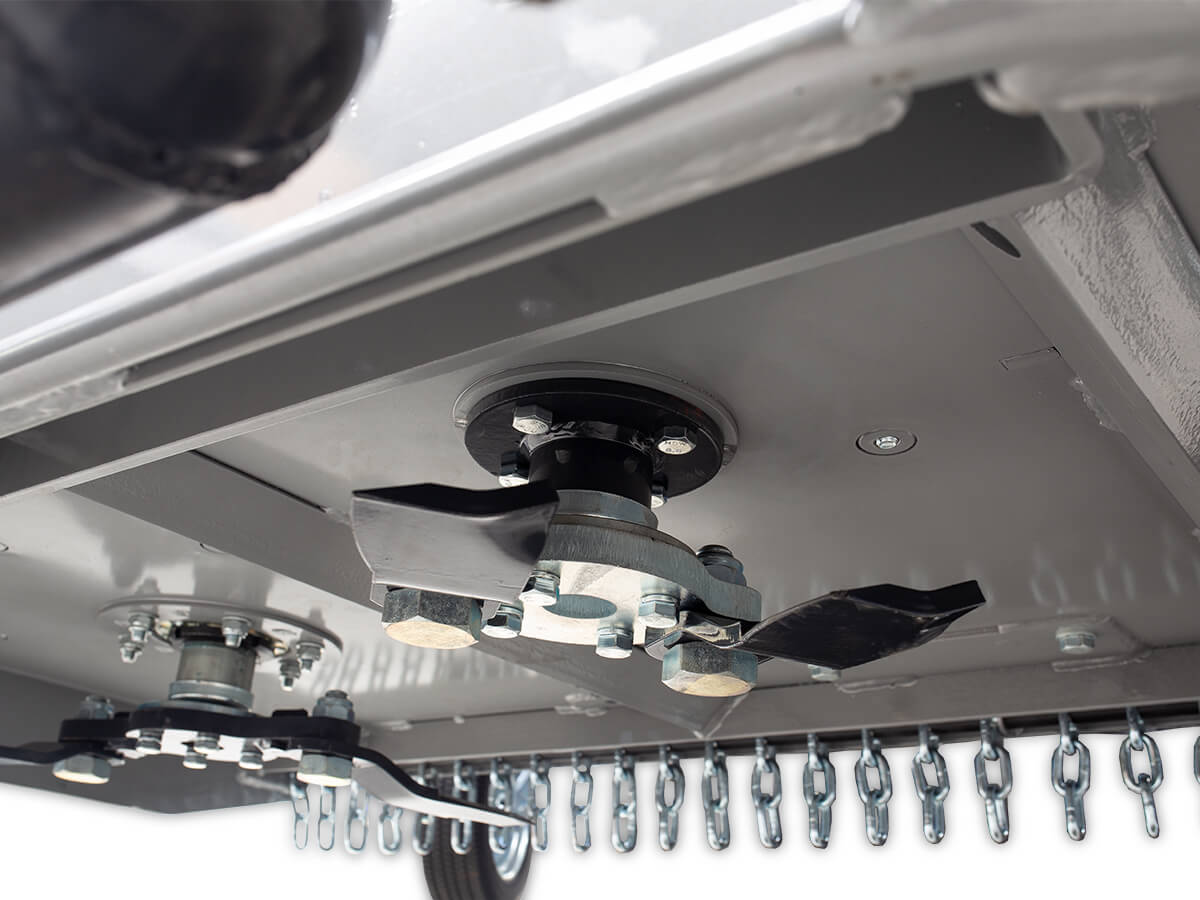

DTS is an innovative mower coupled with 2 autonomous inter-row mowing disks(UFO). Its greatest advantage is that it can cut between roots while not requiring a hydraulic connection to the tractor. The mower functions with a heavy-duty transmission that takes drive from the tractor’s PTO which then powers the 2 knife bases on both UFOs through sturdy v-belts. The cutting height is adjusted by 2 wheels in the front of the machine and a roller at the back. The inter-row mowing disks allow adjusting the recovery speed with a spring. The mower’s working surface is 170cm and the UFO’s 60cm each.

The tractor Mower is ideal for use in vineyards and orchards. It is compatible with most tractor models like: LS, LG, Kubota, New holland, Landini, McCormick, Mitsubishi, Yanmar, John Deere, Same Solaris, CASE, Deutz-Fahr, Lamborghini, Carraro, BCS, Fendt, Ferrari, Goldoni, Arbos, Hurliman, Massey Ferguson, Pasquali, Valpadana, Zetor, Ursus, Kioti, Iseki, Solis, Branson and more.
