DIESEL GENERATOR silent with automatic starting system GD

  • Heavy-duty water-cooled diesel engine and brushless alternator.
  • Solid steel base frame with 8-10 hours base tank on 75% load and anti-vibration mountings.
  • Smartgen American AMF Control panel with digital-automatic main control module.
  • ABB Swiss electric breakers.
  • 50 °C Tropical radiator.
  • Battery charge redressor. Lead acid battery.
  • Special design for minimizing acoustic level.
  • Galvanized steel construction further protected by polyester powder coat paint.
  • Galvanized finish stainless steel locks and hinges.
  • Control panel viewing window in a lockable access door.
  • Emergency stop push button (red) mounted on enclosure exterior.
  • Lifting, drag and jacking points on base frame.
  • Radiator fill via removable, flush mounted rain cap fitted with compression seal.
  • It can carry out functions of automatic start/stop, data measurement, alarm protection and three remote functions (remote control, remote measure and remote communication).
  • The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.
  • EC Conformity.
Category: Tags: , , , ,



GD15 GD23 GD28 GD36 GD47 GD55 GD65 GD74 GD96 GD117
Genset Power 15 kva 23 kva 28 kva 36 kva 47 kva 55 kva 65 kva 74 kva 96 kva 117 kva
Rated Voltage 220/380 V
Rated Current 20 Α 36 Α 36 Α 50 A 62 A 72 A 84 A 98 A 126 A 152 A
Rated Frequency 50 hz
Rated Speed 1500 rpm
Fuel Type Diesel
Length 2100 mm 2200 mm 2300 mm 2600 mm 3000 mm
Width 850 mm 900 mm 950 mm 950 mm 1000 mm 1100 mm 1200 mm
Height 1200 mm 1250 mm
Weight 700 kg 830 kg 860 kg 960 kg 1000 kg 1200 kg 1230 kg 1260 kg 1500 kg 1600 kg
Steady-state Voltage Regulation ≤±0,5%
Voltage Fluctuation Rate ≤±1%
Instantaneous Voltage Regulation ±15%
Voltage Stable Time ≤1S
Steady-state Frequency Regulation ≤1%
Frequency Fluctuation Rate ≤0,5%
Instantaneous Frequency Regulation ±10%
Frequency Stable Time ≤1S
Noise <72 dB(A) στα 7m
Fuel tank Capacity 48 L 60 L 68 L 75 L 86 L 110 L 124 L 145 L 189 L 235 L
Engine Technical Data
Brand YTO
Model YD480D YSD490D Y490D Y4102D Y4110D Y4102ZLD Y4105ZLD YD4EZLD Y4110ZLD LR4M3L-D
Cylinders 4
Engine Power 19 hp 28 hp 32 hp 44 hp 58 hp 64 hp 74 hp 85 hp 107 hp 134 hp
Bore Stroke 80*90 90*100 90*105 102*118 110*118 102*118 105*118 105*118 110*118 110*125
Displacement 1.809 L 2.54 L 2.67 L 3.875 L 4.4 L 3.875 L 4.1 L 4.1 L 4.4 L 4.75 L
Starting Mode Electric Starting
Cooled Method Water-Cooled
Type In-line, 4-χρονος, 50Hz, 1500rpm
Pump Type MECH Governor Electric Governor
Air intake Mode Naturally Aspirated Turbo
Combustion Method Direct – Injection
Flywheel Size SAE7.5″ SAE10″ / SAE11.5
Fuel Consumption at 25% of generator set prime output 1.50 l/h 1500rpm  ||  1.93 l/h 1800rpm 1.68 l/h 1500rpm  ||  2.22 l/h 1800rpm 2.94 l/h 1500rpm  ||  2.96 l/h 1800rpm 2.70 l/h 1500rpm  ||  3.09 l/h 1800rpm 4.58 l/h 1500rpm  ||  5.08 l/h 1800rpm 4.04 l/h 1500rpm  ||  4.57 l/h 1800rpm 4.62 l/h 1500rpm  ||  5.15 l/h 1800rpm 5.30 l/h 1500rpm  ||  6.03 l/h 1800rpm 6.73 l/h 1500rpm  ||  7.74 l/h 1800rpm 7.02 l/h
Fuel Consumption at 50% of generator set prime output 2.46 l/h 1500rpm  ||  2.79 l/h 1800rpm 2.68 l/h 1500rpm  ||  3.32 l/h 1800rpm 4.32 l/h 1500rpm  ||  4.38 l/h 1800rpm 4.53 l/h 1500rpm  ||  4.94 l/h 1800rpm 6.21 l/h 1500rpm  ||  3.91 l/h 1800rpm 6.81 l/h 1500rpm  ||  7.29 l/h 1800rpm 7.79 l/h 1500rpm  ||  8.22 l/h 1800rpm 8.92 l/h 1500rpm  ||  9.61 l/h 1800rpm 11.33 l/h 1500rpm  || 12.35 l/h 1800rpm 11.07 l/h
Fuel Consumption at 75% of generator set prime output 3.08 l/h 1500rpm  ||  3.90 l/h 1800rpm 3.64 l/h 1500rpm  ||  4.40 l/h 1800rpm 5.19 l/h 1500rpm  ||  5.22 l/h 1800rpm 6.12 l/h 1500rpm  ||  6.90 l/h 1800rpm 8.23 l/h 1500rpm  ||  9.16 l/h 1800rpm 9.19 l/h 1500rpm  ||  10.17 l/h 1800rpm 10.52 l/h 1500rpm  ||  11.48 l/h 1800rpm 12.05 l/h 1500rpm  ||  13.42 l/h 1800rpm 14.64 l/h 1500rpm  ||  16.82 l/h 1800rpm 14.67 l/h
Fuel Consumption at 100% of generator set prime output 3.79 l/h 1500rpm  ||  4.51 l/h 1800rpm 4.90 l/h 1500rpm  ||  5.71 l/h 1800rpm 5.78 l/h 1500rpm  ||  6.20 l/h 1800rpm 8.04 l/h 1500rpm  ||  9.04 l/h 1800rpm 10.82 l/h 1500rpm  ||  10.09 l/h 1800rpm 11.84 l/h 1500rpm  ||  13.09 l/h 1800rpm 13.24 l/h 1500rpm  ||  14.49 l/h 1800rpm 15.18 l/h 1500rpm  ||  16.90 l/h 1800rpm 18.84 l/h 1500rpm  ||  21.23 l/h 1800rpm 20.16 l/h

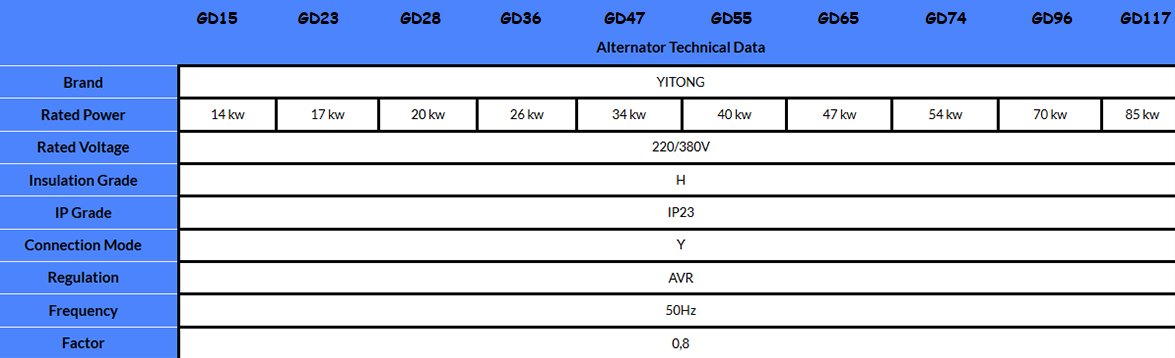

Alternator Technical Data
Brand YITONG
Rated Power 14 kw 17 kw 20 kw 26 kw 34 kw 40 kw 47 kw 54 kw 70 kw 85 kw
Rated Voltage 220/380V
Insulation Grade H
IP Grade IP23
Connection Mode Y
Regulation AVR
Frequency 50Hz
Factor 0,8
